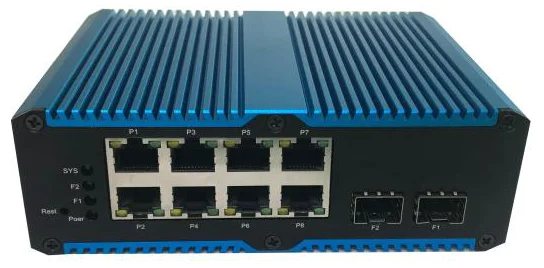

Managed Industrial Gigabit Ethernet Switch

Ø 8*10/100/1000Base-T (RJ45) + 2*1000Base-X (SFP)

Ø 802.1Q VLAN, port VLAN

Ø Port rate limiting with 8Kbps step

Ø Broadcast/multicast/DLF storm control

Ø IEEE802.1w RSTP

Ø WEB management, SNMP V1/V2c/V3

Ø Optional POE, IEEE 802.3.af/at standard

Ø Dual DC power supply

Ø Level 3 EMC protection

Ø IP40 metal case

Ø Fanless design

Ø Working Temperature:-40°C~+85°C

Network Standard:

IEEE 802.3 10Base-T

IEEE 802.3u 100Base-T

IEEE 802.3ab 1000Base-T

IEEE 802.3z 1000Base-X

Switch Technical:

MTU: 9K bytes

MAC table: 4K

Packet forwarding rate: 8.928Mpps

VLAN: port VLAN,802.1Q

VLAN range:4K

VLAN port type: Access/Trunk/Hybrid

Port rate limiting:0~1G, 8Kbps step

RSTP: IEEE802.1w

Storm Control: Broadcast/multicast/DLF

Interface:

Optical port: 2 1000Base-X (SFP)

Ethernet port: 8 10/100/1000Base-T (RJ45, POE optional)

LED Indicators:

Power:PWR

Ethernet port:RJ45(Link&ACT),Fiber(Link&ACT)

Management:

Management mode: WEB, SNMP

Configuration management: backup and restore

User management: password modification

Upgrade management: via WEB

Maintenance:DDM, port traffic statistics, dying gasp

Machinery Standard:

IEC60068-2-6 (Vibration)

IEC60068-2-27 (Shock)

IEC60068-2-32 (Free Fall)

EMC standard:

EMI:

FCC CFR47 Part 15, EN55022/CISPR22, Class A

EMS:

IEC61000-4-2 (ESD): level 4

IEC61000-4-3 (RS): level 3

IEC61000-4-4 (EFT): level 4

IEC61000-4-5 (Surge): level 4

IEC61000-4-6 (CS): level 3

IEC61000-4-16 (Common mode conduction):  level 3

Physical:

Housing: Metal, fanless

Protection class: IP30

Dimensions: 49mm x 148mm x109mm(W×H×D)

Weight: 0.65kg

Mounting: DIN-Rail

Power:

Connector: 4-pin 5.08mm-spacing plug-in terminal block

Voltage range:  12-36V DC (non-POE type)

48-55V DC (POE type)

Power consumption: < 6W

Protection: overload, Reverse polarity Connection, redundant

POE (optional): IEEE 802.3.af : Supported 15.4W/port

IEEE 802.3.at: Supported 30W/port

Certifications: CE, FCC, RoHS

MTBF: 360,000 hrs

Warranty: 5 years

Environment:

Operating Temperature: -30 to 75°C

Storage Temperature: -45 to 85°C

Ambient Relative Humidity: 5 to 95% (non-condensing)

Power input:

Din-Rail

Earthing:
