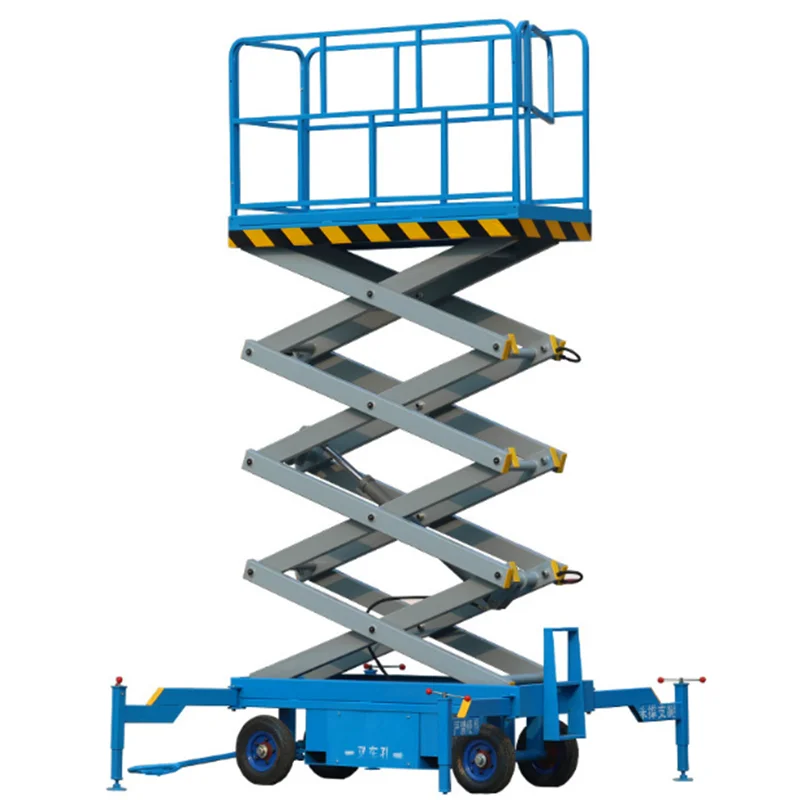

QYCY0.5-6m 500kg High quality Movable Scissor Lift Platforms
Product Description
Applicable place: site, workshop, warehouse, station, hotel, airport, wharf, gas station, stadium, elevated pipeline and other high-altitude equipment installation, maintenance and cleaning, can also be used for lifting equipment maintenance, field electric equipment maintenance, steel structure plant maintenance.

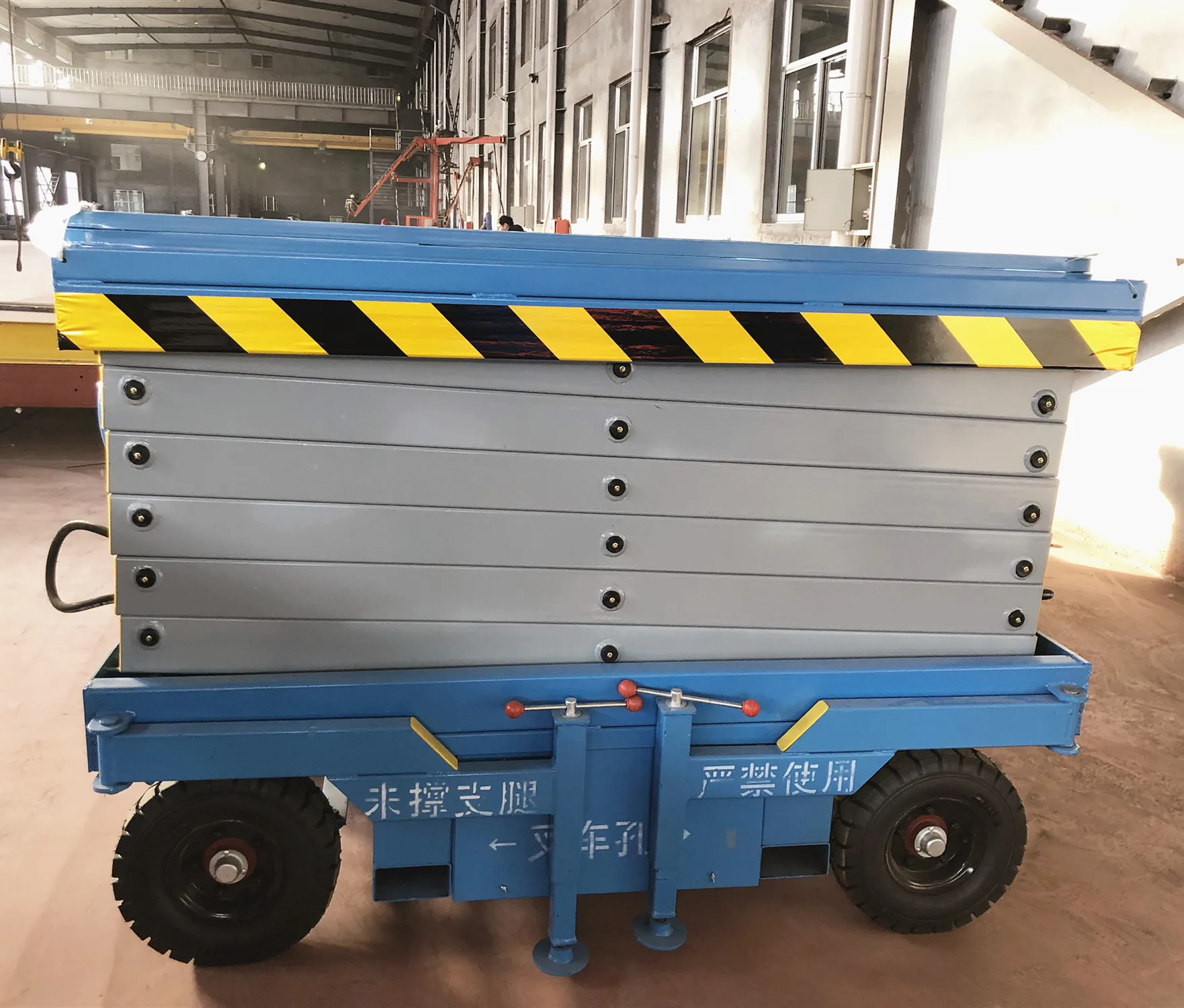

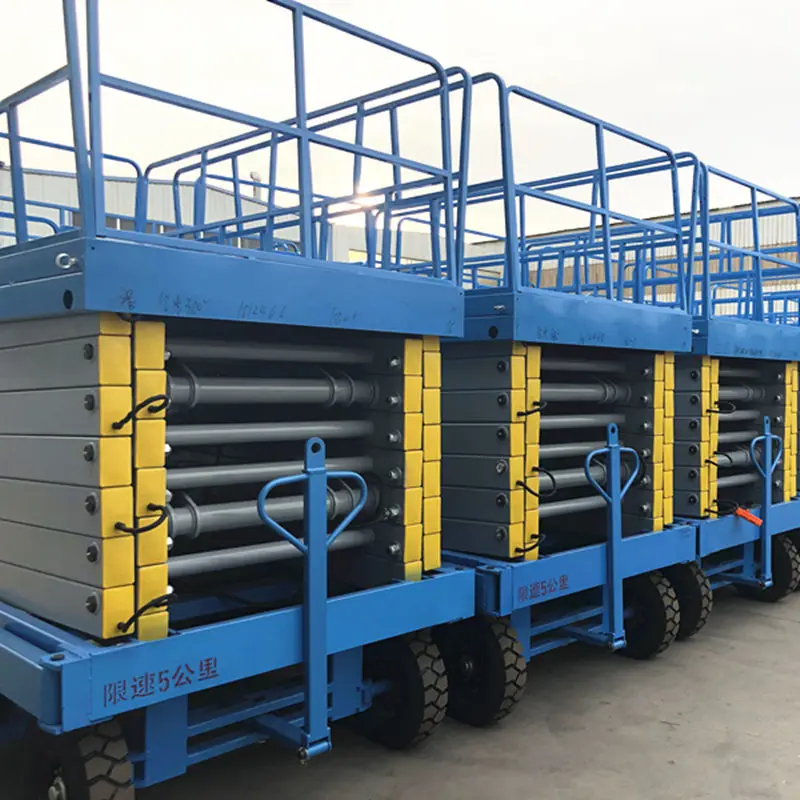

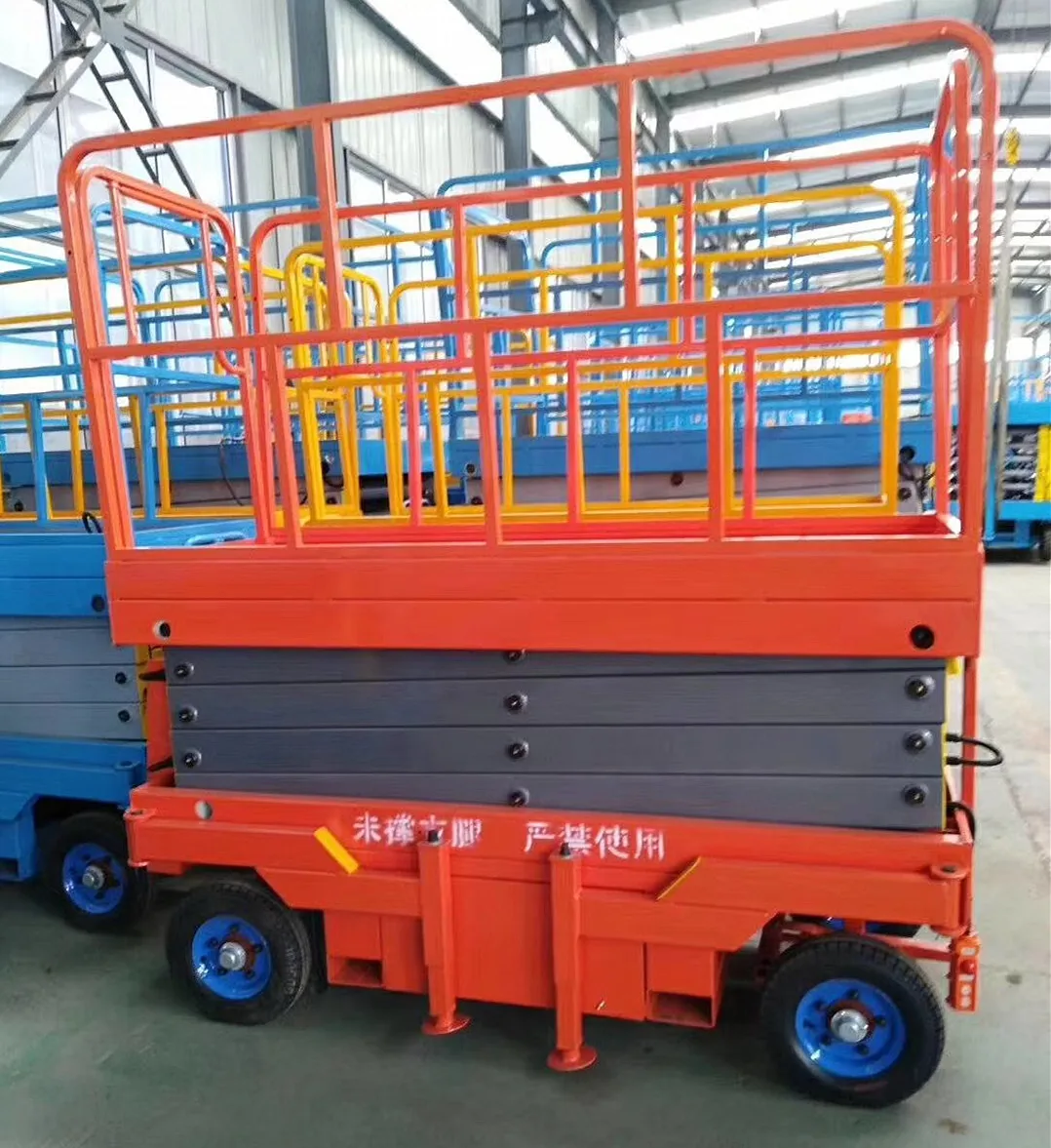

QYCY0.5-6m 500kg High quality Movable Scissor Lift Platforms used to lift workers to high place for repairs, maintenance, cleaning or installation and so on. You can move it easily to the right working area. The Mobile Scissor Lift can be also equipped with battery. With the battery, you don't need to connect AC power, and you can let the mobile scissor lift at some work areas without power. Also, this type of mobile scissor lift can be installed with the driven wheel to move it by hands without any hardness.
- Scissor Aerial Work Platform Features: lifting mechanism of high-strength
- Manganese steel rectangular tube production. With a safety device to prevent

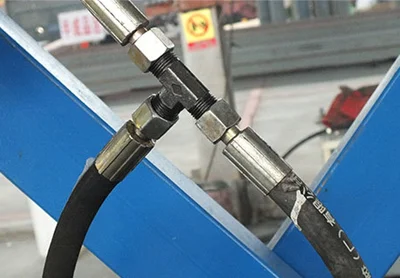

- Overloading of the lift. Provided to prevent hydraulic line rupture safety
- Protection valve. Emergency lowering device in case of a power outage.
QYCY0.5-6m 500kg High quality Movable Scissor Lift Platforms
Product Size
| Model | Platform Dimension (mm) | Load (Kg) | Lifting height (m) | Overall dimensions (mm) | Overall weight (Kg) |
| QYCY0.5-6 | 2100*830 | 500 | 6 | 2250*950*1200 | 880 |
| QYCY0.5-7 | 2100*830 | 500 | 7 | 2250*950*1280 | 970 |
| QYCY0.5-8 | 2100*930 | 500 | 8 | 2250*1060*1380 | 1050 |
| QYCY0.5-9 | 2100*930 | 500 | 9 | 2250*1060*1500 | 1165 |
| QYCY0.5-10 | 2100*1230 | 500 | 10 | 2250*1350*1530 | 1360 |
| QYCY0.5-11 | 2100*1230 | 500 | 11 | 2250*1350*1650 | 1400 |
| QYCY0.5-12 | 2550*1530 | 500 | 12 | 2796*1670*1750 | 2260 |
| QYCY0.5-14 | 2812*1530 | 500 | 14 | 3067*1730*1810 | 2486 |
| QYCY0.5-20 | 3500*1800 | 500 | 20 | 4000*2300*2400 | 5500 |
| QYCY0.3-16 | 2812*1600 | 300 | 16 | 3067*1810*2080 | 3063 |
| QYCY0.3-18 | 3070*1600 | 300 | 18 | 3321*1810*2080 | 3900 |
| QYCY1.0-4 | 2100*1200 | 1000 | 4 | 2250*1350*1180 | 1250 |
| QYCY1.0-6 | 2100*1200 | 1000 | 6 | 2250*1350*1300 | 1400 |
| QYCY1.0-8 | 2100*1200 | 1000 | 8 | 2250*1350*1420 | 1585 |
| QYCY1.0-10 | 2100*1200 | 1000 | 10 | 2250*1350*1530 | 1700 |
| QYCY1.0-12 | 2550*1530 | 1000 | 12 | 2796*1670*1750 | 2560 |
| QYCY1.0-14 | 2812*1600 | 1000 | 14 | 3067*1810*1900 | 3230 |
| QYCY1.5-6 | 2100*1530 | 1500 | 6 | 2250*1750*1530 | 1780 |
| QYCY1.5-8 | 2100*1530 | 1500 | 8 | 2250*1750*1690 | 2070 |
| QYCY1.5-10 | 2100*1530 | 1500 | 10 | 2250*1750*1850 | 2250 |
| QYCY1.5-12 | 2550*1530 | 1500 | 12 | 2796*1762*1850 | 2900 |
| QYCY1.5-14 | 2816*1600 | 1500 | 14 | 3045*1852*1960 | 3400 |
| QYCY2.0-6 | 2100*1530 | 2000 | 6 | 2250*1750*1530 | 1780 |
| QYCY2.0-8 | 2100*1530 | 2000 | 8 | 2250*1750*1690 | 2070 |
| QYCY2.0-10 | 2100*1530 | 2000 | 10 | 2250*1750*1850 | 2250 |
| QYCY2.0-12 | 2550*1600 | 2000 | 12 | 2796*1852*1954 | 3200 |
| QYCY2.0-14 | 2816*1600 | 2000 | 14 | 3067*1852*2230 | 3900 |
Features
Company Information

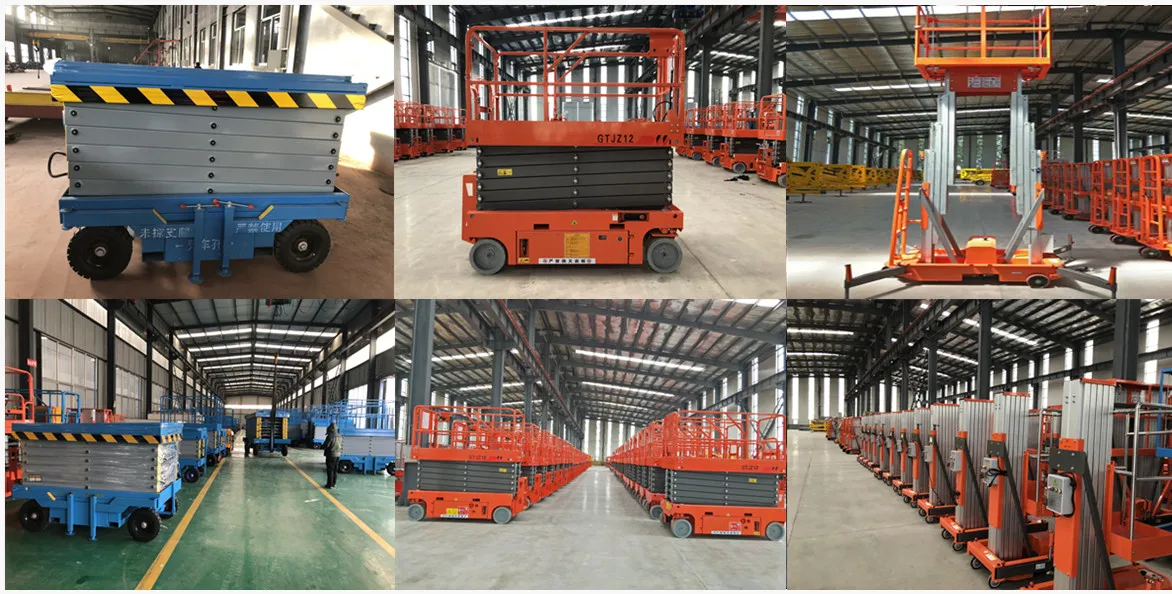

Shanghai Ruibiao Construction Machinery Co., Ltd.
The company is a professional manufacturer of hydraulic lifting platforms, hydraulic lifts, boarding bridges and other series of mechanical products. Since its establishment, the company has been continuously pursuing technological progress and dedicating to product innovation.
The company's products have a total of eight series of more than 60 products, the leading products are QYCY series of scissors lifting platform, GTJZ series of automatic scissors lifting platform.
All the products of the company are in line with national industry standards, and have been greatly recognized by the national metallurgical industry, railway system, China Petroleum, Iron and Steel Group and other units.
At the same time, we can also customize special lifting platforms according to the needs of customers to meet customers in various fields. We adhere to the integrity, professionalism, innovative spirit, product quality to achieve the future, adhere to research and development, learn from foreign advanced technology and process experience, and constantly improve and improve technology and process level to meet the different needs of customers.
