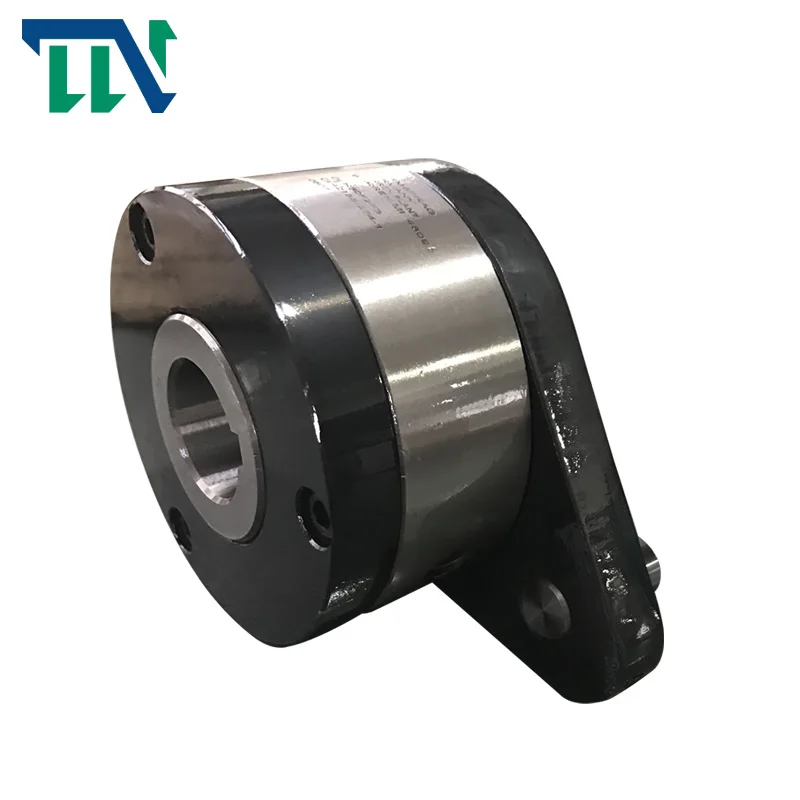

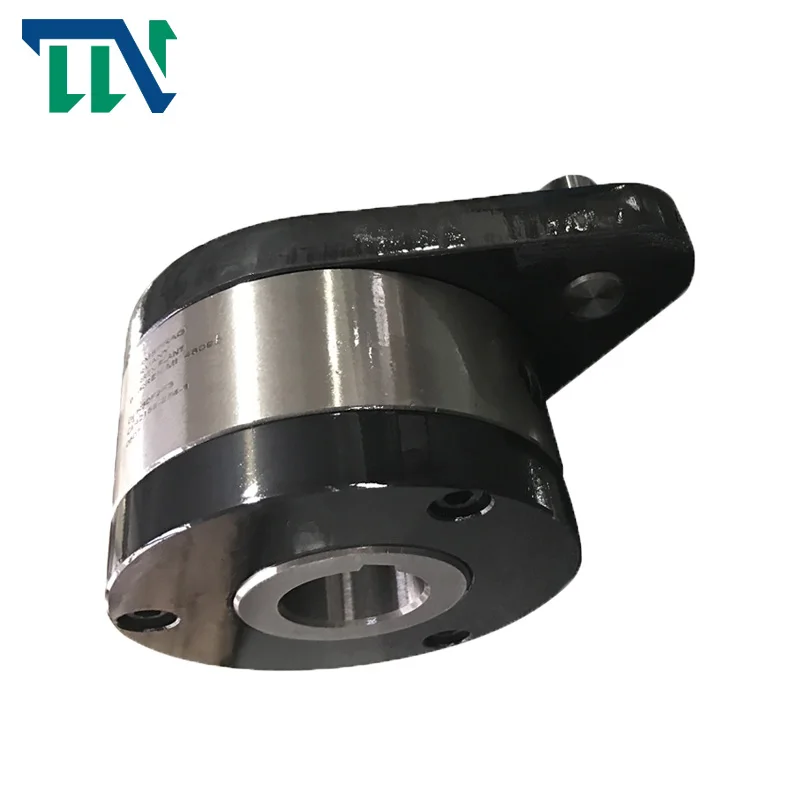

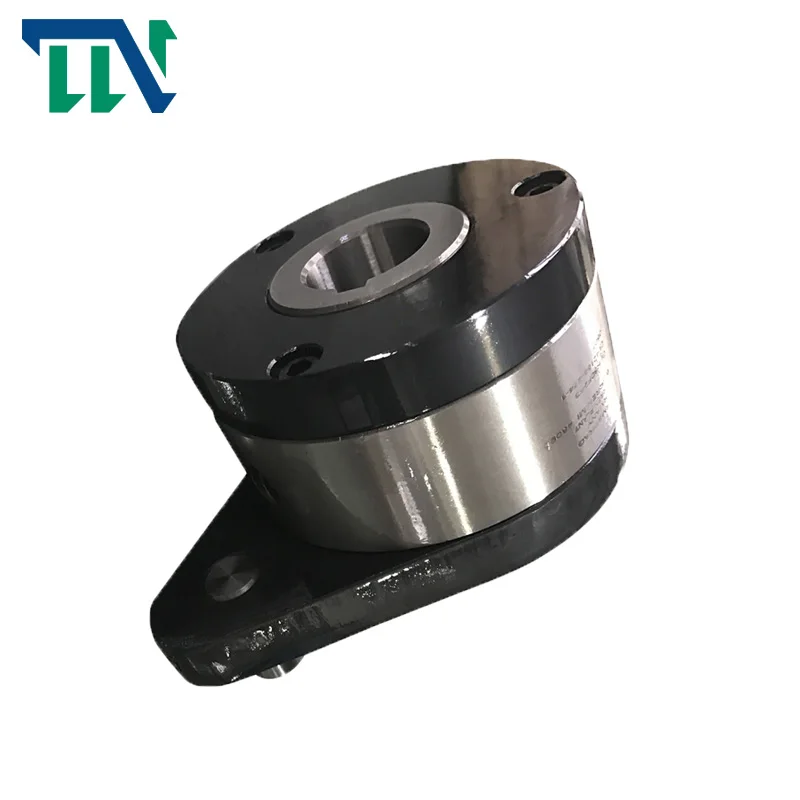

GFR80 F2F3 F3F4 One Way Roller Type Backstop Clutch Cam Freewheel Bearing

GFR80 F2F3 F3F4 One Way Roller Type Backstop Clutch Cam Freewheel Bearing

Category: Other Bearings >>>
Supplier: Changzhou Tianniu Transmission Equipment Co. Ltd.

Price:RUB 37,593.62

Quantity:

Product Overview

Description

.jpg

Product Description

Technical Datas

Item	GFR F2F3 F3F4
Inner dia.	12-150 mm
Outer dia.	62-400 mm
Width	42-246 mm
Torque	55-70000 Nm
Weight	1.4-214 kg
Port	Shanghai;Ningbo
Delivery time	10-15 days
Package	wooden package, carton package,etc
Application	Conveyer, Electric Motor,Bucket elevator,etc

Dimensions and Capacities


Type	Size		Overrunning speed												Weight
GFR..F2-F3 GFR..F3-F4	dH7	TKN1)	nimax2)	D	D2	C	L 1	L2	L3	L4	F	E	L5	f
	[mm]	[Nm]	[min-1]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[kg]
	12	55	3100	62	20	10	42	64	10	13	59	44	6	0.5	1.4
	15	125	2800	68	25	10	52	78	10	13	62	47	10	0.8	1.8
	20	181	2400	75	30	12	57	82	11	15	72	54	10	0.8	2.3
	25	288	1600	90	40	16	60	85	14	18	84	62	10	1	3.4
	30	500	1300	100	45	16	68	95	14	18	92	68	10	1	4.5
	35	725	1200	110	50	20	74	102	18	25	102	76	12	1	5.6
	40	1025	850	125	55	20	86	115	18	25	112	85	12	1.5	8.5
	45	1125	740	130	60	25	86	115	22	25	120	90	12	1.5	8.9
	50	2125	580	150	70	25	94	123	22	25	135	102	12	1.5	12.8
	55	2625	550	160	75	32	104	138	25	30	142	108	15	2	16.2
	60	3500	530	170	80	32	114	147	25	30	145	112	15	2	19.3
	70	5750	500	190	90	38	134	168	30	35	175	135	16	2.5	23.5
	80	8500	480	210	105	38	144	178	30	35	185	145	16	2.5	32
	90	14500	450	230	120	50	158	192	40	45	205	155	16	3	47.2
	100	20000	350	270	140	50	182	217	40	45	230	180	16	3	76
	130	31250	250	310	160	68	212	250	55	60	268	205	18	3	110
	150	70000	200	400	200	68	246	286	55	60	325	255	20	4	214

Notes:

1) T max = 2 × T KN

2) Inner race overruns
3) Outer race overruns

Mounting Example

$I}WI]IK8Q{9({Z(ROMIJX_U.png$

Product Display

GFR30 F2F3.jpg

Production Flow

Packaging & Shipping

2packing

Certifications

Company Information

Clients Visit

.jpg

.jpg

FAQ

Q: Why do we choose your company?

A: Quality is the soul of an enterprise. We can provide you with good-quality one way clutches also with good price.

Q: What is the delivery time?

A: For small quality or samll size of clutches, we can deliver upon receiving advance.

For large quantity or large size, we have to produce 10-15 working days.

Q: Can you supply with sample clutch?

Of course! We can provide with a sample to your checking quality.

Q: What is the warranty period of the clutches?

One-year Guarantee.
