multi function automatic stick bag 12 lanes coffee milk pharmaceutical powder sachet filling packing machine
- Category: >>>
- Supplier: Foshan Kenhigh Smart Machinery Equipment Co. Ltd.
Share on (62127684191):
Product Overview
Description
Technical Parameters
Model | ST-700 | ||||
Mumber of lanes | 4-12lanes | ||||
Packaging style | Strip (back seal) | ||||
Production capacity | 200-600bags/min | ||||
Max fill width | 500mm | ||||
Bag width | 16-35mm | ||||
Bag length | 50-180mm | ||||
Volume per bag | 1-30g | ||||
Nitrogen filling parameter | The residual oxygen is less than 0.3% | ||||
Packaging film type | Heat-sealable laminated film | ||||
Film roll inner diameter | 70-75mm | ||||
Power source | 220V/50Hz | ||||
Power consumption | 8.5kw | ||||
Air consumption | 7 Litres/min @0.7Mbar | ||||
Weight | 1200kg | ||||
dimension | 1500Lx1300Wx2300Hmm | ||||

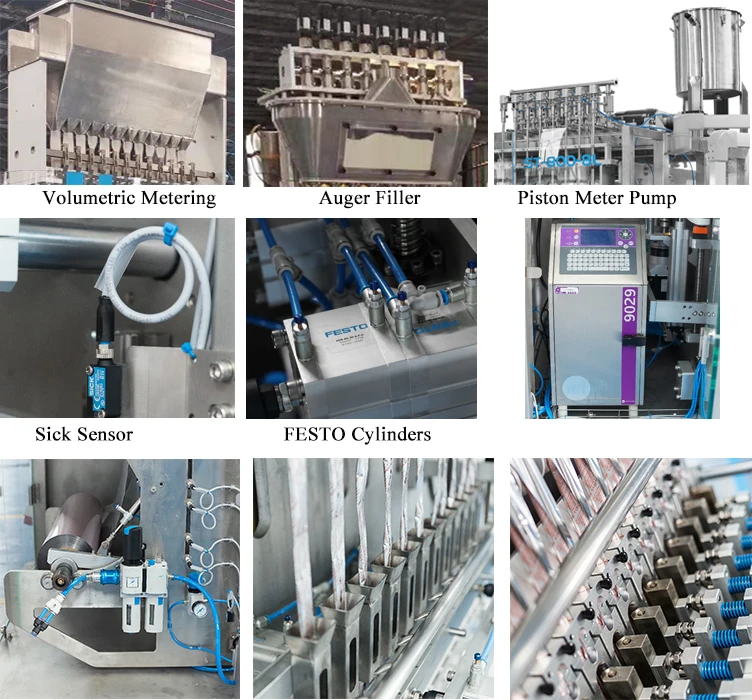

Features
1.Our machines are designed and manufactured according to EU standards and meets the requirements of EU CE certification.
2.The main mounting plate is made of a whole 20mm SUS304 stainless steel plate by laser, and the machine door is made of tempered glass with a thickness of 12mm.
3.The complete set of electrical appliances and control system uses French Schneider (low voltage, PLC, touch screen, servo, etc.)with10.1-inch large touch screen, CAN bus control, Ethernet communication.
4.Sensors use time top brand SICK
5.The rolling bearing is Japanese NSK, the joint bearing is Japanese IKO, and the ball linear bearing is Japanese IKO.
6.Linear bearings use imported igus engineering plastic bearings from Germany, self-lubricating, dust-proof and corrosion-resistant, super wear-resistant.
7.Cylinders and solenoid valves and other pneumatic components use the world's most famous brand FESTO, imported from Germany.

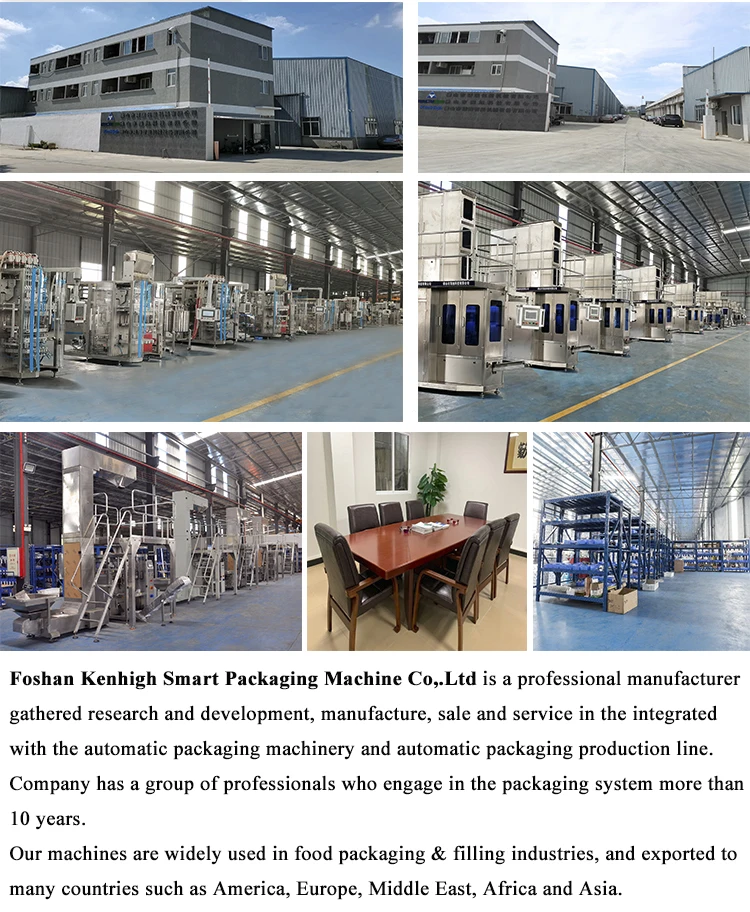

Our Factory
With a strong presence in the food packaging market,Kenhigh carries a high standard of safety and quality across all of our product offerings.
FAQ
ONE
Q:Are you manufacturer or trading company?
A:We are manufacturer. Our factory is located in Guangdong, warmly welcome to visit us.
TWO
Q:Do you provide customized service?
A:We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion.
THREE
Q:When can I get the quotation?
A:We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
