Product Overview

Description

Detailed introduction of the wastewater screen for food industry



Introduction:

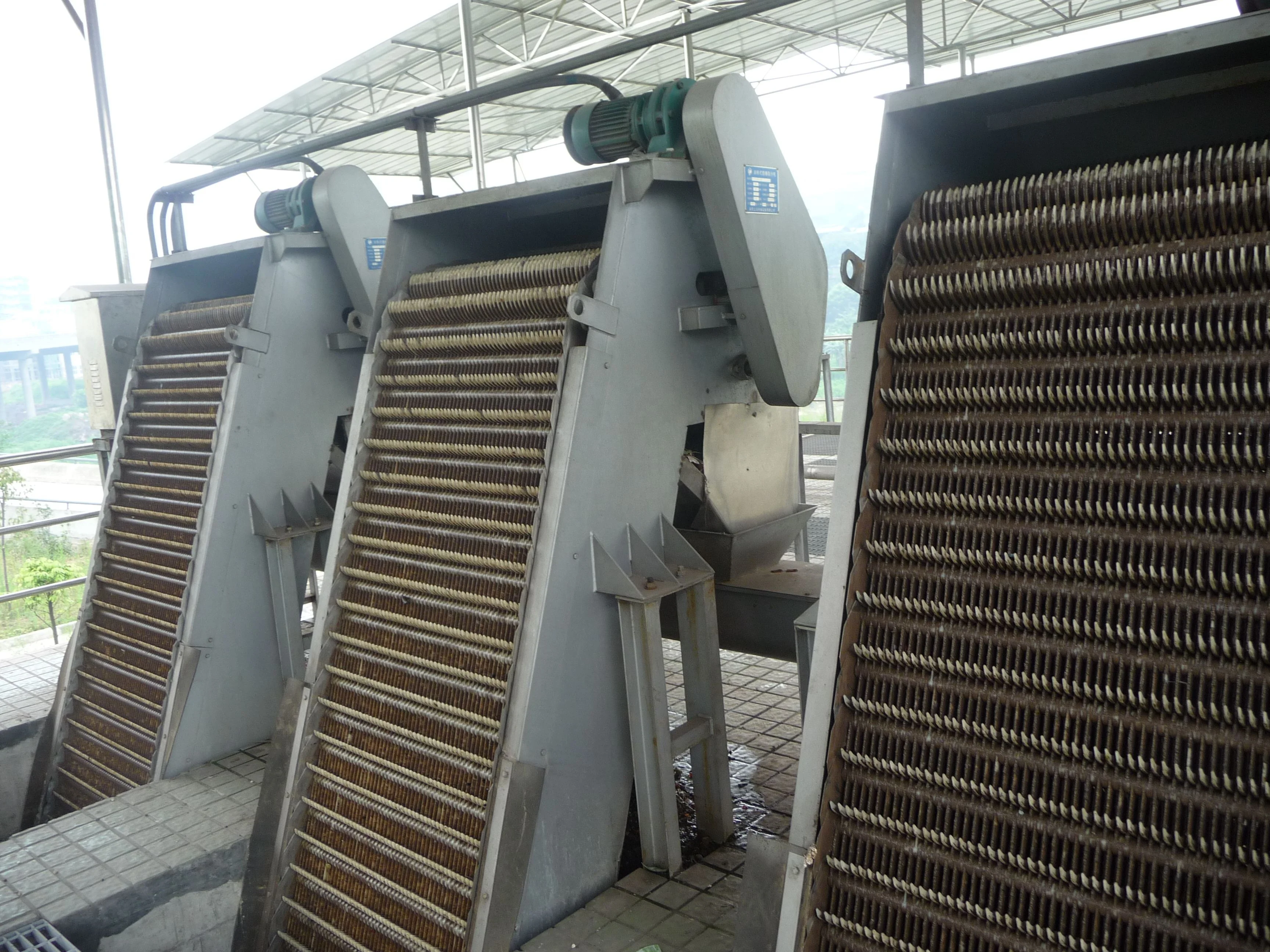

YMHG serial rotary bar screen (grilling spotter) is a kind of solid-liquid separation device, which can continuous automatic eliminate all kinds of figure sundries in the fluid, mainly used in urban sewage treatment,water supply industry, electric plant water inlet, textile, food processing, paper making, leather industry etc. Rotary grilling machine also called bar screen spotter.

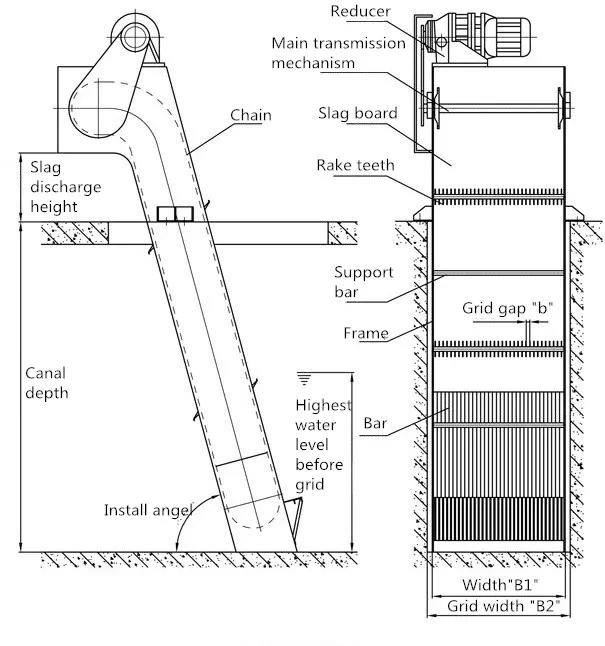

Structure and work principle:

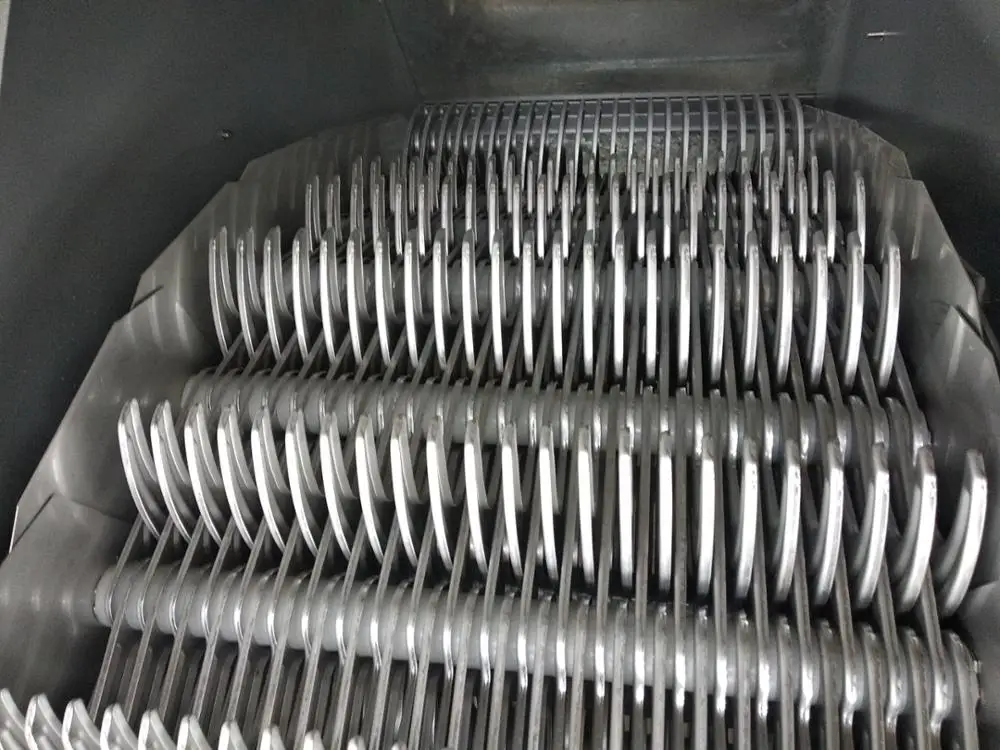

YMGS serial rotary bar screen mainly composed of driven device,rake tooth facility ,flush facility etc, which is assembled to be a group of rotary grille chain by a unique rake tooth, driven by motor reducer, the rake tooth chain going rotary motion as reverse flow.



When the rake tooth chain operate to upside of equipment, due to the guiding of geneva wheel and curve, which produce the relative self-cleaning motion between each group rake tooth, most of the solid drop down by gravity. Another parts clean up the sundries sticking in the rake tooth by sweeper ‘s reverse movement.



Characteristic

1. Grid width : 300-1500

2. The clearance can divide into 1mm,3mm,5mm,10mm,20mm,30mm,40mm,50mm etc, which can be chosen according to water quantity, lift height, the gross of solid-liquid separation and the shape of the separation material and particle size.

3. The material quality of rake tooth : ABS engineering plastic,nylon,stainless etc.

4. Main body frame material : stainless material and Carbon steel antiseptic.



Model list

data\\model	YMHG-300	YMHG-400	YMHG-500	YMHG-600	YMHG-700	YMHG-800	YMHG-900	YMHG-1100	YMHG-1200	YMHG-1250	YMHG-1500
Install angle ( °)	60°~80°
Power (kw)	0.37~0.75		0.55~1.1			0.75~1.5		1.1~2.2		1.5~3
Screen speed (m/min)	About 2
Width(w0) (mm)	300	400	500	600	700	800	900	1100	1200	1250	1500
Height H0  (mm)	H+H1+1350
Total width W1 (mm)	650	750	850	950	1050	1150	1250	1450	1550	1600	1850
Ditch width U (mm)	400	500	600	700	800	900	1000	1200	1300	1350	1600
Ditch depth h (mm)	decided by user
Diversion trench  Length L (mm)	1500+Hxctga
Medium maxi  temperature  (°C)	80°
foot margin to  discharging top  mouth height H2 (mm)	400~1000

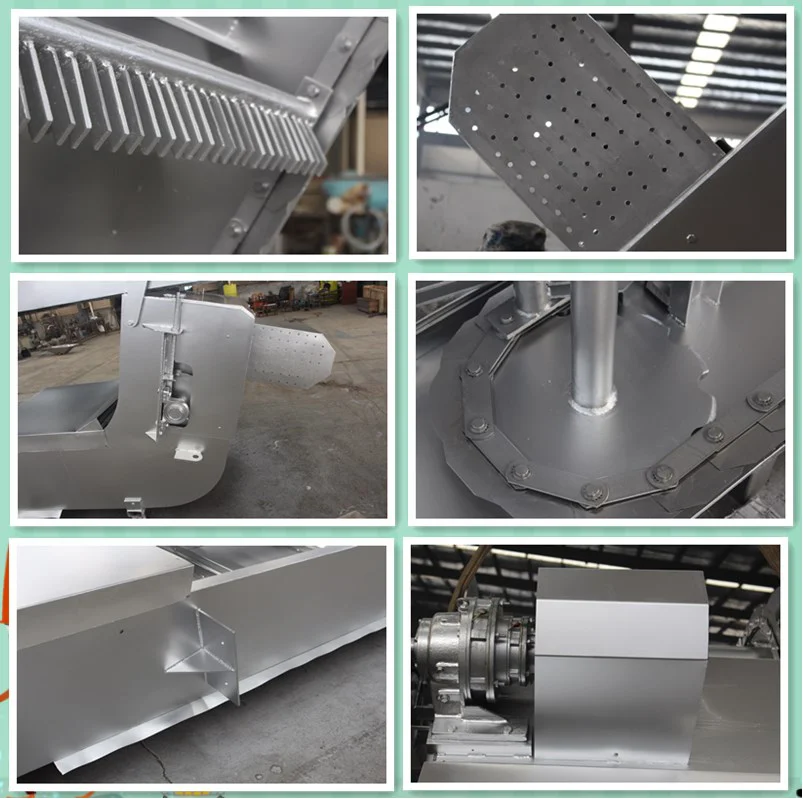

product details

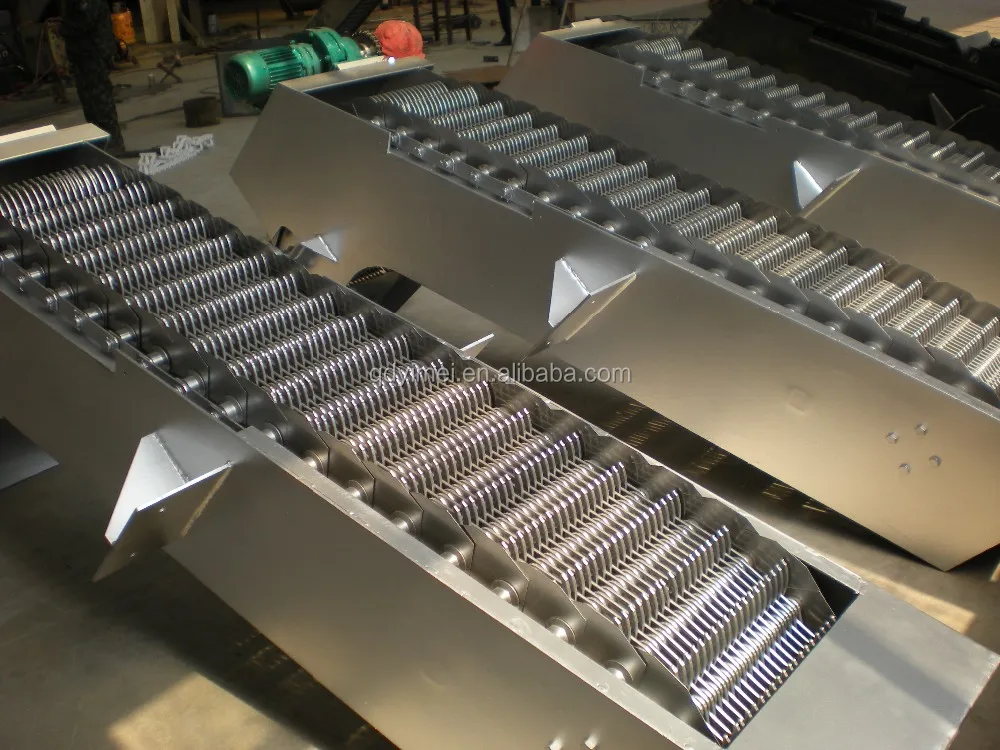

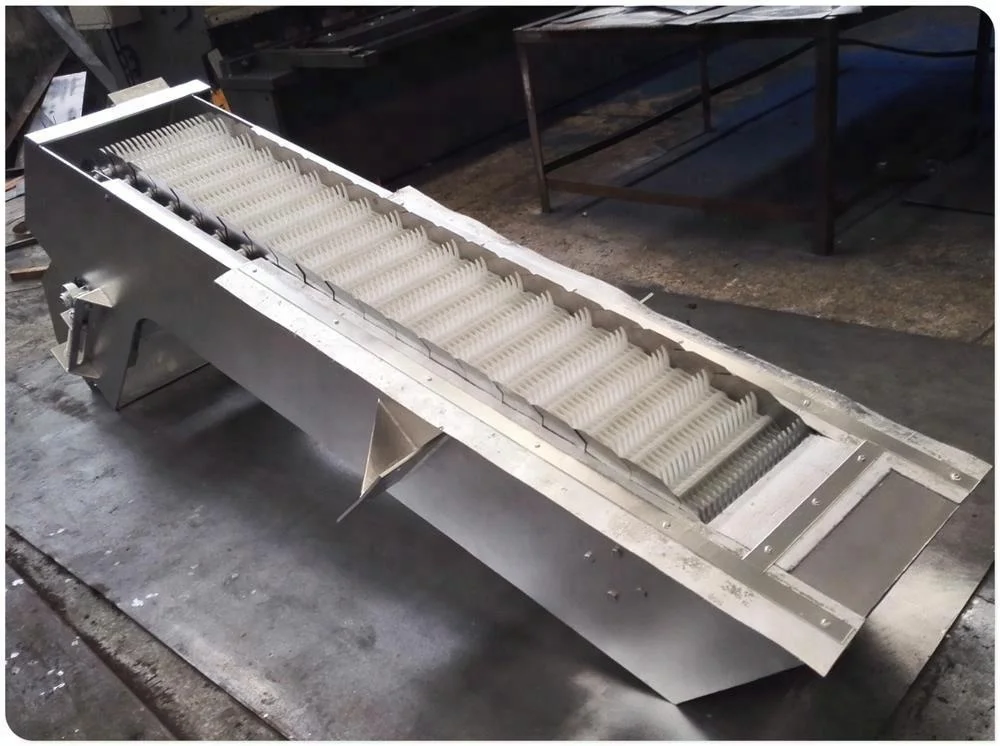

Great welding,  Uniform spray paint,  Good workmanship,  and fine material.

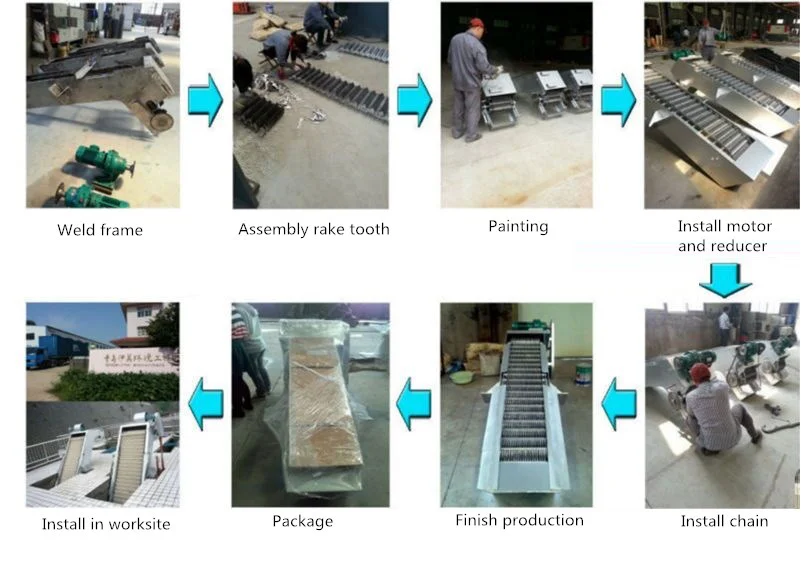

Assembly process
