6 Cores Heat Shrink Breakout With Glue of gala thermo shrink pvt ltd equivalent
- Category: >>>
- Supplier: Guangzhou Kehong Electric Co. Ltd.
Share on (62127746987):
Product Overview
Description
Buying Guides
40/12mm Medium wall heat shrink tube with glue
|
Heavy wall electric wire protection heat shrink tube
|
40/9mm High shrink ratio Cold shrink tubing
|
Bifurcation card branch off clip
|

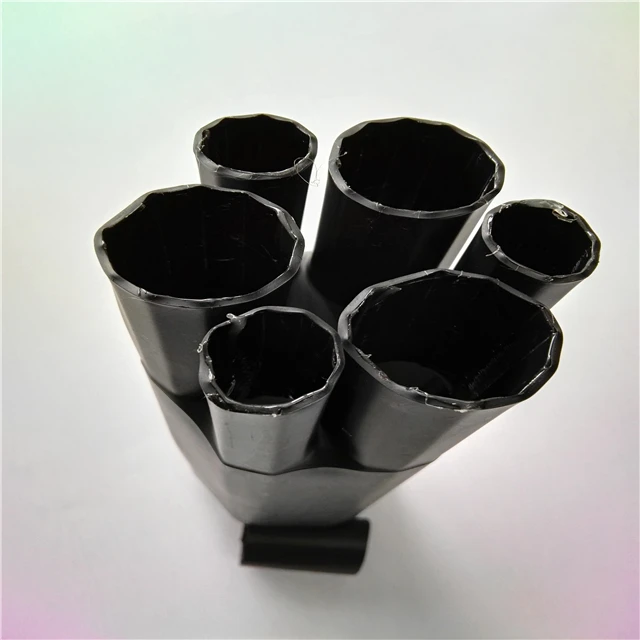

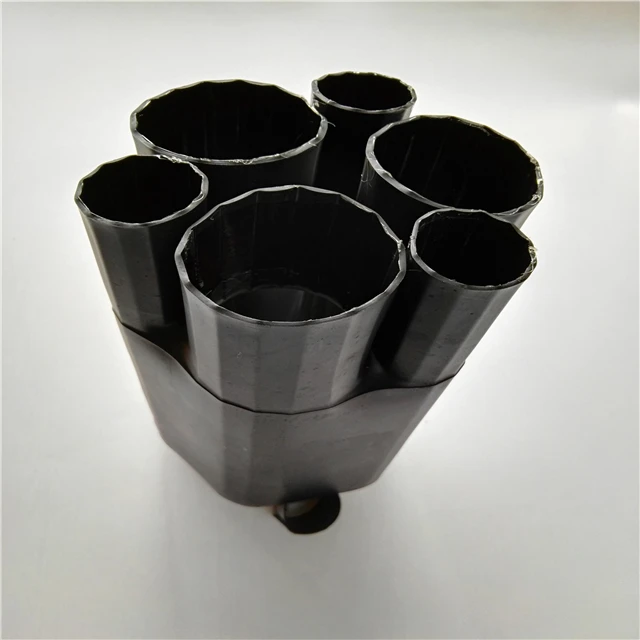

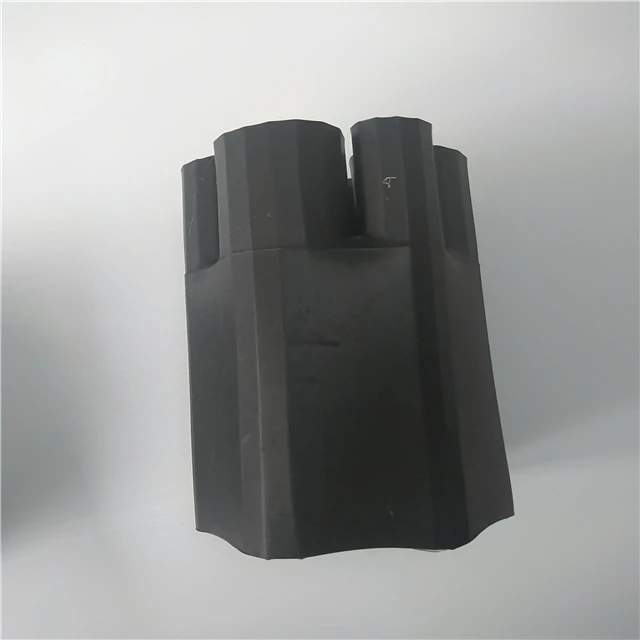

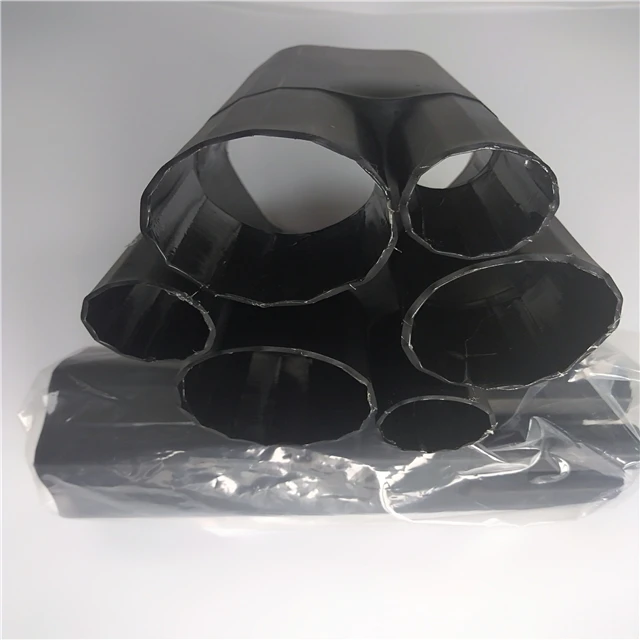

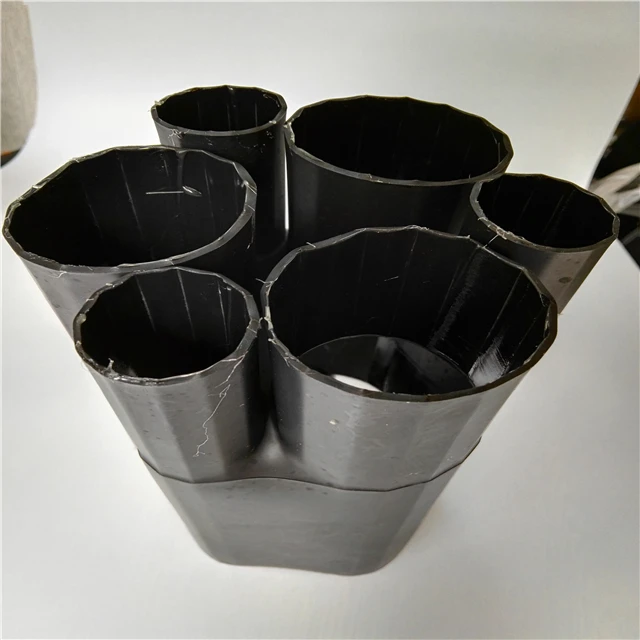

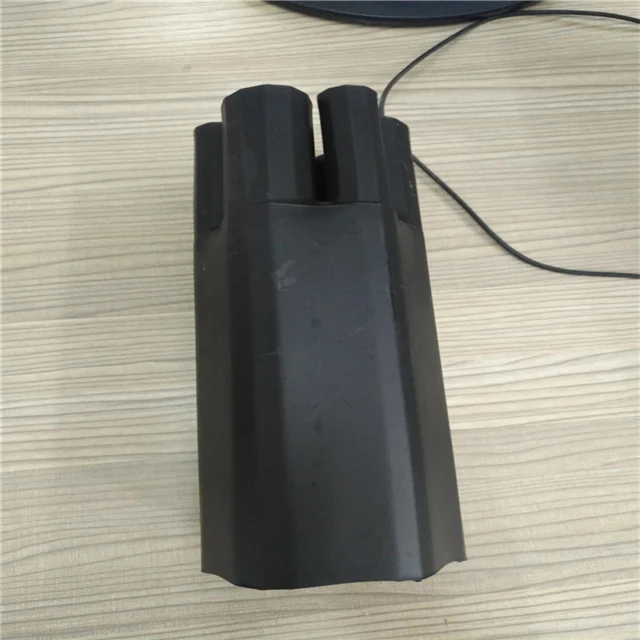

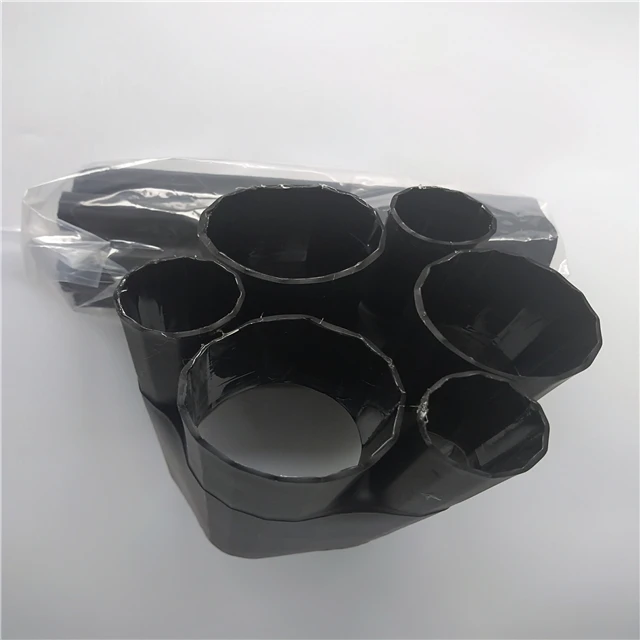

6 Cores Heat shrink Breakout Boot
Model: CBO-6
Heat Shrink special 6-cores Breakout
Application:
Made of cross linked polyolefin, inner coated with adhesive at the ends
Provide sealing protection over 6-core cable crutch for variable frequency cable, trailing cable,telecommunication cables, control cable, etc.
Continuous operation temperature: -45℃ to 105℃
Shrink temperature: start at 110℃, and fully recovered at 135℃
Technical Data:
Property | Test Method | Standard Value |
Operation Temperature | IEC 216 | -45 to 105℃ |
Tensile Strength | ASTM-D-2671 | ≥12MPa |
Elongation at Break (120℃,168 hrs) | ASTM-D-2671 | ≥300% |
Tensile Strength after Aging (120℃,168 hrs) | ASTM-D-2671 | ≥10MPa |
Elongation at Break after Aging | ASTM-D-2671 | ≥230% |
Dielectric Strength | IEC 60243 | ≥20kV/mm |
Water Absorption | ISO 62 | ≤0.5% |
Volume R esistivity | IEC 60093 | ≥1014Ω.cm |

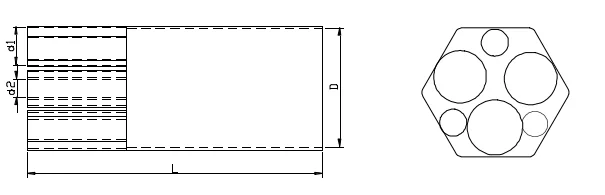

Selection Table
Diameter | Finger Diameter | Length | Finger Length | ||||
/mm(±10%) | /mm(±10%) | ||||||
Supplied | Recovered | Supplied (Min) /mm | Recovered | Supplied | Supplied | ||
(Min) /mm | (Max) /mm | (Max) /mm | |||||
Larger | Smaller | Larger | Smaller | ||||
≥86 | ≤40 | ≥32 | ≥20 | ≤11 | ≤8 | 220±5 | 60 |
≥133 | ≤53 | ≥55 | ≥31 | ≤16 | ≤11 | 220±5 | 70 |
Company Information
FAQ
Best way to heat shrink tubing
According to different kind to tubes, usually heat the tube by hair dryer, heat gun, heat oven,etc.
Can i use a lighter for heat shrink tubing
For small ID and thin wall heat shrink tubes, we can use lighter to shrink them.
Can you cut heat shrink tubing
Yes,our machine can cut tubes into your required length,such as 10mm/pcs, 30mm/pcs, or 50mm/pcs,etc.
Can you use a hair dryer for heat shrink tubing
Thin wall tubes can be shrinked by hair dryer, such as our tube model A-2(NH), it can begin shrink at 70℃, but for medium and heavy wall tubes shrinking, it's better to use a heat gun.
Can I print my logo on the products?
Yes, please send us your logo design.
