Ripple Double Wall Paper Cone Cup Machine Making Paper Cup

Product Overview

Description



Introduction:

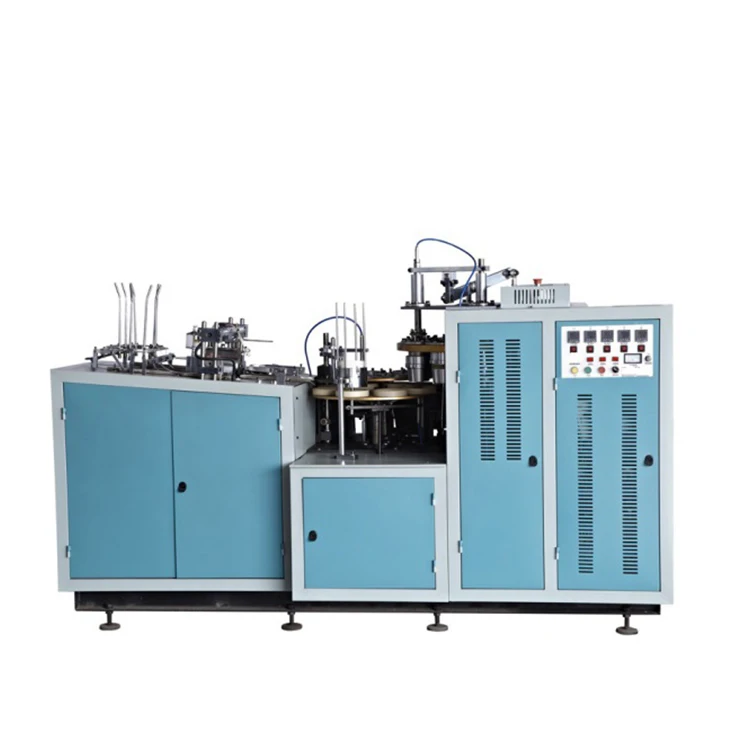

LZ-L12 Paper Cup Forming Machine is multi-station automatic machine. It has continuous automatic procedures like feeding, sealing, oil -filling, washing, heating, knurling, curling,unloading, etc. It is ideal equipment for producing paper testing-drinking cups, market cups, advertising cups, etc. It is widely used for hot drink and beverage. If you want to make two-side ( double) PE coated paper cups, we recommend you to use LZ-2L12, ultrasonic paper cup forming machine.

FEATURES:

1) The main-frame of the machine is an incline. And the incline can help the cups easily drop into the plastic holes, the rate of which goes up to 99.99 %.
2) The shape of the head is oblate, which can seal the cups easily. It is much better than that is round.
3) The machine sends the bottom paper up to the cup automatically and adjusts itself because of a spring.



MAIN TECHNICAL PARAMETER:
Model LZ-L12
production capacity : 45-55pcs/min
required paper :150-250gsm one side PE coated paper
container capacities (A)50-90mm;(B)45-115mm; (C)35-64mm;(D)4.5-10mm
total power 3.8kw/ 380v 50hz
weight 1300kg
overall dimensions 2600*1100*1700(L*W*H)MM

Technical date:

Suitable size:	3oz—12oz and other special size
Raw material:	Single side(one side) or double PE(polyethylene) film coated paper
Suitable paper weight	150-320GSM (Recommend 170--280 GSM)
Ration Productivity:	45--55/min
Total power :	3.8kw
Net Weight:	1300kg
Gross Weight:	1600kg
Power:	380V,50HZ
Packing size	2600*1100*1700
Description & Specifications		Qty (Unit)

1.Q:Are your company a manufacturer or trading company?

A:We are professional manufacturer of paper plate machine with more than ten years machinery experience in Ruian, China.





2.Q:Where is your factory? How can I get there?

A:Our factory is located in wenzhou City, Zhejiang Province. It takes about three and  a half hours by train from Shanghai to our city. all of our customers can take the flight to wenzhou international airport first, and then we can send a car to pick up you.





3. Q:How can I get the samples?

A:We can supply some free samples. Besides, the express charges will be paid in your side.



4. Q:Before inquiry, what information should I provide?

A: 1.Paper plate size, such as diameter, depth, length,width etc.
