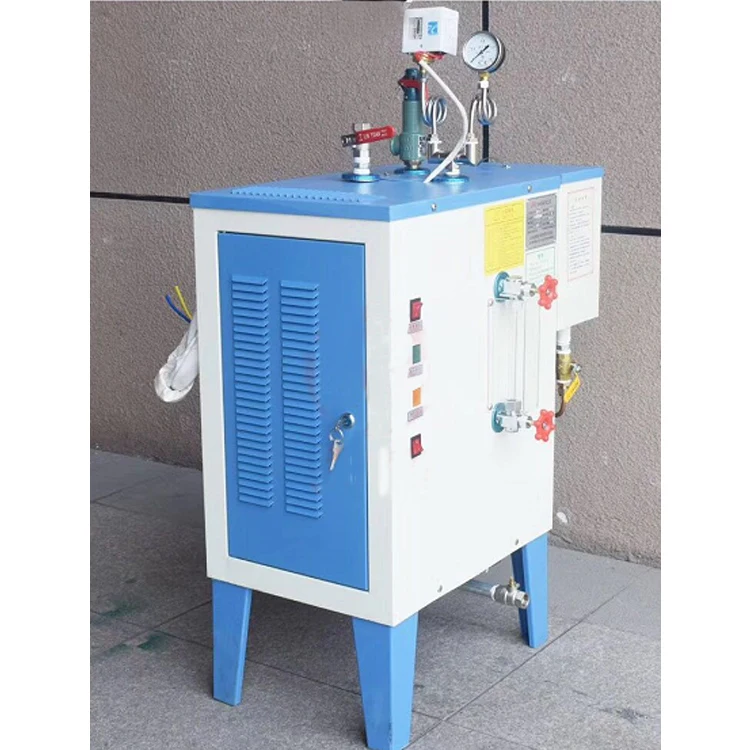

Automatic electric steam generator
- Category: >>>
- Supplier: Guangzhou Texian Washing Equipment Co. Ltd.
Share on (62128147846):
Product Overview
Description
Product Description
Main parameters:
Model | Unit | TX-3 | TX-6 | TX-9 | TX-18 | TX-24 | TX-36 | TX-48 | |
Working voltage | V | 220 | 220 | 380 | 380 | 380 | 380 | 380 | |
Electric power | Kw | 3 | 6 | 9 | 18 | 24 | 36 | 48 | |
Max pressure | MPa | 0.3 | 0.4 | 0.5 | 0.5 | 0.65 | 0.75 | 0.95 | |
Product steam volume |
| 4.5 | 9 | 13.5 | 27 | 27 | 27 | 27 | |
Weight | kg | 45 | 65 | 90 | 100 | 100 | 100 | 100 | |
External dimension | W | mm | 500 | 650 | 850 | 950 | 980 | 980 | 1000 |
| D |
| 450 | 550 | 600 | 650 | 700 | 750 | 850 |
| H |
| 800 | 1000 | 1150 | 1250 | 1250 | 1285 | 1350 |
Performance and features:
1. Oven and cistern of electric-heating steam-generator, brass stainless-steel leaf for supplying water make pump pressure of high pressure strong, noise low, through oven and cistern automatically to control water level and supply water.
2. Steam pressure is controlled during 0.25-0.35Mpa, and installs insurance safety-valve, make installation and use convenient,power,water is put through. After 15 minutes, will supply 0.35Mpa steam pressure. Meanwhile, steam temperature is symmetrical, having high-working efficiency, having acquired product patent certificate.
