Product Overview

Description

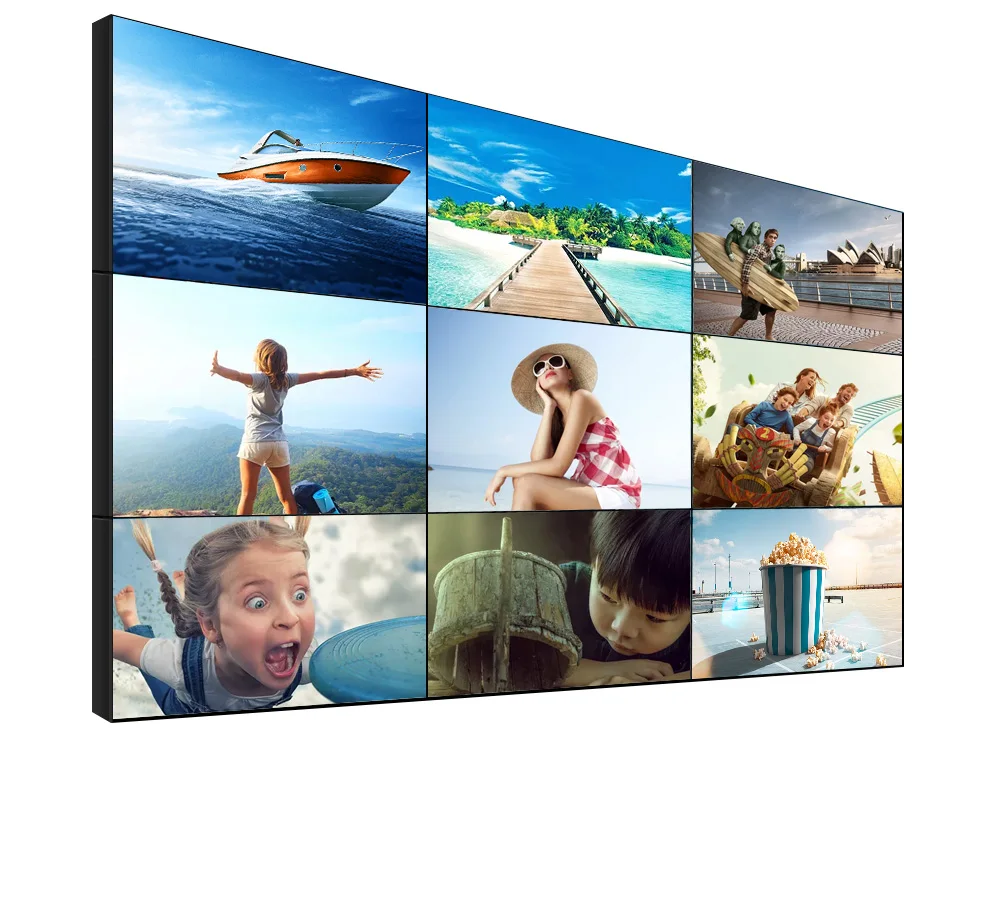

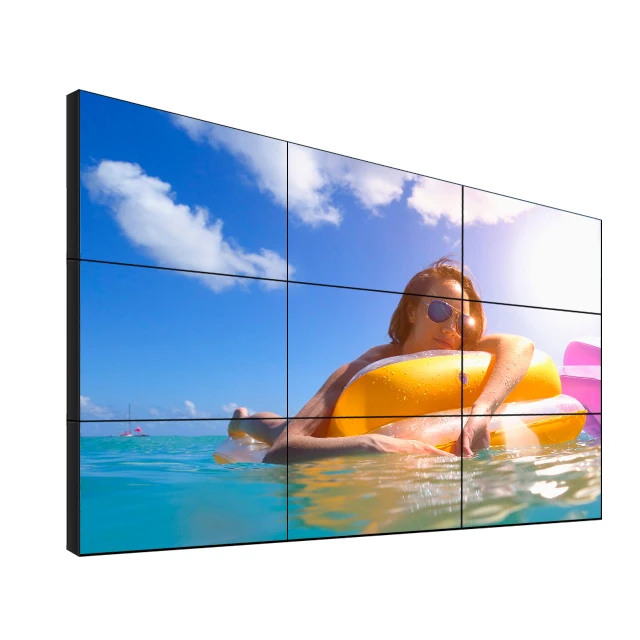

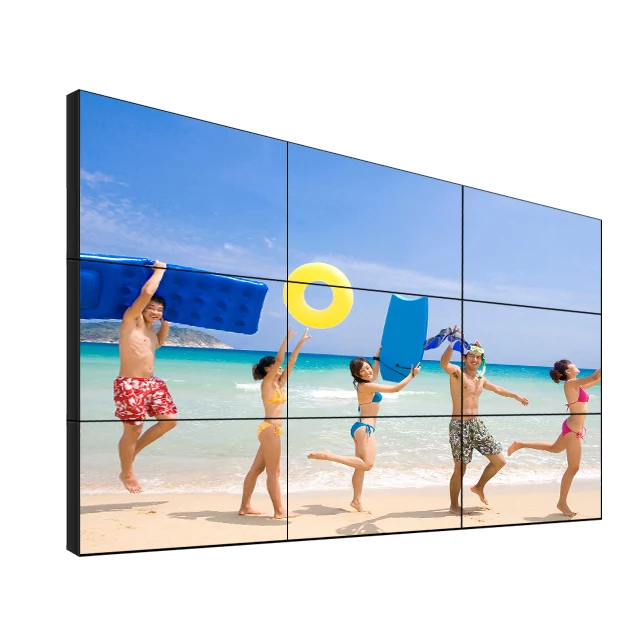

55 inch ultra narrow bezel lcd video wall lcd tv video wall display



Genevision offers a new dimension in video wall construction. It supports any size walls with the ability to mix and match display sizes in the same wall and allows the displays to be mounted at any rotation angle up to a full 360 degrees of rotation. With the ability to support live sources and display them seamlessly across any size and dimension display wall surface, and offers a new way to capture the attention of the audience.



1.Genevison DID video wall ultra-thin bezel design deliver a maximum visual impact for all Digital Signage and Conference Collaboration Applications.

2.With energy-saving LED Technology that enables 24hr a day operation, and Auto Standby for Image Burn Protection offer premium, reliable performance to meet all your commercial application demands.

3. Narrow bezel of 1.7-5.5mm and high brightness of 450-700nits ensure a vivid viewing experience.



This DID video wall system is widely used in meeting room, conforence room, educational institute, shopping mall as well as CCTV monitoring location



·         DID technology is a high quality image representative of audio and video serial transmission, the product supports audio embedded solution and a variety of signal ports.

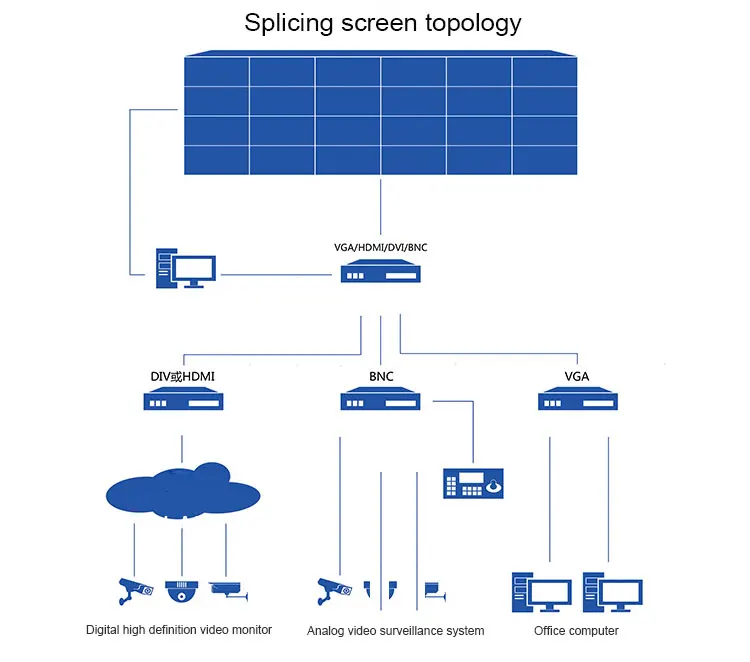

·         Built-in splicing module, support splicing screen function and creating one window(PIP) across the screen,roaming service,scaling,PIP, matrix joint control.

·         Unique DNX motion supplement image processing technology ensure dynamic image without motion trail.

·         Have splicing image processing RS-232(RJ-45)loop-circuit input/output.



specification:

Specification/Model	MD-550
Panel Size	55" LCD-DID
Screen Aspect Ratio	16:9
Visual Angle	Horizontal 178/Vertical178
Brightness	500 or 700cd/sqm
Contract Ratio	4500:1
Resolution Ratio	1920*1080
Color Components	16.7M
Response Time	8ms
Power Supply	Input:AC110-220V-50/60Hz
Service Life of Panel	60000Hours

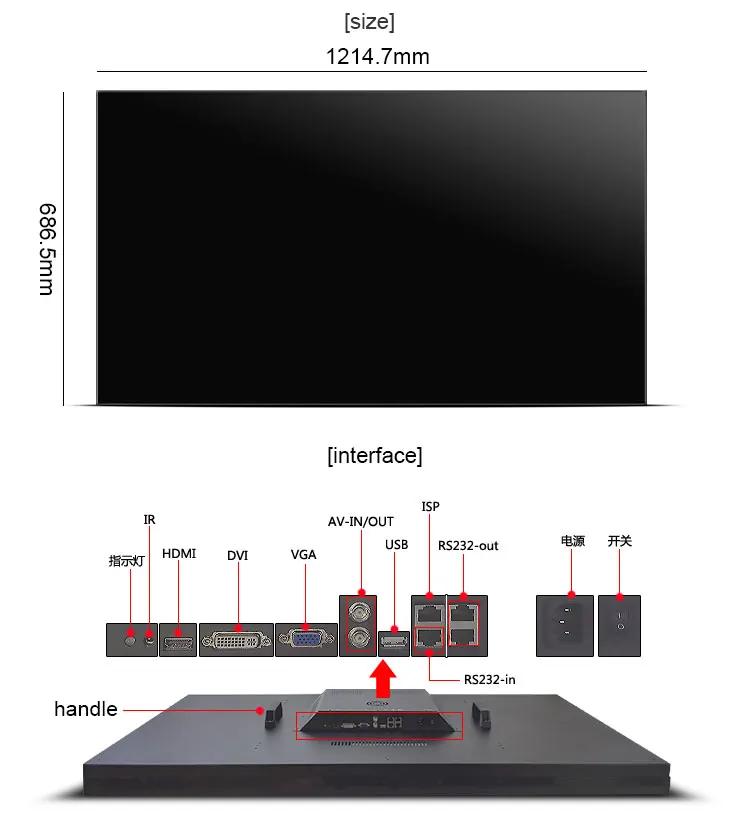

Dimension of Machine Frame(±1mm)	(Width)1215.3mm*(Height)686.1mm
Size of Shell Frame(±1mm)	Size of Shell Frame(±1mm)
Panel Display Area	(Width)1213.6mm*(Height)684.4mm
Shell Color	Black
Installation	Wall-mounted or floorstanding video wall cabinet
Net Weight(approximate)	27.5kg
Working Temp.	0-60 Celsius degree

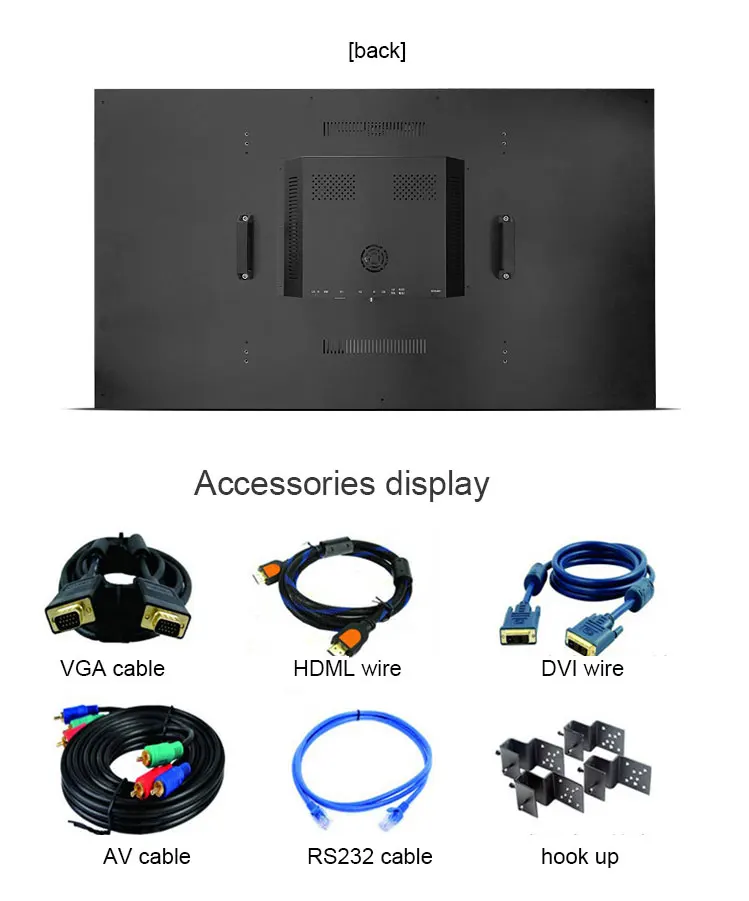

Input Port	3*BNC, 1*VGA, 1*DVI,1*HD
VGA/DVI Resolution Ratio	640*480,800*600,1024*768,1280*1024,1600*1200,1920*1080



Applications include:

·         Lobby multi-display video walls

·         Studio back drop display walls

·         In store digital signage

·         Control room video walls

·         Airport information displays

·         Unifying multiple displays as a single canvas
