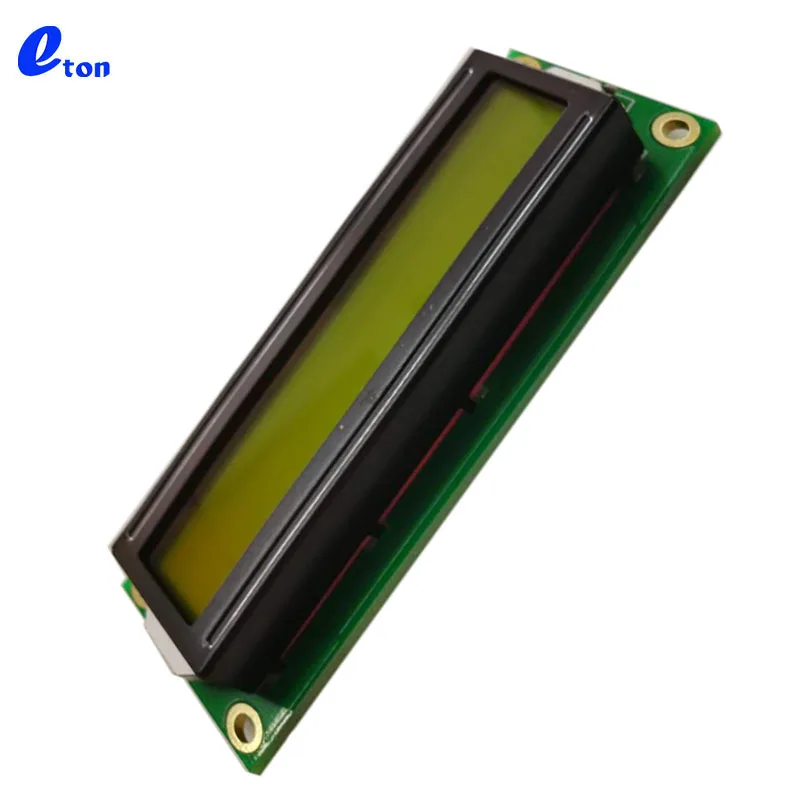

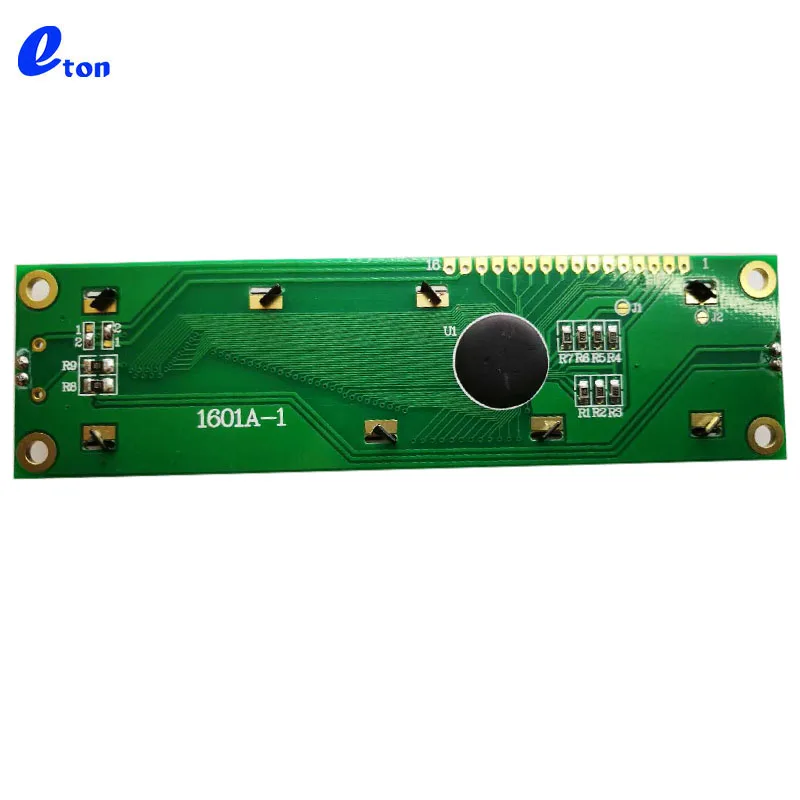

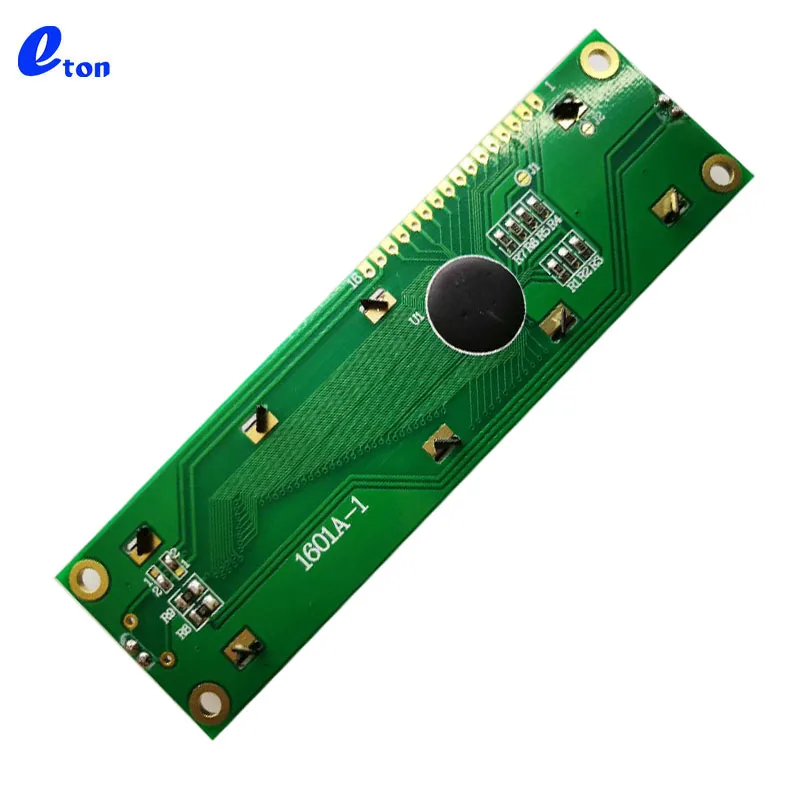

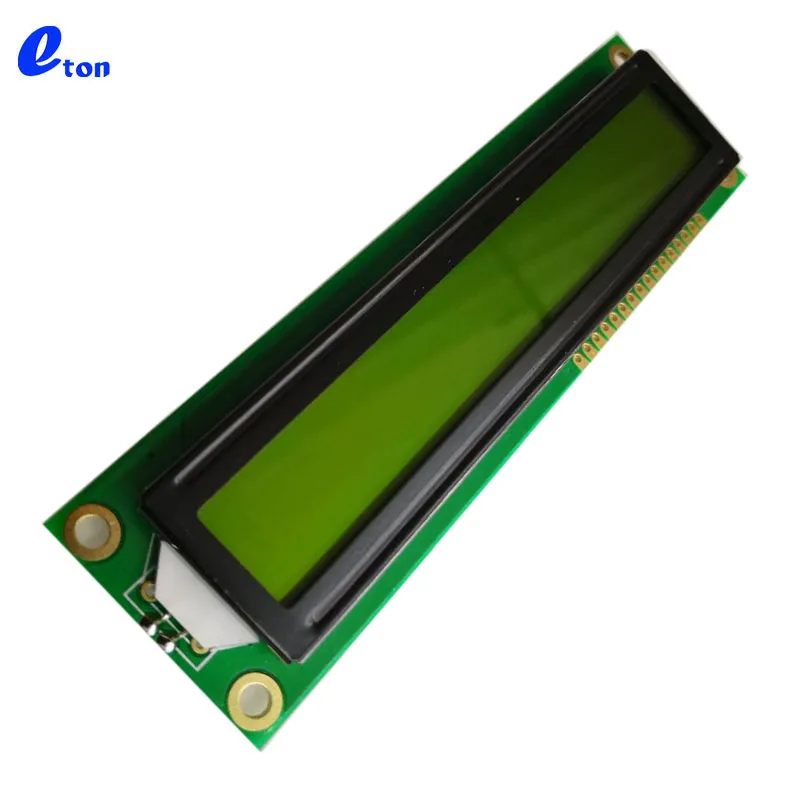

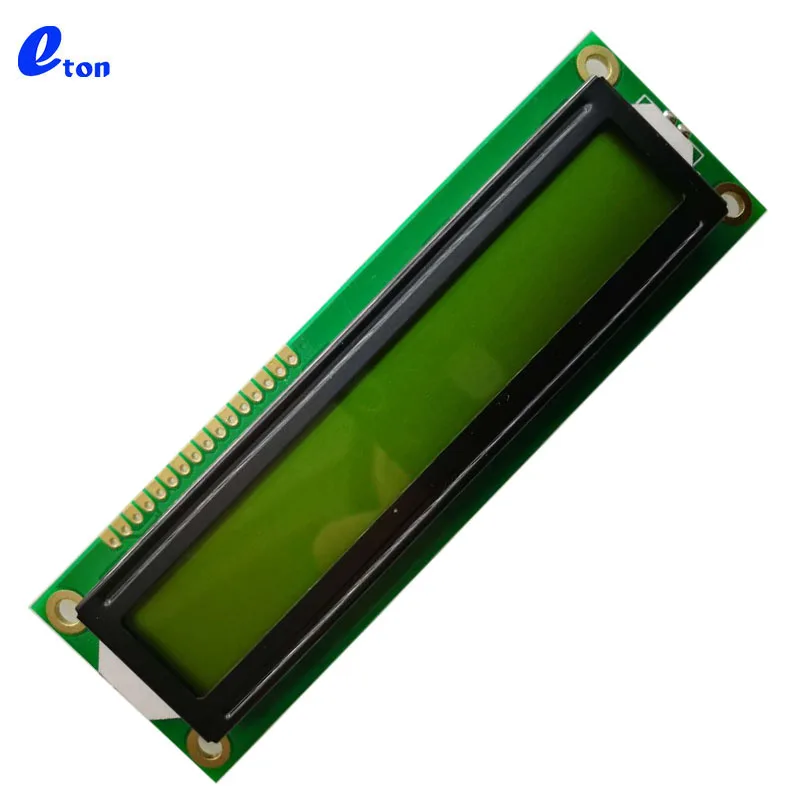

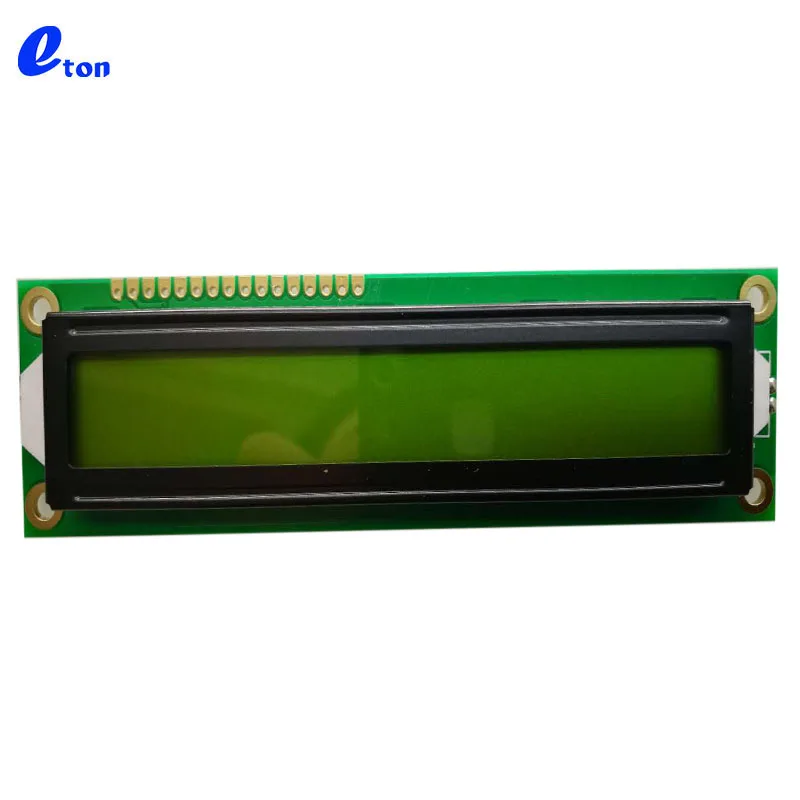

15 years factory and factory price lcd 1601 yellow-green 16x1 big character lcd display module
| Outline Size(mm) | 122(L)X33(W)X13.5(T)MAX |
| Lcd Type | STN, Y-G/BLACK, TRANSFLECTIVE/ POSITIVE |
| Display Type | 16(characters) × 1(line) |
| View Area(mm) | 99.0×13.0 |
| Active area(mm) | 94.95×8.0 |
| Dots Size(mm) | 0.95×1.11 |
| Dots Pitch(mm) | 1.0×1.15 |
| Character Size(mm) | 4.95×8.0 |
| Character Pitch(mm) | 6.0×8.0 |
| Controller& driver | SPLC780-01 OR EQV |
| View Direction | 6 o’clock |
| VDD&VOP(Type) | 5.0 V & 4.4V |
| Backlight(Type) | -- |
| Operation Temp(℃) | 0 to +50 |
| Storage Temp(℃) | -10 to +60 |














15 years factory and factory price lcd 1601 yellow-green 16x1 big character lcd display module
15 years factory and factory price lcd 1601 yellow-green 16x1 big character lcd display module
15 years factory and factory price lcd 1601 yellow-green 16x1 big character lcd display module
