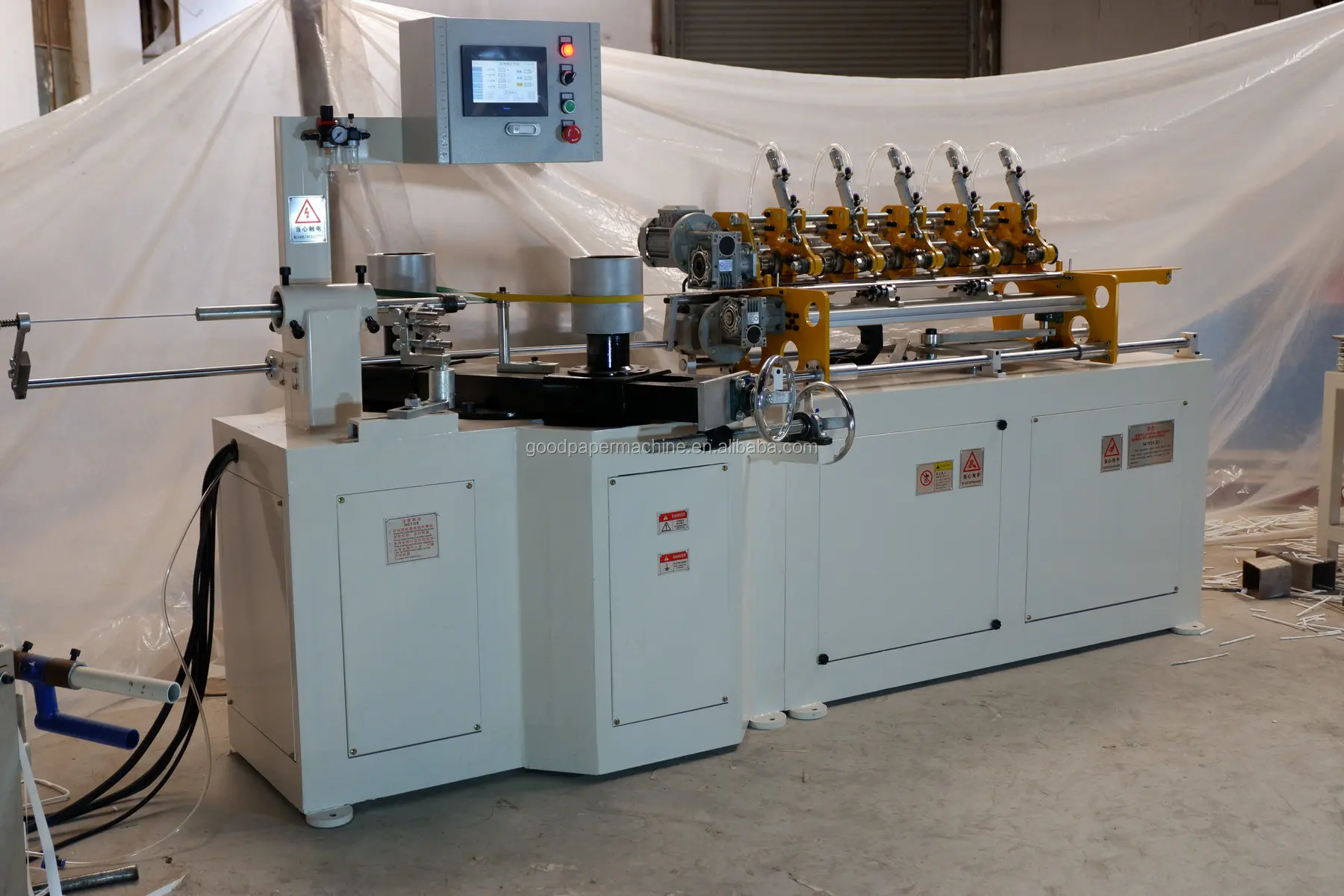

Automatic straw paper suction tube rewinding cutting machine

Product Overview

Description

Automatic straw paper suction tube rewinding cutting machine

Main parameter:

1. Machine power:1.5KW use frequency control

2. Cutting system:0.55KW use frequency control

3. Paper tube diameter:4mm-12mm(according to customer requirements to choose)

4. Paper tube thickness:0.3mm---1mm

5. Speed:1m---45m/min

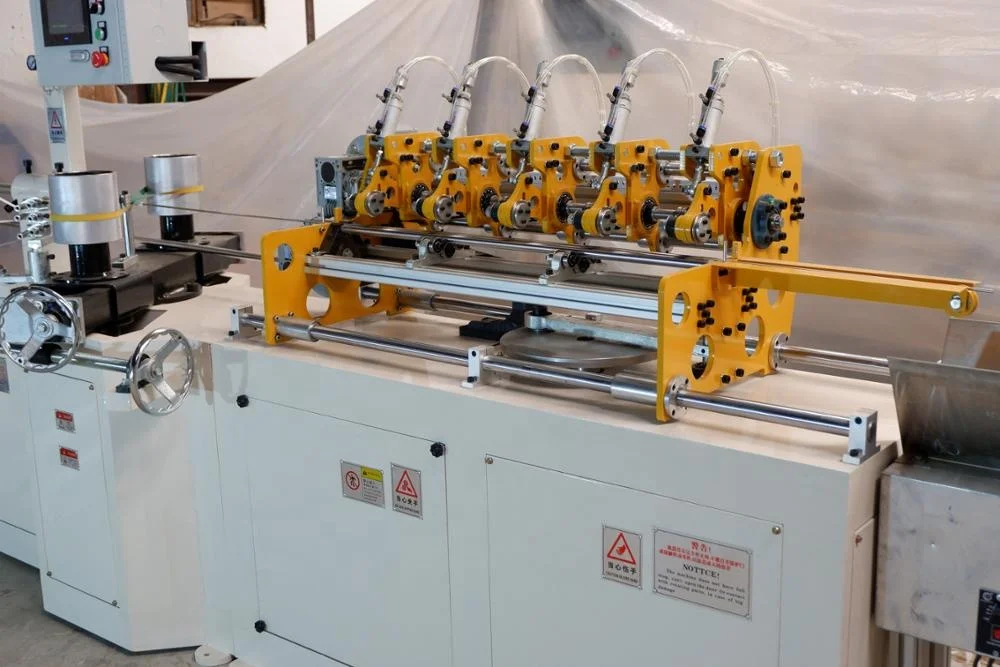

6. Cutting type:Multi knives(5 pieces knife)

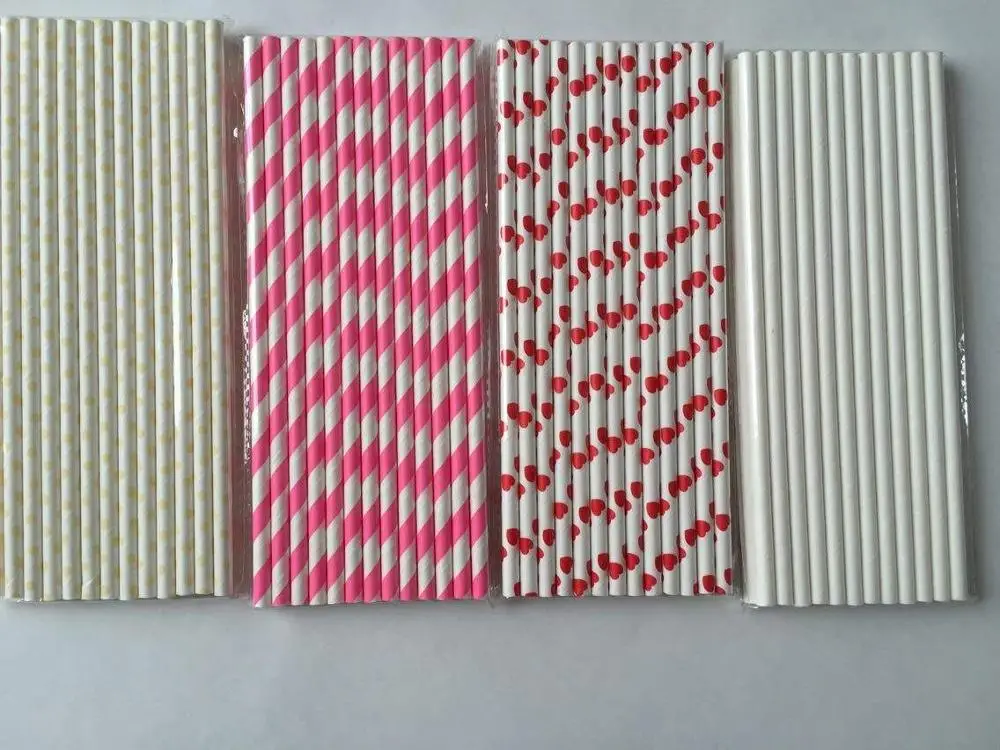

7. Finish products length: Normal is 198mm, other size can adjust on machine

8. Configuration of glue rack:3 ply

9. Raw material: White kraft paper

10. Configuration of paper:1 set

11. Gluing method: Single-sided and double-sided glue

12. Glue type: Environmental glue for food straw

13. PLC control the cutting knife

14. Machine size:2700mm*1900mm*1600mm

15. Weight:About 0.8T

Electrical parts list:

1. Touch screen: Facon (made in Taiwan)

2. PLC: Facon (made in Taiwan)

3. Frequency converter:Delta(made in Taiwan)

4. Servo motor:China brand

5. Encoder:OMRON (Japan)
