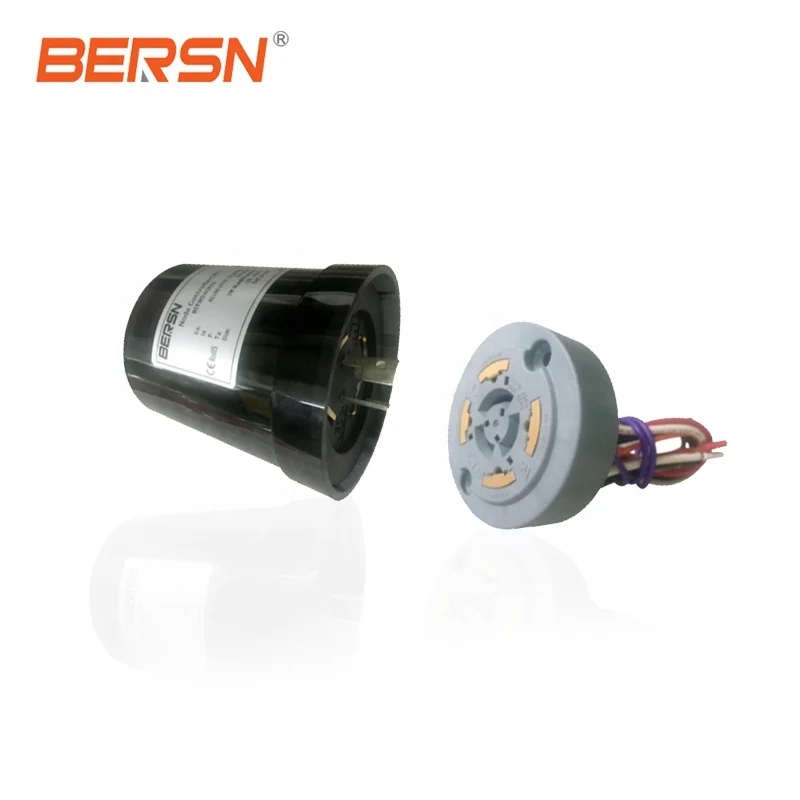

CE ROHS lorawan protocol auto street light control system nema light dimmer controller outdoor smart lighting system
- Category: >>>
- Supplier: Shenzhen Bersn Opto-Electronics Co. Ltd.
Share on (62128325600):
Product Overview
Description
CE ROHS lorawan protocol auto street light control system nema light dimmer controller
Product Description
Product specification
Electrical | |
Input Voltage | 100-277VAC 50/60Hz |
Stanby Power | 1.2W |
Load Power | Max 1000W |
Load Current | Max 16A |
Ripple Factor | <3% |
Working Temp | -40~55℃ |
Interface & Protocols | |
Control Output Interface | DAC 1-10V/PWM |
Connectors(In/Out) | Leads 5P,NENA Socket |
Communication Mode | ISM Band LoRa 433/865/868/915 Mhz |
Mechanical | |
Housing | Solid plastic case, IP66 |
Demension | Ø94x97mm |
Weight | 0.3 kg |

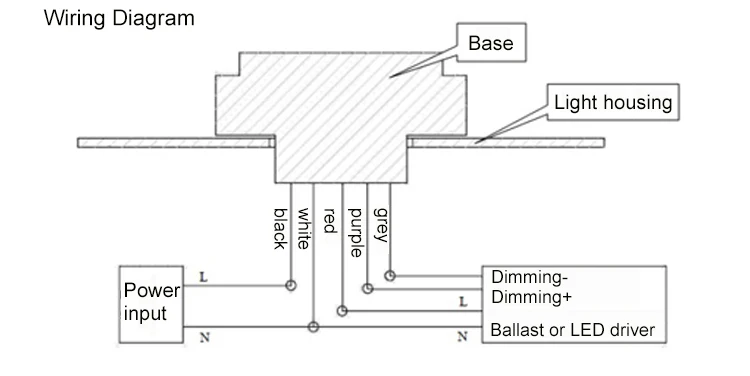

Input/Output Wire | Black-White/Red-White |
Dim Control Wire | Purple(+)/Gray(-) |

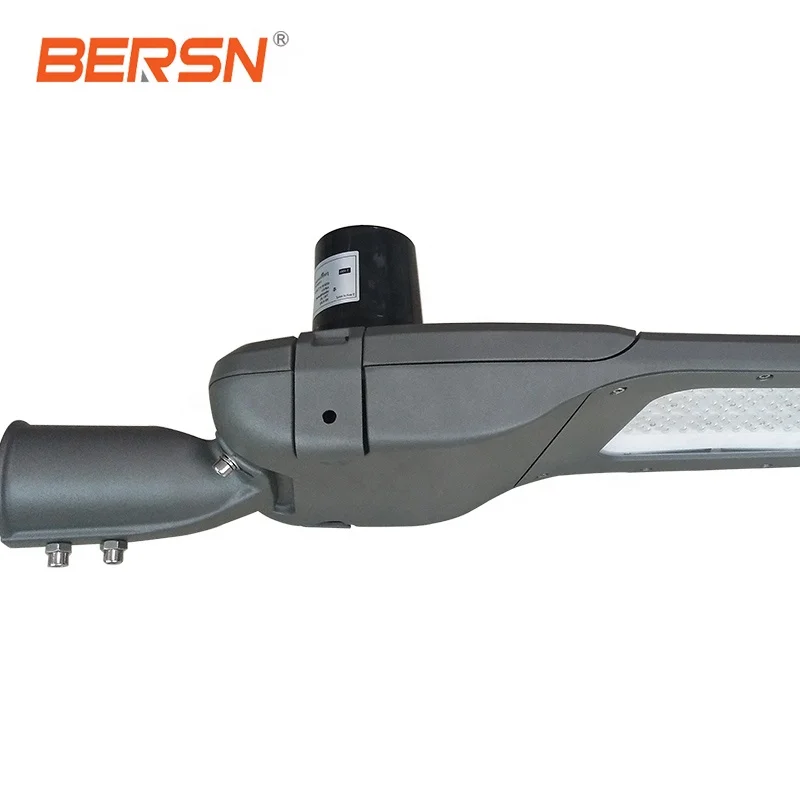

Installation Method
* You can directly replace the original light controller,or install our socket on the lamp.

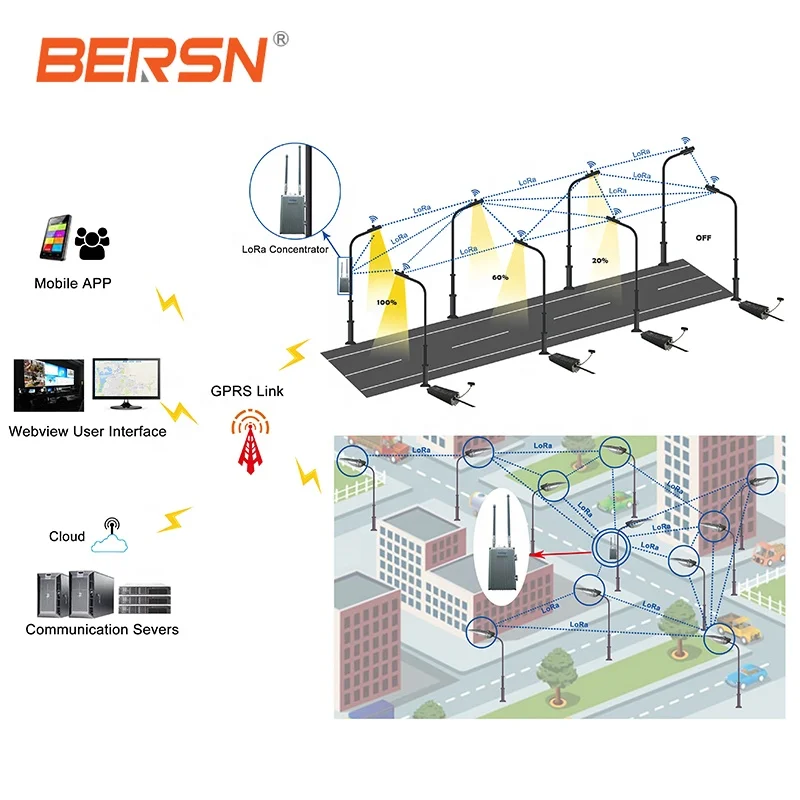

Application

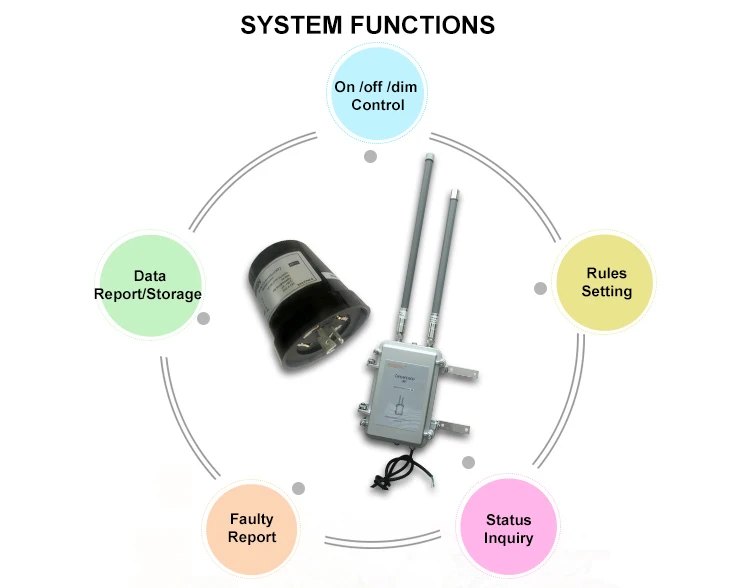

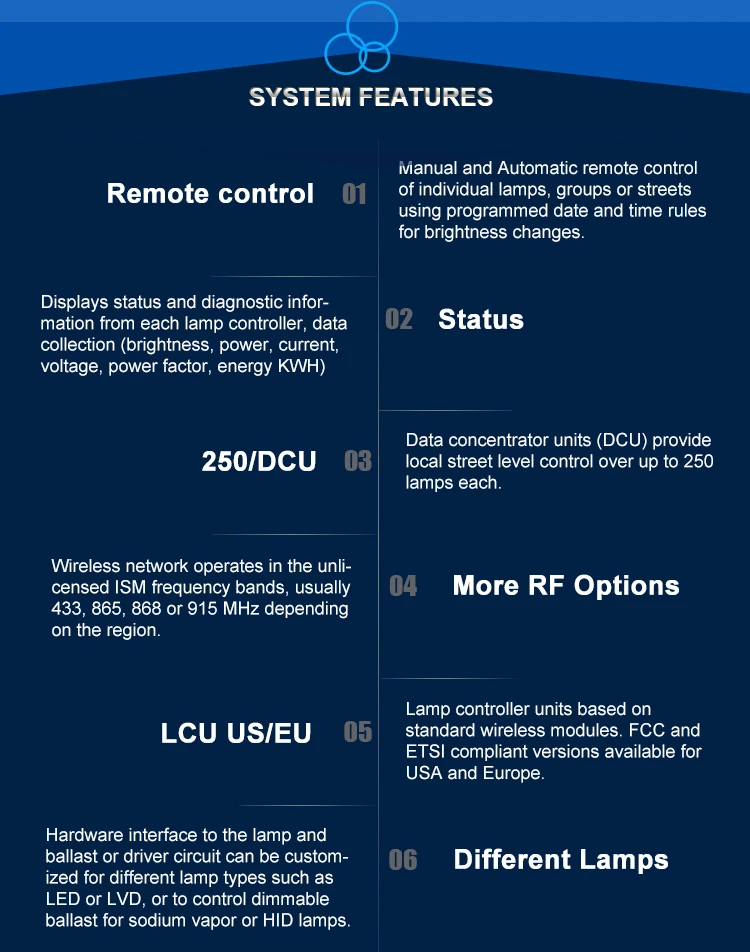

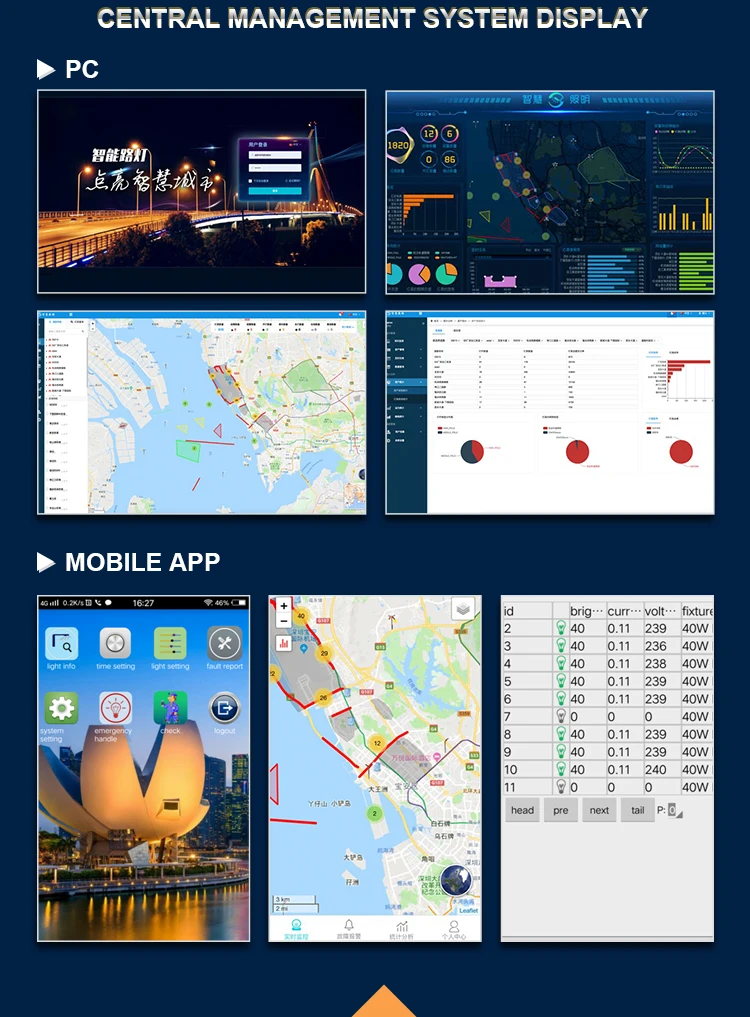

System Features
Our Project
Our company
BERSN is innovative electronics designer and manufacturer of outdoor lighting and industrial lighting since 2001. BERSN passed ISO9001:2015 and authorized National High-Tech enterprise and LED benchmarking enterprise in Guangdong, China. Since 2009, BERSN has became PHILIPS China OEM partner. Main products line includes Smart Lighting Control System for Road & Street Light, Smart LED Driver, HID Electronic Ballast, & Outdoor LED Lighting Luminaries. The products pass the national and international quality certificates, including CCC, CE, RoHs, SAA, UL, FCC.
Working on the market of lighting controls solutions for over 18 years, BERSN grown to become an industry recognized developer and most progressive company with Head Office in Shenzhen, China. BERSN provides both ODM and OEM services. The company’s mission is to develop innovative, turn-key, fully integrated solution for lighting industry.
