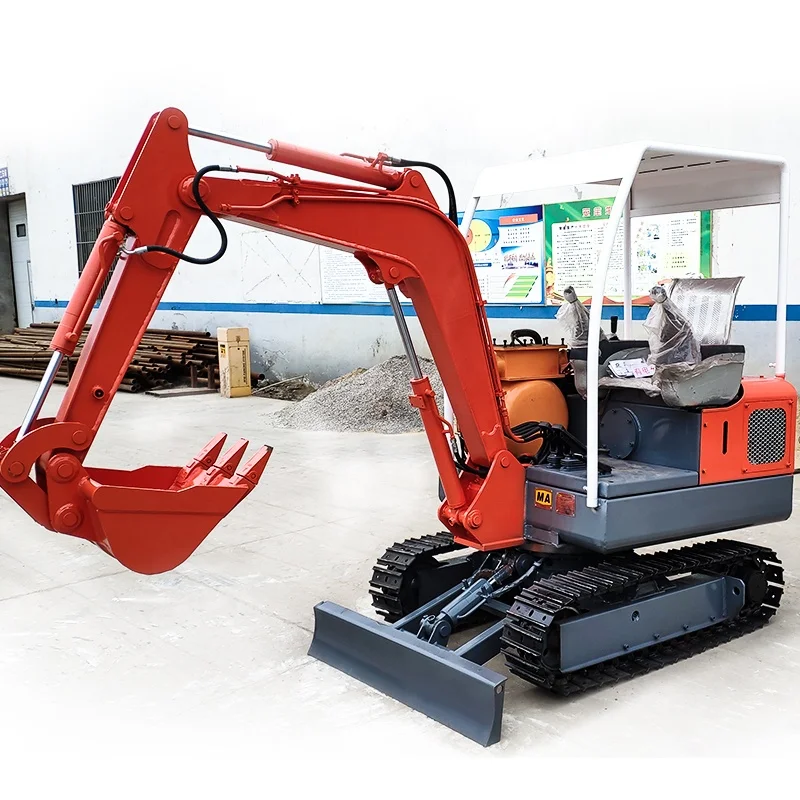

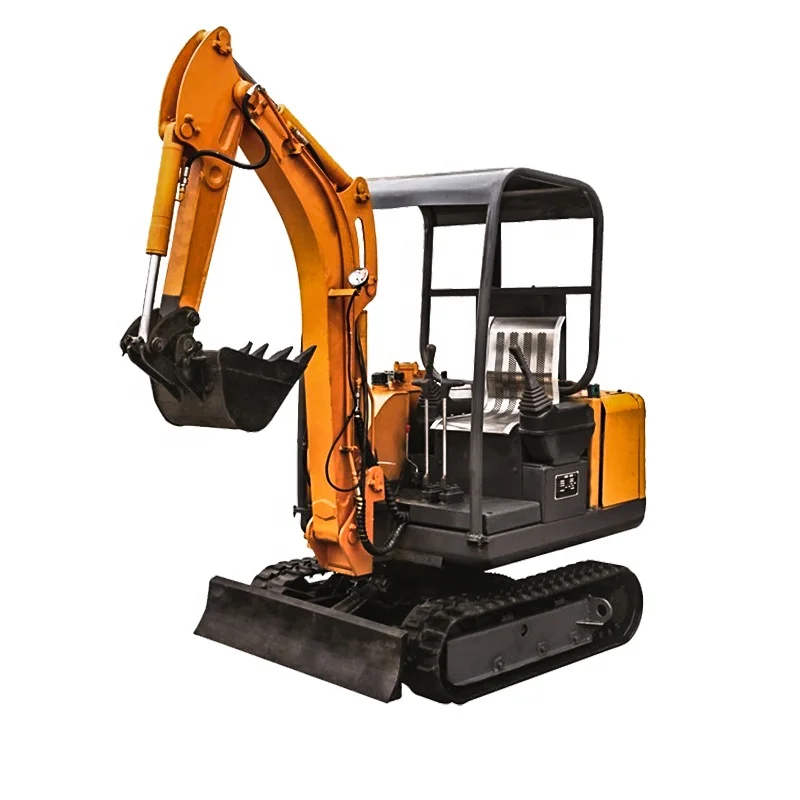

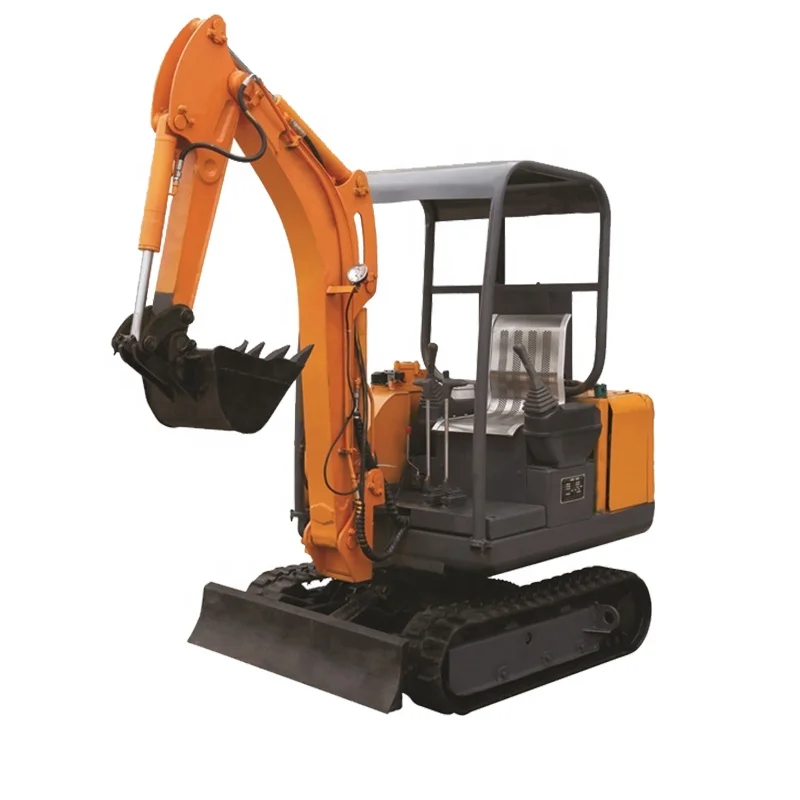

Electric mini explosion proof excavator
- Category: >>>
- Supplier: Shandong Hekuang Heavy Industry Machinery Co. Ltd.
Share on (62128358425):
Product Overview
Description
Product Description
This machine is suitable for rock loading, clearing and excavation of frozen soil in coal mines, metal mines, non-metallic mines, shafts, inclined shafts and roadway excavation. The machine has the following characteristics: Compared with the traditional artificial clearing, the machine can greatly improve the working efficiency while saving the labor cost, improve the working environment, and the operator is working under the protection of the cab, which is beneficial for safe production. Compared with the traditional diesel-powered mini excavator, the electric hydraulic system has the characteristics of energy saving, low noise, no exhaust pollution and high efficiency, and it is more suitable for underground use. The machine is compact in structure, small in size and small dispensing parts, which is convenient for vertical downhole use. With the smallest swing structure, when the body turned on the car, the tail will not exceed the width of the car, so it is more suitable for working in small space underground.
| TYPE | STW-30 | STW-65 |
| WEIGHT(T) | 4.5 | 6.5 |
| DIMENSION(L*W*H)MM | 3750*1600*2400 | 4460*1900*2400 |
| BUCKET CAPACITY(M3) | 0.2-0.3 | 0.3-0.4 |
| MAX.EXCAVATING HEIGHT(MM) | 4500 | 5200 |
| MAX.EXCAVATING DEPTH(MM) | 950 | 1150 |
| MIN GROUND CLEARANCE(MM) | 340 | 320 |
| MAX.DISCHARGE HEIGHT(MM) | 1600 | 2050 |
| MAX.VERTICAL DRILL DEPTH(MM) | 2240 | 2650 |
| TRAVELING SPEED(KM/H) | 0.89 | 0.89 |
| NOMINAL WORKING PRESSURE(MPA) | 35 | 35 |
| ROTATION ANGLE(°) | 360 | 360 |
| MOTOR POWER(KW) | 22/30 | 30/45 |

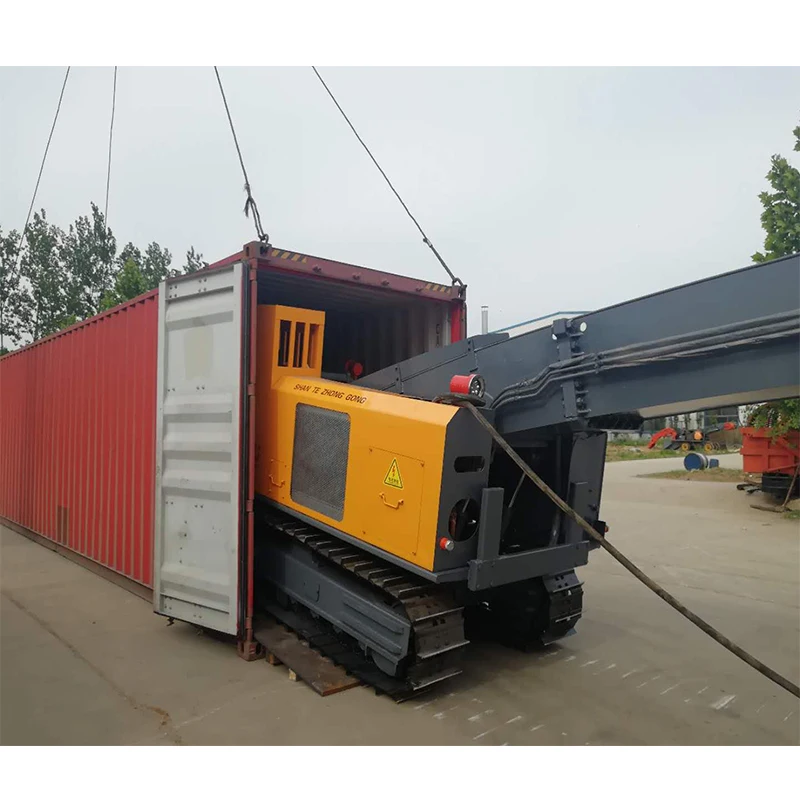

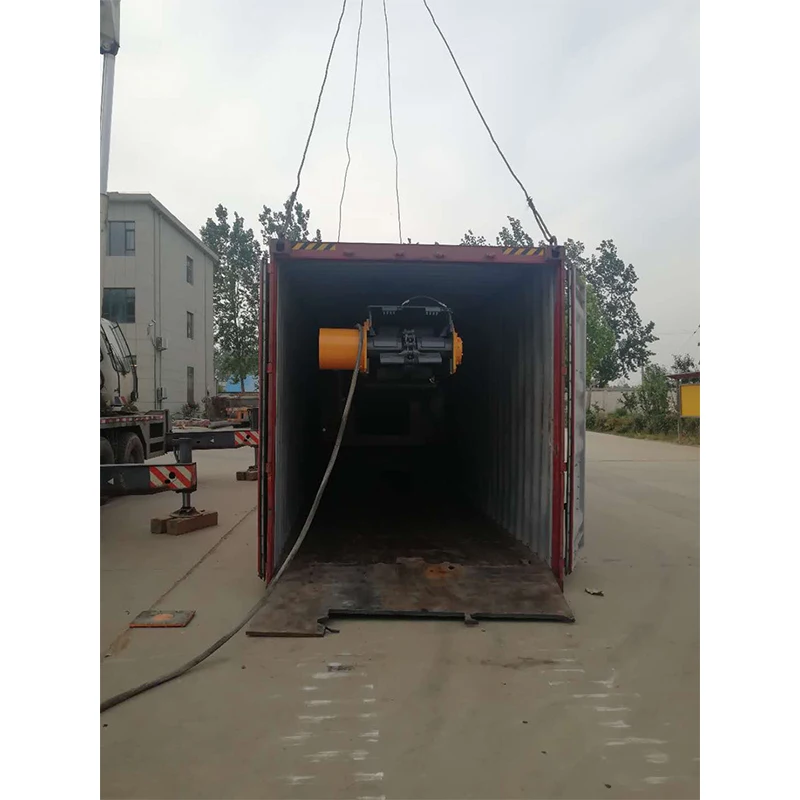

Packaging & Shipping
FAQ
Q: What is the delivery time ?
A: Normally the leadtime is 10 days after receipt of the deposit.
Q: What is the Payment terms ?
A: TT Or L/C.
Q: What is the warranty of the products ?
A: One year.
Q: Are you manufacturer or trading company ?
A: We are manufacturer,not dealer.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
Q: Can you customize the products as per request ?
A: Yes,we can customize your products.
Q: Where is the products are used?
A: The products are used for mining in the tunnel of coal mine or metal mine or non-metal mine.
Q: What is the drive mode of your products ?
A: The products drive mode is electric drive.
Q: Can the products be installed dual power –diesel engine and electric power ?
A: Yes,we can make the products with diesel engine and electric power
.
Q: What is the usage of the products ?
A: The products are multiple function integrating walking, digging,collecting,conveying,discharge.
