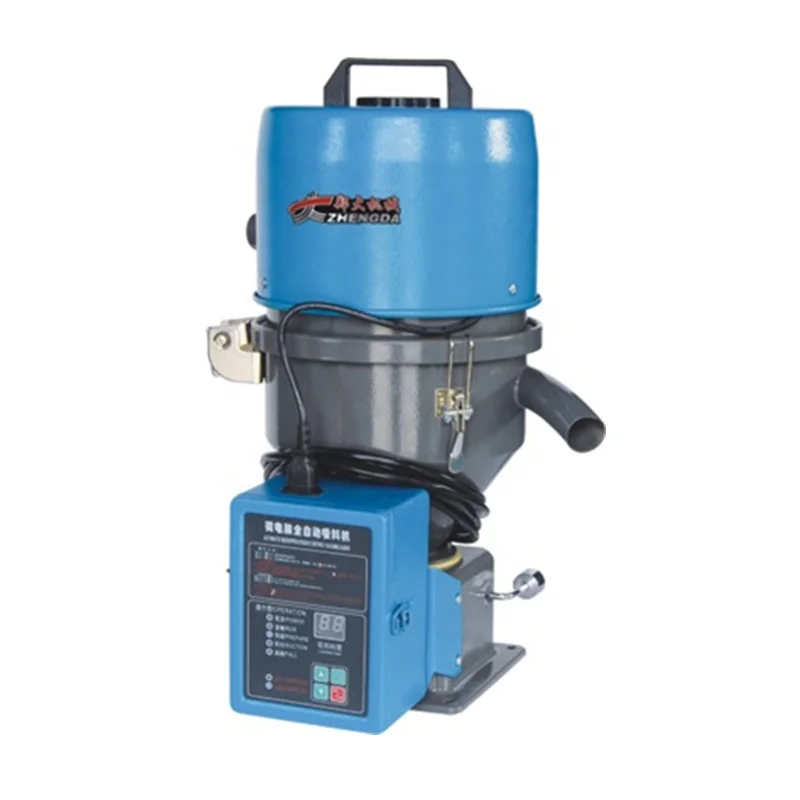

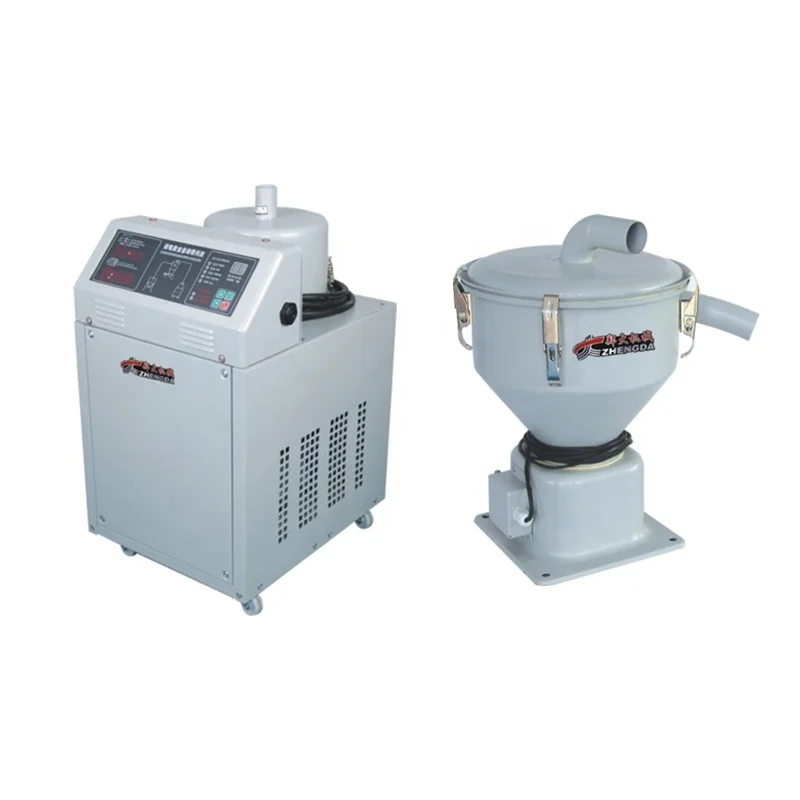

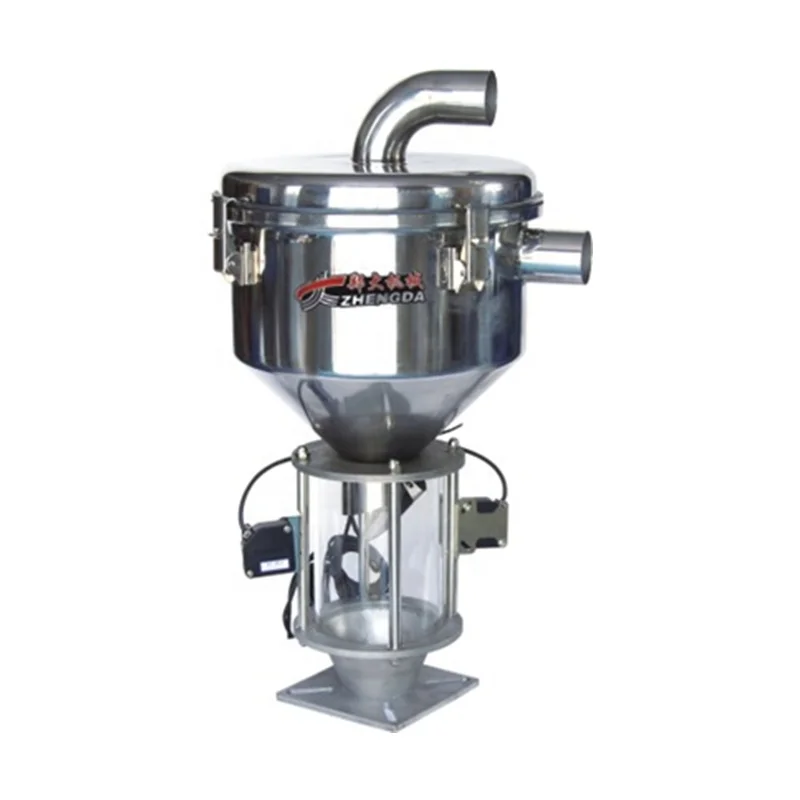

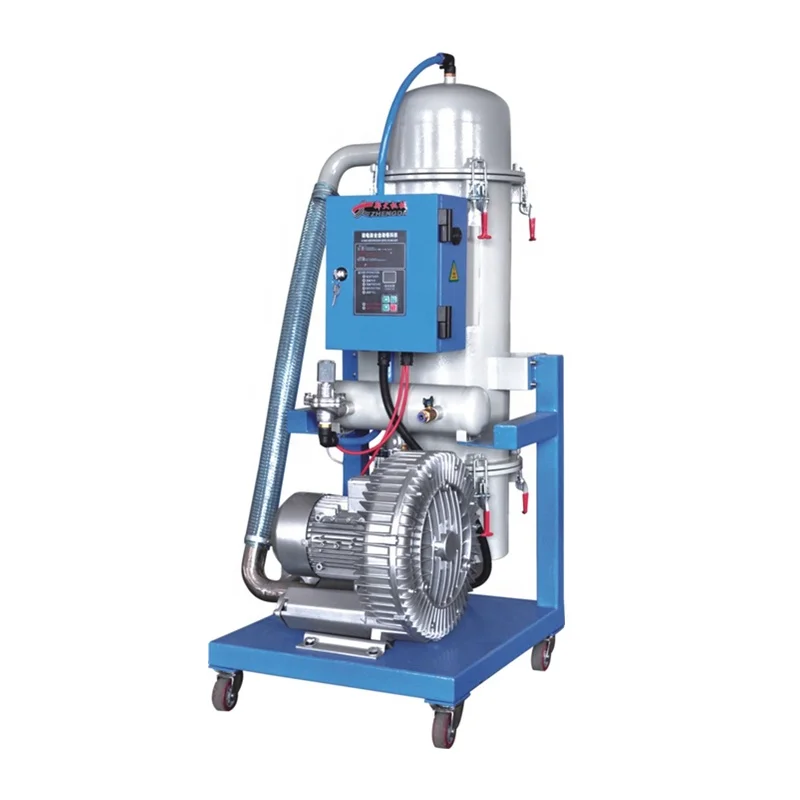

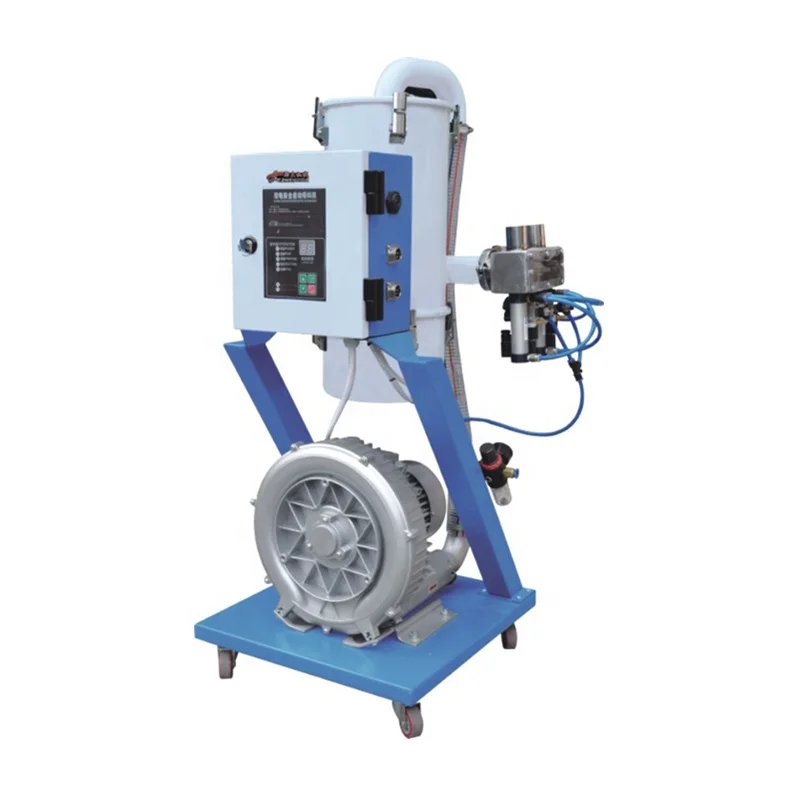

low price PP/PE/ABS/PET plastic auto loader for injection machine
- Category: Plastic Loader >>>
- Supplier: Ningbo Kinggle Machinery Co. Ltd.
Share on (62128373355):
Product Overview
Description

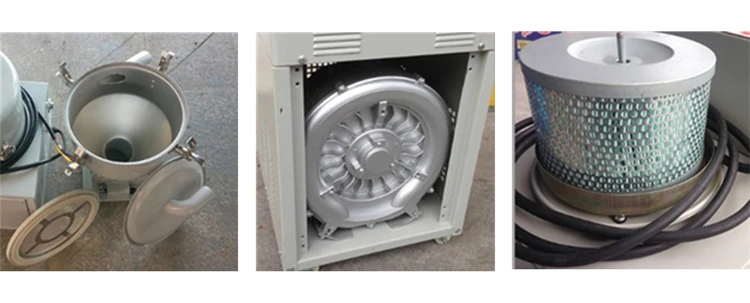

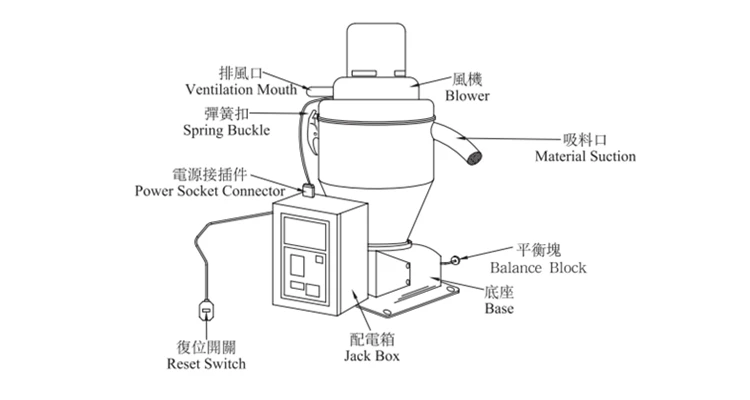

- Material hopper separates with main controller,safety and more convenient.
- With isolated filter,it is easy to clean.
- It is equipped with the speceal device to redue the working niose.
- Material hopper is made of aluminium,light and durable.
- Separately design control box is operated by microcomputer.
- It is equipped with motor auto protection device.
- Warning device works automatically when lacking material.
- Motor can rotate anti-closewise to get rid of dust.
Technology
| Model | ZDAL-300G | ZDAL-700G | ZDAL-800G | ZDAL-800G2 | |
| Motor | Type | Carbon brush | Induction | ||
| Specification | 1KW/1.3HP 1Φ | 1KW/1.3HP 1Φ | 1.1KW/1.5HP 1Φ | 1.5KW/2HP 1Φ | |
| Conveying capacity (kg/h) | 300 | 310 | 450 | 590 | |
| Loading distance (m) | 3.5 | 4 | 4 | 5 | |
| Static wind pressure (mm/HO) | 1300 | 1300 | 2100 | 2900 | |
| Reservoir vloume (L) | 7.5 | 7.5 | 7.5 | 7.5 | |
| Conveying tube inner dimater (mm) | Φ38 | Φ38 | Φ38 | Φ38 | |
| Specification of the attached hoses (mm) | Φ38x3.5 1ps | Φ38x3.5 2ps | Φ38x3.5 2ps | Φ38x3.5 2ps | |
| Dimensions | Main frame | 34x34x59 | 37x30x56 | 42x38x64 | 50x40x70 |
| Hopper | 28x34x43 | 45x32x45 | 45x32x45 | ||
| Net weight | Main frame | 12 | 14 | 47 | 66 |
| Hopper | 6 | 10 | 10 | ||
l Other auxiliary machine
 |  |  |  |  |
Our Services
The warranty period for Kinggle machine is one year with a life long maintenance.
If the user requires special quality guarantee, other stipulated warranty period may be made after
mutual agreement.
1. Reply the email and take action in 24 hours. |
2. 100% Quality inspection before the shipment. |
3. Can trainning clients operator for free in seller`s factory. |
4. Engineer overseas is avilable. Introduce our engineer come to customer’s factory working. |
5. Blowing mould and injection mould made orginal. |
6. Auxiliary machines for complate line. |
7.Custimized design as requirements. |
Certifications
FAQ
[1] Q: Are you a factory or trading company?
A: We are a factory. Our factory is near Shanghai & Ningbo port, Ningbo ,zhejiang .
[2] Q: Do you provide blow molding machine ,mold and auxiliaries equipments?
A: Yes, we can provide full blow molding machine line. The machine can produce Max 10,000L items, our
factory have patent for the multilayers and multi-colors!
[3] Q: How about quality control in your factory?
A: “ Quality is the key point, do what customers need” . Kinggle machinery factory focuses on quality, quality control from beginning to the end. Every piece of goods is tested strictly before packing and delivery.
[4] Q: How about guarantee ?
A: One year guarantee, oversea service is avaliable.
[5] Q: What is the language of the PLC and touch panel?
A: Don’t worry, we will translate the language in English,or other languages to make sure you will have an easy operation .
