GZD/ZSW Vibrating Feeder Machine for Stone
- Category: >>>
- Supplier: Zhengzhou Unique Industrial Equipment Co. Ltd.Zhengzhou Ltd.
Share on (62128380557):
Product Overview
Description

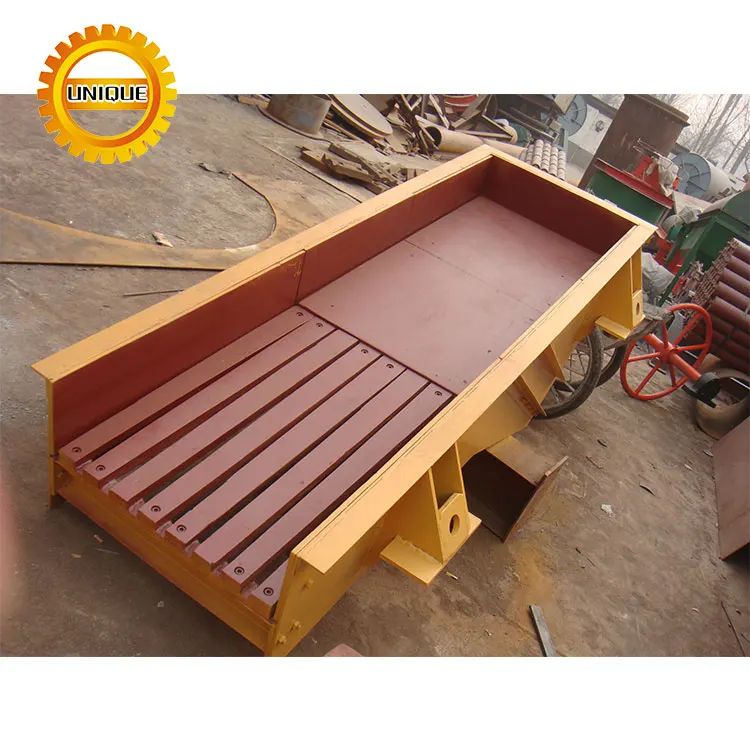

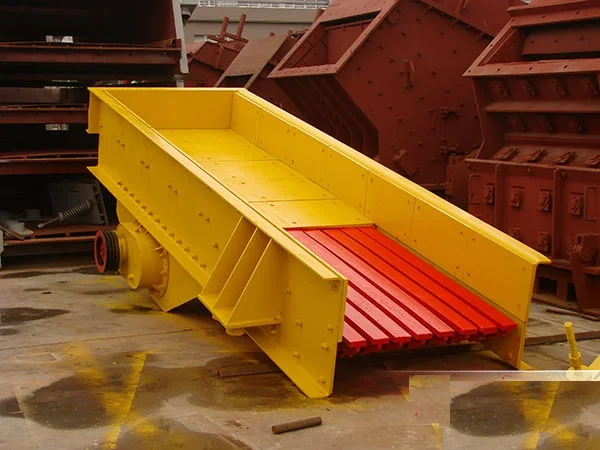

GZD/ZSW Vibrating Feeder Machine for Stone
Product Description

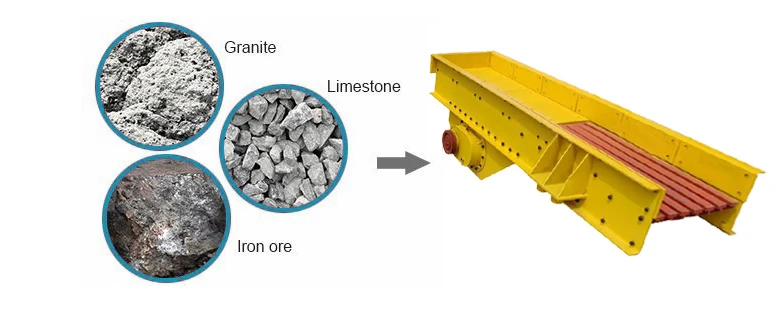

GZT vibrating feeder is designed by our company absorbing advanced technology home and abroad, and adopts vibrating motor to produce vibration force. It can send large material into the crushers evenly. At the same time, it can remove dust and increase crushing ability. It is especially used in water and electricity industry, building stone and metal ore, etc
Features and Benefits of Vibrating Grizzly Feeder
1.We can design and manufacture the machine according to the users' requirement.
2. Vibration smoothly, reliable work, long service life;
3. Vibration motor is a source of vibration, low noise, small consumption;
4. it has Simple structure, small volume, easy maintenance
5.The special fence can prevent the block of raw material
6.The distance between fences is adjustable
Working Principle of Vibrating Grizzly Feeder
Vibrating feeder, stone feeder, consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through the vibration, The materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, avoiding the further crushing, so screening purpose can be reached.
Technical Parameters
GZT series Vibrating Feeder
| Model | Max. feed size(mm) | Capacity(t/h) | Power(kw) | Obliquity of bar(°) |
| GZT-0724 | 450 | 30-80 | 2x1.5 | 10 |
| GZT-0932 | 560 | 80-150 | 2x2.4 | 10 |
| GZT-0940 | 560 | 80-180 | 2x3.2 | 10 |
| GZT-1148 | 600 | 150-300 | 2x5.5 | 10 |
| GZT-1256 | 800 | 180-400 | 2x7.5 | 10 |
| GZT-1560 | 1000 | 400-600 | 2x13 | 10 |
ZSW Vibrating feeder
| Model | Max. feed size(mm) | Capacity(t/h) | Revolution speed of eccentric shaft(r/mm) | Power (kw) | Assemble angle(°) | Weight(kg) | Feed chute size(mm) | Dimension(mm) |
| ZSW-380x95Ⅱ | 500 | 96-160 | 500-714 | 11 | 0 | 4082 | 3800x900 | 3882x2177x2066 |
| ZSW-420x110 | 580 | 120-240 | 500-800 | 15 | 0 | 4740 | 4200x1100 | 4282x2400x2150 |
| ZSW-490x96 | 500 | 120-240 | 500-800 | 15 | 0 | 5351 | 4900x960 | 4957x2277x2150 |
| ZSW-490x110Ⅱ | 630 | 120-280 | 500-800 | 15 | 0 | 5352 | 4900x1100 | 4950x2425x2031 |
| ZSW-590x110 | 630 | 350 | 750 | 22 | 0 | 6130 | 5900x1100 | 6000x2500x2150 |
| ZSW-600x130 | 750 | 400-560 | 500-800 | 22 | 0 | 7800 | 6000x1300 | 6082x2580x2083 |
| ZSW-600x150 | 800 | 460-575 | 500-800 | 30 | 0 | 8666 | 6000x1500 | 6086x2662x1912 |
| ZSW-600x180 | 800 | 600-800 | 500-800 | 37 | 0 | 11800 | 6000x1800 | 6310x3262x2230 |

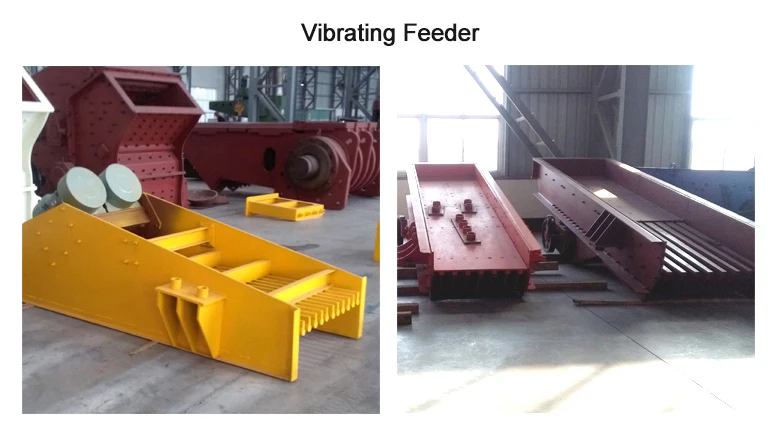

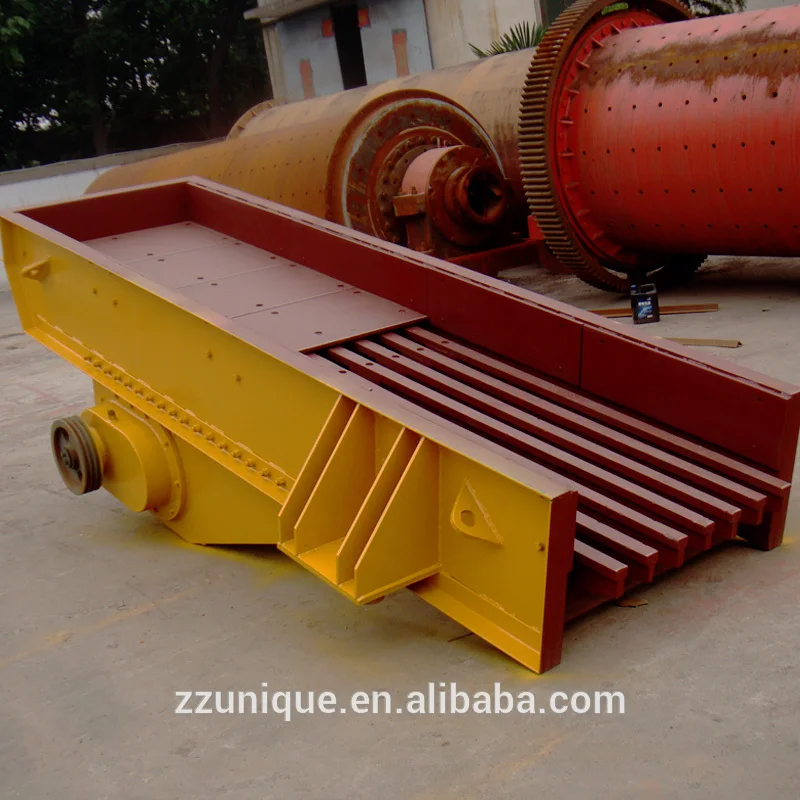

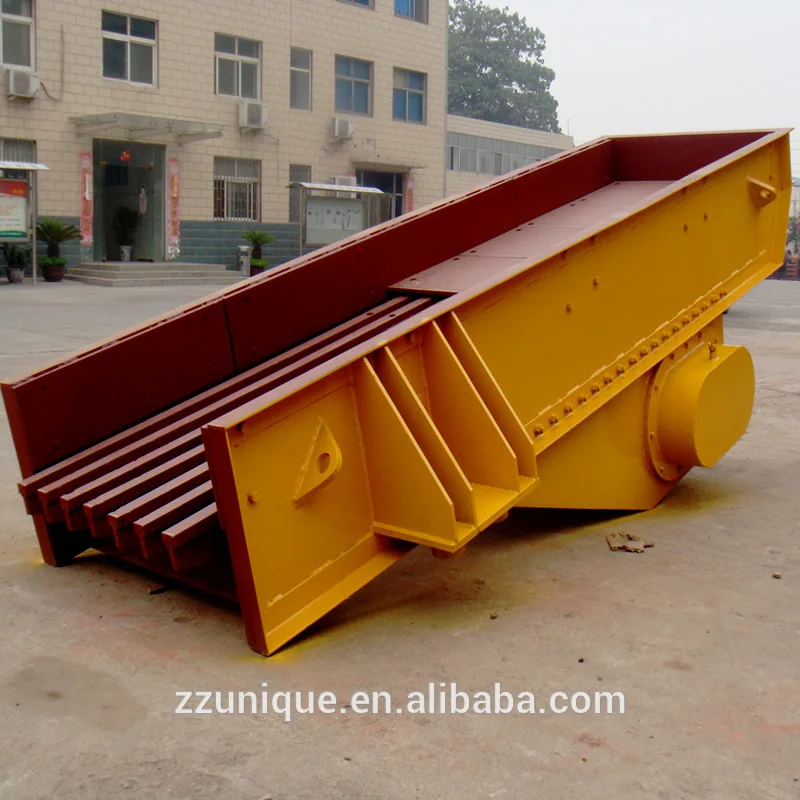

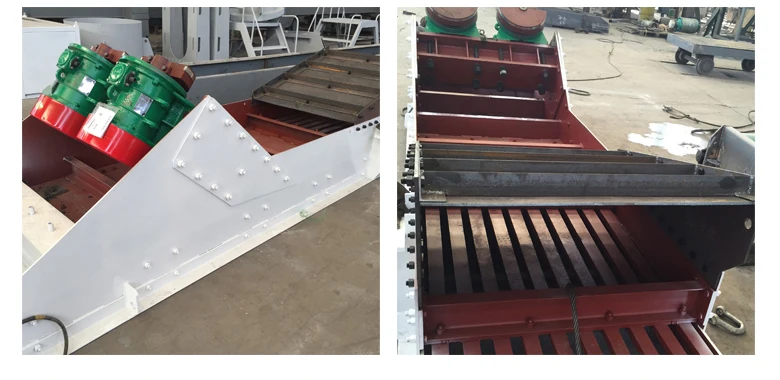

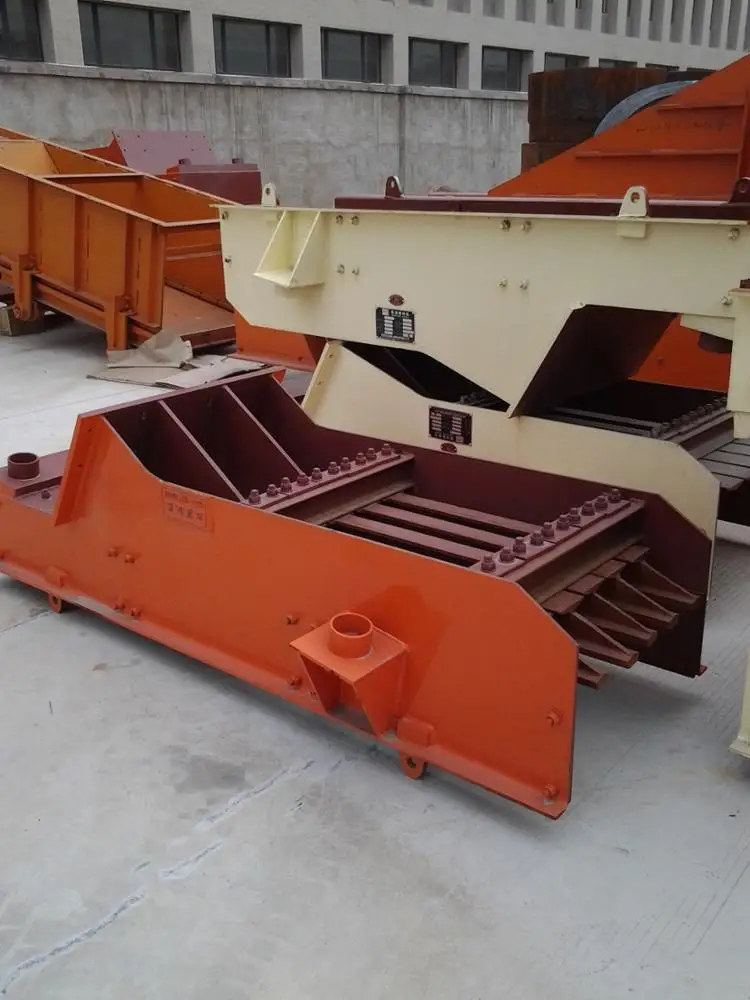

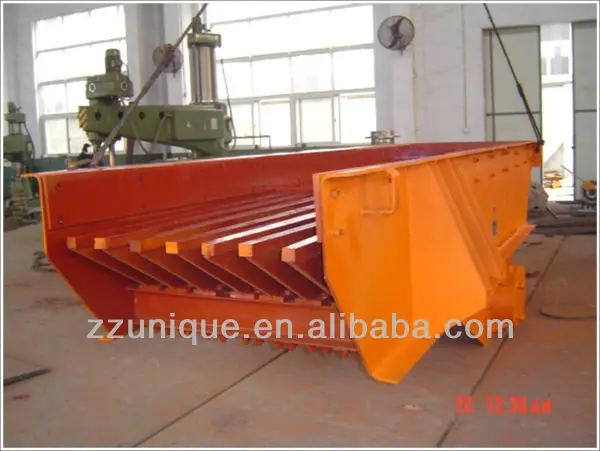

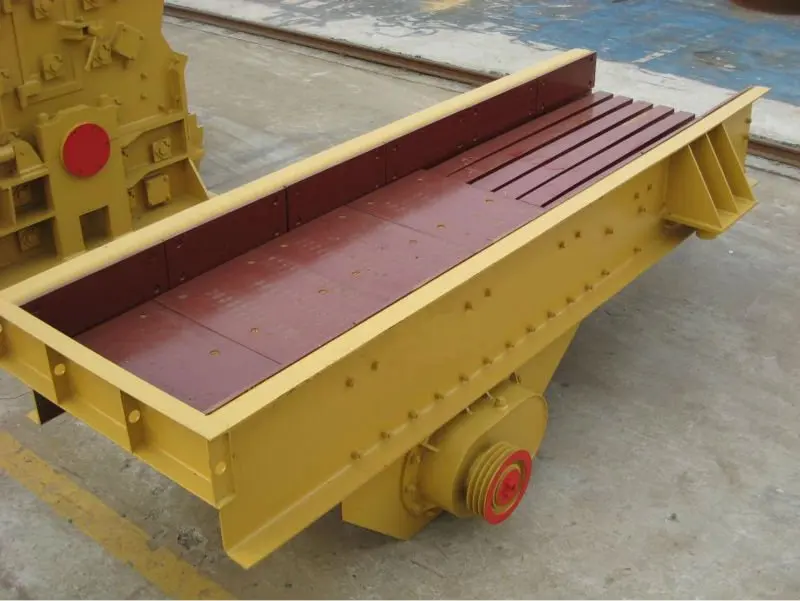

Detailed Images

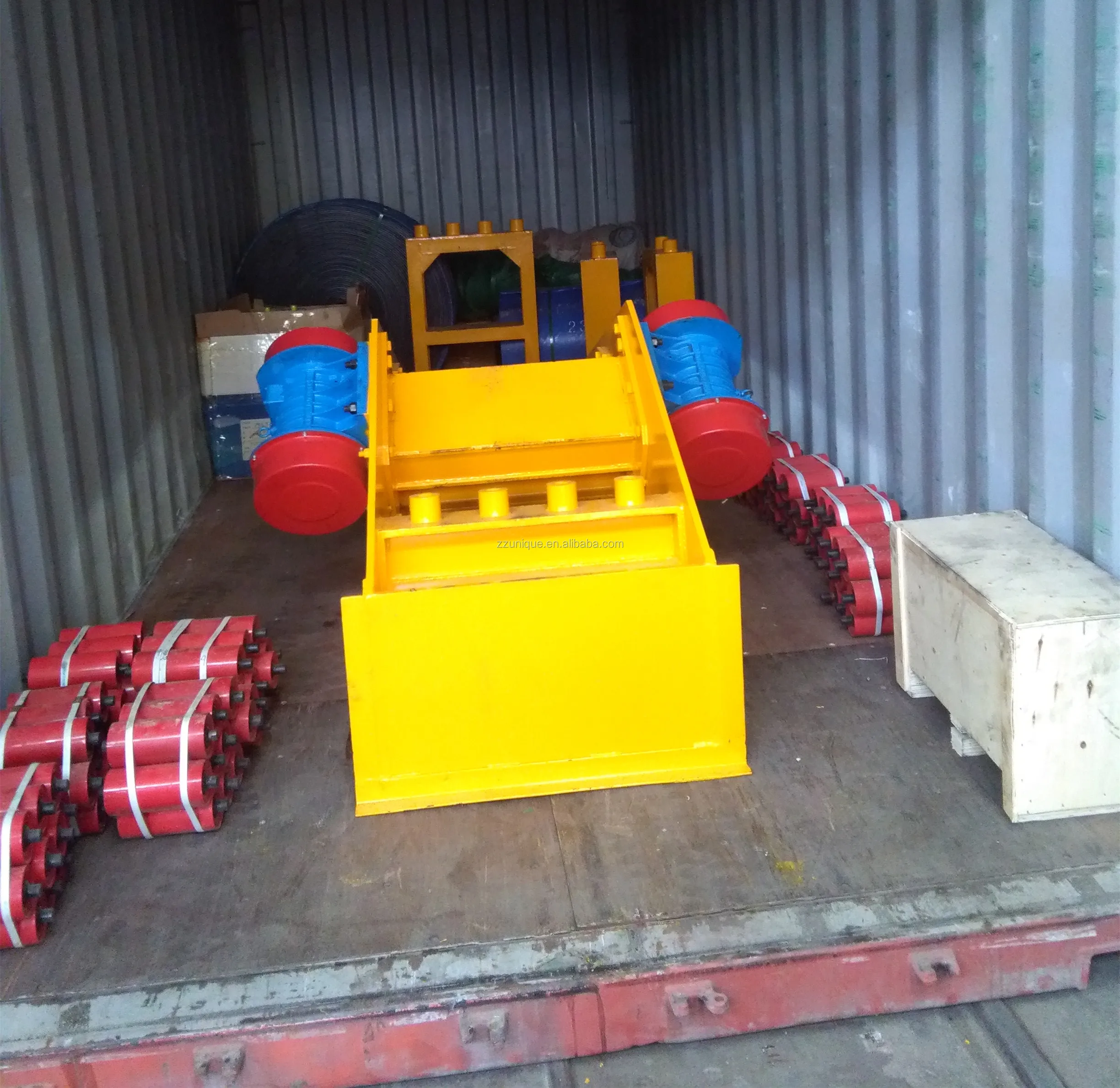

Packaging & Shipping
Packaging:standard Container, standard Packs or in Bulk.The electrical motor or spare parts will be packed by wooden case or steel frame.Unique offers various ways of package, fumigation-free wooden cases, steel plate cases, or as the clients' request. Most of the time, the equipment will be loaded to the containers in the factory. Unique workers make sure all equipment are steady and fixed before close the door of the container, there will be no damage during transporation and shipment.
Shipping:we deliver the cargo to China's main sea ports,such as Qingdao,Tianjin,Shanghai etc.And then the container will be transported to your country by sea.
After-sales service support
1.more than 12 months' warranty period
2.Erection and Commissioning
3.Operator Training
4.Spare Parts Supply
Normally,Equipment spares will be offered with manufacturing cost in at least 10 years since the order is placed. To establish long term cooperation, we will regularly call and email our clients, to check the equipment working condition, offer suggestions for maintenance, and if necessary we will pay a visit to clients to solve the problems caused during equipment working.

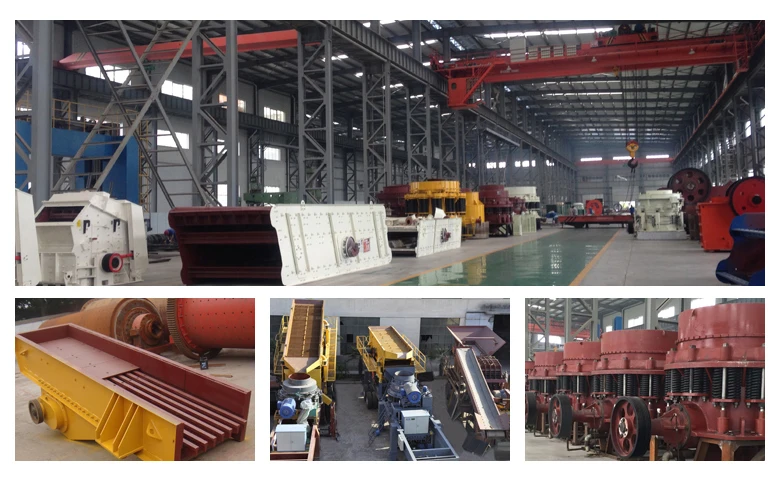

Company Information
Zhengzhou Unique Industrial Equipment Co., Ltd is a leader in the R&D, manufacture, and distribution of Mining Machinery in China. Our products comprise three categories: Stone Crushing & Screening, Portable Crushing Plant, and Complete Crushing Plant. Our primary products are Jaw Crusher, Impact Crusher, Hydraulic Cone Crusher, Spring Cone Crusher, Vibrating Screen, Vibrating Feeder, Portable Crushing Plant and Aggregate Crushing Plant. Our vast line of products is available for countless uses, meeting any and all of our customers' special needs.
Unique has been dedicated to producing Mining machinery for many years. We take pride in manufacturing our mining machinery, and the chance to serve the varied needs of our customers worldwide. Our brand is recognized worldwide for our high quality, reliability, and our customer service. We currently supply over 60 different countries with our products, including Jaw Crusher, Impact Crusher, Hydraulic Cone Crusher, Spring Cone Crusher, Vibrating Screen, Vibrating Feeder, Portable Crushing Plant and Aggregate Crushing Plant, etc.
FAQ
Q1.How long is the warrenty of your equipments? Does your company supply the spare parts?
The warranty period of crusher equipments is one year. Yes, we supply the spare parts for you at lowest cost and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q2.What Information should customers give us, So that we can be able to provide you suitable quotation and service.
What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?
Q3.Can you test our samples?Do you provide beneficiation flow chart?
Yes. You can send your samples to us for test and analysis. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
Q4. If I need the complete crushing plant can you help us to build it?
Yes, we can help you combine a complete crushing line and give you related professional advices as long as you need. We had already build many mining projects in China & Overseas.
Our Advantages---
A.We have over 30 years experiences of manufacturing crushers, crusher line and other mining equipments.
B.Our new wearable material ensures the working life of plate hammer, impact plate and liner board much longer.
C.Our even plate structure makes final material smaller and cubic, no inner crack.
Any questions , please contact us freely.
OUR PRODUCT SCOPE:
1. Mobile Crusher: portable jaw crusher, portable impact crusher, portable cone crusher, portable construction waste crushing plant
2. Stone Crusher: jaw crusher, impact crusher, Symons cone crusher, spring cone crusher, sand making machine, hammer crusher, ball mill etc.
3. Auxiliary equipment: vibrating feeder, vibrating screen, belt conveyor, crawler rock drill
