KAYO A6L factory direct supply SMT Multi functional Pick And Place circuit board making Machine Chip Mounter with 60 feeders
- Category: >>>
- Supplier: Wuxi KAYO Automation Equipment Co. Ltd.
Share on (62128394850):
Product Overview
Description
Product Description
KAYO-1706-3DSG
Automatic SMT P&P Machine

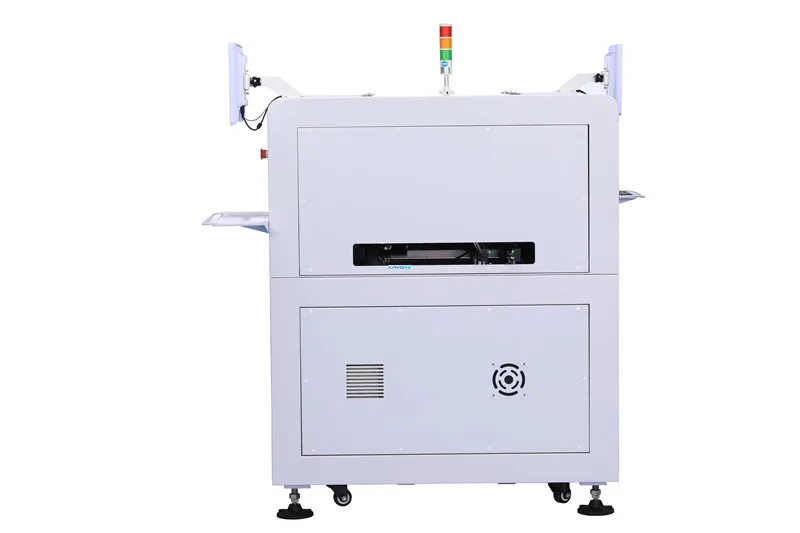

Product Dimensions

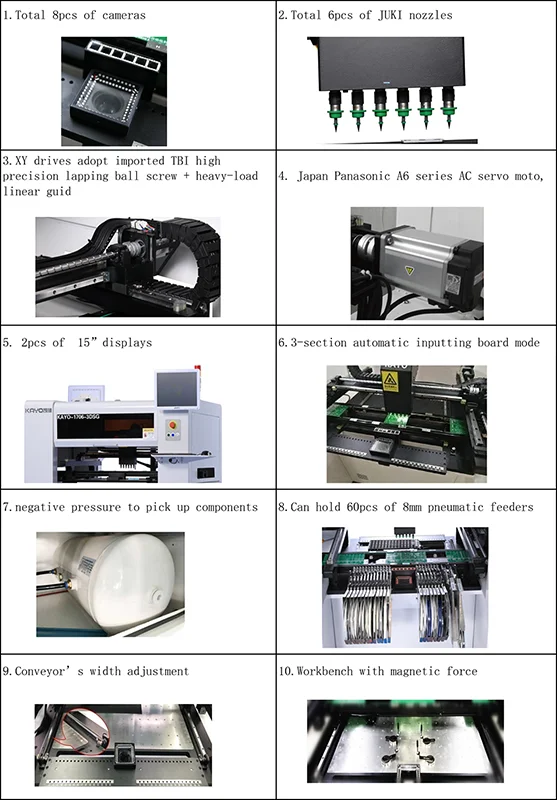

Product Advantages

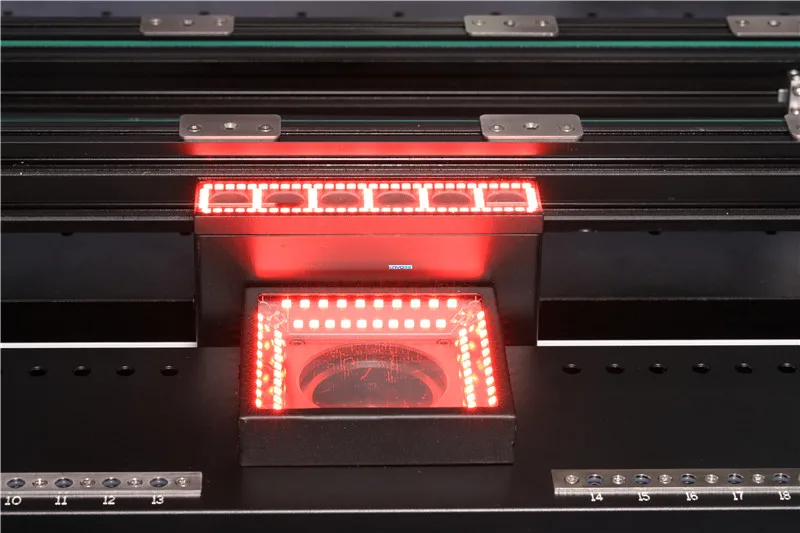

1.8pcs of cameras: 1pc of Mark, 1pc of high precision, and 6pcs of high-speed recognition cameras, synchronously recognize, effectively ensure mounting speed and precision.

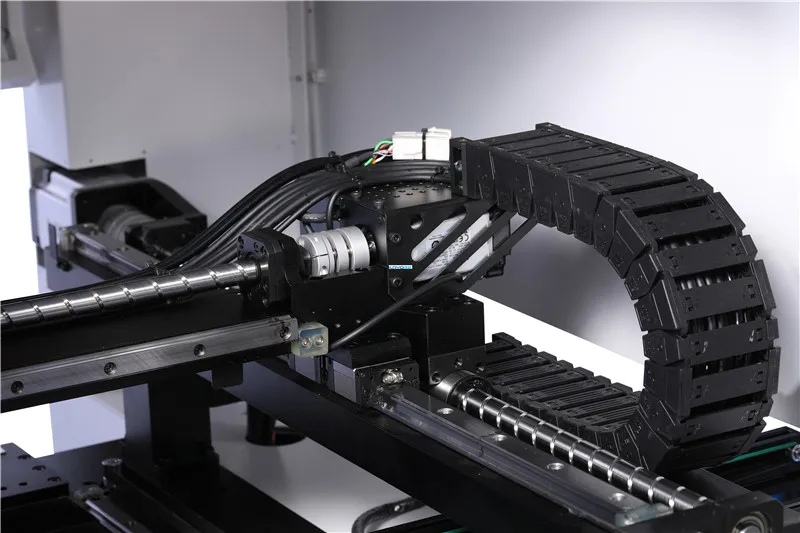

2.XY drive uses imported high-precision grinding ball screw rod + imported heavy-duty linear guide, quick positioning, low noise, high precision.

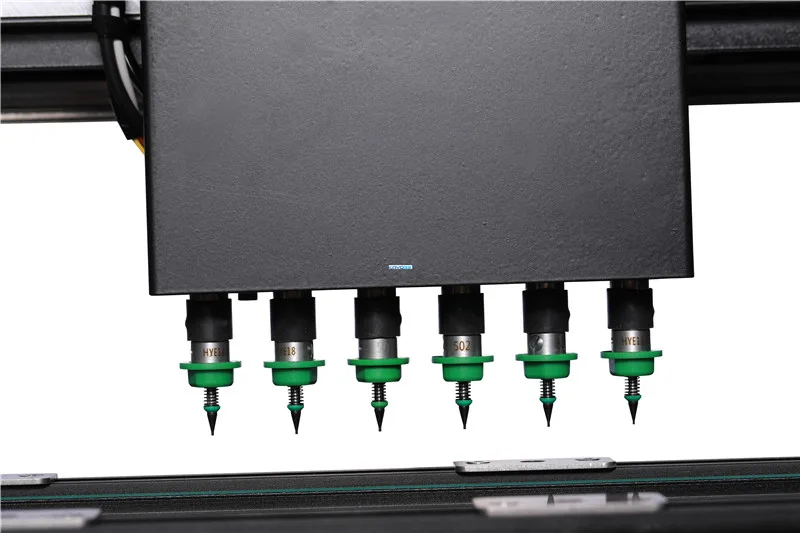

3.Panasonic Servo Motor and Drive, TBI precise linear guide, Japan Vacuum generator, JUKI high-precise nozzles, automatic feeding integrated system and high-configuration IPC - High precision, strong stability, promise 24-hour mounting stably.

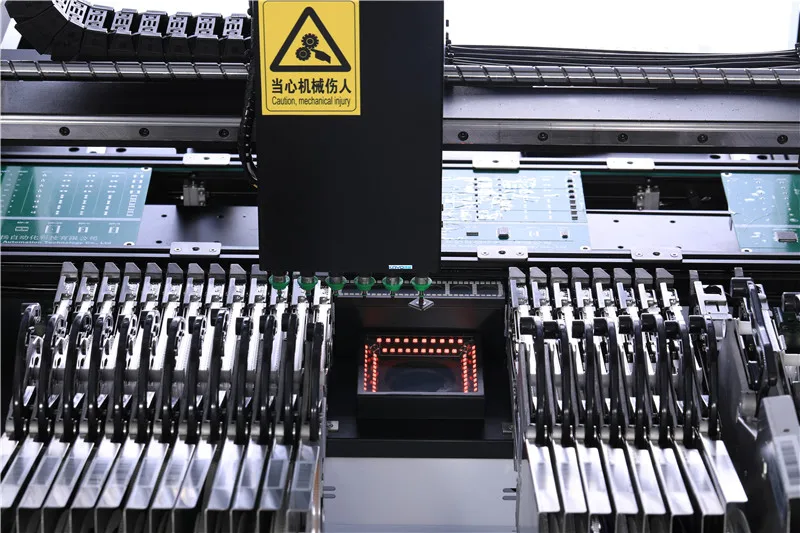

4.Three-section transmitting boards-automatic connection from left to right (The first section is waiting for mounting, the second section is responsible for mounting (When the PCB board finishes mounting and transmits to the third section, the first section also receives the demand to prepare a new boards simultaneously.), the third section transmits the board from p&p machine to reflow oven. Effectively save time of transmitting boards and improve efficiency.
Product Specification
| Feeder No. | 60 | tray quantity | support 12 pcs |
| Mounting Heads | 6(No need to change Nozzle) | Positioning Accuracy | 0.01mm |
| Average Power | 600W | Power Supply | 220V, 50Hz |
| Nozzle Buffering Range | 5.0mm | Driving Motor | Panasonic servo motor |
| Compressed Air | 0.5-06Mpa | Max. Circuit Board Area | 650x370mm |
| XY Max. Movement Range | 700x619mm | Z Axis Max. Movement Range | 20mm |

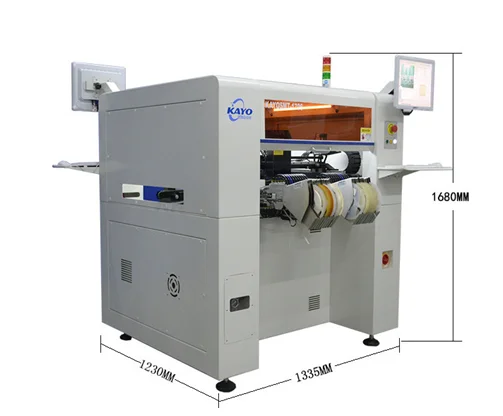

| Product Weight | 450KGS | Dimensions | 1335x1230x1420mm |
| Rail Guide Adjusting Method | Manual + Automatic | Alarm when open the cover | Reducing speed or out of service |
| Max. Mounting Speed | 12000CPH | Motion Drive System | Panasonic High speed DPS driver |
| XYZ Drive Guide Rail | TBI High-precision heavy-duty straight-line guide rail | ||
| XY axis movement model | Intelligent curve acceleration and deceleration linear linkage | ||
| Belt Type Feeder | 8/12/16/24mm feeders, stick feeder, Electric feeder | ||
| Average Mounting Speed | 10000CPH (Visual) | ||
| Nozzle Vacuum Source | High-speed on-off vacuum generator with vacuum damage | ||
| Operating System | Support Windows XP, Win7 operating system | ||
| Component Angle | 0~360°, synchronized rotation in motion | ||
| Visual Display | 2 Pcs 15" industrial control display ratio 4:3, resolution1024X768 | ||
| Programming Mode | Point-to-point programming, visual programming, PCB file coordinates inputting, etc. | ||
| Recognition Camera No. | 1pc of Mark recognition camera, 6 pcs of high speed recognition camera, 1 pc of 5 million high-precision recognition camera | ||
| X/Y Running Mode | Imported TBI high-precision ball screw rod + imported TBI heavy-duty linear guide | ||
| Board Input Method | Three-section transmitting boards-automatic connection from left to right, automatic PCB transmission positioning | ||
| Shortcut button | off-line/restoration/automatic operation /remove the alarm | ||
| Automatic on-line | Can automatically connect front and rear end with signal equipment | ||
| Applicable Mounting Range: Suitable for 0201, 0402, 0603, 0805, 1206, LED lamp beads, diodes, transistors, SOT, 40mm*40mm range pin pitch ≥0.3mm QFP, BGA etc. | |||
