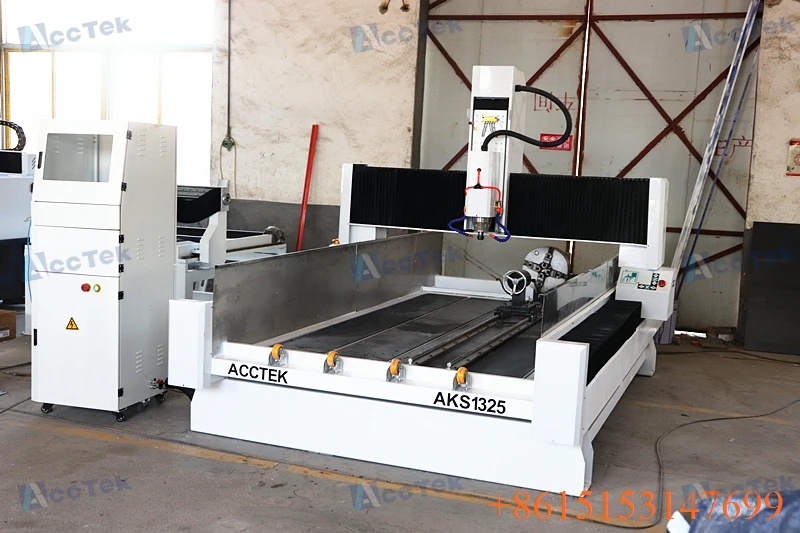

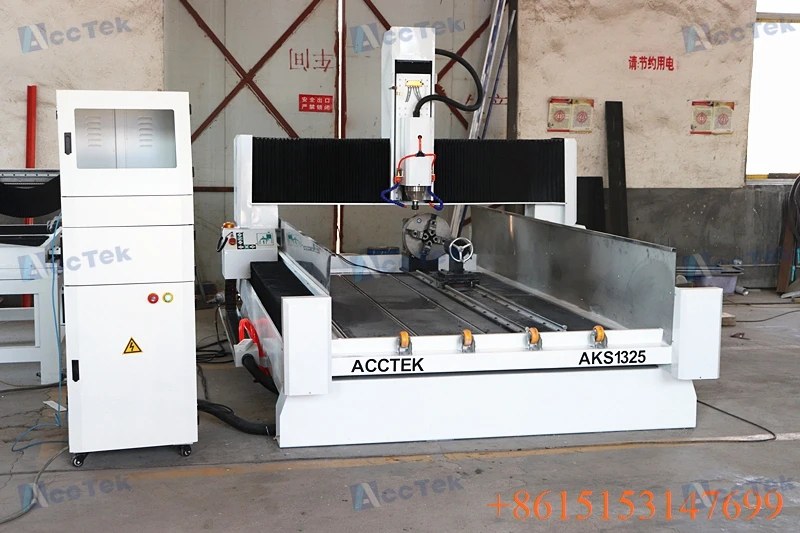

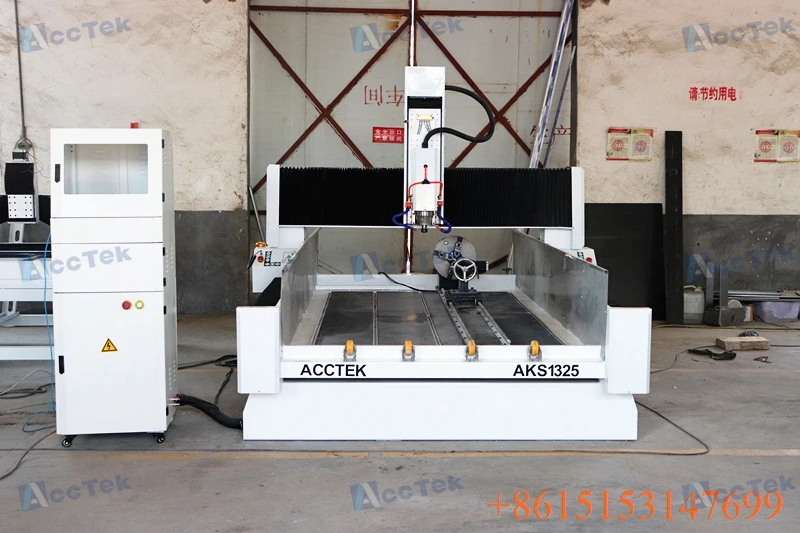

Stone wood cnc engraving machine 3d 4 axis cnc router for Marble Granite Statue Grave
- Category: >>>
- Supplier: Shandong Abletec Machinery Co. Ltd.
Share on (62128399771):
Product Overview
Description
Stone wood cnc engraving machine 3d 4 axis cnc router for Marble Granite Statue Grave
Product Description
Technical parameters:
Items | Parameters |
Working area(mm) | 1300*2500*200mm |
Table Structure | 1.5 mm stainless steel T-slot table |
Transmission system | X,Y axis Gear Rack from Taiwan,z axis Ballscrew from Taiwan but with German technology |
Lead rail system | Linear round guide rail |
Spindle power | 5.5 kw Water-cooling ,3.175/4/6/12.7mm |
spindle speed | 0-24000 rpm |
Motor | stepper(Panasonic/Yaskawa optional) |
Drive | YAKO 2811 |
Dust collector system | For your option |
Inverter | 7.5kw Fuling inverter |
Software environmant | Windows 98/2000/XP |
Control System | DSP A11 |
Compatible file formats | G code; *.u00 ; *.mmg ; *.plt . |
Compatible CAD/CAM Softwares | Ucancam V8 / Type3 / Artcam / |
Working Voltage | AC380V,3ph, 50Hz |
Precision | 0.005mm |
Max speed | 26.0m/min |
Max engraving speed | 18.0m/min |
Max feeding height | 200mm |
Work-holding devices | by fixture |
Interface type | USB |
Warranty guarantee | One-year after-sale services |
PS: All the working area and specifications can be customized according to your requests.

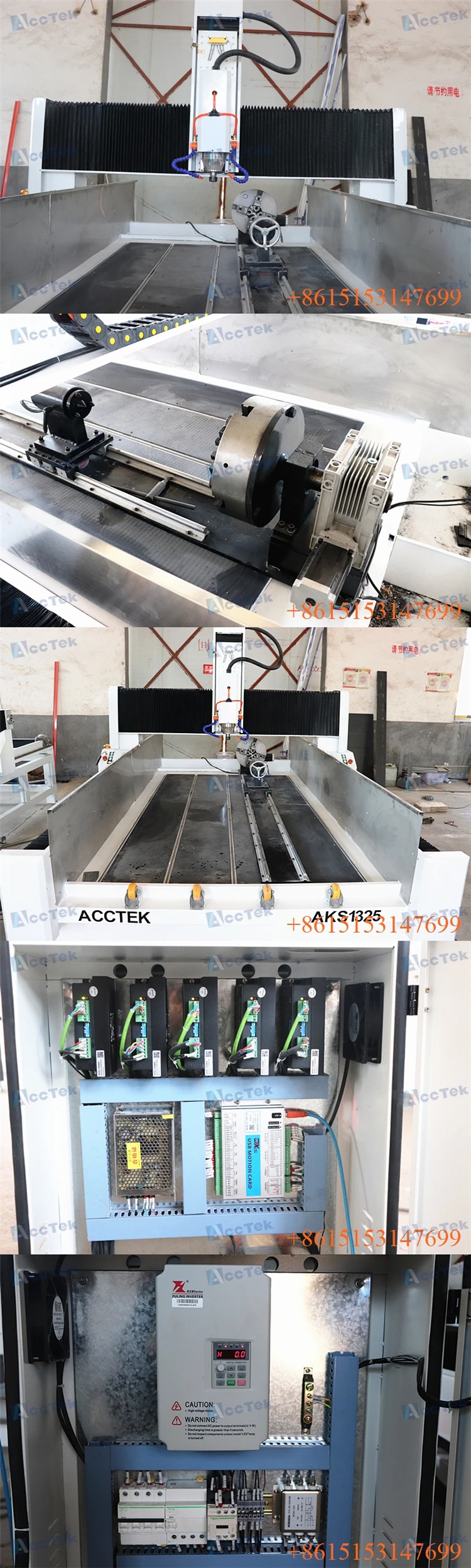

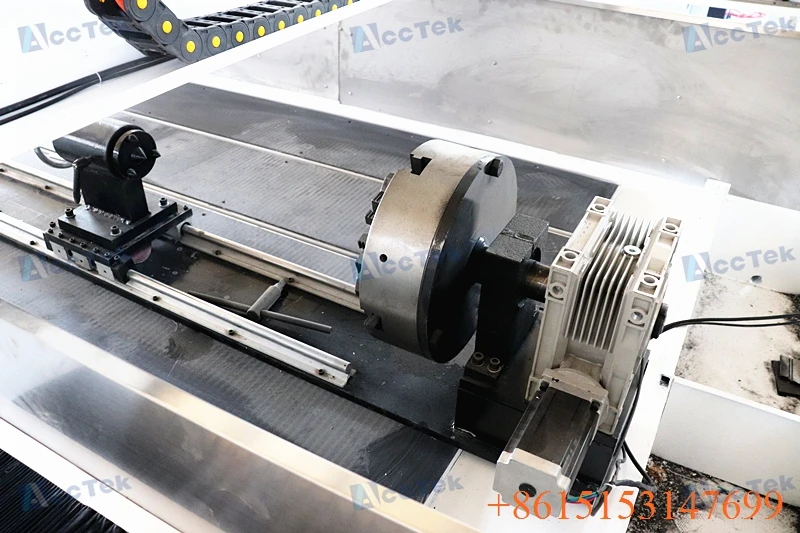

Detailed Images
Machine Application
Marble, granite, standstone, glass, artificialstone, headstone, tablet, such as ceramic engraving and cutting materical.
Payment & Delivery
1. We accept: Western Union , Trade assurance on alibaba, T/T, Western Union , Paypel , MoneyGram.You can pay 30% in advance, 70% before delivery.
2. The machine will be produced after received your deposit.after the machine is ready, we will show you the machine photos and the testing video.then you pay 70% balance payment,we arrange shipping for you.
3. Outside package: Standard marine export plywood case.
4. inner package: Stretchy film and plastic film for humidity.
Our Services
Our after sales sevice:
1. 1years quality guaranty, the machine with main parts(excluding the consumables)shall be changed free of charge if there is any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery
7. Our staff can be sent to your company to install or adjust if necessary.
