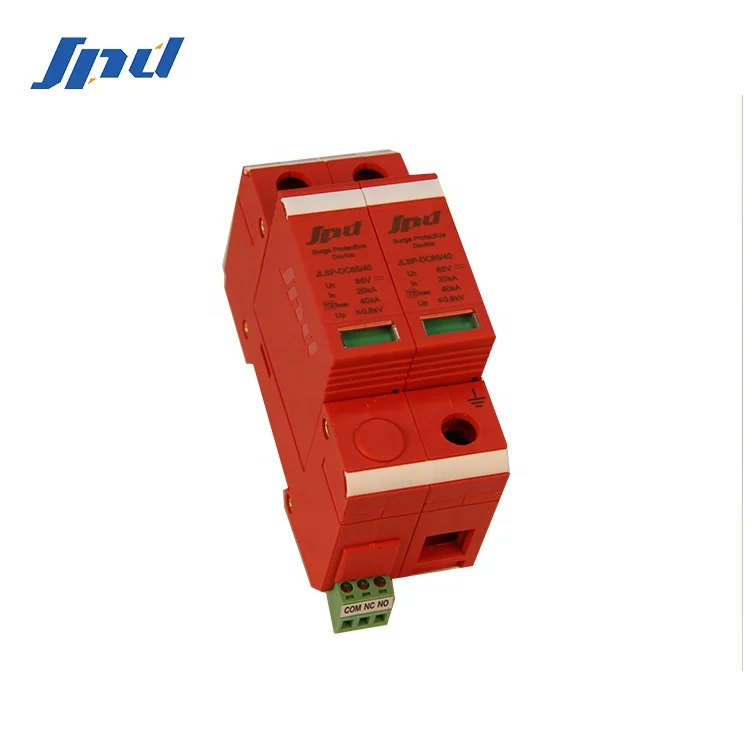

JINLI 40KkA DC 24V 48V surge protector JLSP DC85/40 surge protection device
- Category: >>>
- Supplier: Anhui Jinli Electric Tech. Co. Ltd.
Share on (62128490752):
Product Overview
Description
Company Information
Detailed Parameter
| Model | JLSP-DC85/40/2P |
| IEC Class | Class II |
| AC Network Un(50/60Hz)(V) | 24,48 |
| Max.continuous operating voltage Uc (V) | 85 |
| Nominal discharge current (8/20μs) In (kA) | 20 |
| Max. discharge current (8/20μs) Imax (kA) | 40 |
| Voltage protection level Up (kV) | ≤0.8 |
| Max. backup fuse(A) | 100(gG) |
| Response time tA | ≤25ns |
| Capacity of withstand short circuit | 25kA |
| Operating temperature | -40℃~+85℃ |
| Relative humidity | ≤95%(25℃) |
| Max.cross-sectional area | 25mm2 multi-strand cord |
Dimensions (1P) (W×L×H)(mm) | 18×90×62 |
| Mounting | DIN Rail 35mm |
| Protection rating | IP 20 |
| Housing material | PBT |
| Flame retardant rating | UL94 V-0 |
| Capacity of remote signaling contact | 250VAC/0.5A 30VDC/3A |
| Max.cross-sectional area of wire for remote signaling contact | 1.5mm²multi-strand cord / single cord |
| Status indicator | Normal:green / malfunction:red |
| Standards compliance | EN61643-11,IEC61643-11,GB/T 18802.11 |
