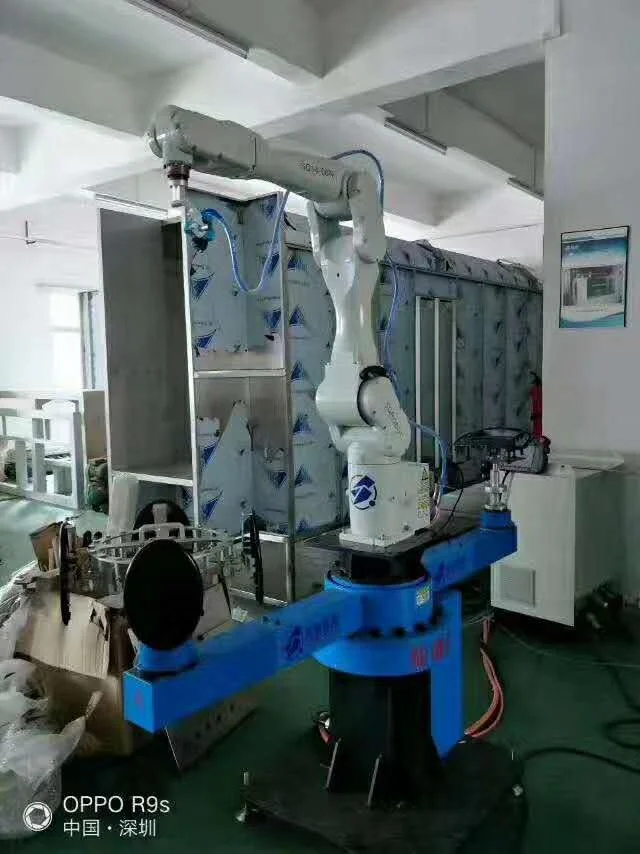

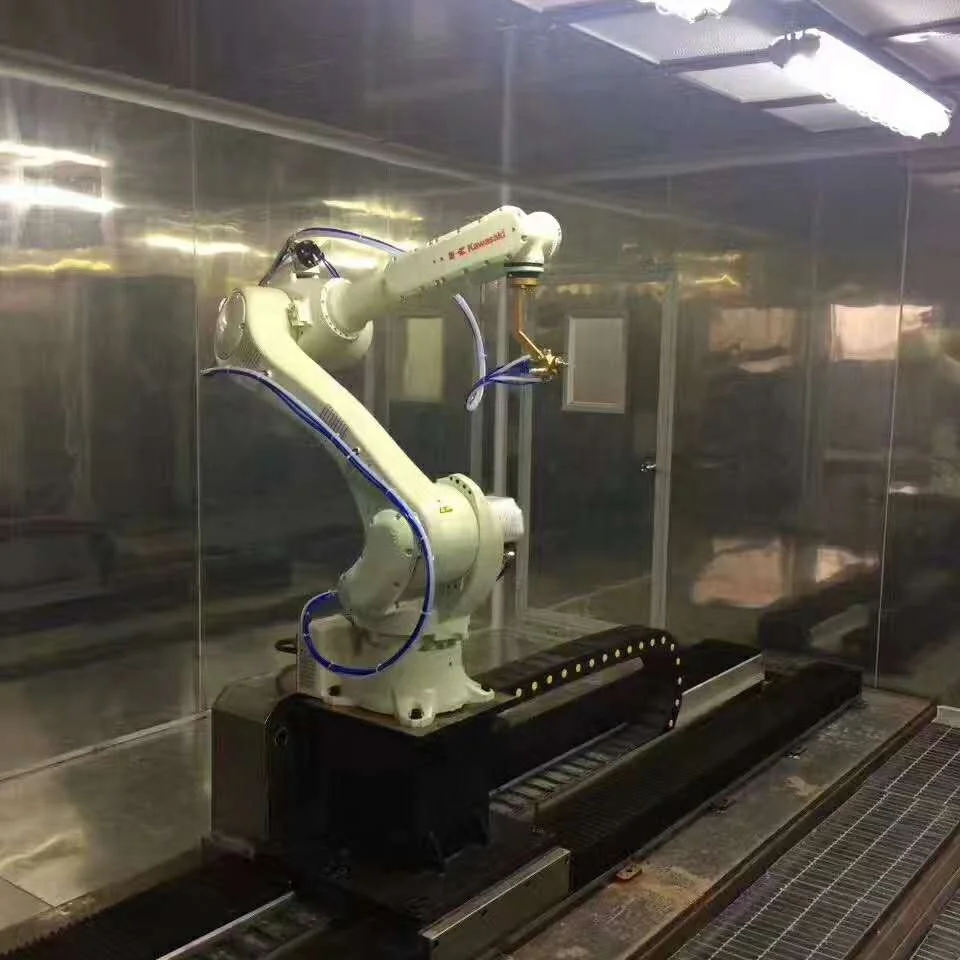

Robotic spray painting system for door

robotic spray painting system

The spray painting system needs to use the rock wool sandwich panel. According to the needs of the automatic line, the rock wool sandwich panel with different thickness can be selected. The thickness of the sandwich panel used in the UV automatic spraying production line is 75mm, and the high temperature furnace automatic spraying production line uses the sandwich panel. The thickness is generally 100 mm thick. Both the semi-automated spray line and the automated spray line have the same function.

Main Features

1) The equipment frame is welded firmly. The operation is simple, only the switch is needed, and the air pipe can start the machine.
2) Use stable performance motors, inverters, including pneumatic components, electrical components and operating parts.
3) Use a 50.8mm pitch to harden the chain.
4) With multiple switch protection. Main power switch, spray gun switch, inverter switch.
5) The fixture is made of aluminum rod turning. ensuring high-precision operation of the parts, stable operation

Machine Parts

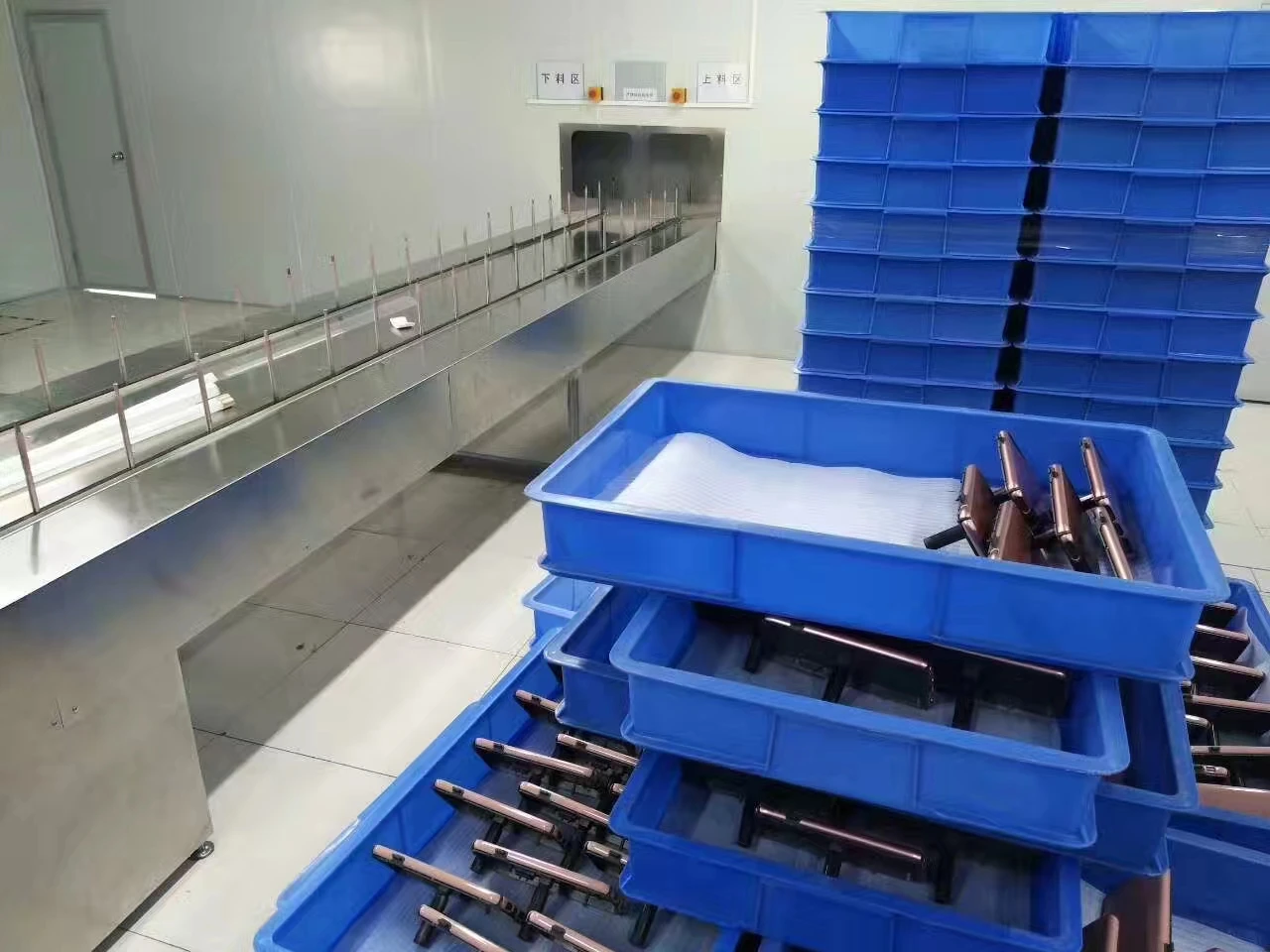

Name: Automatic spray coating line loading

Brand: HENGYIJIA

Original: China

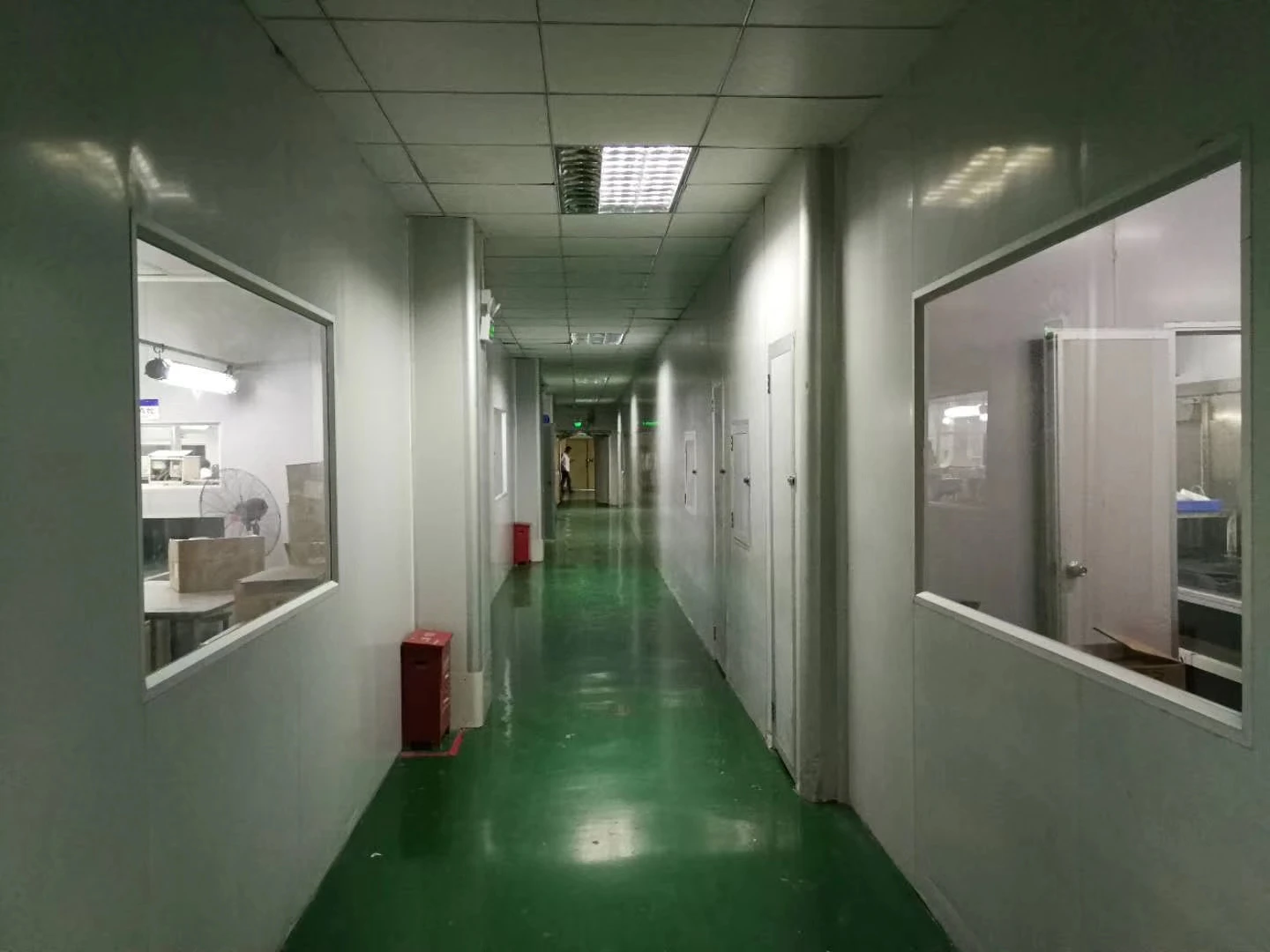

The main function of the dust-free workshop is to keep the spraying environment clean. During the spraying and curing process, no dust falls on the surface of the product, which affects the quality of the product.
The material of the clean room is rock wool board, gypsum board production and installation, they all have fireproof function. Rock wool board thickness is 75mm.

Main Features

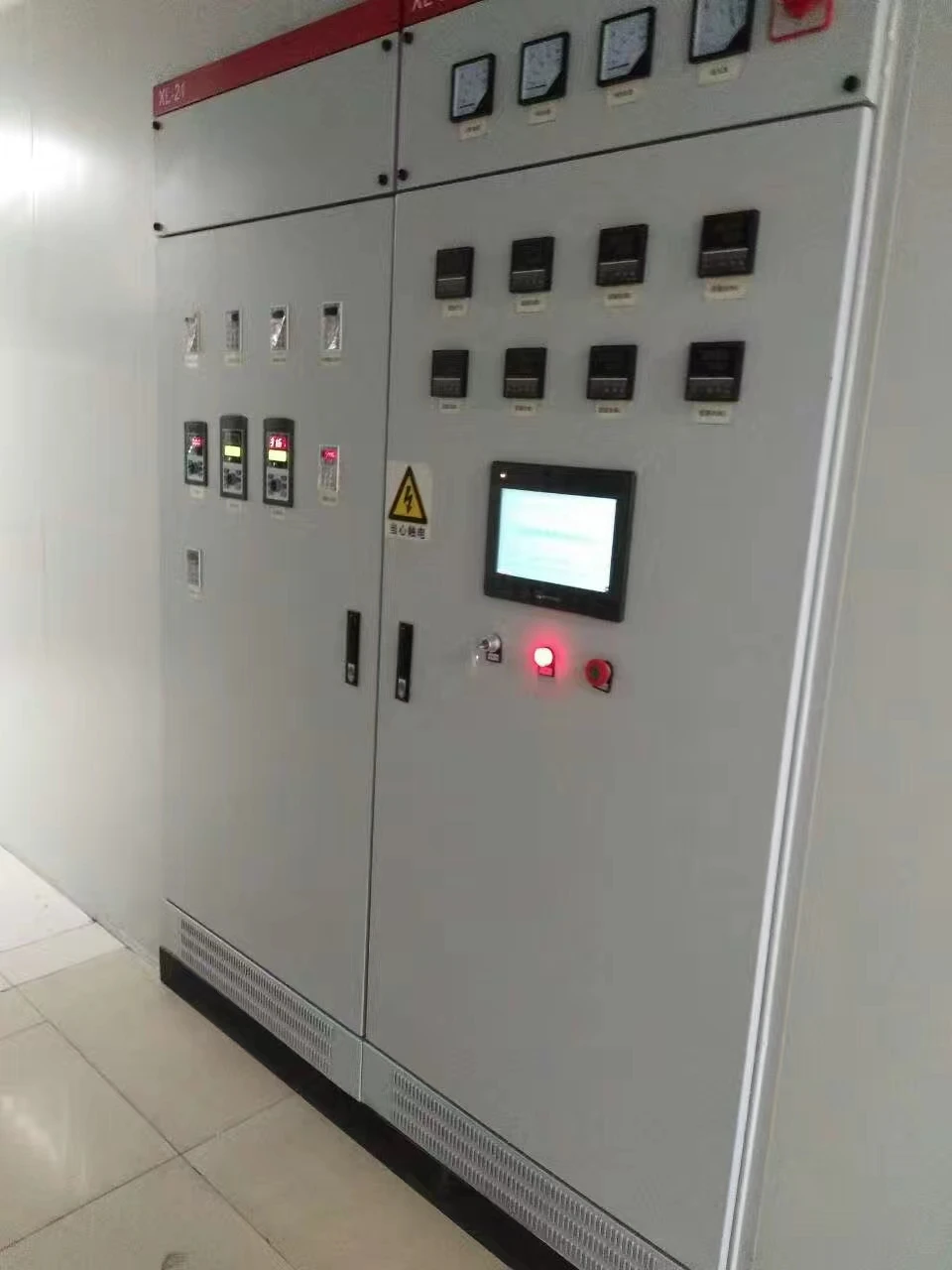

Name:Power distribution cabinet

Brand: HENGYIJIA

Original:China
The distribution cabinet is also the control cabinet of automatic spraying production line. The panel of the general electric cabinet has a touch screen. The two sides of the electric cabinet have PLC controller and frequency converter

Machine Parts

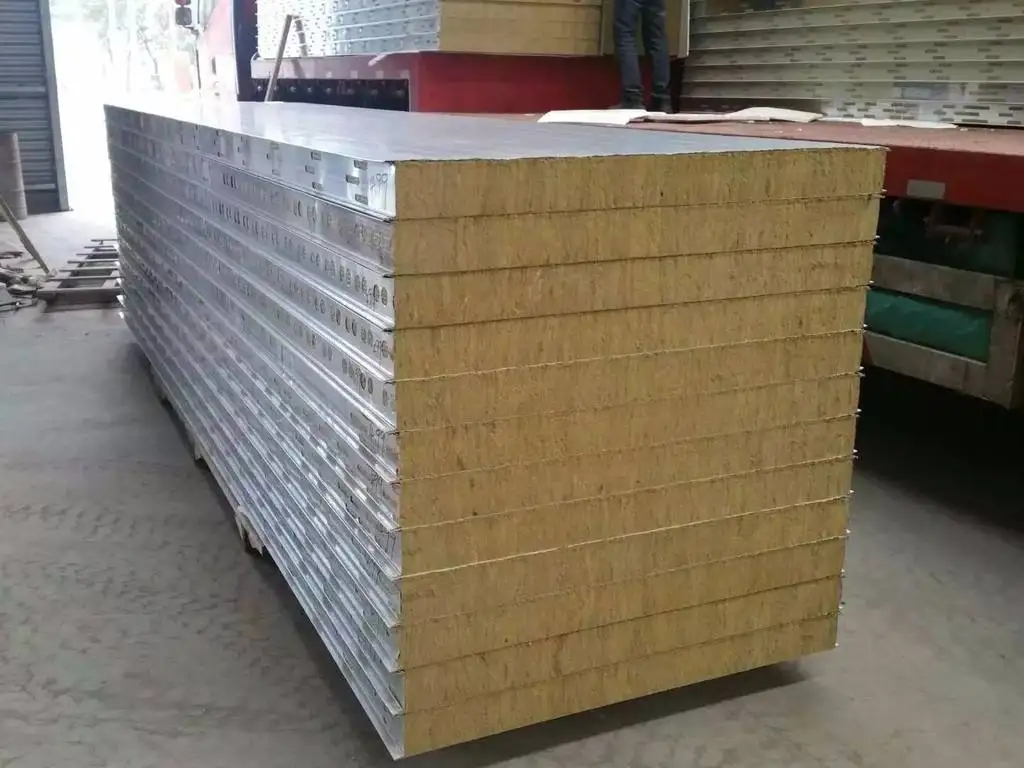

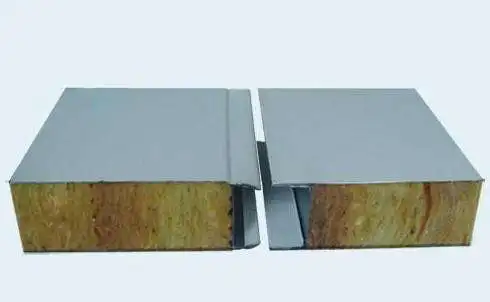

Name: 75mm thick sandwich panel
Brand: HENGYIJIA
Original: China
The material of the clean room is rock wool board, gypsum board production and installation, they all have fireproof function. Rock wool board thickness is 75mm.

Main Features

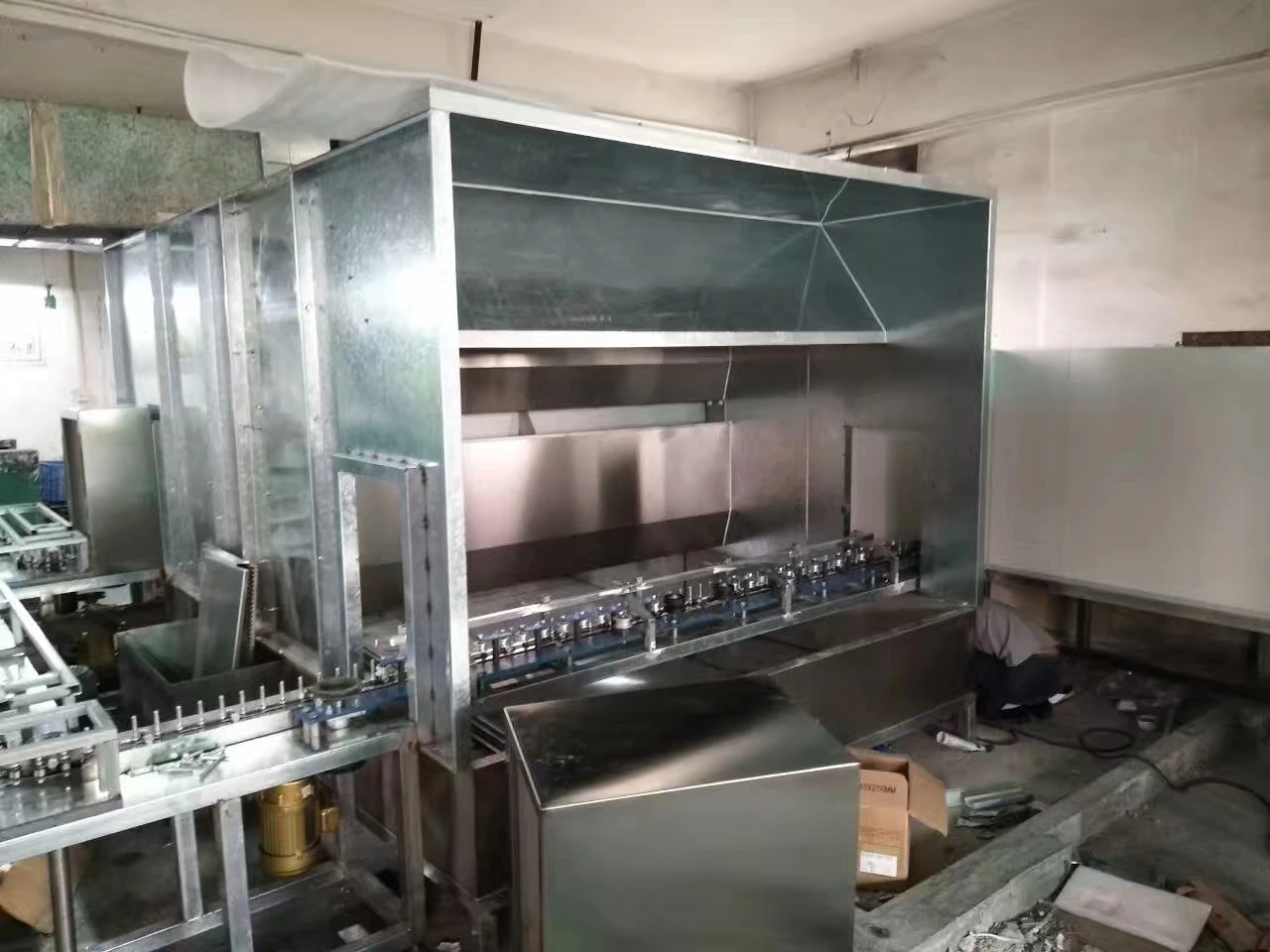

Name:Automatic spray painting line water curtain
Brand: HENGYIJIA
Original: China
Water curtain cabinet is made of stainless steel, with circulating water pump, two explosion-proof lamps, PVC water pipe, exhaust system,
