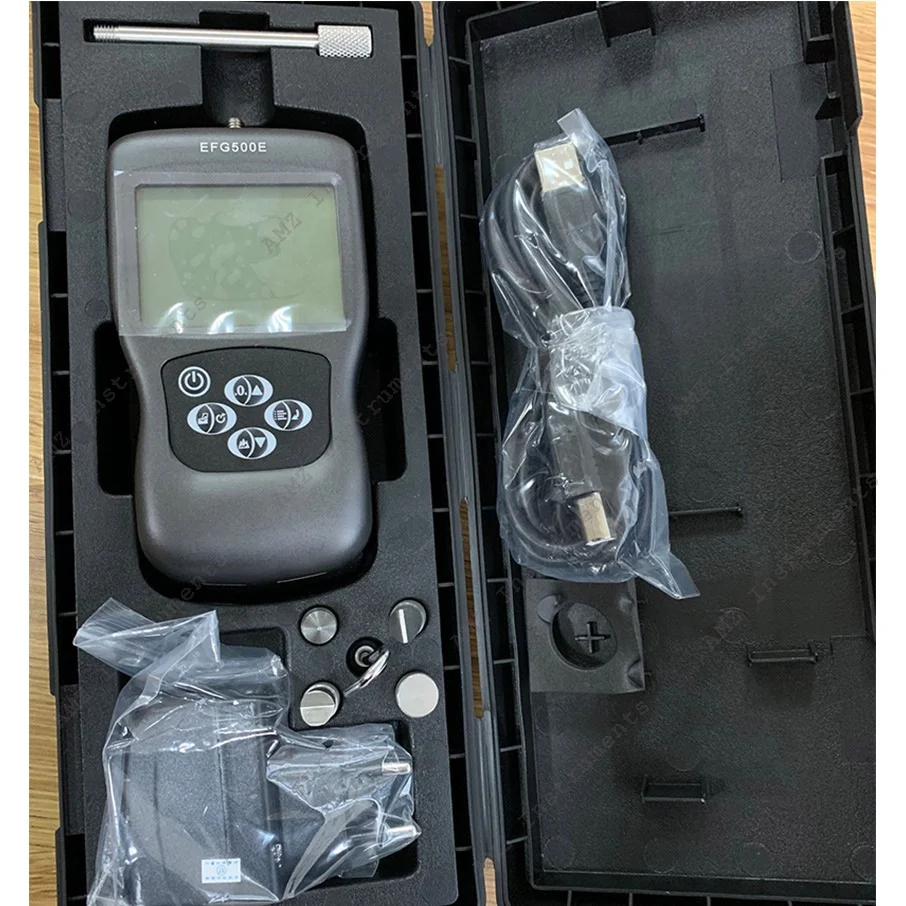

EFG E series Digital Push Pull Force Gauge Built in Rechargeable Lithium Battery
- Category: Force Measuring Instruments >>>
- Supplier: Ningbo,Amz,Instruments,Co.,Ltd.
Share on:
Product Overview
Description
Feasures:
1, Accuracy: ± 0.3% of Full Scale
2, Ergonomic, durable, heavy-duty metal construction
3, Reversible display
4, Selectable Units:N, kgf, lbf, ozf and/or gf
5, Variety of alarm output function
6, USB and RS232 data upload
Specifications:
| Accuracy | ± 0.3% F.S. |
| Selectable Units | N, gf, kgf, ozf, and lbf.(Selectable) |
| Display | 160*128 dot matrix LCD with LED Back light |
| Overload Capacity | 120% F.S. |
| Overload Protection | Overload Protection Mechanism |
| Measurement Mode | Track, Peak, AutoPeak |
| Sampling Rate | 1000 Hz |
| Memory | 500 data |
| Measurement Mode | Track, Peak, PreSet |
| Power | 3.6VDC Ni-MH rechargeable batteries |
| Battery Life | Approx. 8 hours per charge |
| Charger/Adaptor | Universal USB/BM charger, Input:110~240VAC |
| Outputs | USB, set point output |
| Dimensions | 150*72*33mm |
| Weight | 0.45 kg (1 lb) |
| Model | EFG-10E | EFG-50E | EFG-100E | EFG-500E | EFG-1000E | |
| Capacity/Resolution | (N) | 10/0.01 | 50/0.01 | 100/0.1 | 500/0.1 | 1000/1 |
| (gf) | 1000/1 | 5000/1 | - | - | - | |
| (kgf) | 1/0.001 | 5/0.001 | 10/0.01 | 50/0.01 | 100/0.1 | |
| (lbf) | 2.2/0.001 | 11/0.01 | 22/0.01 | 110/0.1 | 220/0.1 | |
| (ozf) | 35/0.01 | 180/0.1 | 350/0.1 | 1800/1 | 3500/1 | |
