1. Support Intel Haswell/Broadwell high-performance processors (i3/i5/i7 CPU Socket:LGA1150) 2. Support up to 10 COM ports, all of which support RS232 mode, COM1 also supports RS422 and RS485 mode 3. Support up to 10 USB interfaces, 2 * USB3.0 can be supported. 4. Support up to 5 network ports, Intel i211 5.VGA+HDMI display, rich display interface 6. Support 1 PCIE X16 and 1 MINI PCIE 7. Support power amplifier function
CPU
Support Intel Haswell/Broadwell LGA1150 processor
Chipset
Intel H81 | TDP：4.1W
Memory
Onboard 1*240Pin DDR3 UDIMM slot Support Dual DDR3 1066/1333/1600 MHz (up to16GB) | Not support ECC
I/O function
Fintek F81866AD Chipset 1 * 2x4Pin Keyboard/Mouth Interface, Can Transfer to Standard PS/2 Keyboard/Mouth Interface. COM1-6 Draw Forth by IO, and COM7-10 Draw Forth by F81216AD.
Ethernet
5*RJ45 Gigabit network interface Intel I211 network chip | support 10/100/1000Mbps, self-adaptive and WOL function
Display interface
VGA1: 1* standard DB15 interface | Maximum resolution:1920*1200@60HZ HDMI: 1* standard HDMI interface | Maximum resolution:4096*2304@60HZ Support VGA+HDMI Independent Dual Show
USB interface
2 * USB 3.0, Down Compatible with USB 2.0 8 * USB 2.0.
Serial interface
1 * 2x10Pin 2.00mm (COM1-2), Can Transfer to DB9, 2 * 2x20Pin 2.00mm (COM3-6, COM7-10) Can Transfer to DB9. COM1-COM10 Support RS232 Mode, COM1 also Support RS422/RS485 Mode.
Audio
Realtek ALC662 Audio Control Chip | Support Two-channel Stereo 3 * Single-hole Rear Sockets | Blue: Line_in, Green: Line_out, Pink: Mic_in. 1 * 2x5Pin 2.54mm Pin Interface, Support Mic_in2, Line_out2. 1 * 1x4Pin white socket, Support power amplifier functions.
GPIO
1*2x5Pin GPIO Pin Interface, which draw forth by Chipset | support 8 channels I/O.
Expansion slots
1 * PCIE X16 slot (Supports PCIE 2.0) 1 * Mini PCIE (Supports WiFi and MSATA, Default: MSATA.)
Power adaptor
24+4pin ATX power supply 1 * 4Pin CPU FAN and 1 * 4Pin SYS FAN.
Watchdog
255-level timer causes a reset when overflowed.
OS
Support Windows 7 / Windows 8 / Windows 10 / LUNIX
BIOS
AMI BIOS
Operating Temperature
0 ~ +60℃
Storage Temperature
-40℃ ~ +85℃
Operating Humidity
5% to 95% relative humidity without condensation
Size
170mm*170mm

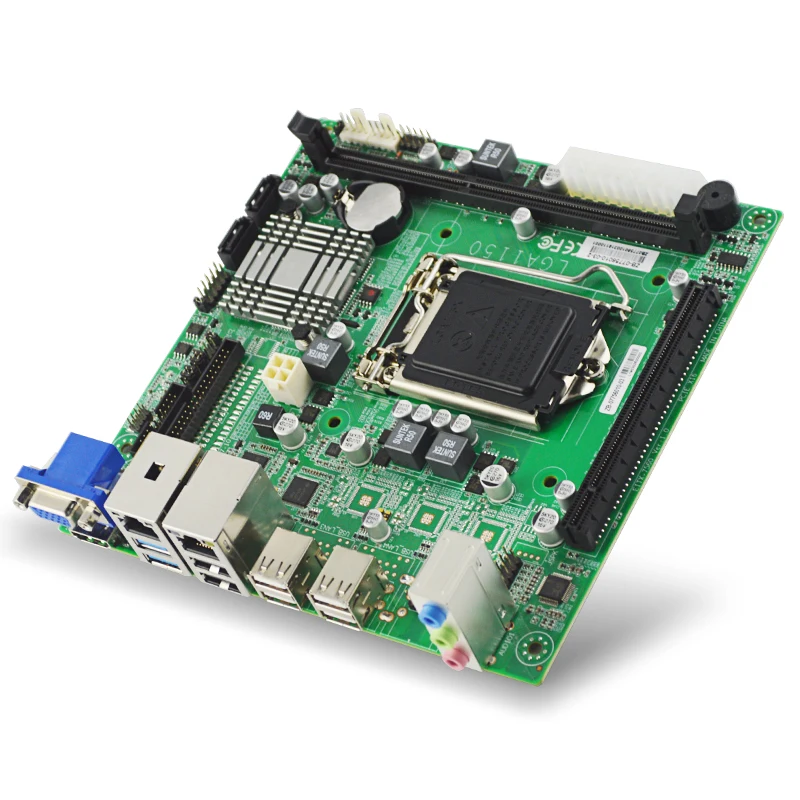

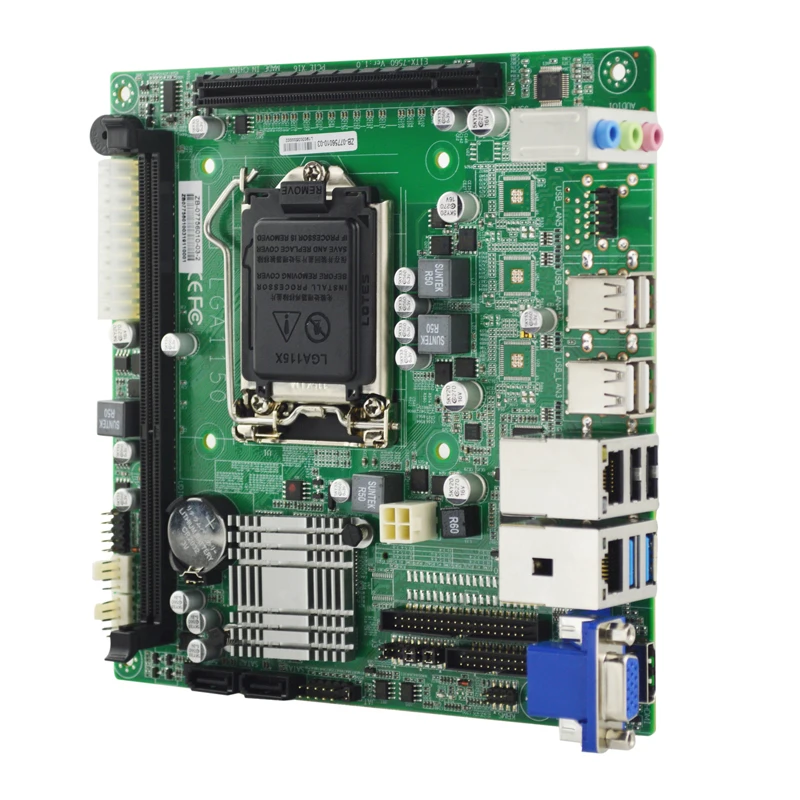

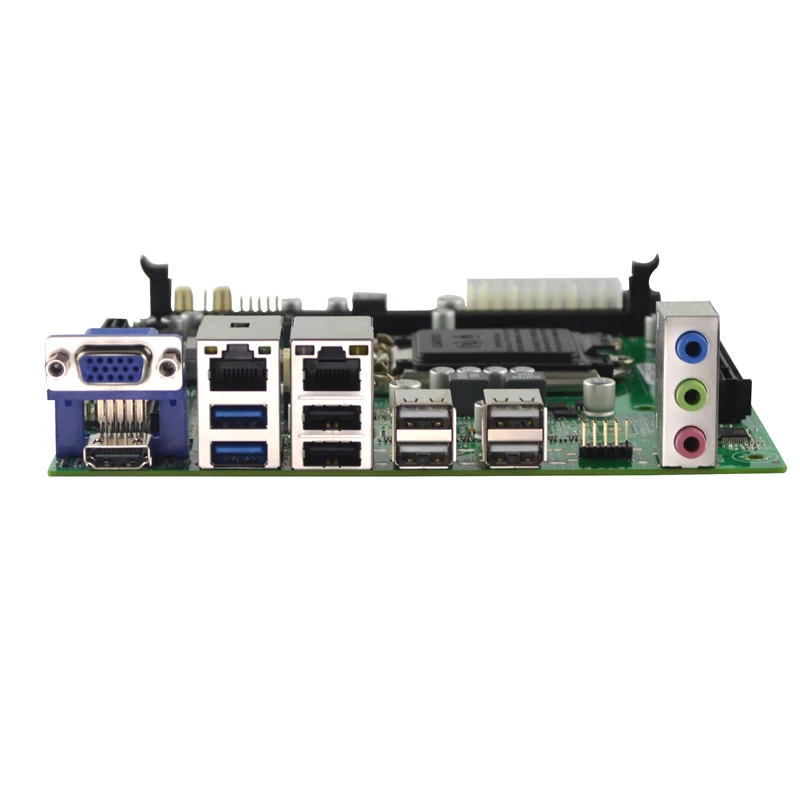

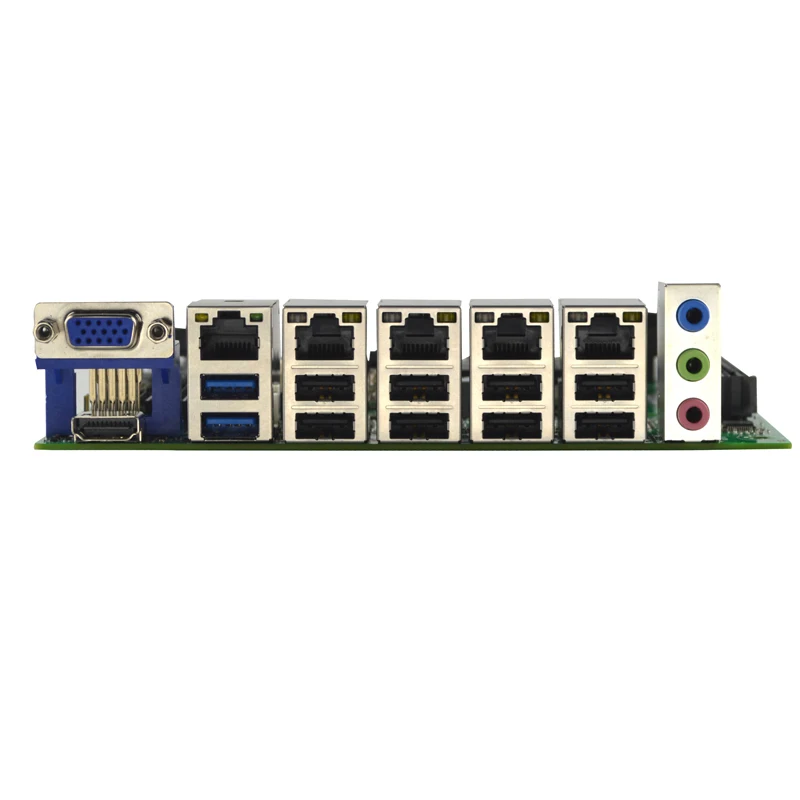

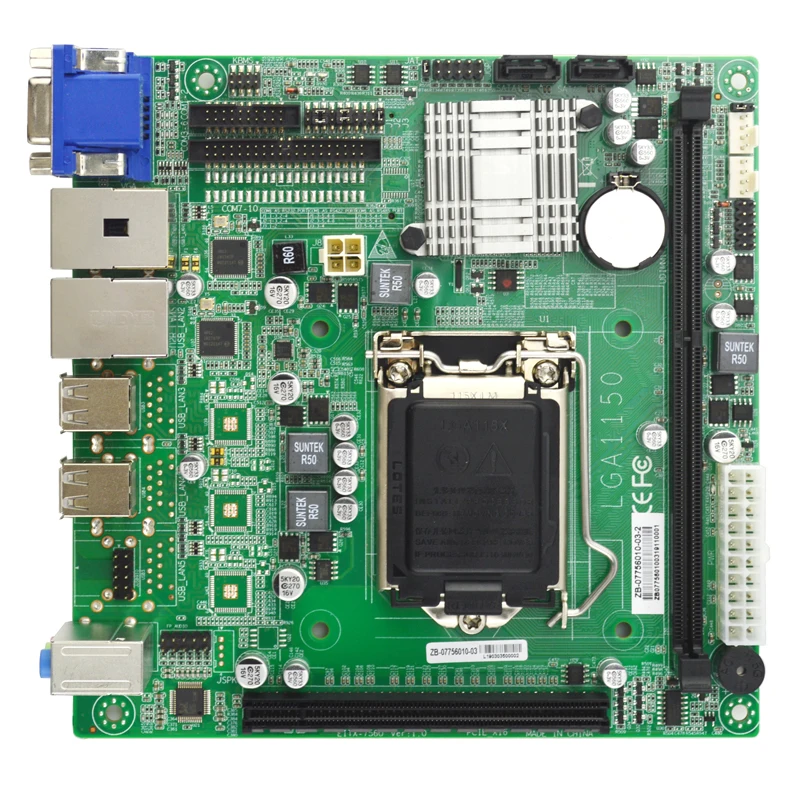

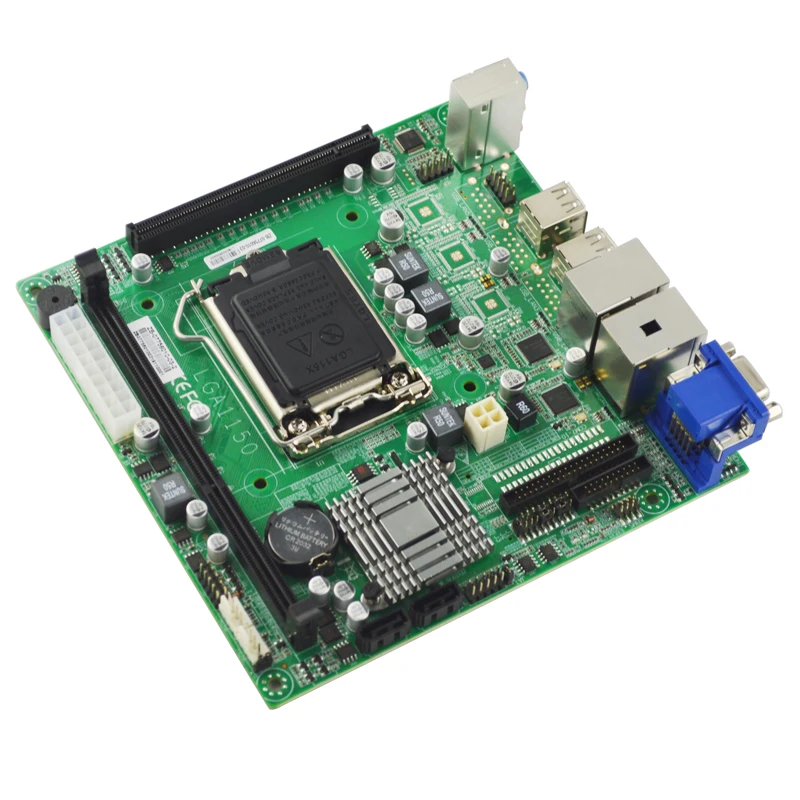

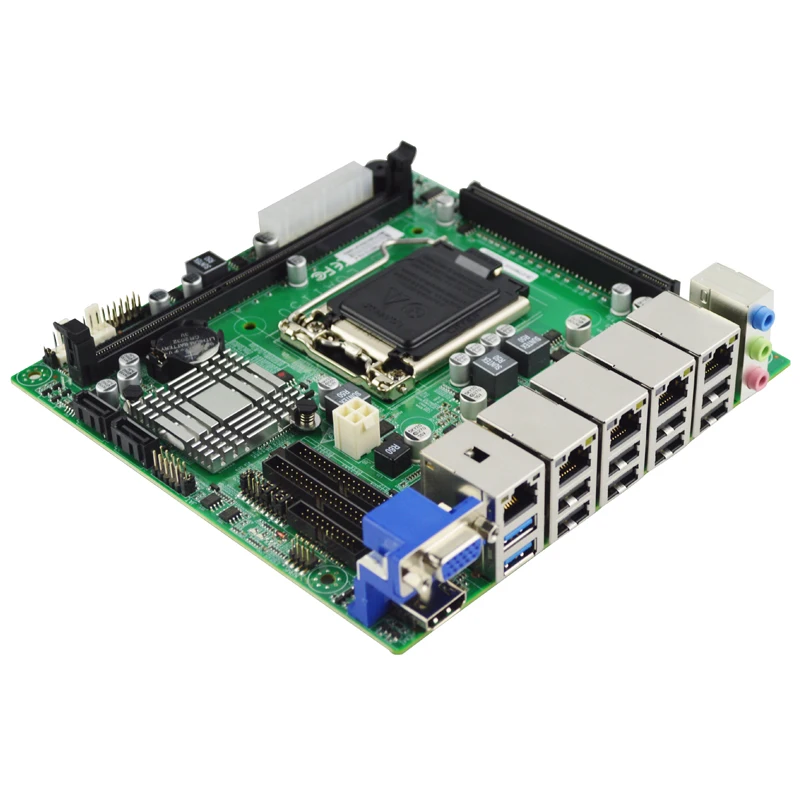

Detailed Images
