Product Overview
Description
Product Description
XCMG Official XCA550 all terrain crane 550 ton mobile crane price for sale

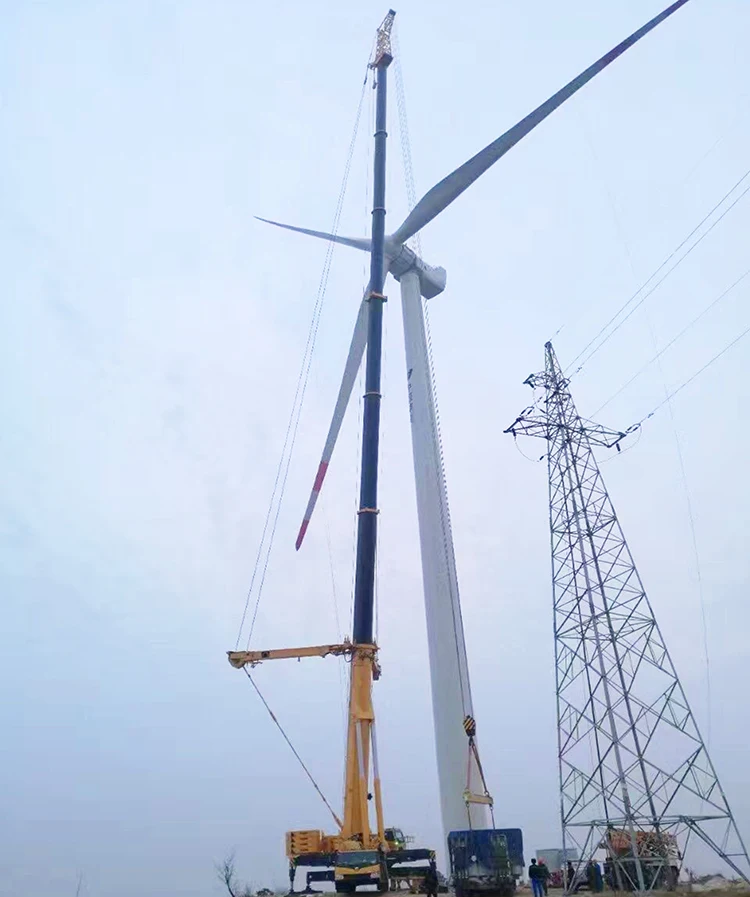

XCA550 All Terrain Crane is designed for the erection and maintenance of 1.5-2.0MW wind turbines. It is also available for lifting operation in typical working conditions, such as lifting operation for bridges, dock, and petrochemical construction.
* Seven-section boom of 90m, the max. rated lifting load moment is 16500KN; the max. lifting height is 143m; the max. working radius is 78m; available for the erection of 1.5-2.0MW wind turbines.
* Self-assembly technology applied to super lifting device and counterweight makes the crane assembly/disassembly easier and more convenient.
* All-axle steering, 8WD/10WD shifting freely and two-engine power system are available.
* Independent heavy duty suspension system with single wishbone.
* Intelligent traveling control system and intelligent boom system.
Product Paramenters
Item | Unit | Parameter | ||||
Overall length | mm | 20880 | ||||
Overall width | mm | 3000 | ||||
Overall height | mm | 4000 | ||||
Wheel base | 1st and 2nd | mm | 1650 | |||
2nd and 3rd | mm | 3100 | ||||
3rd and 4th | mm | 1650 | ||||
4th and 5th | mm | 2980 | ||||
5th and 6th | mm | 1650 | ||||
6th and 7th | mm | 1650 | ||||
Track | mm | 2540 | ||||
Dead weight in travel configuration | kg | 84000 | ||||
Axle load | On the1st, 2nd and 3rd axle | kg | 12000 | |||
On the 4th, 5th, 6th and 7th axle | kg | 12000 | ||||
Chassis engine | Model | OM502LA.E3B/1 | OM502LA.E3B/1 | |||
Rated power | kw/(r/min) | 482.2/1800 | 480/1800 | |||
Max. torque | N.m/(r/min) | 3000/1300 | 2800/1300 | |||
Travel speed | Max. travel speed | km/h | ≥85 | |||
Min. steady travel speed | km/h | ≤2 | ||||
Min. turning diameter | m | ≤26 | ||||
Min. ground clearance | mm | 340 | ||||
Approach angle | ° | 11.4 | ||||
Departure angle | ° | 12.8 | ||||
Braking distance (at 30 km/h ) | m | ≤9 | ||||
Max. grade ability | % | ≥50 | ||||
Oil consumption per 100km | L | 103 | ||||
