BTA deep hole drilling and boring machine
Product Description
This machine is suitable for drilling and boring cylindrical workpieces.When drilling , it adopt chips internal removal method (BTA method),it means the cutting oil supplied by oil pressure head ,through cutting area,remove the cutting chips from the inner hole of drill bar to the chips pot at back of machine bed ; It adopt push boring method, remove the chips from front or middle of the machine . The cutting oil is supplied from the rear of boring bar ,equipped with chips pots .
1. Machine processing capability:
Solid drilling diameter range | Φ30~Φ100mm (By BTA solid drill head) |
Max. boring diameter | Φ200mm |
Max. Hole drilling depth | 6000mm |
Max. Workpiece length | 6000mm |
2. Machine processing method:
Solid drilling mode | BTA drilling method(chips removed through drilling bar) |
Hole boring process | Chips removed through workpiece’s cored hole. |
Infeeding method | It adopts the servo motor,servo reducer ,rack and pinion structure to drive the cutter tool infeed,the stepless speed regulation can be realized. |
3. Main components:
Machine bed,carriage, box body ,oil pressure head body, support etc. basic parts | l HT300 iron, resin sand precise casting. l Twice timing treatment, high rigidity and stability. |
Headstock | l Drive the workpiece to rotate . l Rotary speed range 61-1000r/min, Motor power 30KW . l Adopt three-jaw chuck . l The chuck is mounted on the squirrel-cage type chuck body, the chuck body is between the chuck and spindle, used for removing the cutting chips and disassembling cutter . |
Workpiece clamping | l One end with chuck and another end with cone taper , support by center rest l Equipped with 1 set center rest |
Guide rails | l Double rectangular sliding rails, precise grinding treatment, aging treatment, quenching treatment. |
Drill bar support rest | 2 set, support the bar. |
Center rest | l Two point independent moving center rest , convenient for adjusting workpiece and centering. l With heavy loading and high rigidity . l Adopt rectangular guide rail, with manual moving device. |
Coolant system | l To supply the oil for the tooling, consist of oil tank ,pump station, oil hoses,chips pot ,oil returning tank, and so on l Functions of cooling liquid: The First is cooling, the second is removing the cutting chips |
Machine parameters :
Specification | Parameters | Note | ||
Working capacity | Drilling diameter range | Φ30~Φ100mm | / | |
Max.drilling depth | 6000mm | / | ||
Boring diameter range | Φ40~Φ200mm | / | ||
Max.workpiece length | 6000mm | / | ||
Machine performance | Z axis | Infeed speed range | 5~500mm/min | Stepless |
Rapid traverse rate | 1500mm/min | / | ||
Infeed motor torque | 20Nm | Equipped with reducer | ||
Drill box | Gear quantity | 3 gears 12 grades | Gear changed manually | |
Rotary speed range | 40--500r/min | / | ||
Motor | 30KW | Three phase asynchronous motor | ||
Headstock | Gear quantity | 3 gears 12 grades | Gear changed manually | |
Rotary speed range | 61--1000r/min | / | ||
Motor power | 30KW | Three phase asynchronous motor | ||
Cooling system | Max.pressure | 2.5MPa | Adjustable | |
Flow | 100,200,300,400L/min | Adjustable | ||

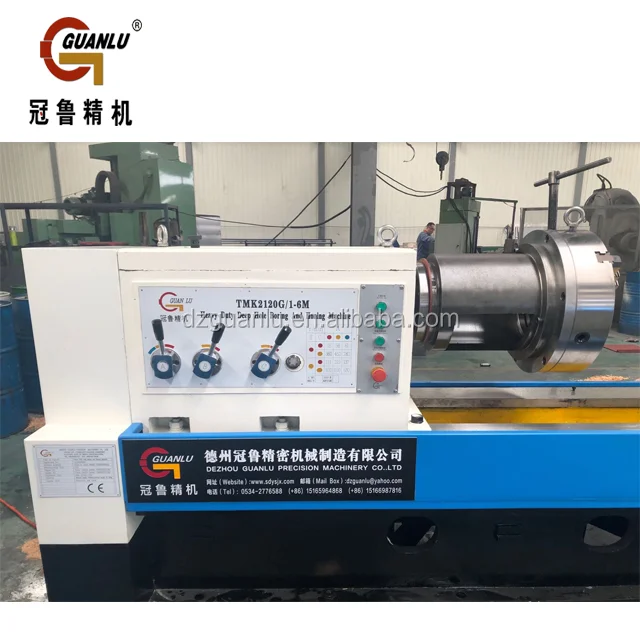

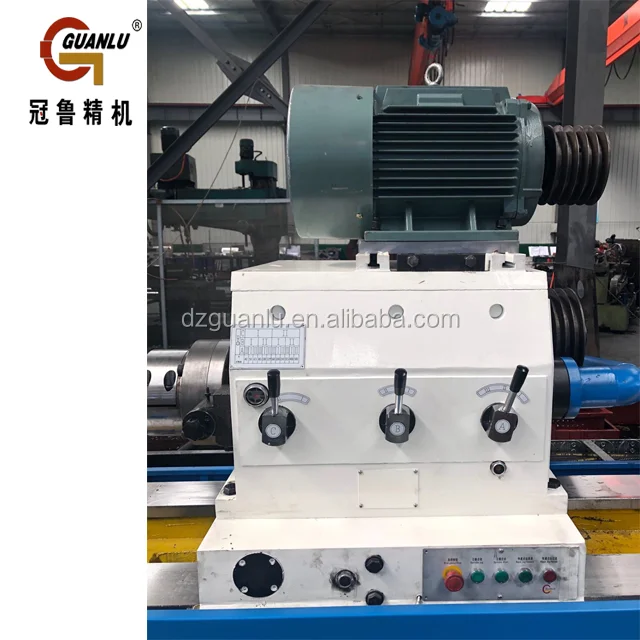

Headstock:
Drill bar box:

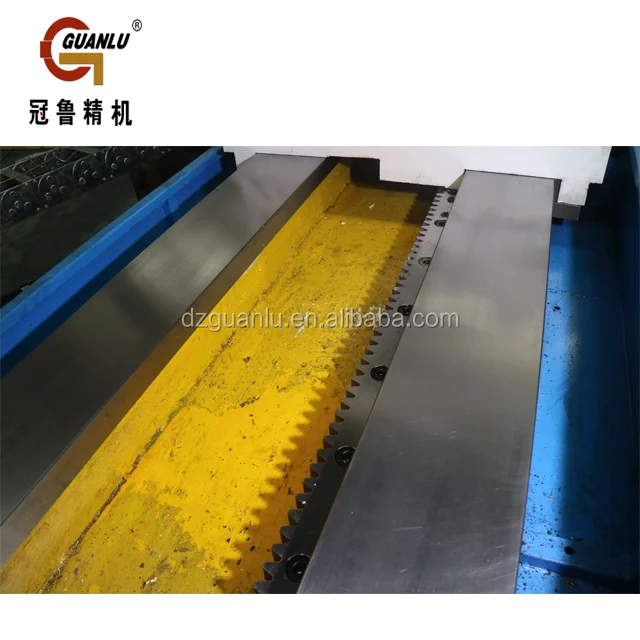

Guide rail:

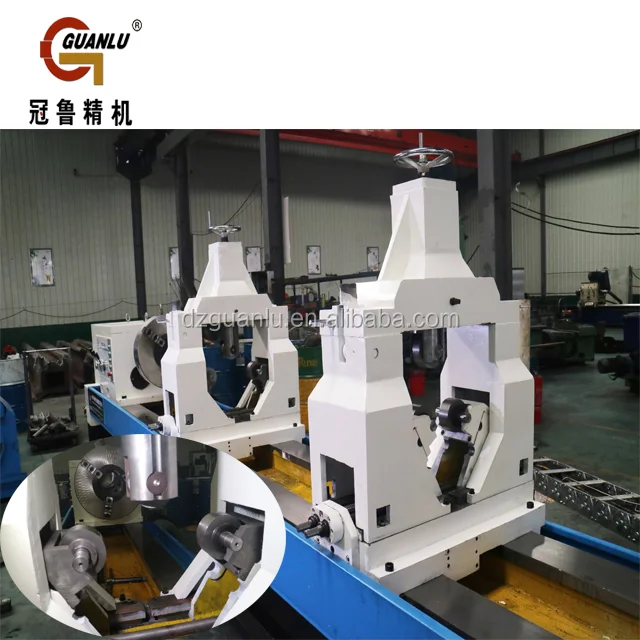

Center rest support:

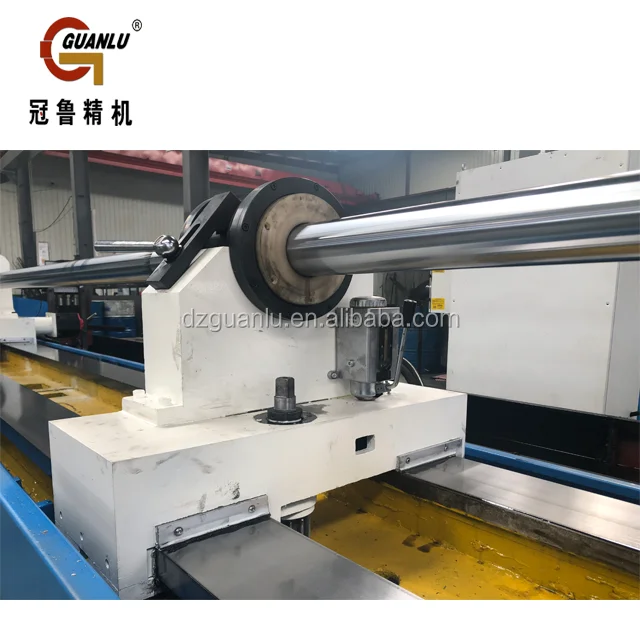

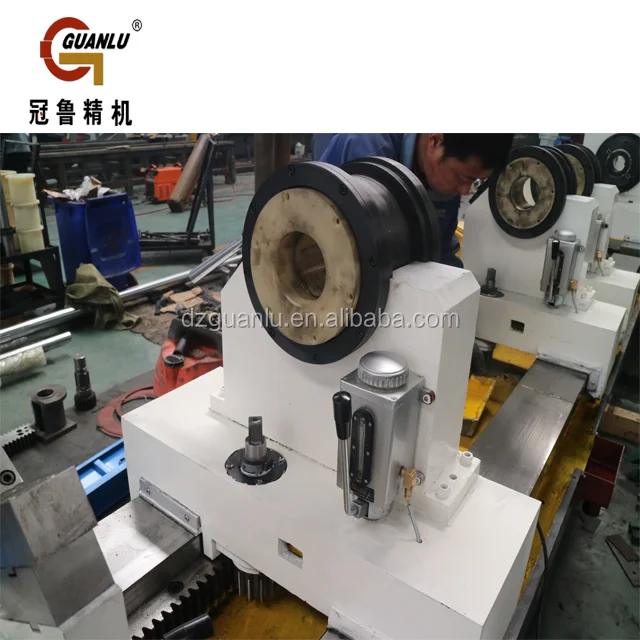

Drill bar support rest:

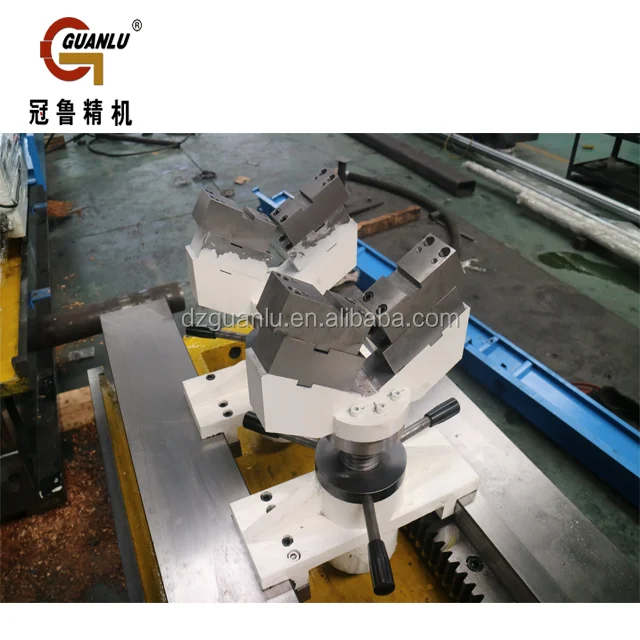

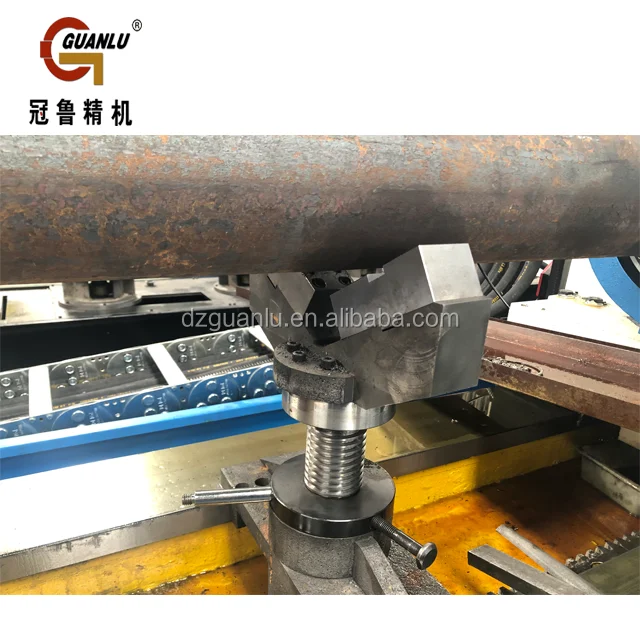

Workpiece support rest:
