Bendable paper straws making machine make paper straw bend

Share on (62129093110):


Price:$5,000.00

Quantity:


Product Overview

Description


Bendable paper straws making machine make paper straw bend

Product Description

 Features:

1.This type of paper straw bending machine is suitable for bending paper straws from 5mm-12mm.

2.The bending speed can up 180-260pcs each min.

3.The man-machine interface is a touch screen, adopted with PLC controller, simple setting and convenient operation.

4.main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.

5.Servo synchronous tracking cutting system makes it high precision and multi-blades cutting makes time-saving efficiency.

6.Machine body and main spare parts made of stainless steel. Ensure the hygiene and environmental protection of the products.

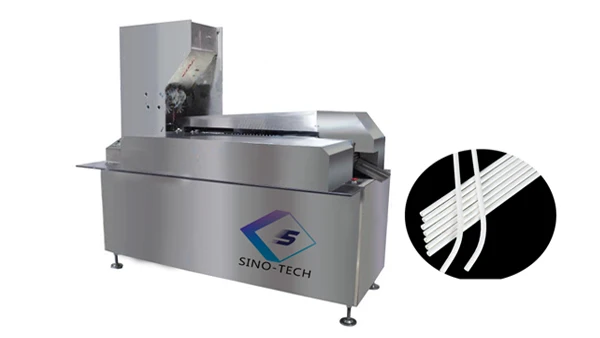

Paper straw bending machine:

600X338

16

1

Technical Parameter:

Paper Straw Dia.

6mm

Paper Straw Length

100-230mm

Working Speed

200 pcs/min.

Machine Frame Material

304 Stainless Steel

Weight

800kgs

Dimension(L*W*H)

2000*950*1500mm

Power Supply

220V 50Hz

Control System:

Relay

Omron*1

Switching Power Supply

Omron*1

Frequency Converter

Dovol*2

Relay

Schneider*2

Switch for Control Supply

Schneider*1

Gear Motor

Zhejiang Dongbang*1

Emergency Stop Switch

Schneider*1

three-phase asynchronous motor

Dalian*2,1.1kw

WPS80 Reducer 1:10

Hangzhou Fangtian

WPS80 Reducer 1:60

Hangzhou Fangtian

Sino-tech paper straw bending machine as a ideal bending equipment for paper straws, with a high speed and stable capacity it is specially dedicated to spiral wind paper tubes of very small diameters.



The papaer straw bending machine easy operating, and low maintenance cost and great flexibility make this machine perfectly suited for all paper tube manufacturer.



Sino-tech all machines equipped with top quality famous electrical parts and mechanical parts, such as Schneider, Siemens, Airtac etc. We also accept fully customizable according to your request.

Packaging & Shipping

 _07

Our Services

 _04_06

Company Information

 _02_05

FAQ

 Q1:What about the payment terms?
A1:Always 30% down payment as deposit,70% balance pay before shipping.
Q2:What about the payment way?
A2:TT,L/C at sight or Alibaba trade assurance.
Q3:If you can extend the guarantee time?
A3:Yes.Our guarantee time is 24 months.Double times of other factory because we have strong confidence for our product.
Q4:If you will send engineer coming to our factory to install and test the machines?
A4:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q5:If you have CE,SGS,ISO certificate?
A5:Yes,except these,if you also need other certificates,we also can help to apply.
Q6:If we buy your machines, can you offer us wear-out spare pats?
A6:Yes,We provide our high quality machine 2 years’ guarantee,and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q7:The voltage,if you can design according to our request?
A7:Yes.
Q8:If you support Alibaba trade assurance pay?
A8:Yes.100% support.
