HV HIPOT Full Automatic Transformer Insulation Oil Dielectric Strength Tester GDOT 80A
- Category: >>>
- Supplier: HV Hipot Electric Co. Ltd.
Share on (62129114777):
Product Overview
Description

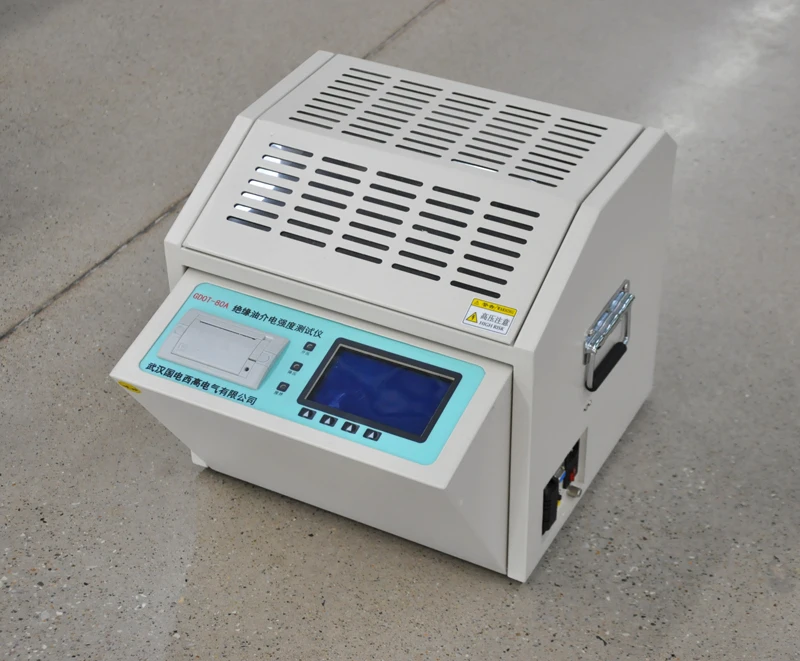

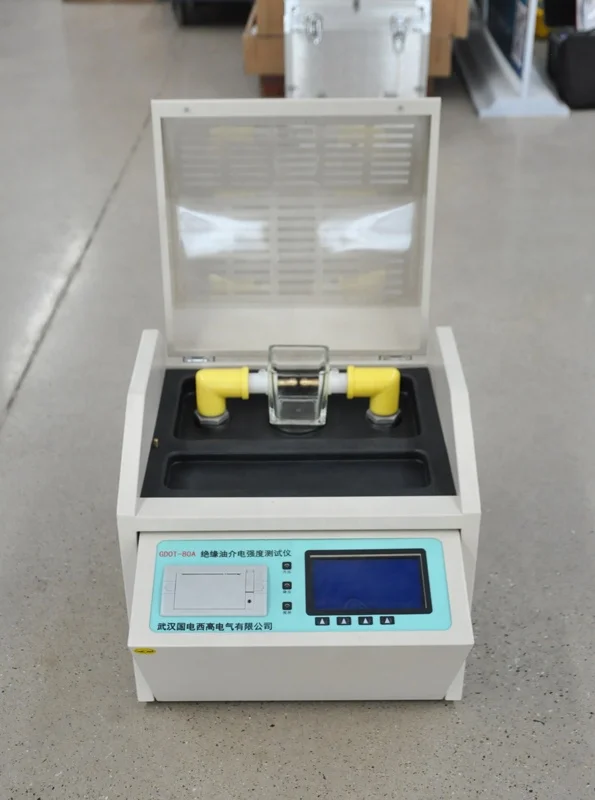

Full-Automatic Transformer Insulation Oil Dielectric Strength Tester
Product Description
GDOT-80A Insulation Oil Breaker Tester is fully digital industrial instrument with microcomputer control. It has the features of high accuracy and strong anti-interference ability.
Features
- LCD screen display.
- Automatic completing all test procedures.
- 1-6 times breakdown voltage value and times will be saved automatically. It will print test results.
- 100 results can be stored and display current environmental temperature and humidity.
- Single-chip control, easy to control.
- With over-voltage, over-current and limit protection.
- Display temperature and system clock.
- With RS232 port.
Specifications
| Output voltage | 100KV |
| Voltage distortion rate | <1% |
| Voltage increasing speed | 2KV/s, 3kV/s, adjustable |
| 15mins, adjustable | 15mins, adjustable |
| Voltage increasing interval | 5mins, adjustable |
| Voltage increasing times | 1-6times, optional |
| Capacity | 1.5KVA |
| Accuracy | ±3% |
| Power input | AC220V± 10%, 50Hz±5Hz |
| Power | 200W |
