Gloss,matte,wrinkle,sand grain,antique, Hammer,crocodile skin, wood effect,candy,chrome,transparent,semitransparent,metallic,and special pattern
Powder Properties
Specific gravity : 1.3 - 1.75 (depend on colors)
Average particle size : 35 - 45um
Coating Properties
Recommended film thickness(ISO 2178) :60 - 90 μm
Coverage:15 square based on 60μm
Pencil hardness: ASTM D3363,>H
Adhesion :GB/T 9286-1998,0 grade
Bending test:GB/T 6742 ,=<2mm
Cupping test:GB/T 9753,>=7mm
Direct and reverse impact (ASTM D2794) : > 50kg.cm
Salt spray Resistance ( ASTM B117, 1000 hrs)(Maximum undercutting ,1 mm ): No blistering or loss of adhesion
Heat and moisture test GB/T 1740,>=1000 hours,no change
Application Schedule
Applied by : Electrostatic spraying devices
Curing schedule :10-15 minutes at 180-200 ℃
Advantage
Good adhesion,extremly hardness strong coating film,
Accurate colors, good leveling
Shelf Life
12 months
More Specification
Contact us for TDS

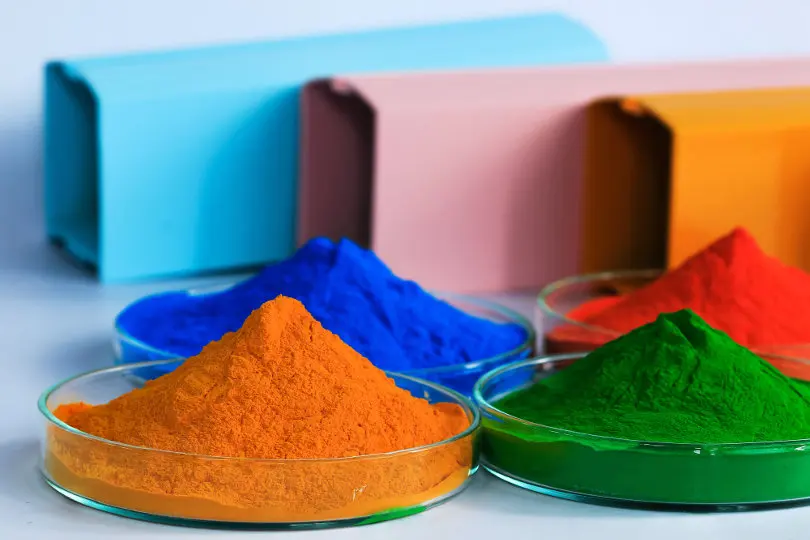

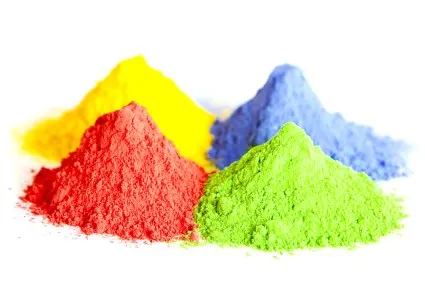

Other Samples Display
Packing & Delivery

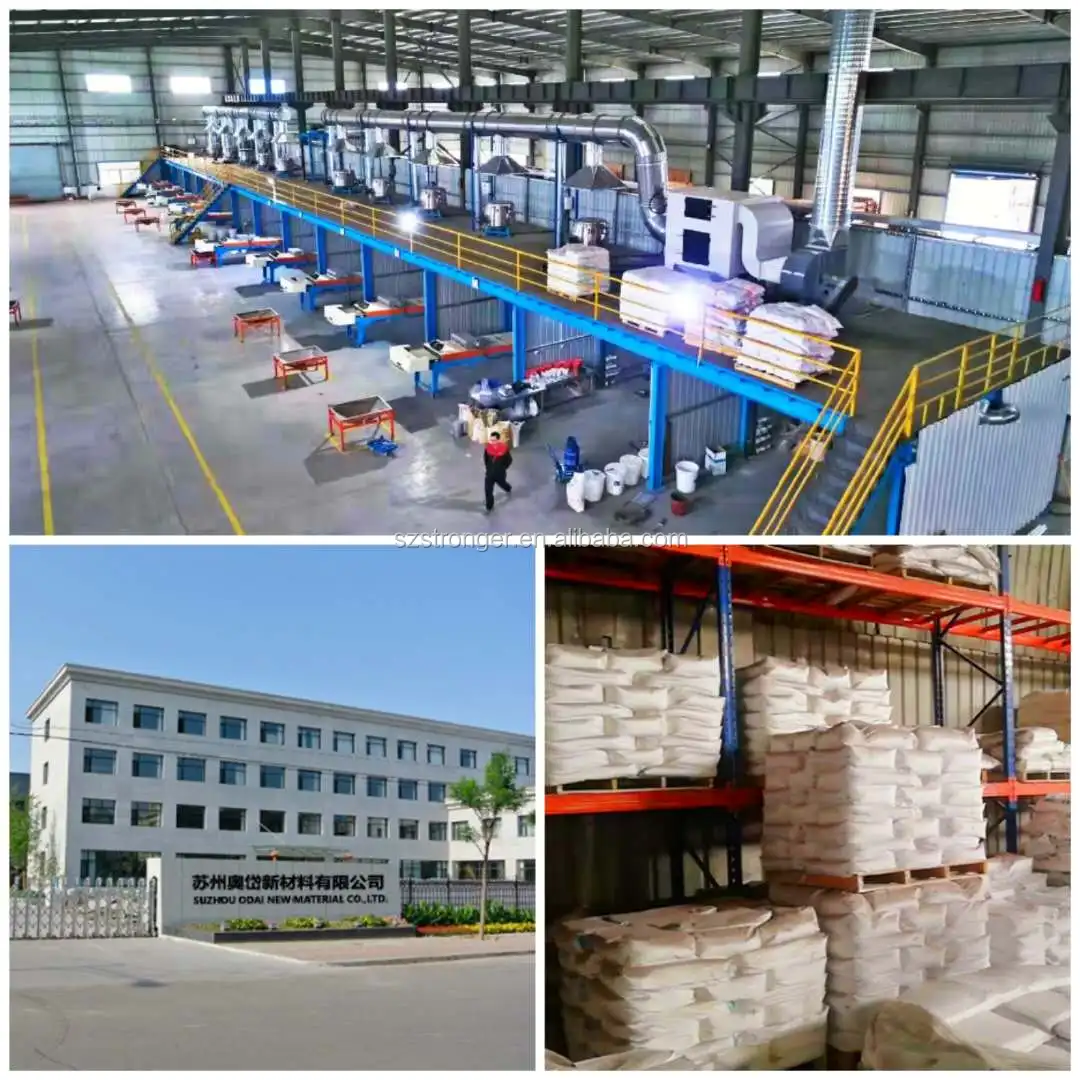

Company Profile
Odai Powder Coating is a professional powder coating manufacturer and exporter located in Suzhou, close to Shanghai. We can provide you solutions for powder coating. In Odai, we are able to supply various kinds of powder coatings including different chemicals like epoxy powder coating, polyester powder coating, hybrid powder coating, acrylic powder coating, polyurethane powder coating, thermopalstic powder coating, different finishes like glossy, matte, textured finish, antique finish, wood like finish, chrome finish, candy finishes ect.We also engaged in developing unique type of powder coatings like fusion bonded epoxy paint, florescent colors, high temperature resistant powder, powder for MDF or plastic. Our powder is widely used by many metal working factoris with good reputation. We had ever exported to more than 40 countries.We are very glad to discuss with you about powder coatings, whatever you are going to buy powder coating first time or just want to find alternative supplier. We will try to support you during cooperation and never let you down.
Quality Test
FAQ
1.M.O.Q : The minimum order is 20kg/color, 1 carton

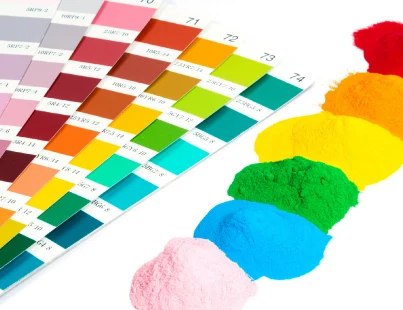

2.Colors: RAL color :We usually use RAL colors that is widely used in paint industry and easily find in market
Pantone color : It is traditional international color standard with very wide shade range. Custom color : Color matching is available , if you have colors model ,please send to us for matching .
3.Prices: Prices depend on the colors and using environment ,for prices please tell us the colors and using environment (indoor use or outdoor use).
4.Time of delivery : Production will take about 5-8 days after receipt of prepayment,this is subject to the quantity .
5.Payment : T/T in advance (or against BL) or LC at sight .
6.Samples: Sample blow 5 kgs is free of cost, but if you pay for the air freight we will highly appreciate.
