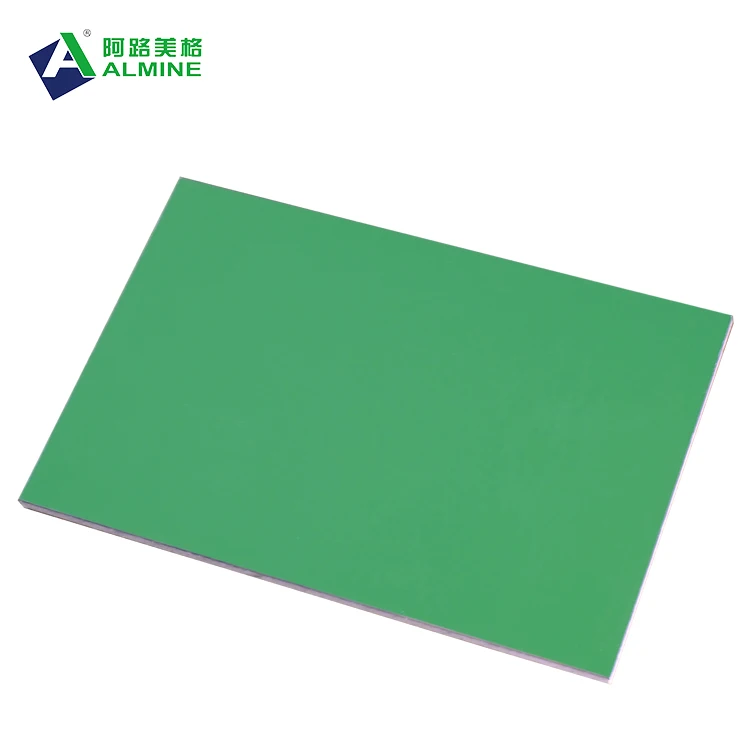

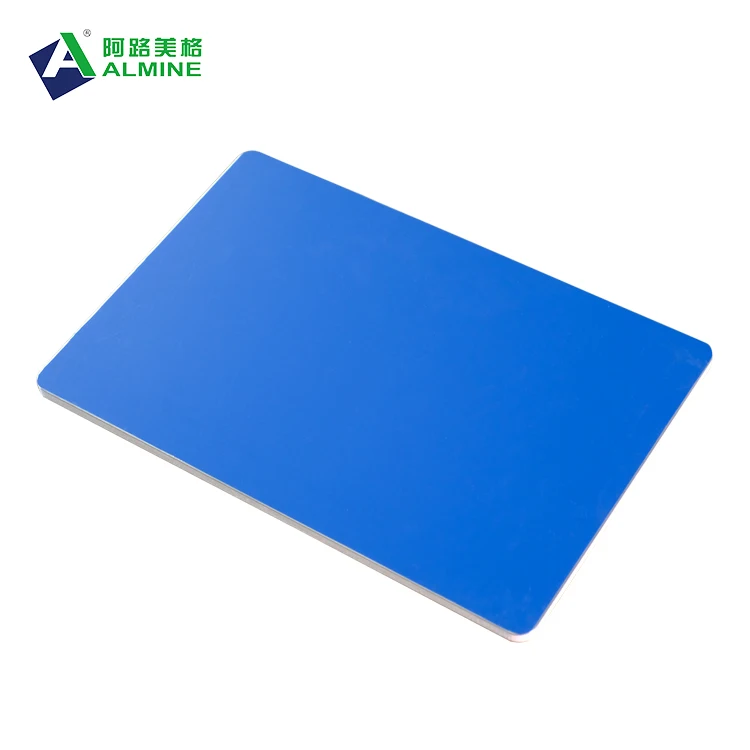

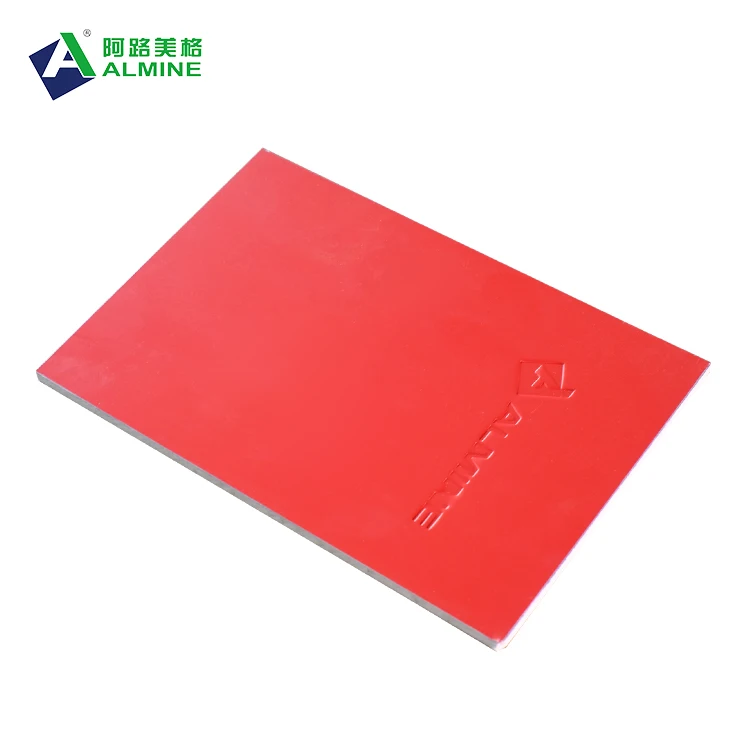

ALMINE FR A2 ACP is a composite panel which sandwiched by two layers of coating AL skin

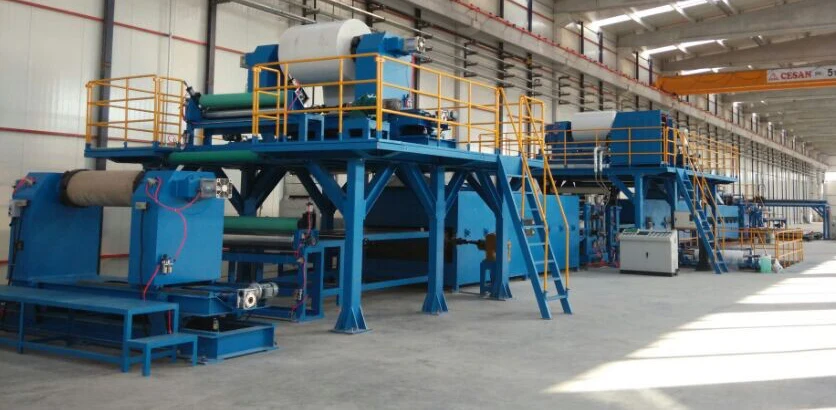

The decorative layer is coated with high performance PVDF system which supplied from KANAR500 or HYLAR5000 70% resin authorized paint company to ensure an excellent exterior durability while offer the multi-surface selections. Theses coating are finished on continuous process coil coating line,which make the color and gloss uniform are better than other coating process available in market.

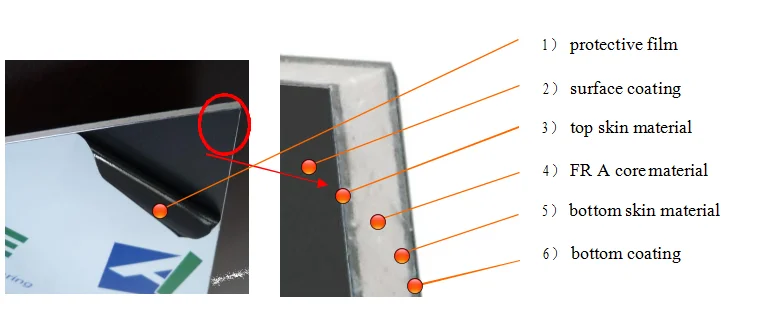

Ø Protectivefilm:*:The panel surface is protected with a self-adhesive peel-off protectivefilm
Ø Surfacecoating:*:finished with a high-performance PVDF or FEVEcoating.
Ø Topskinmaterial:*0.5mm thick aluminum alloy with 1series.
Ø FR Acorematerial:*Non-combustible mineral filled FR Acore
Ø BottomSkinmaterial:*0.5mm thick aluminum alloy with 1series.
Ø Bottomcoating: *it is a service coating to protect from possible corrosionproblems.
Δ.Standard Specification
Available Panel thickness
Aluminium thickness
FR Level
Surface treatment
3mm,4mm,5mm,6mm
0.30mm~0.50mm
A2
PVDF for exterior; PE for interior; Other:Anodized,Nano PVDF
Note: other available size products subject to minimum quantity
*3mm, 5mm, available at customer requirements.
*1000mm , 1500mm available at customer requirements.
*3200mm, 4000mm,5000mm length available, recommend <5500mm for the transportation convenient.
Special order subject an extra cost charge for following max capacity:
* Custom need width can be accepted between 900 mm and 1570mm.
* up to 8000mm length couldavailable
Δ.Advantages
A. Long Durability
Xiecheng FR A2 ACP decorative coating are use international famous brand 70% pvdf coating system. It could offer up to 20 years color warranty. The composite bonding property will also offer up to 20 years warranty without delaminate.
B. Super FR Level
ALMINE FR A2 ACP as the non-combustion A series level,not only offer a non-combustion property,also come together with a fire stop feature. When meet the fire,it will absorb plenty of heat energy,delay the increasing of the environments temperature. When there is a fire risk,it could increase people survival chance. The panel is certified by China GB8624 as FR A2 level,also is certified by SGS and INTERTEK meet EN13501 A2 level.
C. Safe and Green
ALMINE FR A2 ACP not contain the radioactivity harmful elements,when meet fire,not release smoke,or bad smell or poison or halogen. It is recognized as safe and environment friendly green products while passed GB green building product certification and Europe CE certification and INTERTEK Greenleaf certification.
D. Easy Application
ALMINE FR A2 ACP preserve the easy applicatior advantage of traditional PE ACP. It could glue,cut,selected on construction site. Furthermore,it is easy to make curve and column to meet different shape.
E. Sound Transmission and Heat Insulation
4mm ALMINE A2 ACP sound transmission lost is 26dB,it’s property stand out than other similar materials. About the heat insulation,due to the inorganic core feature,it presents a 0.31w/m.k thermal conductivity which could bring an efficiency on energy saving.
F. Good Mechanics Property
Compare to other similar materials,ALMINE A2 FR ACP created a stable sandwich structure,with good flatness. With high performance of tensile strength,flexural strength,wind load,etc. It fully meets GBT/17748 first class level requirements.
G. Insect and Mold Proof
ALMINE A2 FR ACP which combine by AL skin and inorganic core,there is no headache of insect,white ant,moisture,mold,etc. It could be wildly used in different application without building height or environment limit.
H. Light Weight
4mm ALMINE FR A2 ACP weight is 8kg/m2,which is lighter compare to other materials such AL solid panel,hence could decrease the loading of the building ,less the construction basement and other cost.
I. Rich Selections
ALMINE FR A2 ACP offer plenty of selections,give limitless room for architect to create the dreams building. There are high gloss,low gloss,pure solid color,metallic color,sparking color,prismatic color,3D magic color,nature art color,such wood pattern,stone pattern,etc,many kinds surface for selection.
J. Easy Maintenance
It is very simple and easy to maintain the ALMINE FR A2 ACP decorated building. It only need follow the instructions to give yearly clean then could keep the long life and color of the decorative panel,which bring building owner a very low cost on maintaining the beauty of the building.
Packaging & Shipping
Stock and handing
Please check the panel package immediately right now when receive the goods,judge by eyes to decide whether broken or get moisture. If the panel get wet,open the package immediately to let it nature dry to avoid further damage. Contact seller at first time to report the receive situation and follow up the insurance claim.
Please check the storage condition of panels timely,deposit in the open air or stow in leaking or damp storehouses was not allowed. If panels carelessly got wet or damp,please dry in the air immediately without broken the panel by force,and contact us to confirm whether panels are damaged.
Goods should lay on the floor stock with the max lay of 4 box. The heavy weight should in the bottom,avoid to stand up the goods to stock.
When move the panel out from the package,at least two workers wearing the gloves hold the four corner carefully raise out then move,should not pull from the under panel,which may scratch the panel surface.
Base on the warehouse principle as first-in first-out and ensure the stored goods won't exceed 6 months. If stored more than 6 months for special reasons,please check the characteristics of protective film in time. If necessary,please contact us to change the film timely to avoid causing unnecessary glue removing or other phenomenon.
Please peel off the protective film as soon as possible after finishing installation, if it's being expose under UV irradiation for a long time, film may chalk or glue transfer, which may lead to films' hard removal. Our protective film will withstand six months' weather resistance under normal outdoor conditions.
Ø Protective film:*: The panel surface is protected with a self-adhesive peel-off protective film
