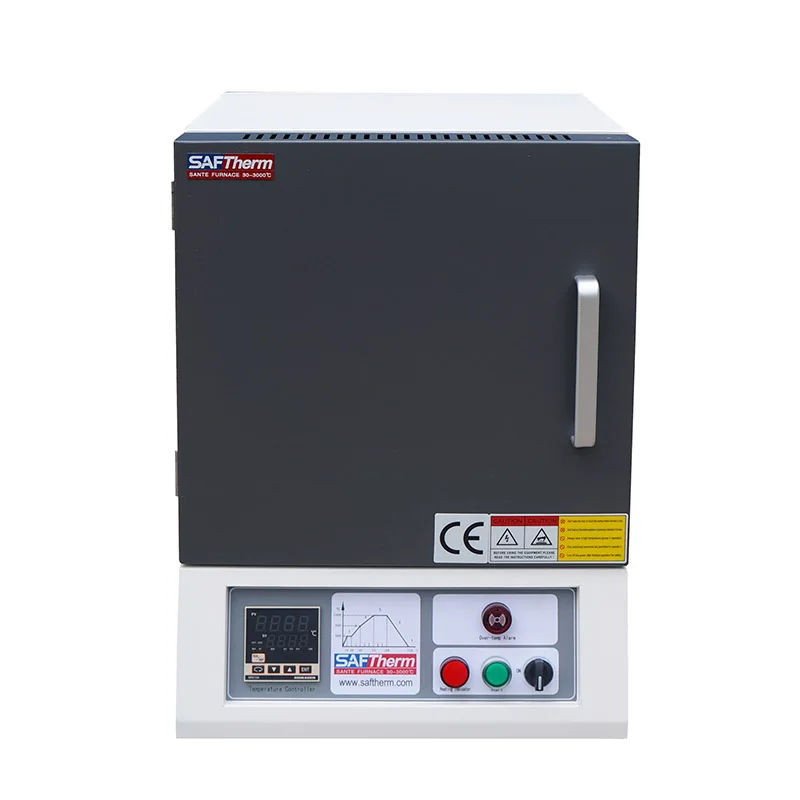

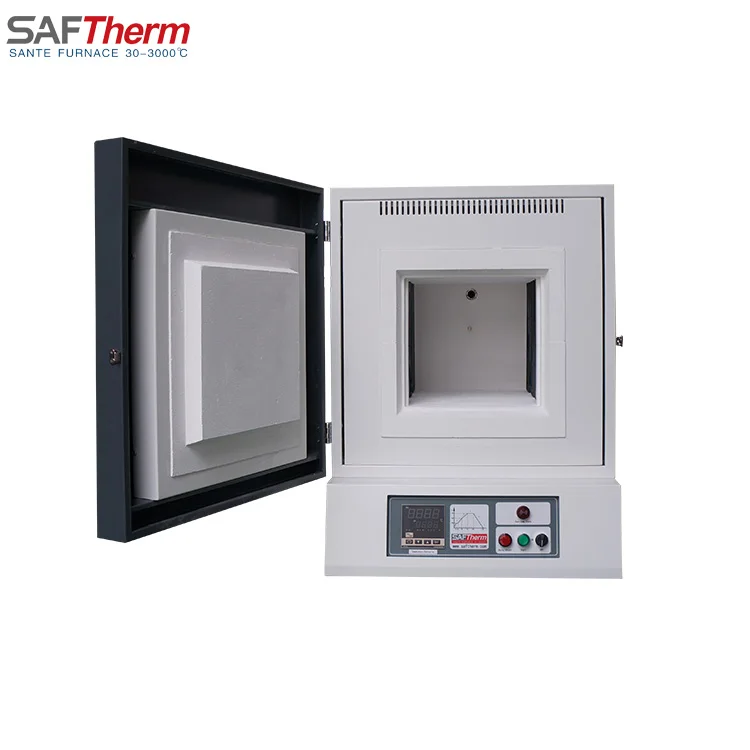

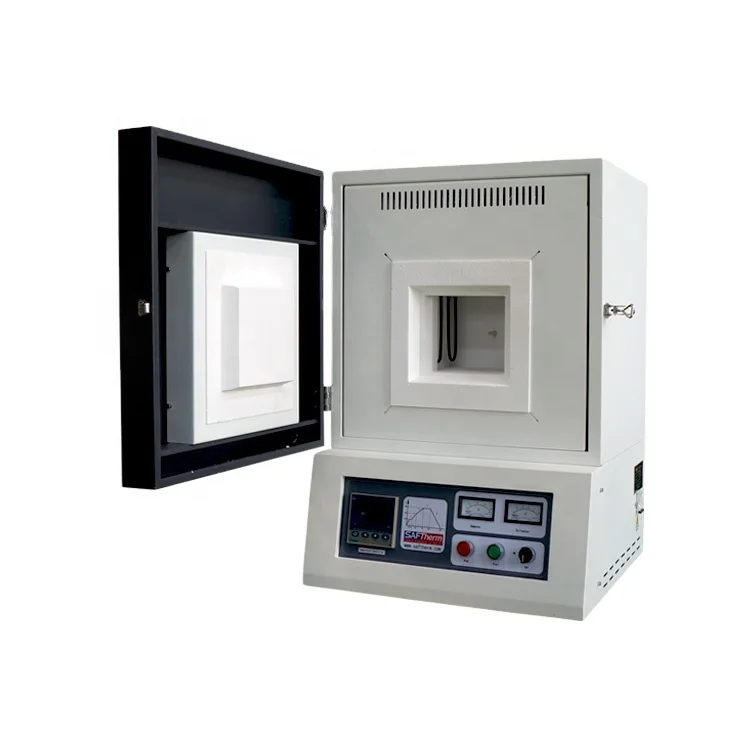

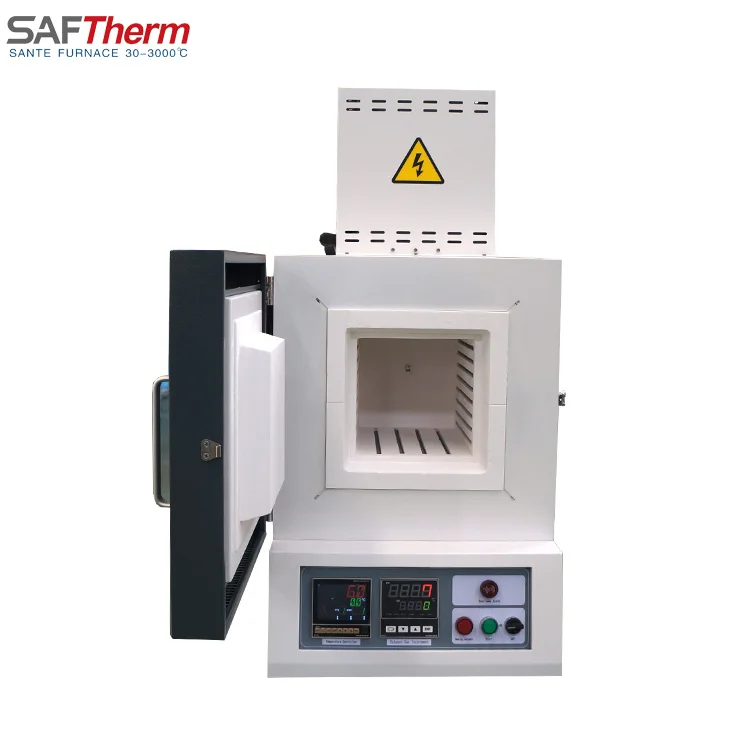

1200C Lab Muffle Furnace
- Category: >>>
- Supplier: Henan Sante Furnace Technology Co. Ltd.
Share on (62129405138):
Product Overview
Description
Product Description
| Model | STM-3-12 | STM-8-12 | STM-12-12 | STM-18-12 | STM-30-12 |
| Chamber Size mm(W*D*H) | 150x150x150 | 200x300x120 | 200x300x200 | 250x300x250 | 300x500x200 |
| Type | Benchtop | ||||
| Furnace structure | Chamber material, temperature controller system, heating element, furnace shell and other assistant parts | ||||
| Max. temperature | 1200℃ | ||||
| Continuous tempertarure | 1100℃ | ||||
| Power supply | 220V/2.5KW | 220V/3KW | 220V/4KW | 220V/6KW | 380V/7.5KW |
| Heating element | High quality alloy resistance wire | ||||

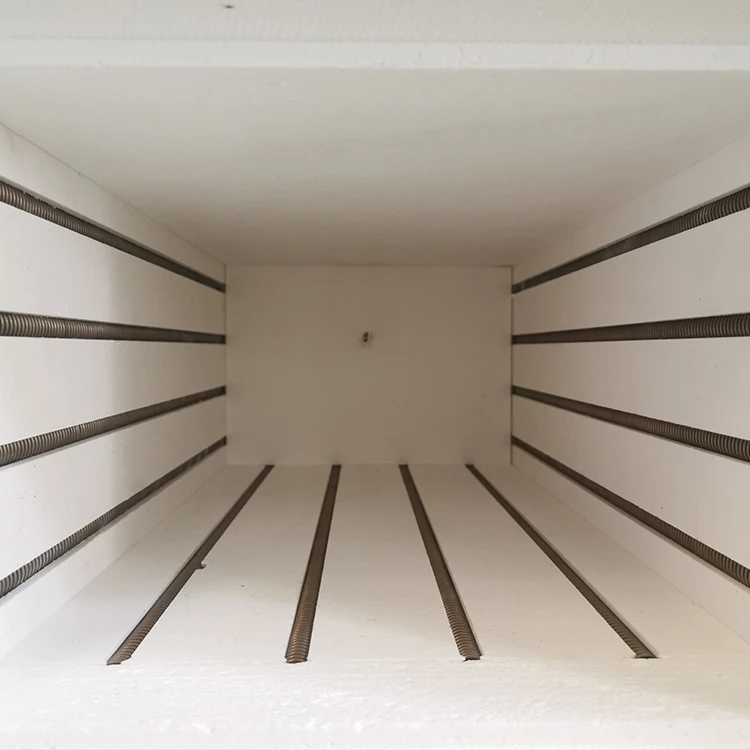

| Chamber material | High temperature polycrystal alumina ceramic fiber material | ||||
| Temperature precision | ±1℃ | ||||
| Thermocouple | N type | ||||
| Temperature controller | YUDIAN intelligent microcomputer PID controller can program 30 segments | ||||
| Electronic component | DELIXI make | ||||
| Heating rate | ≤ 25℃/min ( suggest 15℃/min for longer life using of furnace ) | ||||
| Safety protection | Overheat and thermocouple-break alarm | ||||
| Certification | ISO9001 CE SGS | ||||
| Furnace shell | high quality cold-rolled steel sheets processing | ||||
| Insulation | High quality thermal insulation material to ensure a good uniformity | ||||
| Accessories | One pair of high temperature furnace gloves | ||||
| One pair of crucible stongs | |||||
| Optional | Paperless recorder | ||||
| Stainless steel exhaust chimney | |||||
| Alumina crucible | |||||

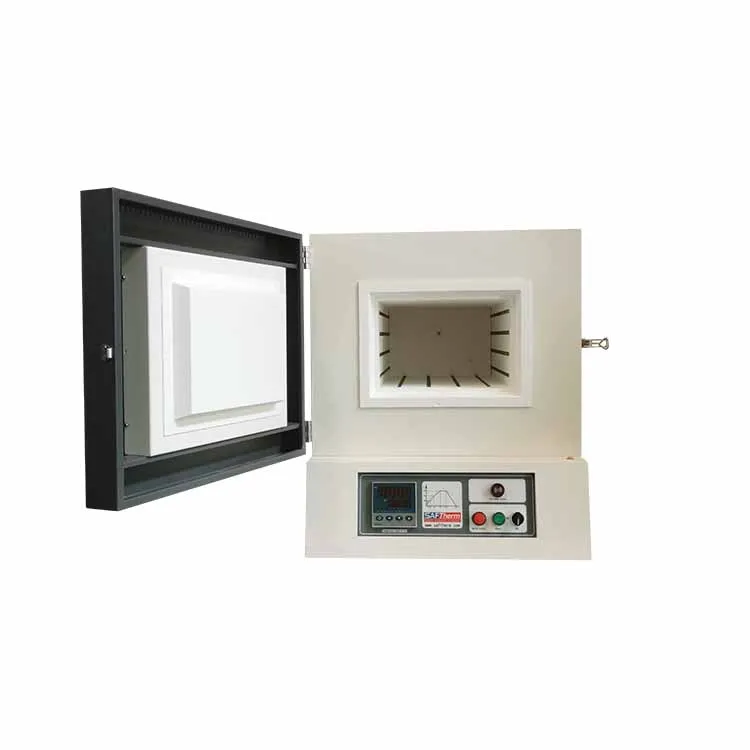

Detail Pictures
Packaging & Shipping
Standard Export Safe Packing:
1.The furnace body was warped with enrivonmental plastic stretch film, then fixed well on the fumigation-free pallet
2.Tailored polywood case, coupled perfectly with the pallet
3.Filled with polyfoam, fit well between the furnace body and the case in all sides
4.Easy-to-identify double-sided outer box print logos and shippment marks
Delivery Time: 15 working days against receiving advanced payment
Port: Shanghai/Qingdao
