ENJOIN (A Type) 5,000-13,500Lbs 12 Volt Vehicle Winch
| Single line rated pull | 12000lb (5443kg) | Motor | 5.35hp/3.9kw,Series Wound |
| Control | Remote Switch, Extra long 4.5m lead , In and Out PLUS Twin Handset Wireless Remote | Gear train | 3 Stage Planetary |
| Gear reduction ratio | 265:1 | Clutch | Sliding Ring Gear |
| Braking Action | Automatic In The Drum | Drum size | Diameter 64mm (2.5")Length 233.5mm(8.82”) |
| Cable | 24m (78ft) of 9.4mm (3/8”)diameter | Fairlead | 4-Way Roller Fairlead |
| Battery | Recommended 650CCA minimum for winching | Battery Leads | 2 gauge, 1.83m (72”) 25mmsq - 6.5mm Diameter |
| Finish | Black | Weight | GW 38KG |

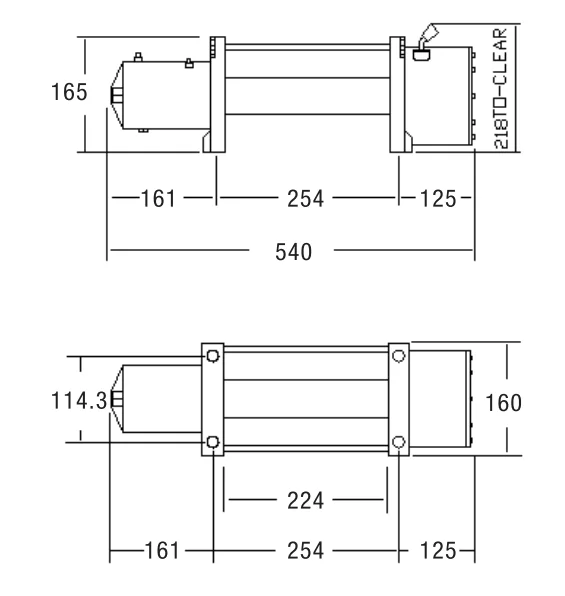

| Overall Dimensions(LxWxH) | 527x160x217mm (19.8"x6.3"x8.5") | Mounting Bolt Pattern | 10.00”±0.015"x4.50”±0.010"(255x114mm) |
| Motor Current | 65-400A | No Load Line Speed | 6.5m/min (21.3 ft/min) |

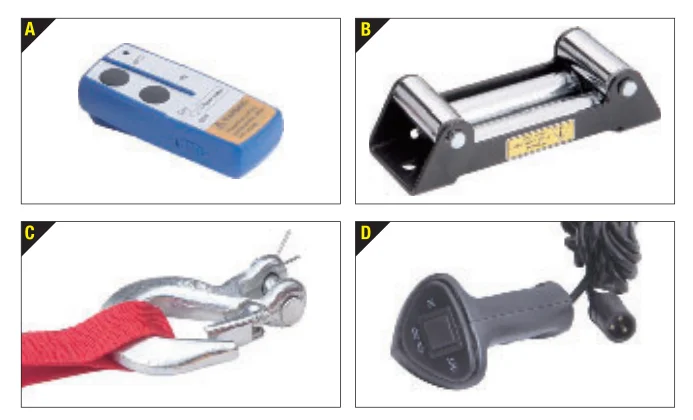

Winch Accessories Option:
