DC DC SX1308 Step UP Adjustable Power Module Step Up Boost Converter 2 24V to 2 28V 2A

Product Overview

Description

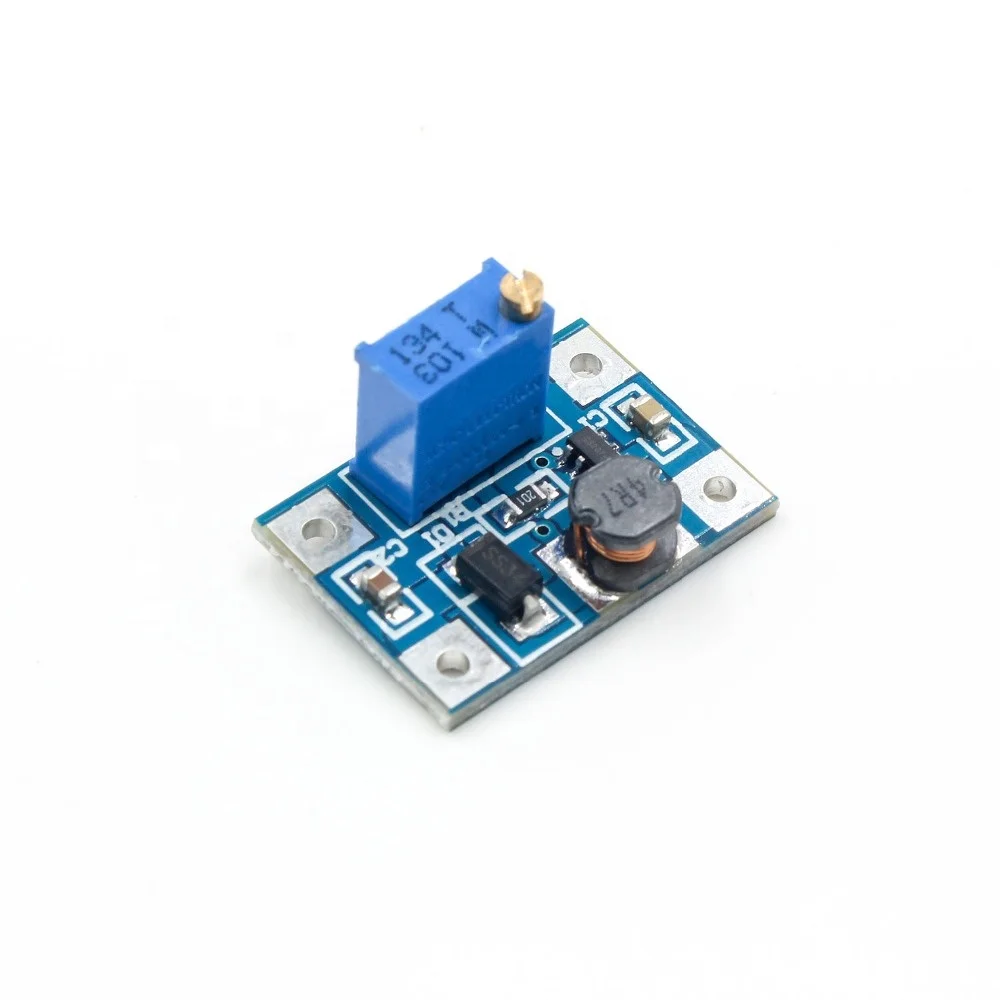

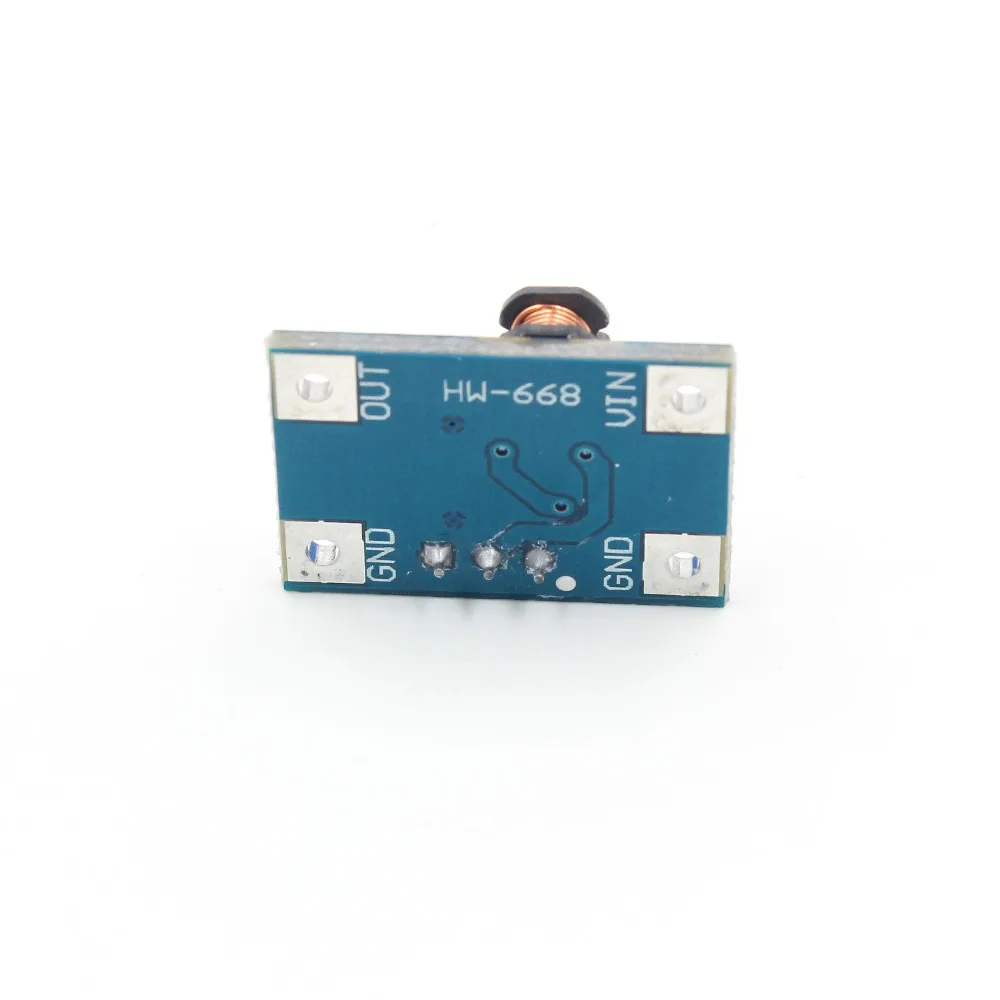

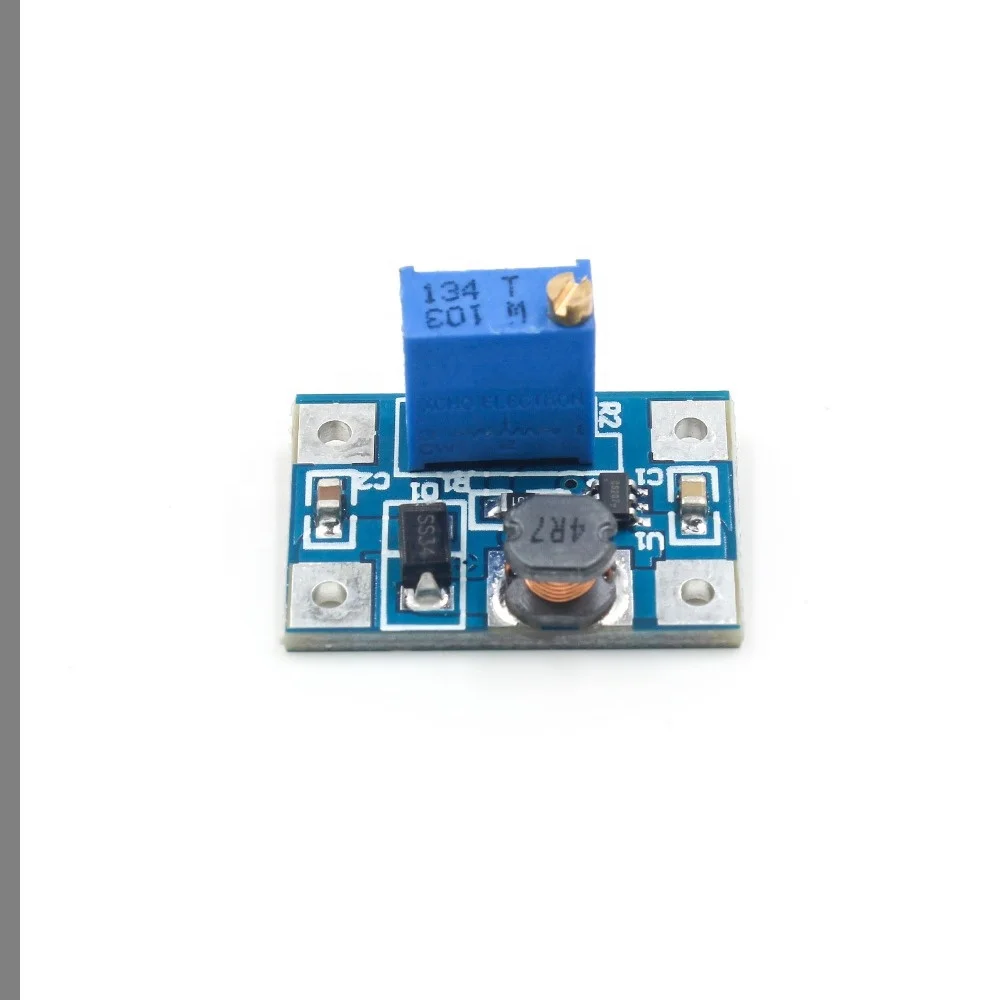

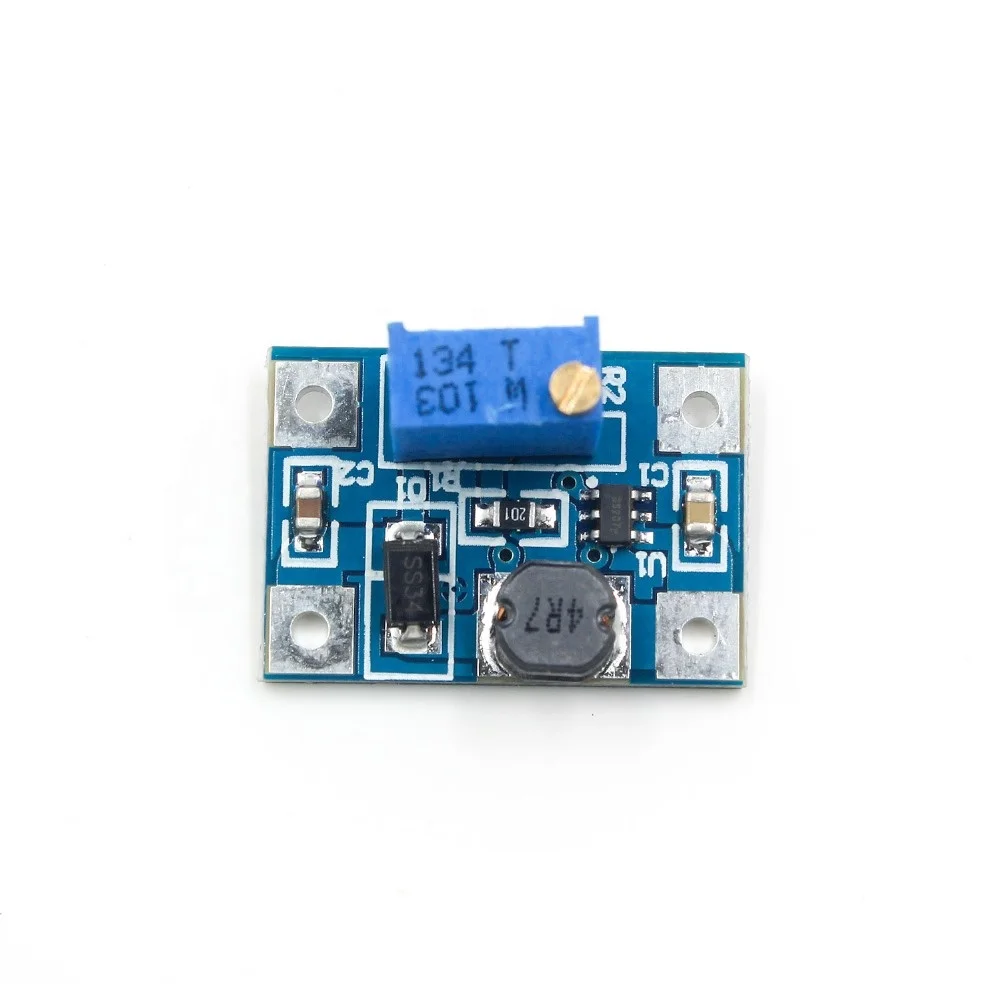

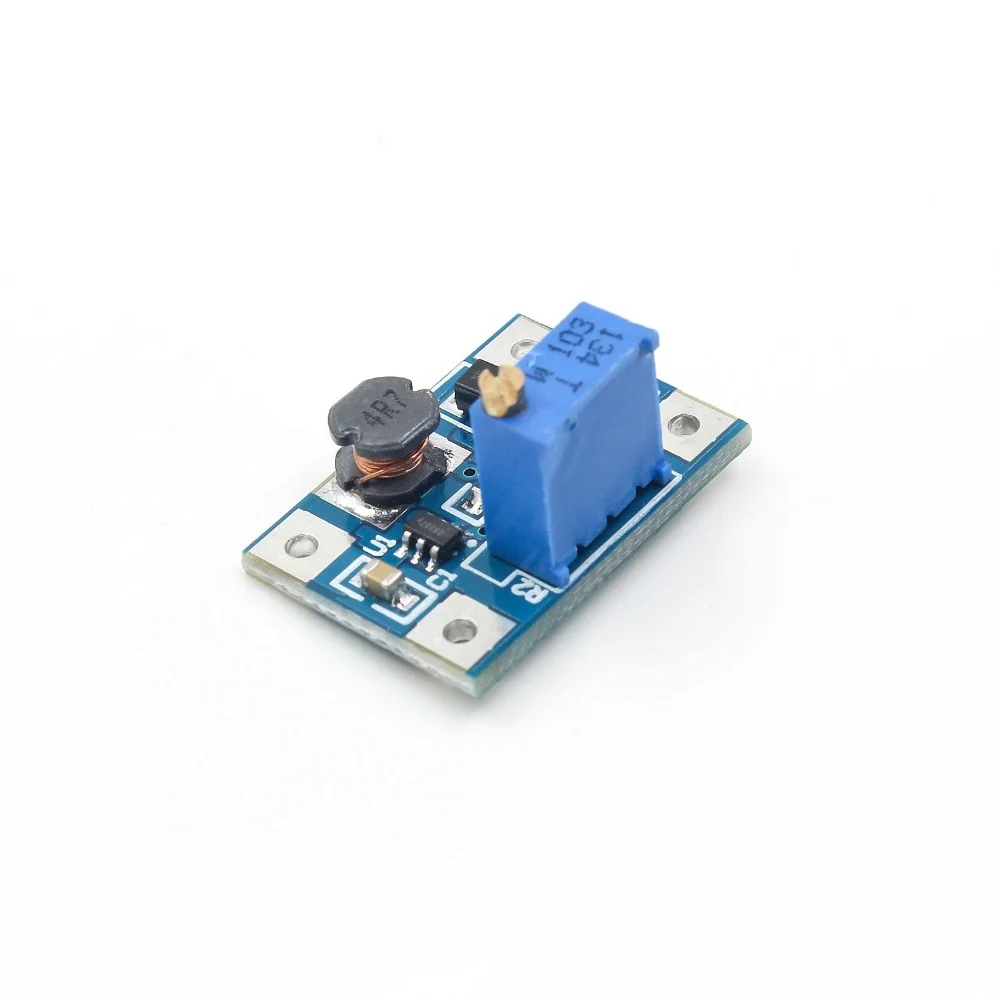

   LC SX1308 booster module carrying SX1308 chip, its packagnig is small, and high efficiency. The output power can be adjust, maximum can arrive 28V and its interior integrate the lowest RDS internal resistance 100mΩ metal oxide semiconductor field effect transistor (mosfet), which can realize large current output of up to 2A. It widely used in 3G network products, digital products, mobile power supply,battery power supply, equipment, etc.

Introduction:

   Oscillation frequency 1.2MHz

   efficiency is as high as 95%

   Circuit has short circuit protection, overheating protection function

   10k to adjust potentiometer, adjust the output voltage

   Maximum input voltage: DC 2-24V

   Maximum output voltage: DC 2-28V

   Switching frequency: 1.2MHz

   Maximum current output: 2A

   1Pcs DC-DC SX1308 Module
