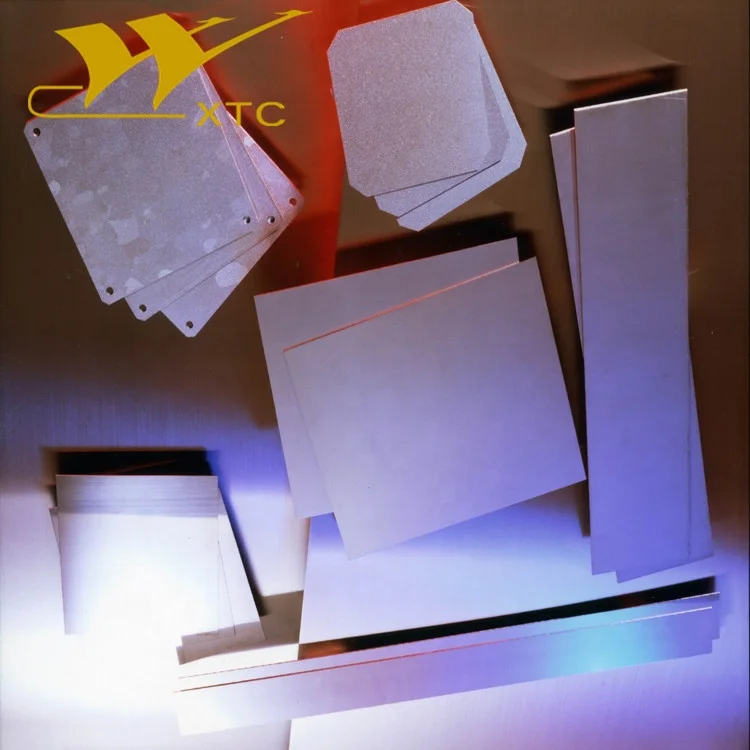

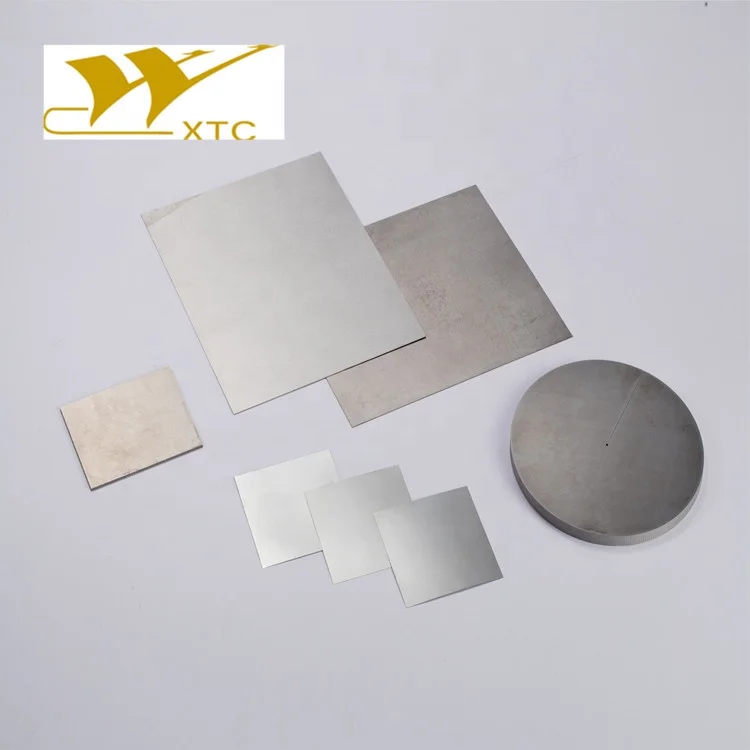

Tungsten/molybdenum plates have high-temperature resistance, hardness, and density. Our process starts with raw metal powder that is then pressed into ingots, sintered, and hot-rolled. The process enables us to tailor the product to meet specific customer material and performance requirements to ensure optimal performance in your application. We offer a wide range of hot rolled plate and cold rolled Tungsten/molybdenum sheet products in a range of thicknesses, widths, and lengths, and surface finish as outlined below.
Specification:
Materials:99.95wt% molybdenum powder Density: Mo≥9.3 Finished as: Annealed, shaped in high-temperature, special heat treatment, mirror surface, and other special requirements from customers. Application: -Parts of Electric Light Sources and Electron Tubes; -Medical Facilities; -Obstruction of Radiation and Interference; -To Heat Elements of High-Temperature Furnaces; -Structures of High-Temperature Furnaces.
High melting point, high purity, low thermal expansivity, excellent thermal conductivity, welding performance and processability
widely used for manufacturing electron (ion) beam sputtering target, spare parts for ion implantation machine, heat sink of semiconductor, parts of electron tube, MOCVD equipment, and medical device, hot zone, crucible and supporting elements for sapphire crystal furnace, heater, heat shield, supporting element, and boat for vacuum and hydrogen shielded heating furnace
Pure Mo plate treated in high temperature
High-purity, consistent in physical and chemical property, and excellent high temperature anti-deforming capability
By using oxide dispersion strengthening mechanism, certain plastic deformation could be performed under room temperature after being treated in high temperature because of its high strength, high recrystallization temperature and excellent high-temperature strength and improved recrystallization brittleness and high temperature anti-deforming capability
Lanthanum-doped Mo plate treated in high temperature
Excellent high-temperature strength, and low high temperature deformation due to its oxide dispersion strengthening effect and specific structure
suitable for making base plate for sintering fine ceramics and rear-earth ceramic, bearing rack, base plate and coat for high temperature heating furnace
Doped Mo plate
High temperature strength, low recrystallization temperature, and excellent high-temperature creep resistant performance because of its potassium bubble strengthening mechanism
Low high-temperature creep due to its long grain staggered structure and high purity
suitable for making products with high requirement to purity and high-temperature creep, such as base plate for electronic ceramics sintering or heat-treating, supporting elements in electron tube, and so on
particularly suitable for elongating, spinning, reinforcing and bending, and making elongating or spinning Mo crucible, Mo parts need to reinforce or bend, such as corrugated sheet, bending piece, Mo boat, and so on
Cross-rolled pure Mo plate treated in high temperature
Low anisotropy and good bending performance besides same performance of Lanthanum-doped Mo plate
particularly suitable for reinforcing and bending, and making reinforced or bended Mo parts with high temperature requirement, such as heating zone, bended fabricated parts, high-temperature Mo boat, and so on
Some performance indexes of Mo plate as follows
Thickness(mm)
Erichsen value,≥(mm)
0.10≤T<0.15
3.5
0.15≤T<0.2
4.0
0.2≤T<0.3
4.5
0.3≤T<0.4
5.0
0.4≤T<0.5
5.5
0.5≤T<0.6
6.0
0.5≤T<0.7
6.2
0.7≤T<0.8
6.5
0.8≤T<0.9
6.8
0.9≤T≤1.0
7.0

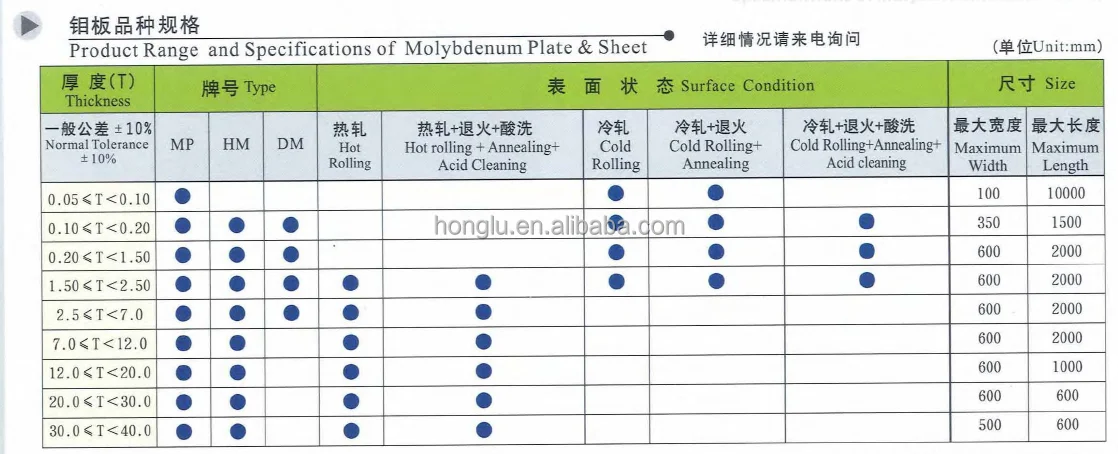

Specificantions Range
1) Thickness:
Hot-rolled plate:1.5~40mm;
Cold-rolled plate/sheet:0.05~3.0mm
2) Width:
Hot-rolled plate:≤750mm;
Cold-rolled plate/sheet: ≤1050mm;
3) Length:
Hot-rolled plate:≤3500mm;
Cold-rolled plate/sheet: ≤2500mm

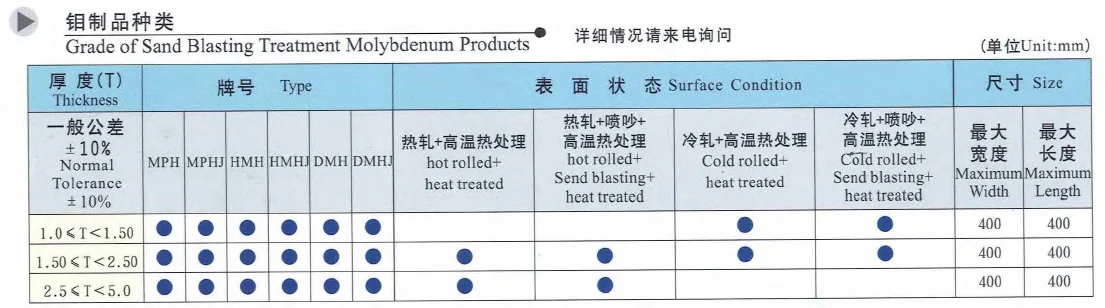

Types of Moly Sheet

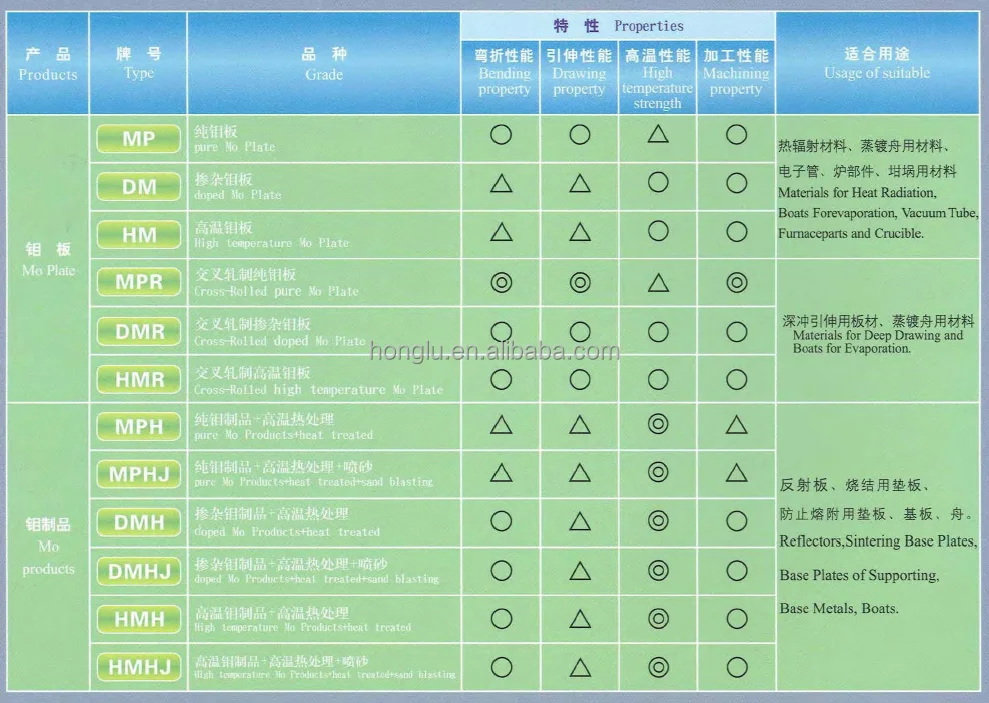

Properties of Moly Sheets

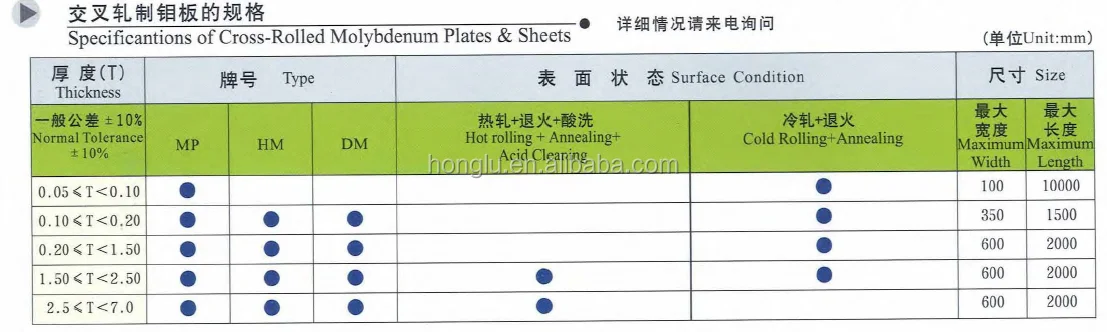

Specification of Cross-Rolled Moly Sheet
Application Area
Production Process
Company Profile
Established in 1992 and registered capital of 209 million yuan, Xiamen Honglu Tungsten Molybdenum Industry Co., Ltd. is a Sino-Korea joint-venture and the core member of public-listed company Xiamen Tungsten Co., Ltd. We specialized in the production of high-quality W/Mo metallurgical products and components. Built the Rare Metal working Laboratory with the Institute of Metal Research (IMR), Chinese Academy of Sciences (CAS),HONGLU has been devoting to the build-up of China Tungsten Molybdenum pioneer,and become one of the National Key New & High-tech Enterprises. In the past several years,we built three manufacturing plants at a very fast speed.
