Стандартный воздушный цилиндр серии CS1, большой тяговой стержень, пневматический цилиндр
Стандартный воздушный цилиндр серии CS1, большой тяговой стержень, пневматический цилиндр

Стандартный воздушный цилиндр серии CS1, большой тяговой стержень, пневматический цилиндр

Share on (62130139271):


Price:607,37 $

Quantity:


Product Overview

Description


Products Description

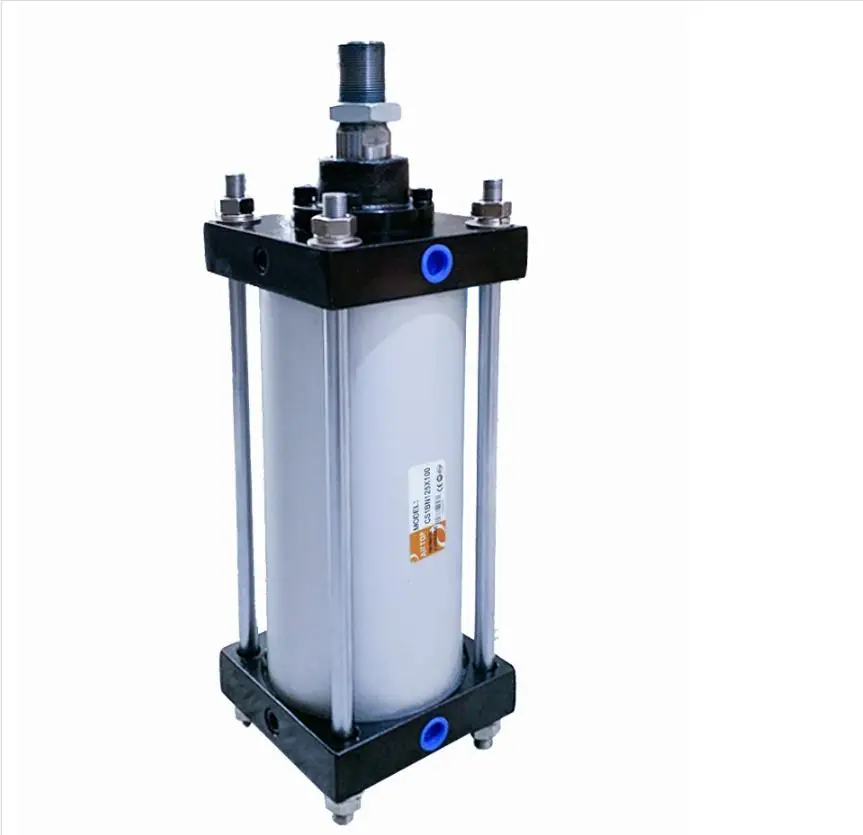

1. CS1 series is a big type tie rod cylinder.
2. With bore size from φ125mm to φ300mm.
3. The cylinder barrel and front/rear cover is connected by tie rods with high reliability.
4. The piston seal of CS1 type cylinder is two Y rings, with one-way seal structure, which has compensation function, long service life and low start-up pressure.
Bore Size (mm)
125
140
160
180
200
250
300
Working Medium
Air (Air-hydro Type: Turbine)
Acting Type
Double Acting
Max. Pressure
0.9 MPa
Min. Pressure
0.05 MPa (Air-hydro Type: 0.06 MPa)
Working Temperature
0 ~ +70℃ (Air, Unfrozen), 5 ~ +60℃ (Air-hydro Type)
Speed Range
50 ~ 500 mm/s (Air-hydro Type: 0.5 ~ 200 mm/s)
Cushion
Air Cushion (Air-hydro Type Without Cushion)
Stroke Tolerance (mm)
~ 250: +1.0 0, 251 ~ 1000:+1.4 0, 1001 ~ 1500:+1.8 0
Port Size
G1/2
G3/4
G1
Company Profile
Related Products
Why Choose Us
Product packaging
FAQ
Q1. How often do you guys reply messages?
A1. Above 95% response rate, we always carry our cell phone all the time before going to bed 24/7 in order to answer customers’ questions.

Q2. Are you a manufacturer or trading company?
A2. We are an integrated industrial and trade enterprises. We got our own factory and marketing department.

Q3. How do you ensure your product quality?
A3. AirTOP people believe that quality is the only thing that keeps our factory alive. Every single product will be fully
assembled and tested before shipping.

Q4. What is your sample policy?
A4. We of course offer sampling service. This is our great pleasure to let customer evaluate quality.

Q5. What is our minimum order quantity?
A5. It depends on the specific products, please feel free to chat with us.

Q6. Do you accept OEM business?
A6. We have been doing OEM for many famous brands in the industry over 10 years.
