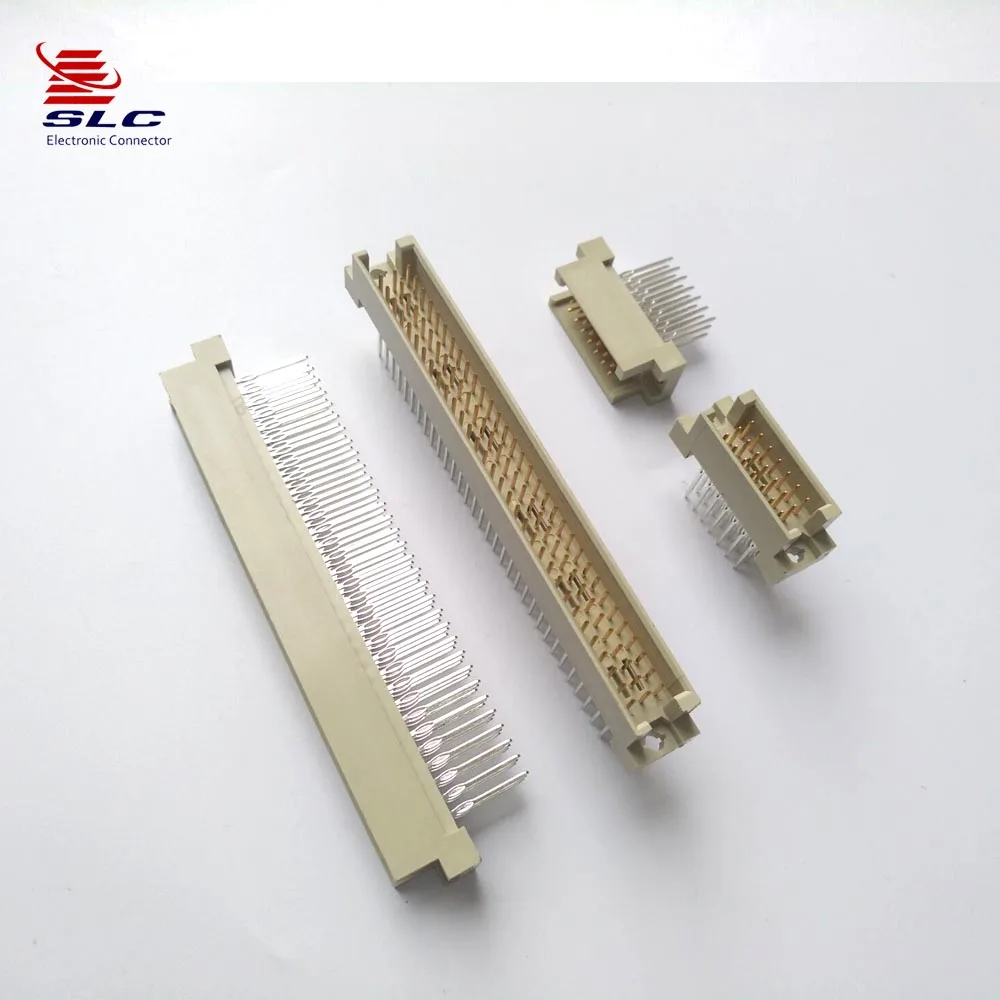

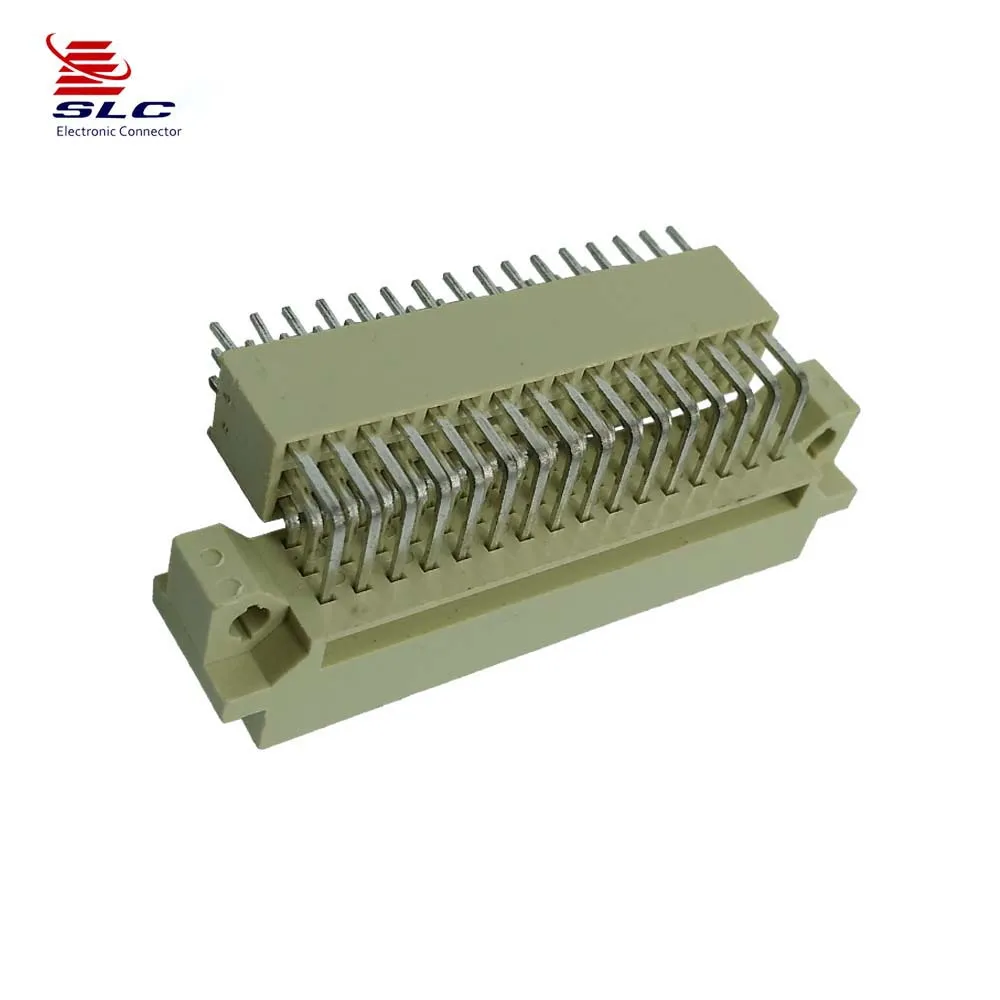

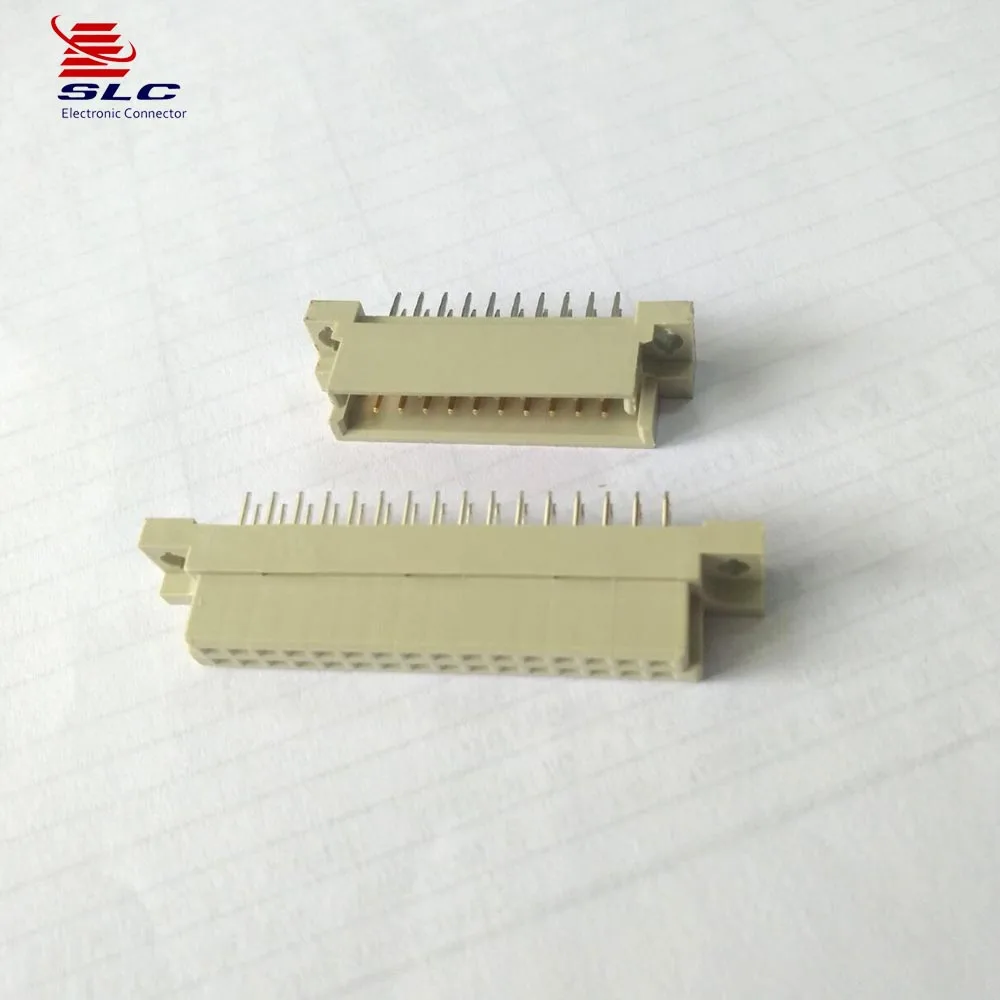

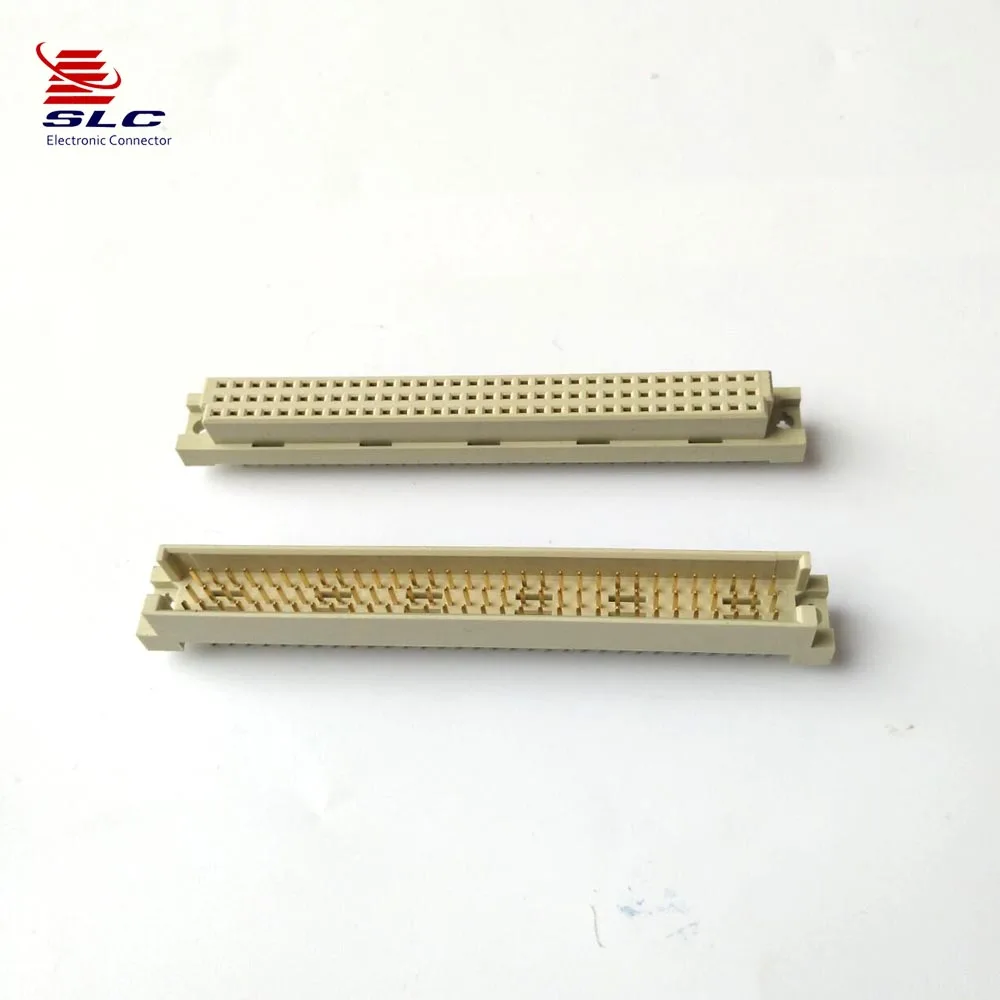

Разъем DIN 41612 3x32P Женский прямой тип a b c DIN 41612 Европейская розетка

Product Overview

Description

 Product Description

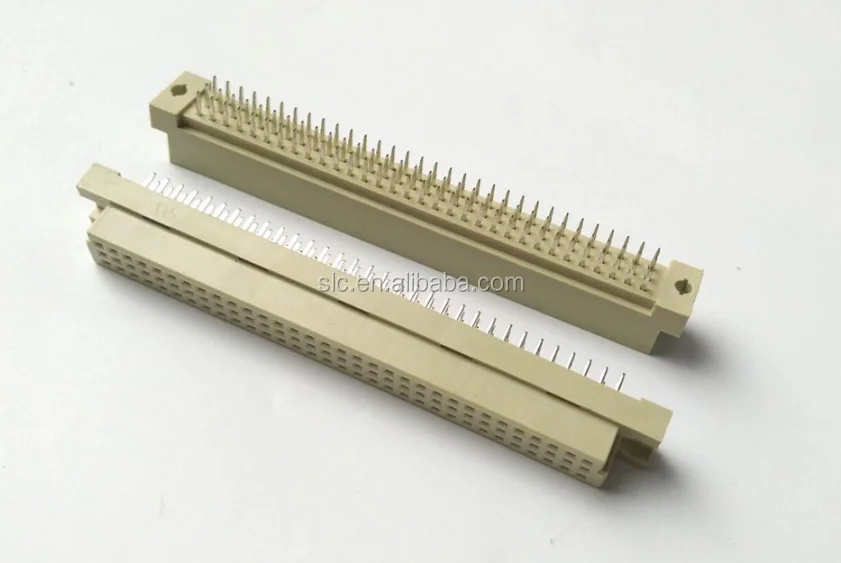

2.54mm DIN 41612 Female PCB Connector,3x32P Female Straight Type

Series No.	DIN-3XXAFSXXBNA01
Description	2.54mm DIN 41612 Female PCB Connector,96P Male Straight Type
Pin ways	96P
Packing way	Tray Packing
MOQ	500PCS
Delivery time	1-2weeks after confirm order
	Rated Current:2.0AMP
	Contact Resistance: 30mΩ  Max
	Withstand Voltage:1000V AC/DC
	Insulation Resistance:1000MΩ Min
	Operation Temperature: -40°c to +105°c
	Contact Material : Brass
	Contact Plating: Au or Sn Over Ni
	Insulator Material :Polyester (UL94V-0)
	Standard: PBT
	Max.Processing Temp: 180°c for 30-60 Seconds / (200°c for 10 Seconds)



advantage
1.Small batch,Many types

2.High quality with attractive price.

3.Timely delivery

4.Convenient transportation

5.Free Samples can be supplied after quotation confirmed,take up to 3~5 working days.

6.ODM/OEM order, trail order and customized cable are welcomed,Happy deal.

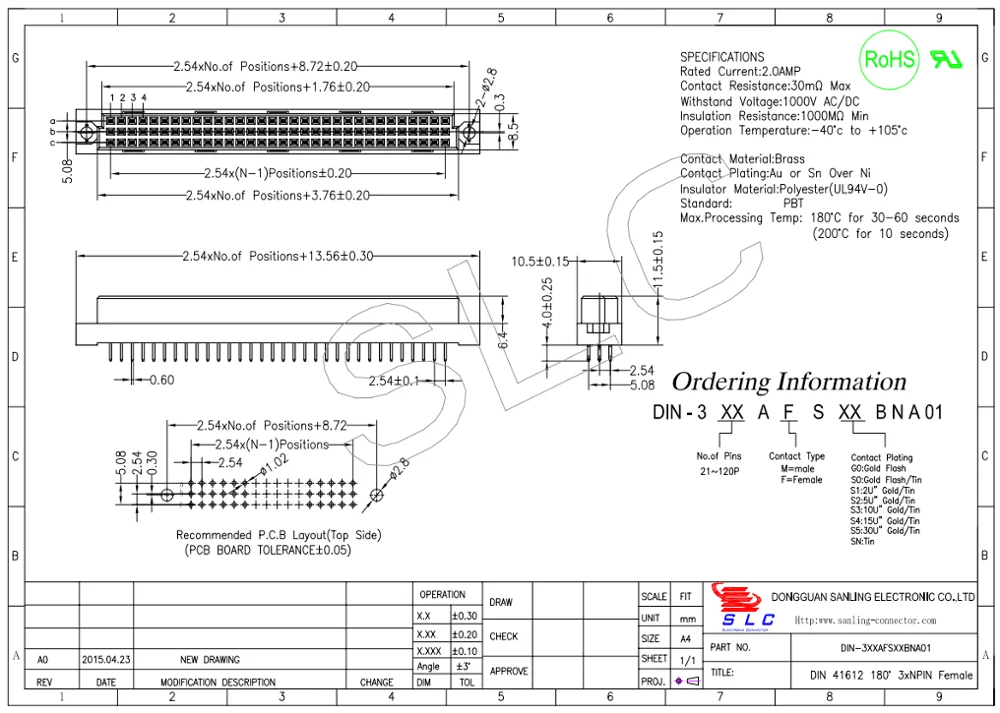

 Drawings details



 Packaging & Shipping

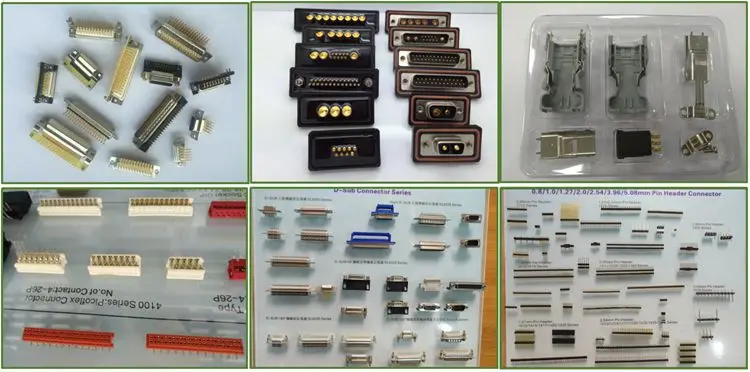

 Company information

 FAQ

1.Q:Do you have a catalogue? Can you send me the catalogue to have a check of all your products?

A: Yes , We have product catalogue.Please contact us on line or send an Email to sending the catalogue.

2.Q: I can't find the product on your catalogue, can you make this product for me?

A: Our catalogue shows most of our products,but not all.So just let us know what product do you need,

and how many do you want.If we do not have it,we can also design and make a new mould to produce

it.For your reference,making a ordinary mould will take about 30-40days.

3.Q : Can you make customized products and customized packing?

A: Yes.We made a lot of customized products for our customer before.(mainly wire harness)

And we made many moulds for our customers alread.

About customized packing,we can put your Logo or other info on the packing.There is no

problem.Just have to point out that ,it will cause some additional cost.

4. Q: Can you provide samples ? Are the samples free ?

A: Yes,we can provide samples.If you need many items, or need more qty for each item,

we will charge for the samples.

5. Q : What about your delivery time?

A: We have a lot of products in stock.We can send the stock products in 3 work days.

If without stock,or stock is not enough, we will check the delivery time with you.

6. Q : How to ship my order ? Is it safe?

A: For small package, we will send it by Express, tsuch as DHL,FedEx,,UPS,TNT.That's a

Door to Door service.

For big packages, we will send them by Air or By sea.We will use good packing and ensure

the safety.We will be responsible to any product damage caused on delivery.
