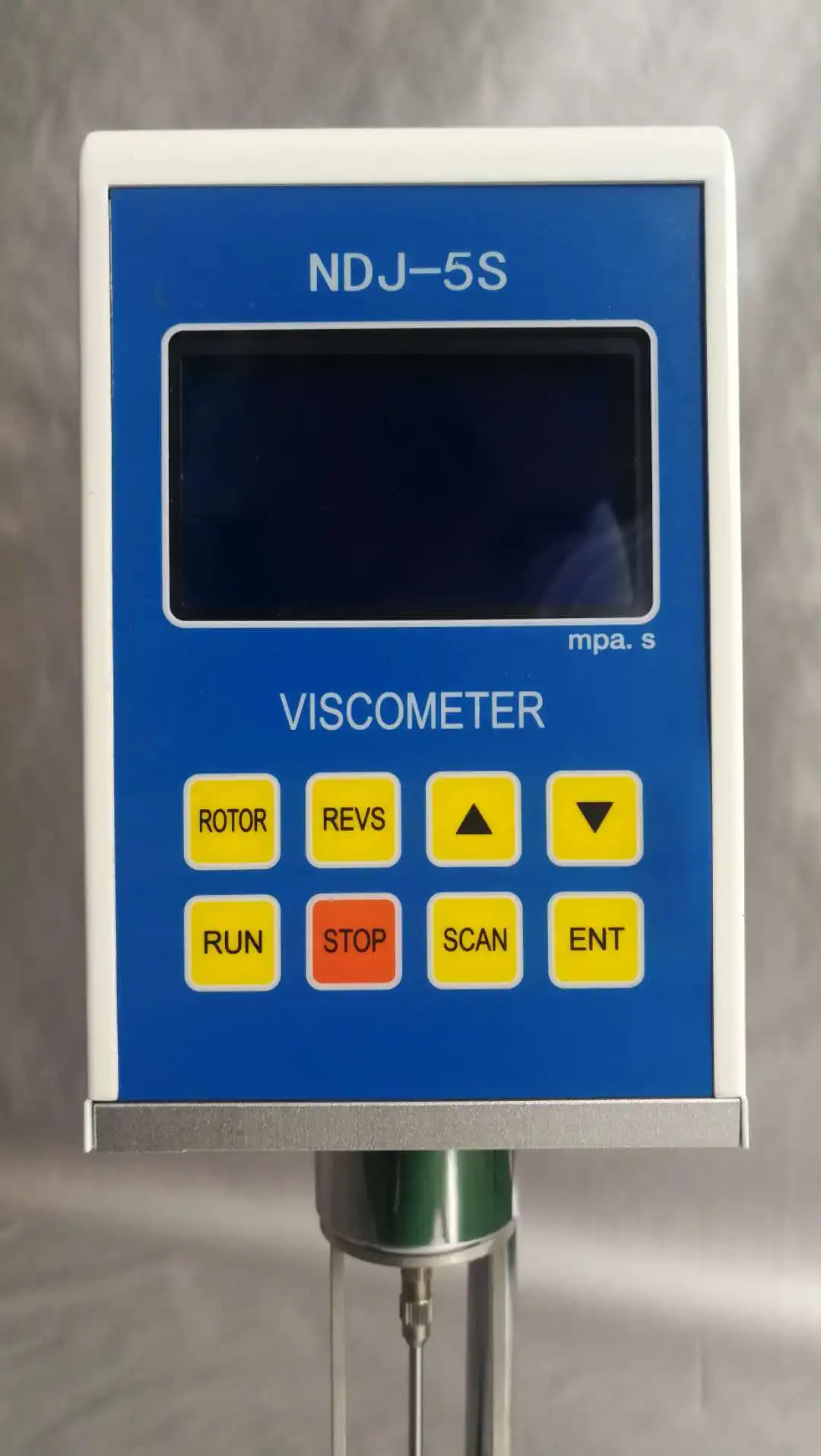

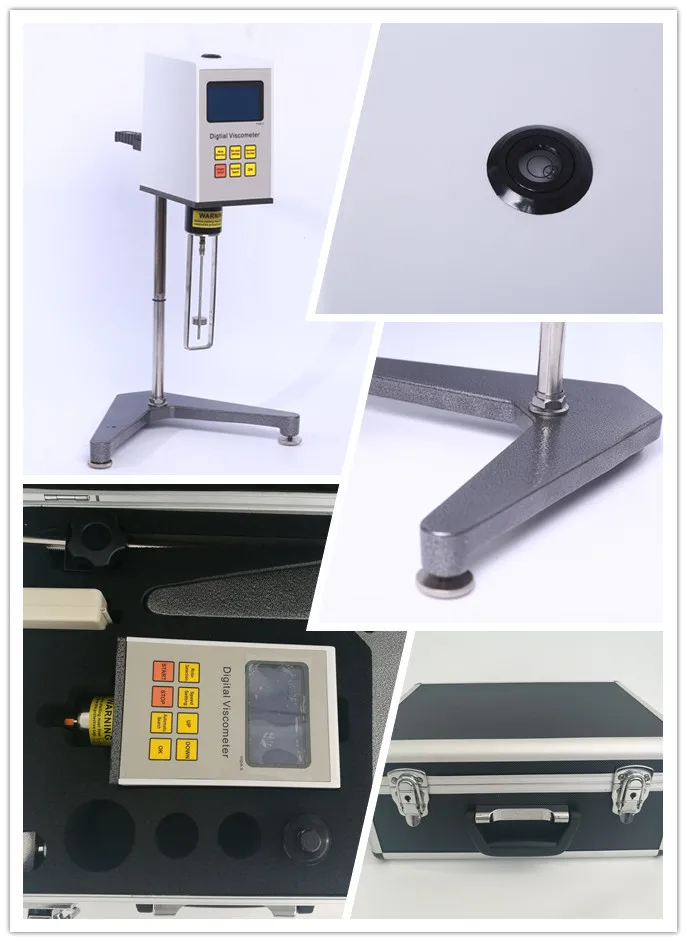

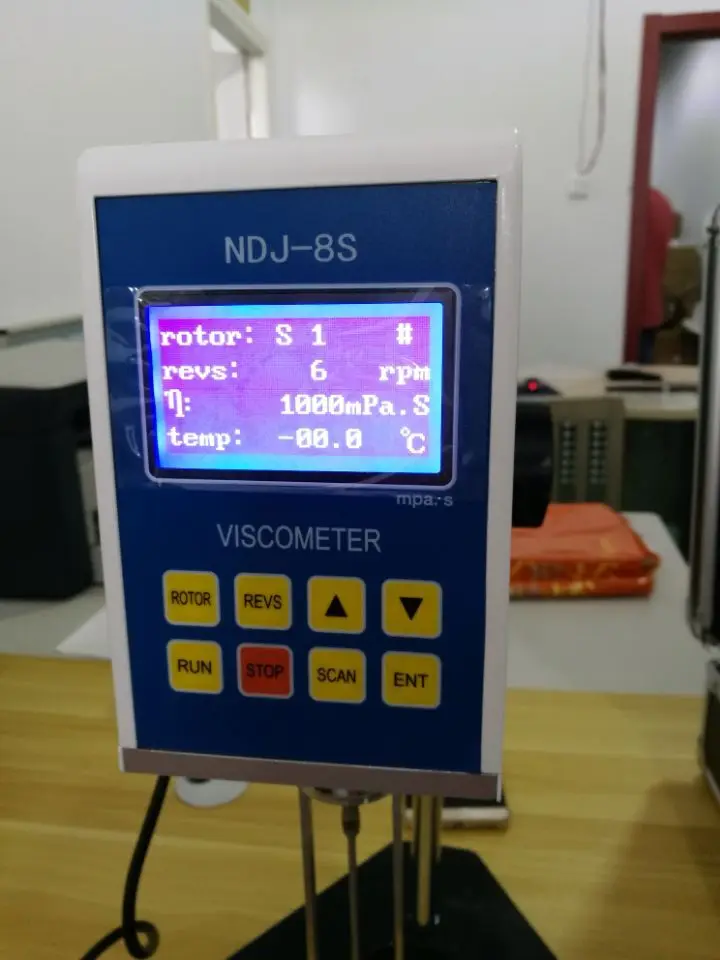

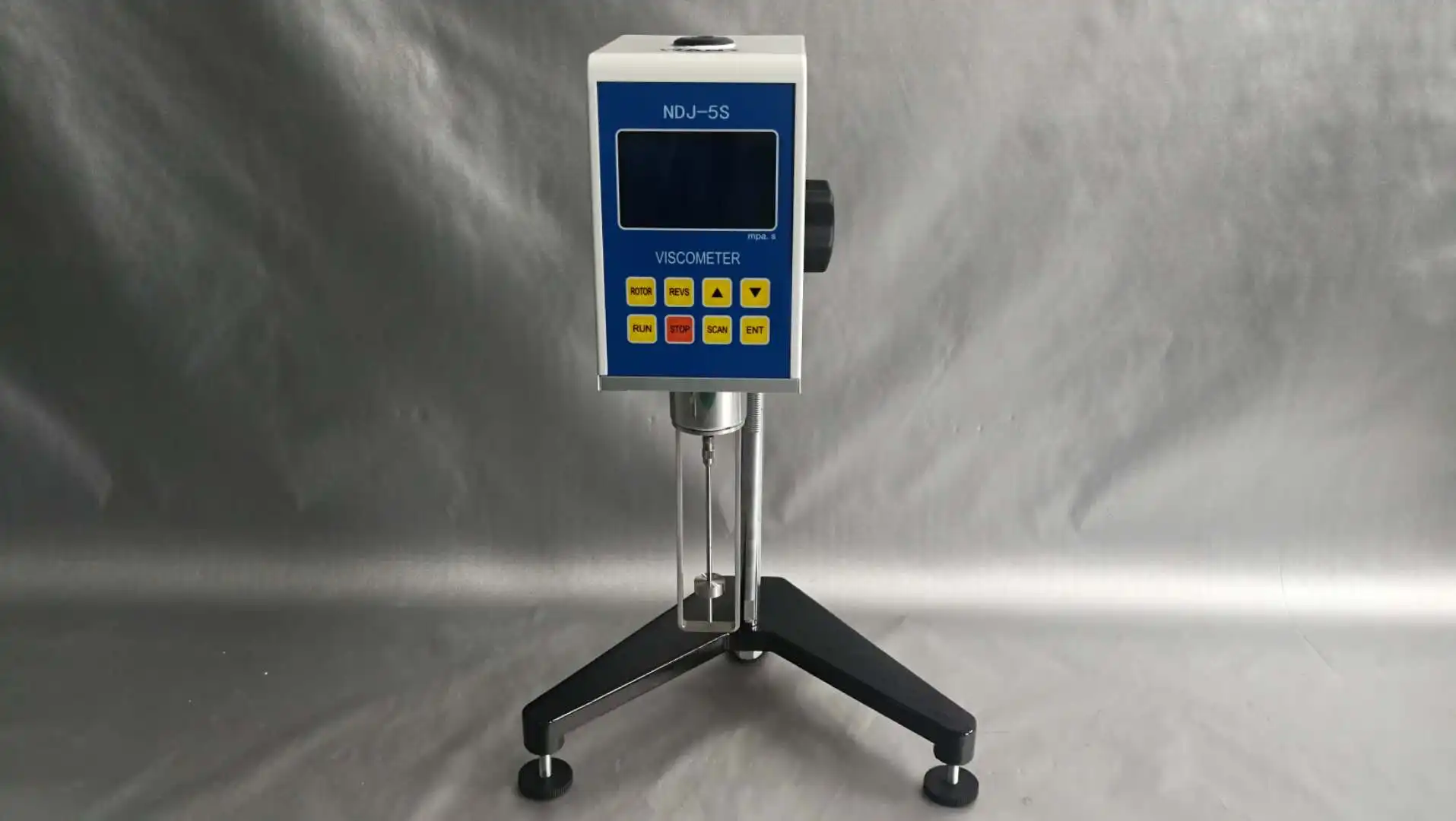

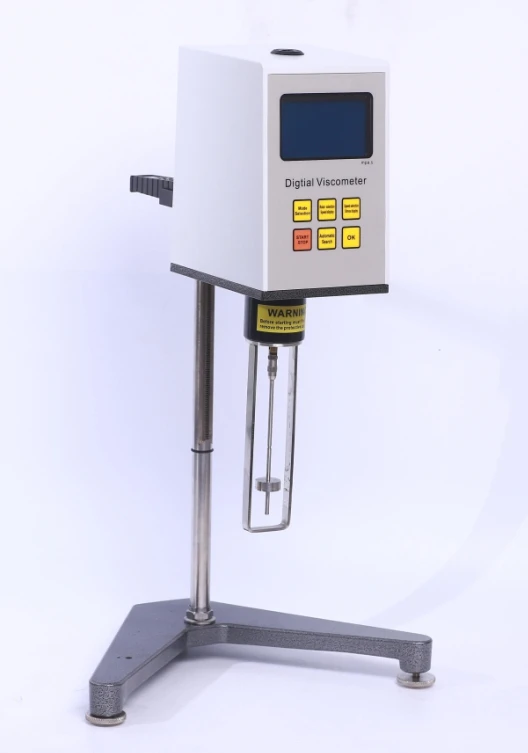

NDJ 5S NDJ 8S DV 1 RVDV 1 rotational viscometer types

Model

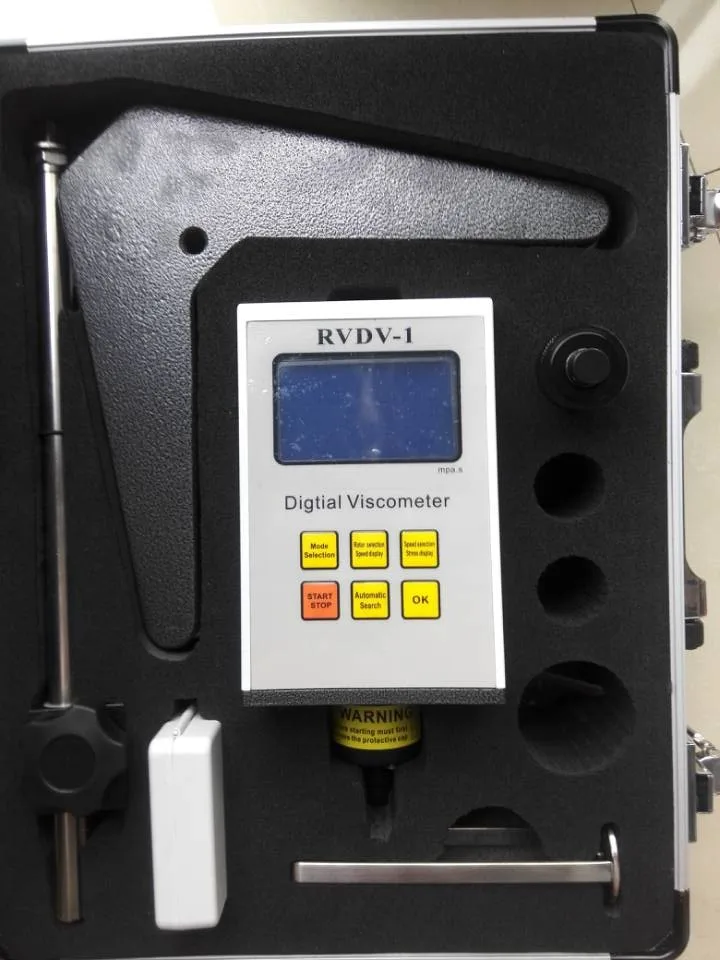

RVDV-1

Measurement Range

10~13,000,000 mpa.s

Rotor Specification

1, 2, 3, 4, 5,  6, 7#

Rotating Speed of Rotor

Speed: 0.3 / 0.6 / 1.5 / 3 / 6 / 12 / 30 / 60 rpm, totally eight choices.

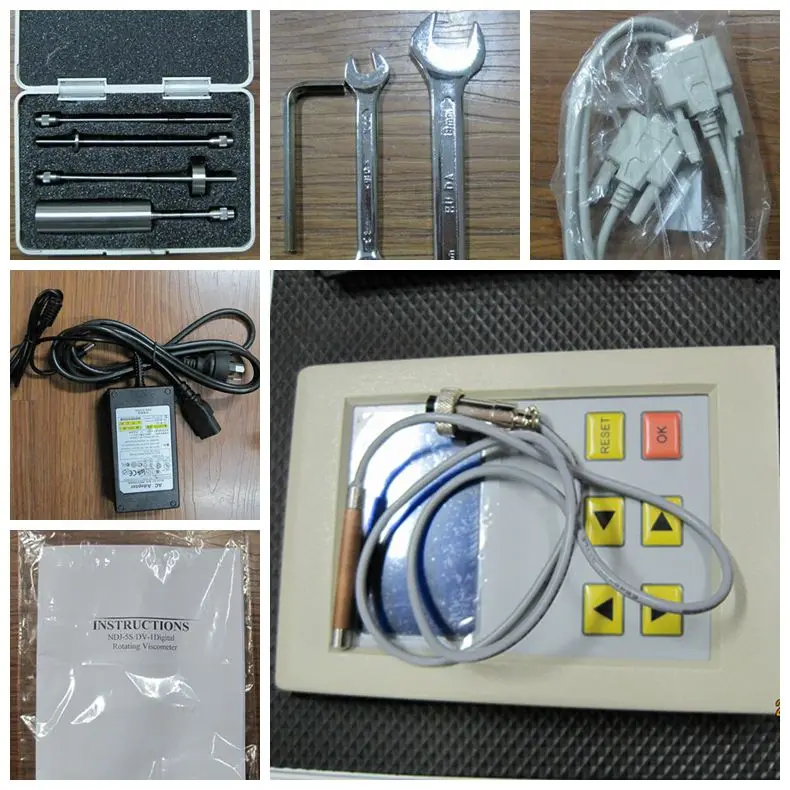

Standard equipped rotors: No.1, No.2, No.3, No.4

Speed: 0.5 / 1 / 2 / 2.5 / 4 / 5 / 10 / 20 / 50 / 100 rpm, totally ten choices.

Standard equipped rotors: No.1, No.2, No.3, No.4

Speed: 0.5 / 1  /  2  /  2.5  /  4  /  5  /  10  /  20  /  50 /  100 rpm, totally ten choices.

Standard equipped rotors: No.5, No.6, No.7

Interface

No

Automatic Switch

Free selection of proper rotating speed or rotor number.

Stable Cursor

Strip-type cursor fully charged displayed when reading basically stable

Measurement  Tolerance

± 2%(newtonian liquid)

Power

AC 220V ± 10% 50 Hz ± 10%

Working Condition

Temperature 5-35℃

Recommended ambient temperature 20℃

Outline Dimension (mm)

95×130×155 mm

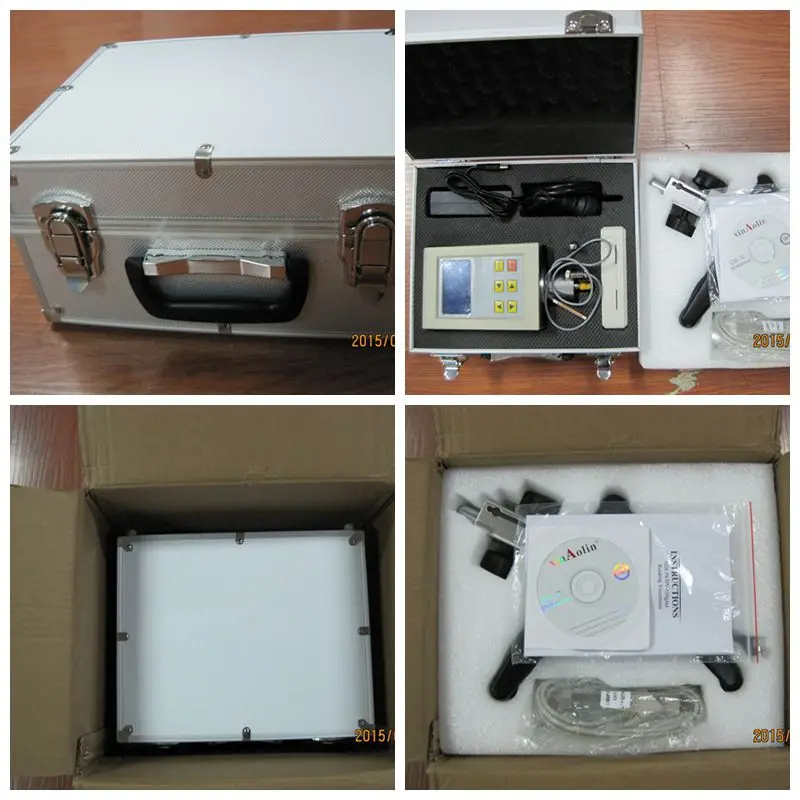

Packing (mm)

400×500×280mm

Net Weight (kg)

2kg (not including the pedestal)

Gross Weight (kg)

8.4kg

Delivery Date (1 pc)

In three days after received the payment

H.S. Code

9027
