laundry tumble drying machine laundry shop dryer
- Category: Commercial Laundry Equipment >>>
- Supplier: Wuhan Huabotai Industry Co. Ltd.
Share on (62130598292):
Product Overview
Description
Products Description

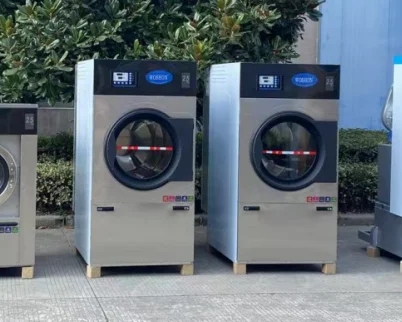

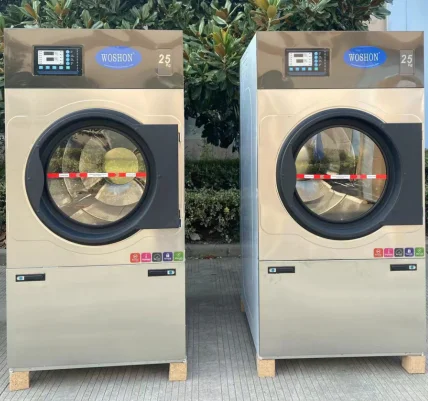

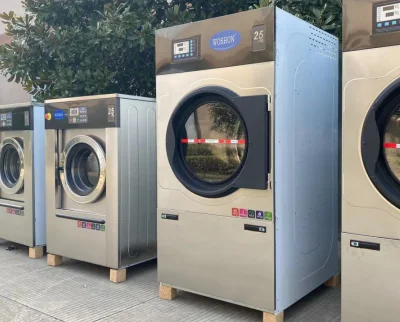

Tumble dryer
1.Gas/Steam/Electric heating.
2.Stainless steeel panel
3.Auo control
3.Heating fast and save energy
Product Paramenters
Model | STD/15 | STD/25 | |
Drying capacity（kg） | 15 | 25 | |
Noise dB(A) | 70 | 70 | |
Washing voltage（V） | 220v/380v/415v/440v/50-60Hz | ||
Heating form | Steam/Gas/Electric | ||
Drying speed（rpm） | 45 | 45 | |
Drying Motor power(kw) | 0.2 | 0.4 | |
Power of Air Blower(kw) | 0.55 | 0.75 | |
Drying Power-Electric heating(kw) | 14 | 24 | |
Steam pressure(Kpa) | 5-10 | 5-10 | |
Steam Inlet(mm) | φ15 | φ15 | |
Consumption LPG（Kg） | 1-1.3 | 1.8-2.2 | |
Consumption LNG（m³） | 1.0-1.5 | 1.8-2.5 | |
Steam pressure(MPa) | 0.4-0.6 | 0.4-0.6 | |
Steam Inlet(mm) | φ25 | φ25 | |
Drying Steam Consumption（Kg） | 18-25 | 30-35 | |
Steam Inlet(mm) | φ25 | φ25 | |
Air Outlet(mm) | φ197 | φ197 | |
Exhaust(m³/h) | 1500 | 2500 | |
Net weight(kg) | 230 | 300 | |
Width（L）(mm) | 882 | 882 | |
Depth（W）(mm) | 1066 | 1340 | |
Height（H）(mm) | 1721 | 1721 | |
Height center Door （h）(mm) | 973 | 973 | |

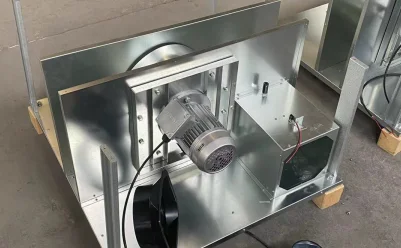

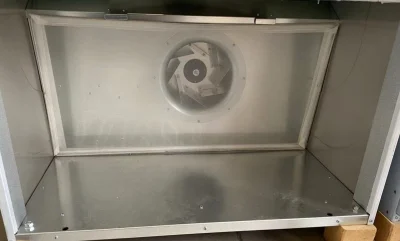

Details Images
Carton package
333
Wooden case package
