Big Square Zinc Alloy Metal Green Red Mushroom Request to Exit Switch access control door exit push button with back box

Product Overview

Description

Big Square Zinc Alloy Metal Green Red Mushroom Request to Exit Switch access control door exit push button with back box



Exit Button Specialists Camel Security offer a wide range of market leading access control door exit buttons and door release buttons. Our products covers push to exit button, press to exit button, Infrared sensor No touch exit button, touch sensor exit and keyswitch.



Exit buttons also refer to push to exit button or press to exit button & request to exit button. They are an integral part of all access control systems, doors can be secured but retain the ability to exit easily.



Z73 series is a European standard size request to exit button with backbox and zinc alloy housing with boat shape. The elegant style and fashion square metal surface mount make it popular. We have exported to over +80 countires with 0.01% error rate in the past 6 years. And it was already proved to good quality with big requirement in the overseas markets foreign countries. We recommend this to you.



Exit button is very common and frequently used in access control system, it is often used in public, banks, small, medium and large sized enterprised, department stores and residences etc.









Size	73L*73W*45H(mm)
Material	Zinc Alloy Housing, Metal mushroom Button
Current	3A @36V DC Max.
Output Contact	NO/NC/COM
Mechanical Life	100,000 tested
Working Temperature	10-55℃ (14-131F)
Working Humidity	0-95% (non-condensing)
Standard Package	100pcs/50*45*24cm/14.5kg/ctn

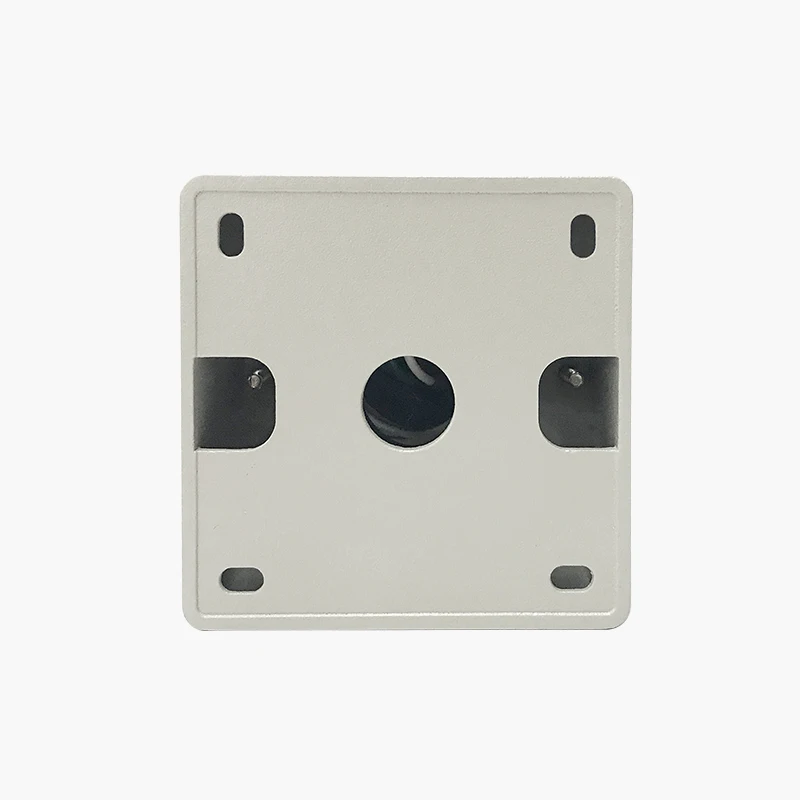

1, zinc alloy housing with backbox, it is good for surface mounted. easy to install.

2, ultra narrow size is designed for narrow frame and elegant style

3, 100,000 cycles tested, assure good quality

4, 200pcs standard package in good condition can save you delivery cost.

5, CE RoHS Certificated, CE at 2014/30/EU and RoHS at 2011/65/EU

6, 3 years warranty, we have confident about our products quality and provide 3 years warranty for our push button products.



7. OEM/ODM experiences for top ranking brands, customization available.

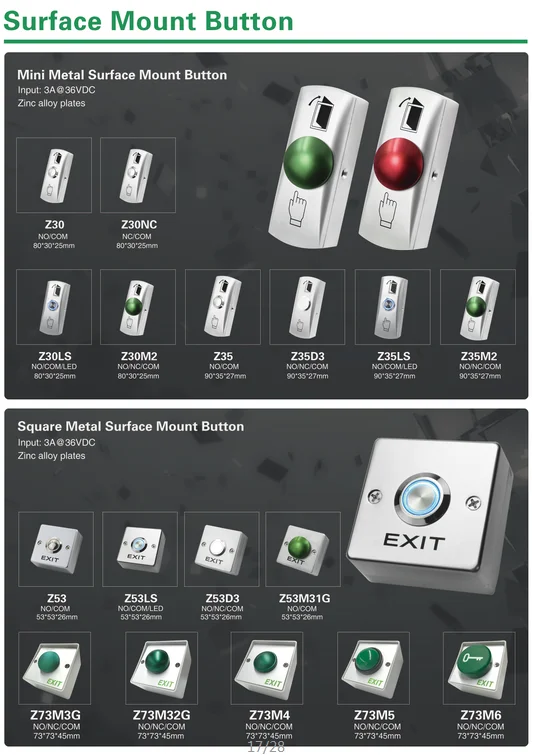

More models for Big Square Zinc Alloy Metal Green Red Mushroom Request to Exit Switch access control door exit push button with back box are available with unique designs:

Boat shape style hot for Europe



 Red color for option.
