Berco type Cylinder Boring &Milling Machine Model:BM150(CB155M)

Product Overview

Description

Berco Type Engine Cylinder boring-Milling Machine

Model BM150 in Red color





This machine is mainly used for repair small-middle sized engine blocks and head;

Design by Human Engineering, easy to operation;

6 shift speed change from gear transmission box; avoid the torque lose;

Cutter pouch spindle and the spindle holder, provide high accurate and efficiency.

Centralized lubricate system ensure the long life for the machine use and easy for maintenance;

multi-choice of accessories, boring, milling, drilling and reaming are all available. As well as motor-cycle blocks.







Model	BM150
Boring capacity	Φ31-Φ160 mm
Max.boring depth	350 mm
Max. milling width	300 mm
Max. milling area	300x800 mm
Max. spindle head travel	530 mm
Distance from spindle C/L to column ways	335 mm

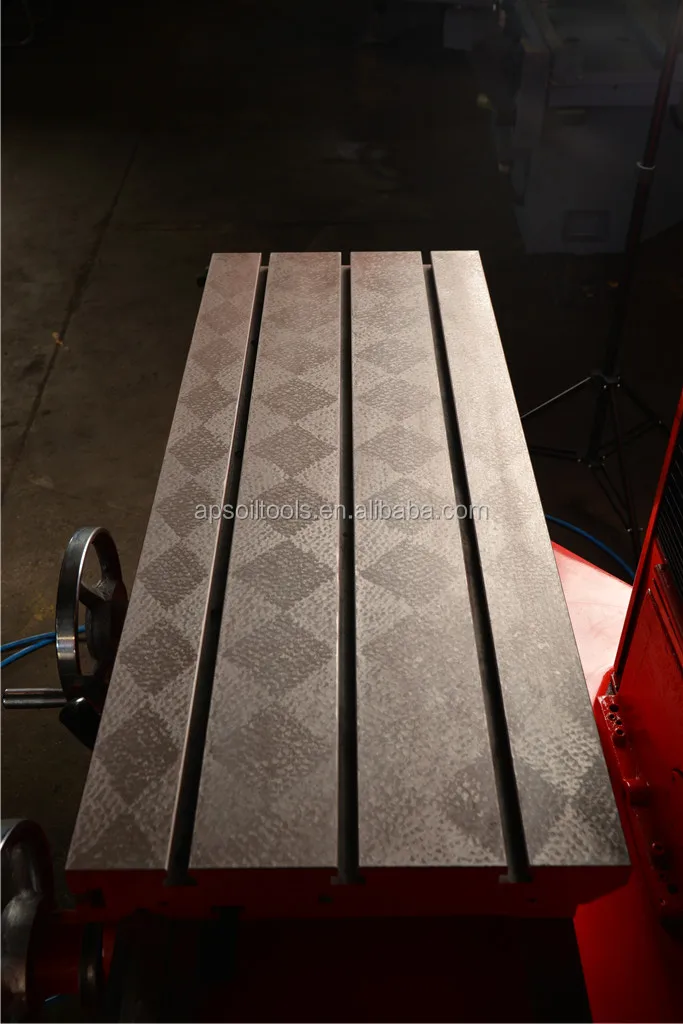

Useful table surface	400x1000 mm
Max. table traverse	830 mm
Max. table cross traverse	60 mm
Spindle rotation speeds	105, 210, 280, 390, 550, 780 rpm
Spindle head work feed speed, per revolution	0.06, 0.12,0.18 mm
Spindle head fast feed, up and down, per minute	1200 mm
Table work feed speed, per minute	52,104 mm
Spindle head work feed and spindle rotation	1.5 kw / 1.2 kw
Fast spindle head traverse, up and down	0.09 kw
Table traverse	0.19 kw
Tool grinder	0.2 kw
Overall dimension:	2570 x 1175 x1920mm
Packing dimension:	1710 x 1450 x2200mm
N.W / G.W	1700 /1950 kg

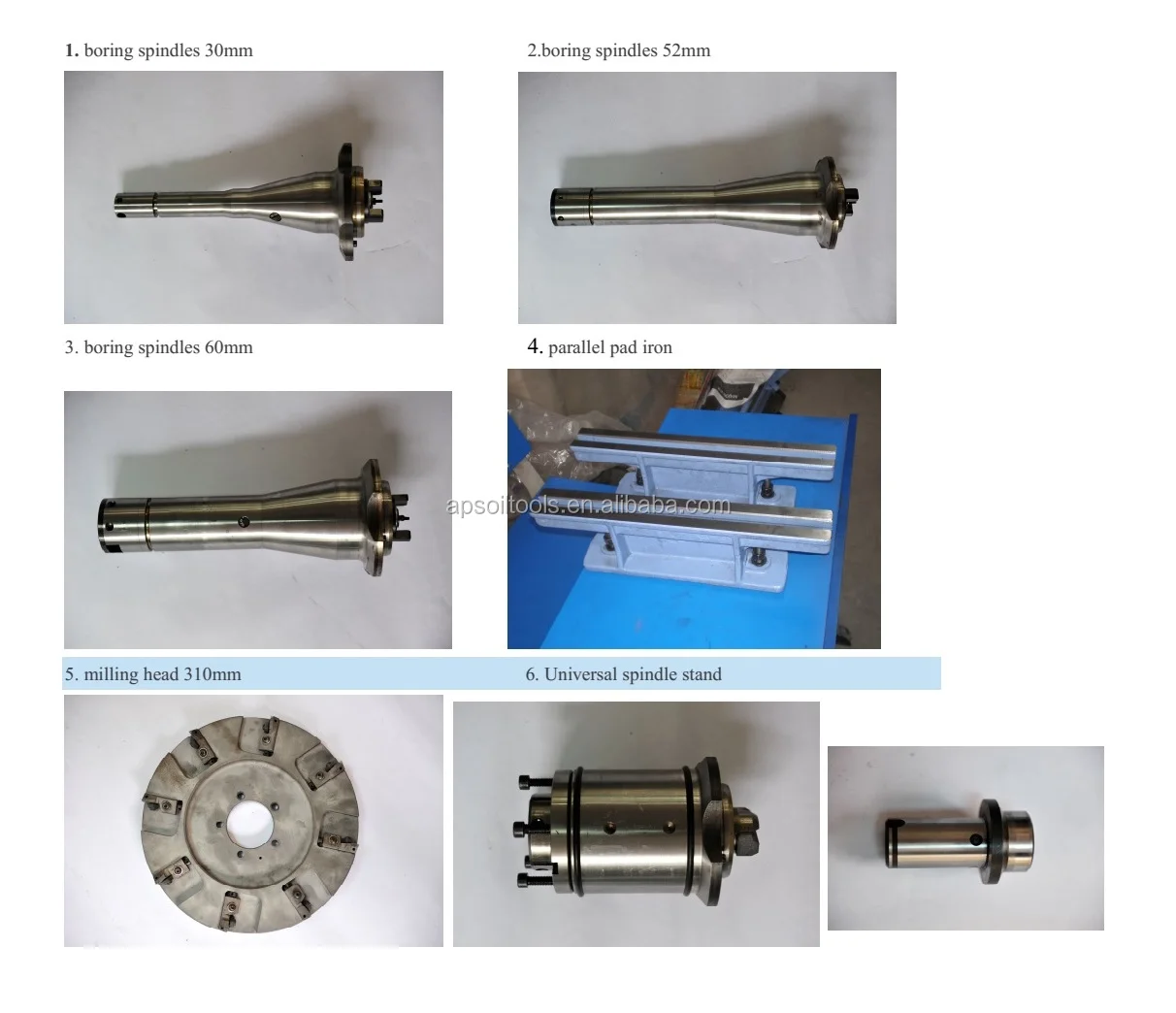

Standard accessory:

universal spindle stand
spindle 30mm
spindle 52mm
spindel 60mm
milling cutter head Φ310mm
parallel pad iron

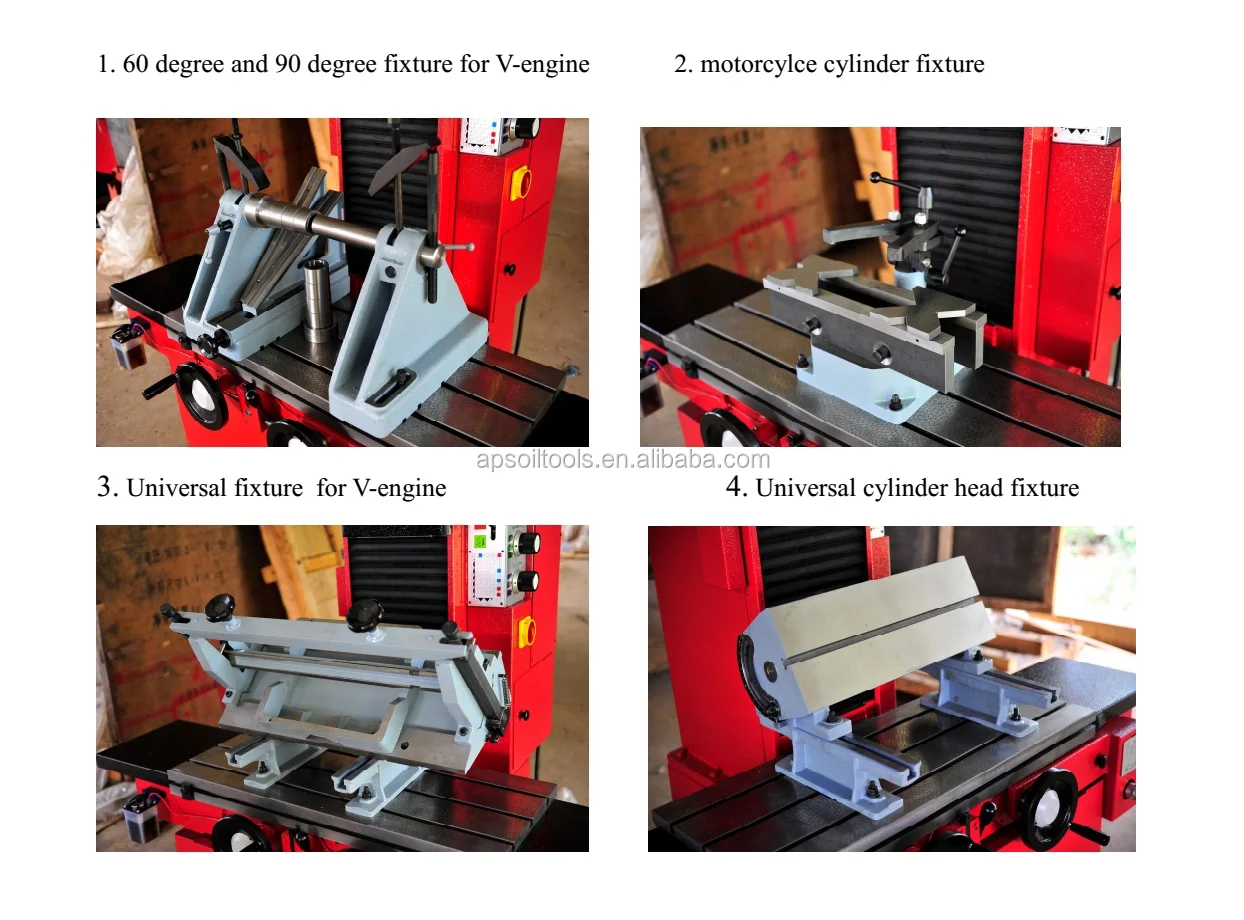

Optional accessory:

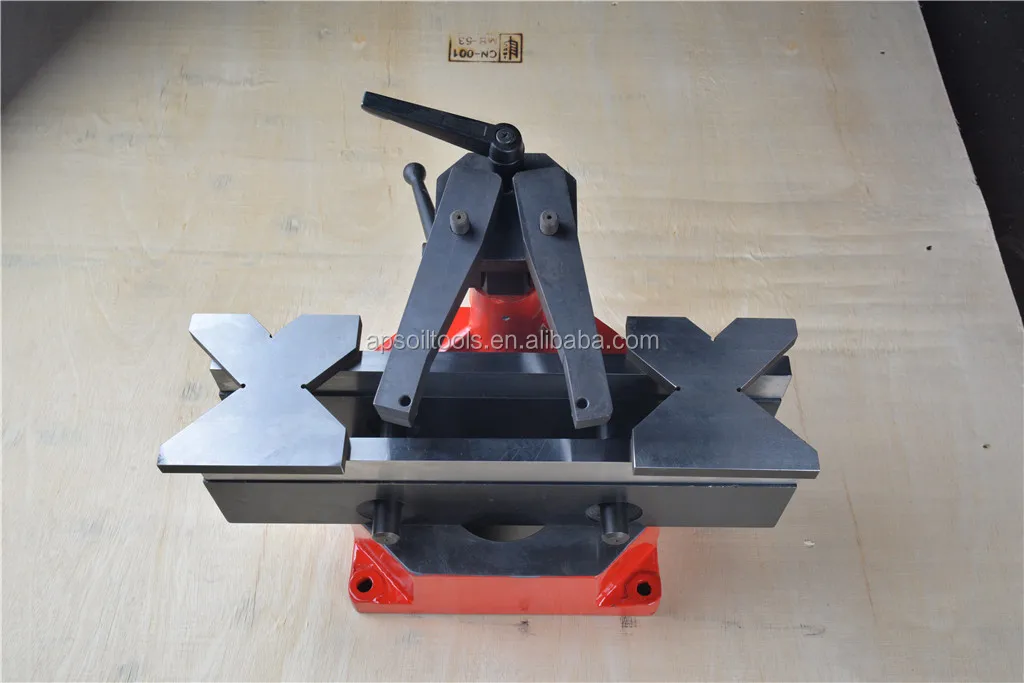

motorcylce cylinder fixture
Universal cylinder head fixture

Universal fixture  for V-engine
60 degree and 90 degree fixture for V-engine

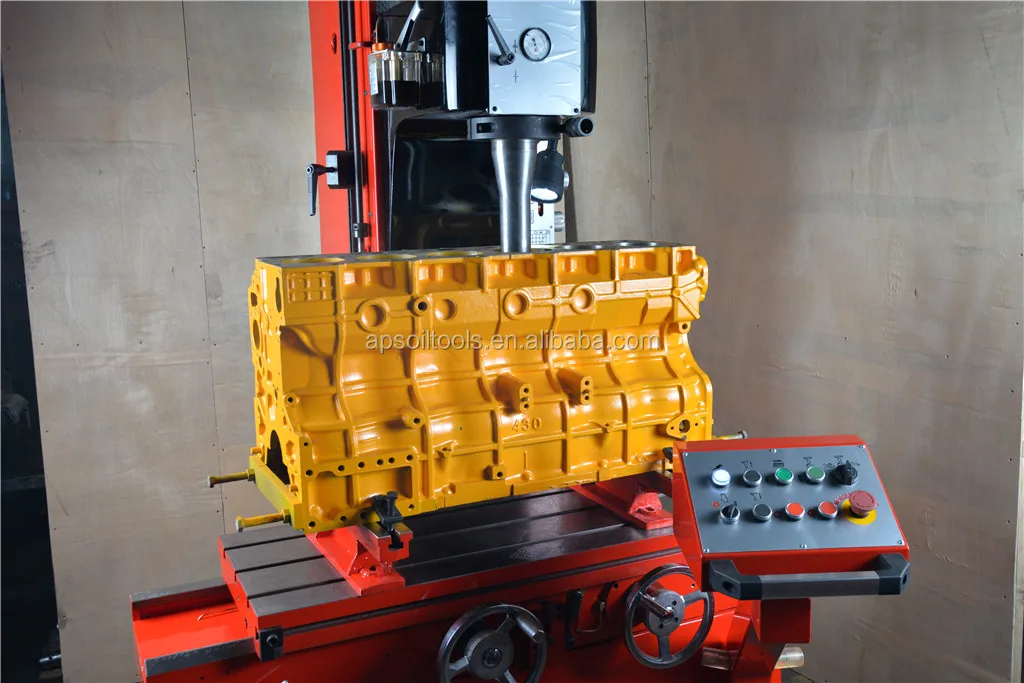

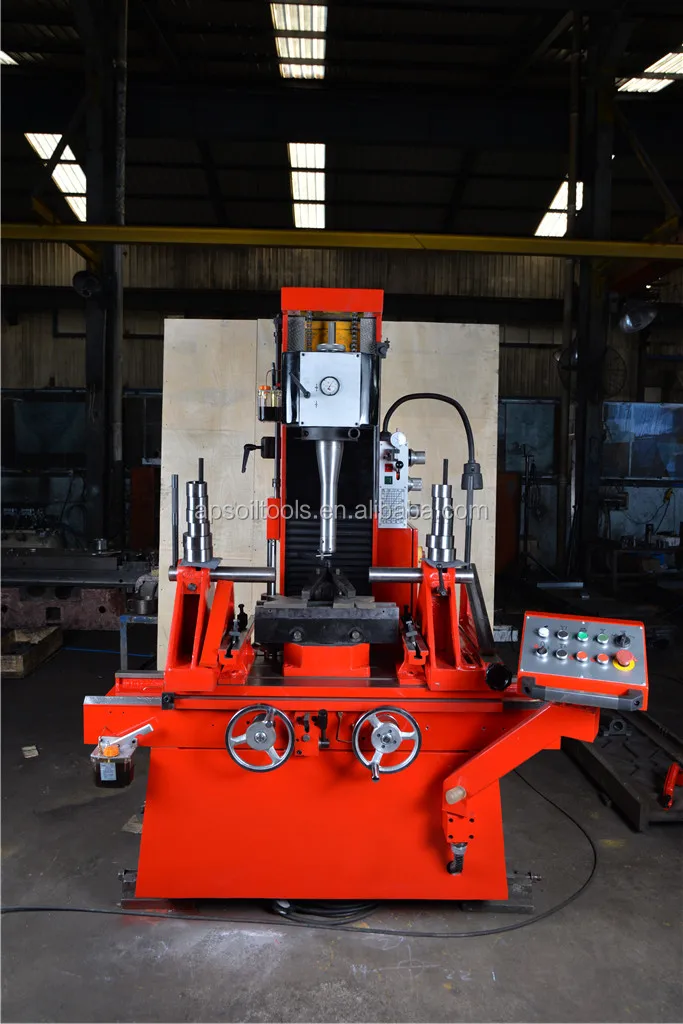

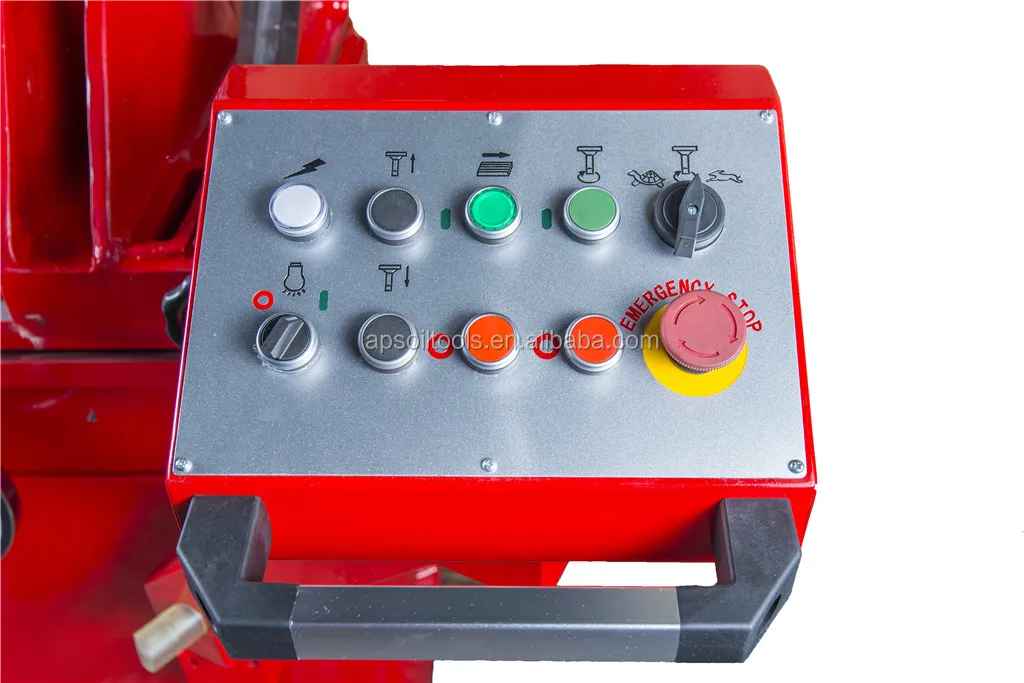

 Machine real photos.
