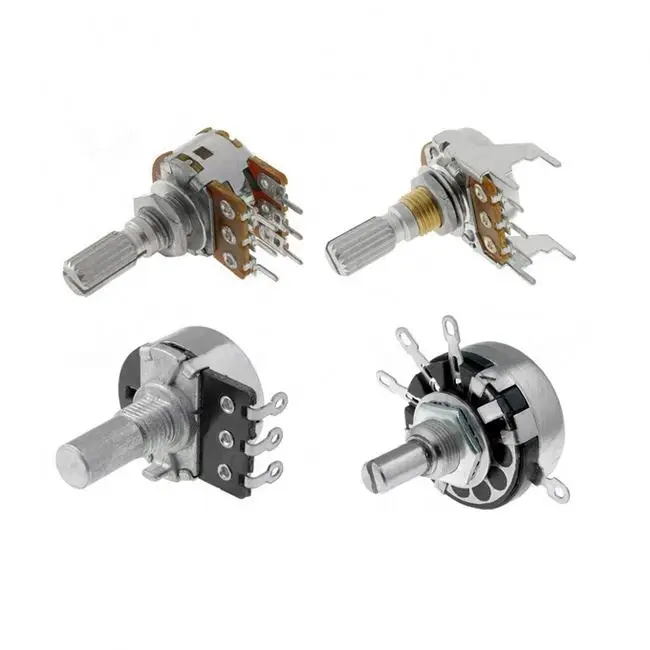

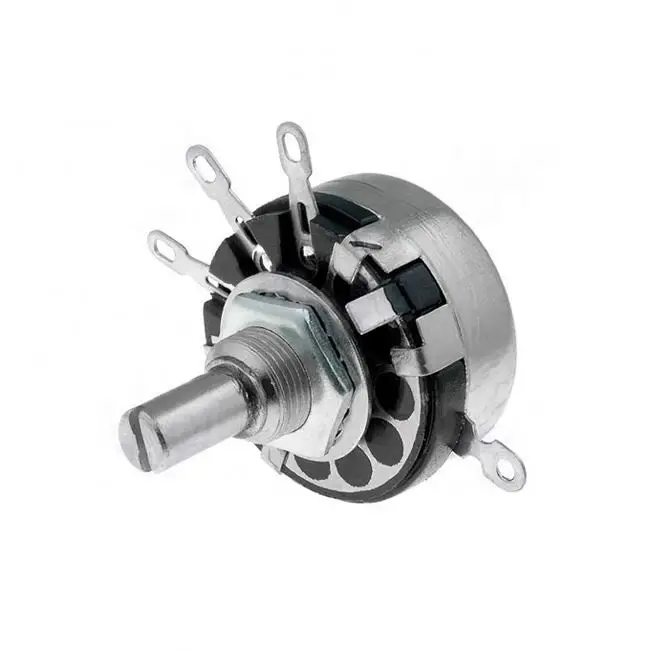

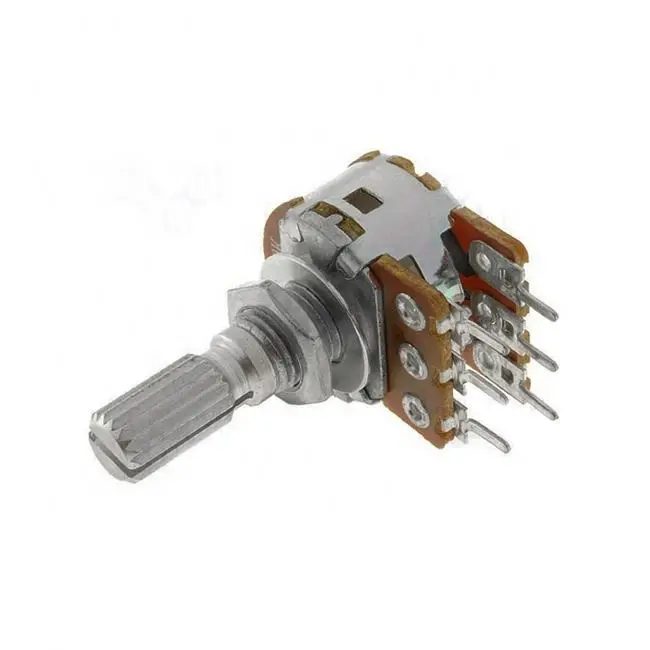

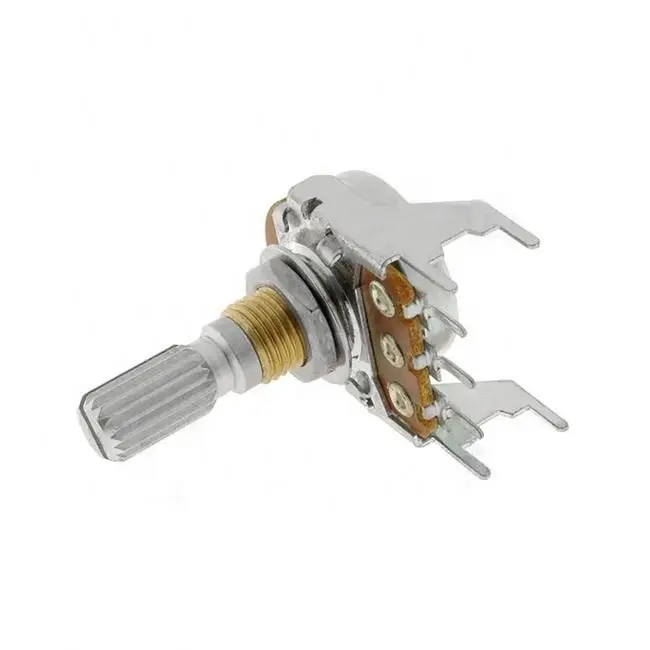

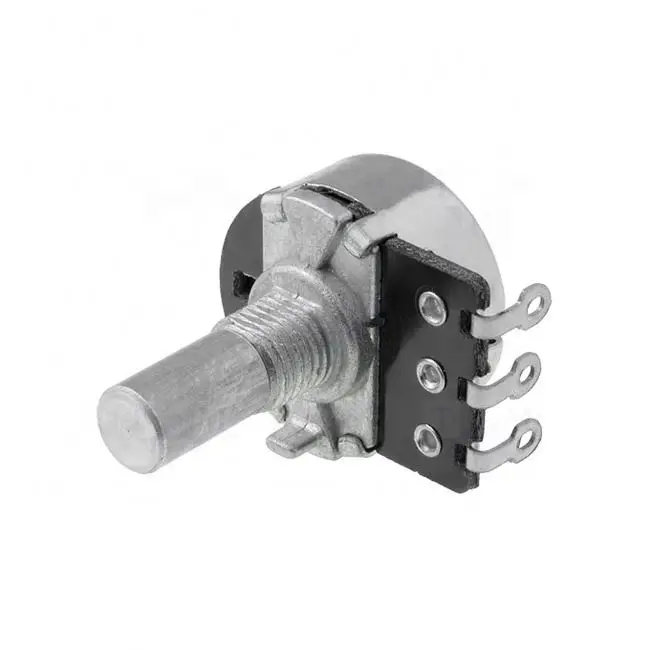

High quality 022 KLS rotary b503 6 pin potentiometer
- Category: >>>
- Supplier: Ningbo KLS Electronic Co. Ltd.
Share on (62131135409):
Product Overview
Description
Product Description
In KLS one-stop purchase,Reduce costs by 30%→klsele.com

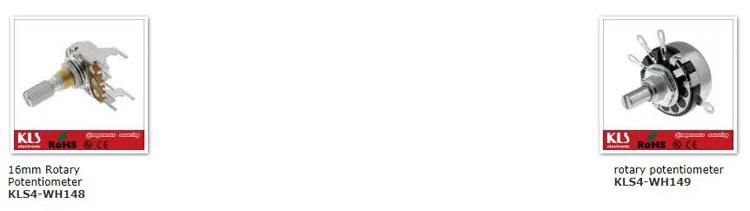

KLS4-WH148
Mechanical specifications: Total rotation angle: 300°±5° Rotation torque: 2 ~ 20mN.m (20 ~ 200gf.cm) Shaft stop strength: 6Kgf.cm Push pull strength: 60N Rotary life: 10000 cycles Click position: Center detent or 10,20,40, position clicks Electrical specifications: Total resistance: 5KΩ ~ 2MΩ Resistance taper: A, B, C Resistance tolerance: ± 20% Rotational noise: K ≤ 47 m V Residual resistance: R ≥ 250KΩ 0.1% max.of total resistance 250KΩ> R> 10KΩ 20 Ω max 10 Ω ≥ R 10 Ω max Tracking error: 0 ~-40dB 3 dB Rated wattage: Curve B: 0.125W; Other than B: 0.063 W Max, operating voltage: Curve B: 200 V; Other than B: 150 V Dielectric: AC500V, 1 minute Insulation resistance: More than 100MΩ at DC500V |
RF-Connector

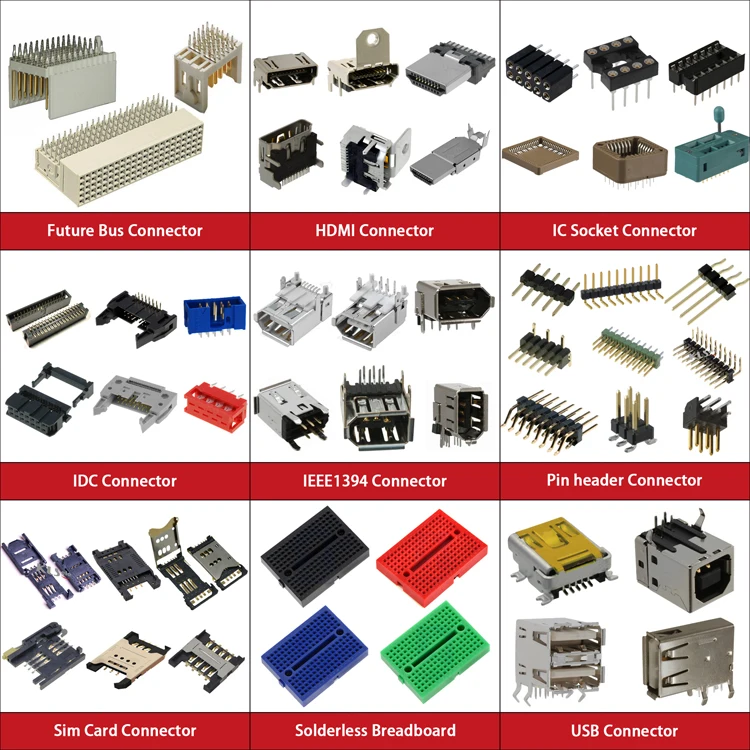

Connectors
Switch
Terminal Block
Resistors
Capacitors
Audio*Video Connectors
Company Information
Factory Show
=====================================================================
Our Superiority:
1: Broadest product Stocked selection:150,000 plus, There are new products added every day.
2: Good quality :80% of products have UL CE ROHS certificate. ISO9001:2008.
3: Low price: we can help you reduce purchase 15% cost in the future 3 month.
4: Delivery Time 2~15 days, On-Time Delivery.
5: Help customers find the non-standard products.
6: OEM/ODM services.
7: Free samples will be sent for your evaluation.
8: KLS's experienced overseas sales team, They have professional product knowledge and enthusiastic service
9: 10 years' industry experience with over $20 million in annual exports.
10: KLS Corporation is one of the fastest growing distributors of electronic components in the world.
You are searching for creditable and professional supplier to work with;we are also looking for sincerely and long-term customers. Once we find each other, we could make rapid progress together!
