Competitive Price Laser CCTV IP PTZ Camera for Monitoring Security
- Category: >>>
- Supplier: Jinan Hope-Wish Photoelectronic Technology Co. Ltd.
Share on (62131157016):
Product Overview
Description

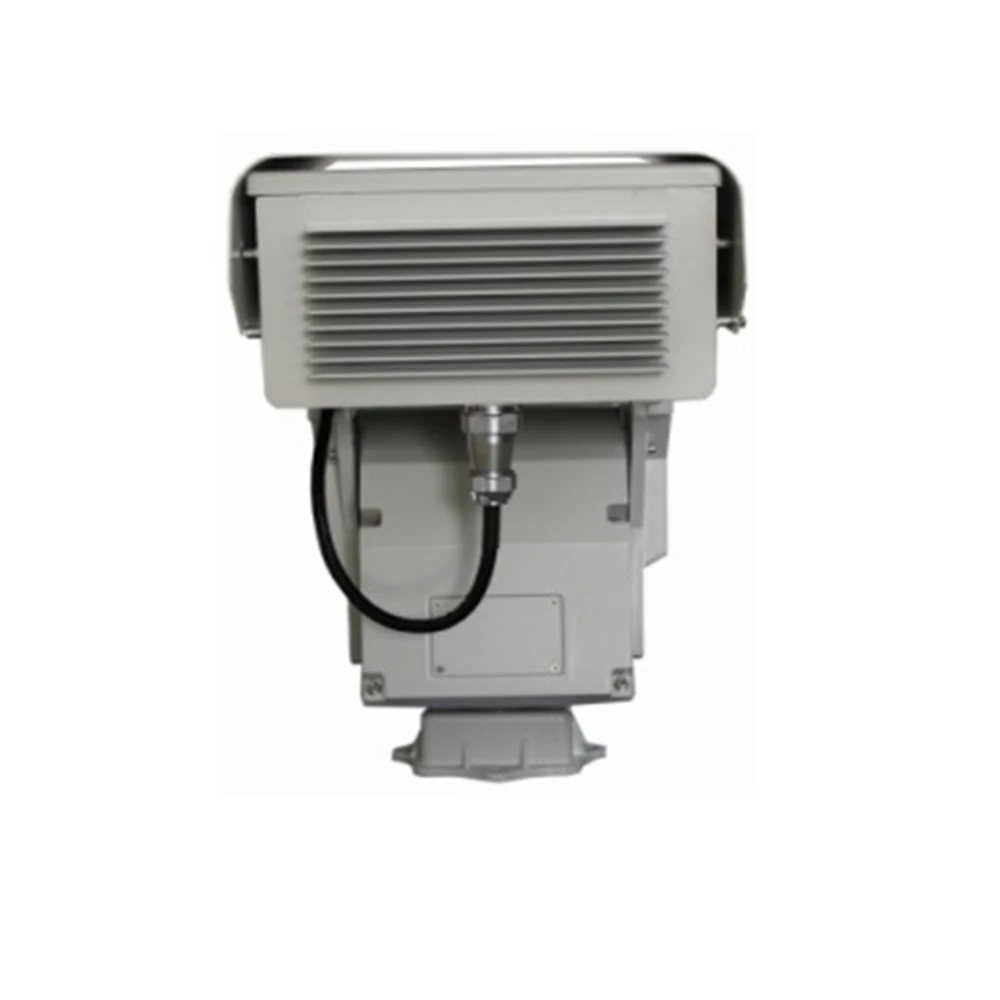

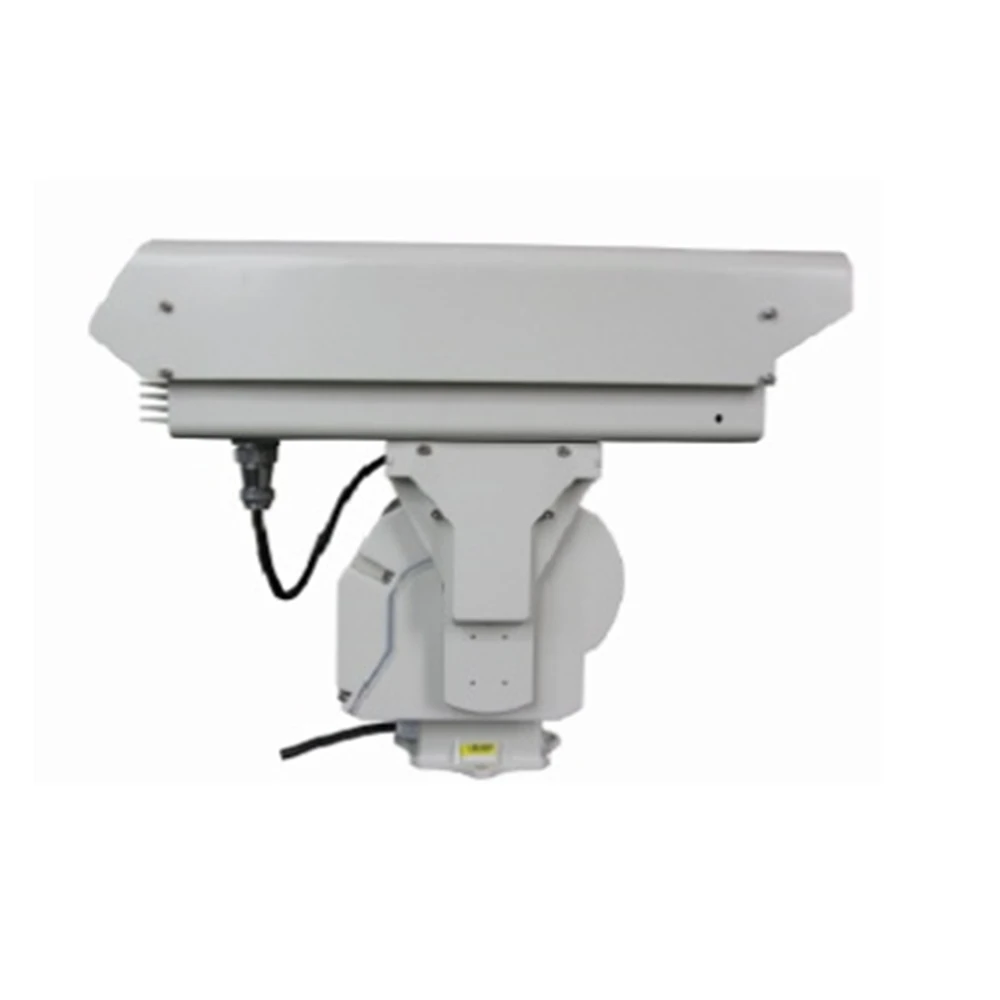

RC20 series long-range HD infrared laser imaging camera

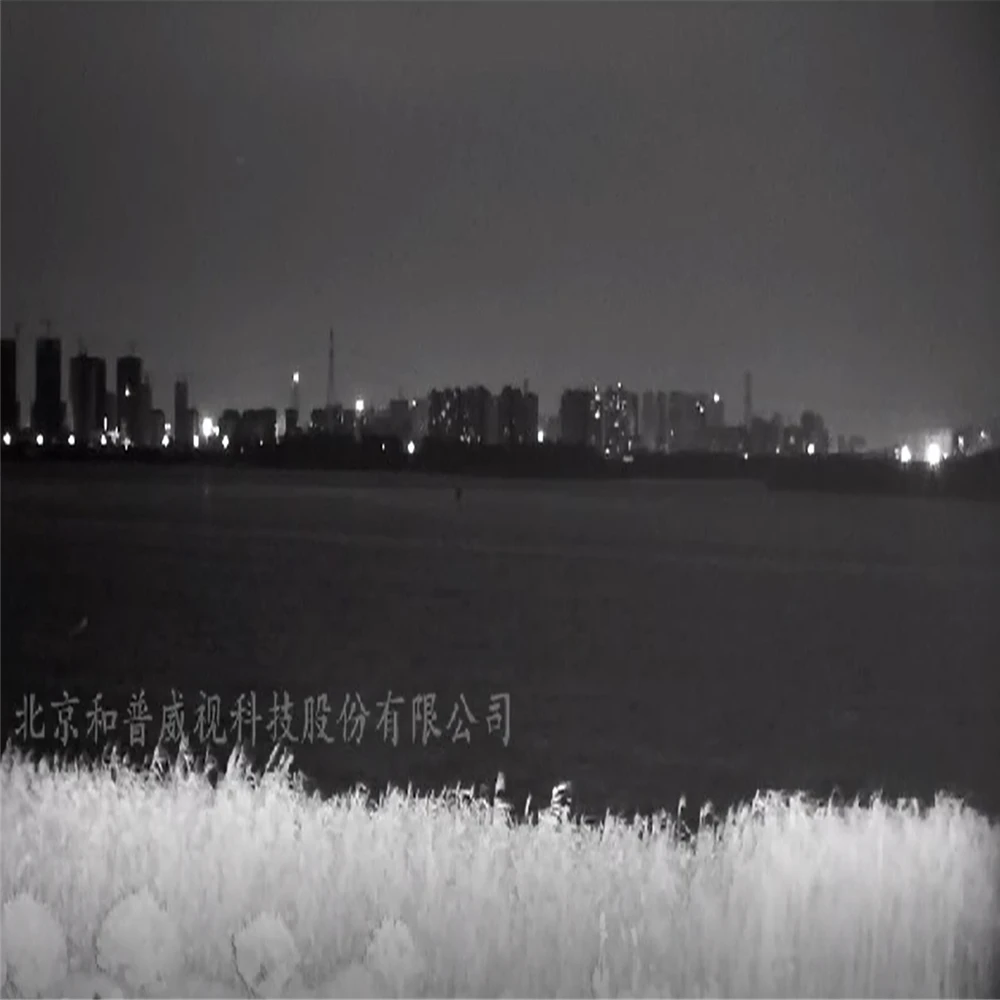

RC20 series long-range HD infrared laser imaging camera is designed for 24 hours monitoring. With super homogenizing NIR laser and low illumination megapixel telephoto lens. The max detection distance for human/car/object is 6 km in the day and 3 km in the night. Built-in technical grade embedded control electronic system, the camera operation like zooming, focusing, video switch, rotation is stable and accurate. One integral aluminum alloy housing and weatherproof IP66 make sure it works well outdoor.
Feature
1. DSS digital stepper illumination angle control, unique laser zooming and distance matching technology, min 0.1° follow-up zooming.
2. GHT super homogenizing and power consumption control of NIR laser ensure a better effect.
3. Independent laser photo cell.
4. 360° continuously rotation PT, rotation stably.
5. One integral aluminum alloy housing, IP66 ingress protection, waterproof, dustproof.
Application

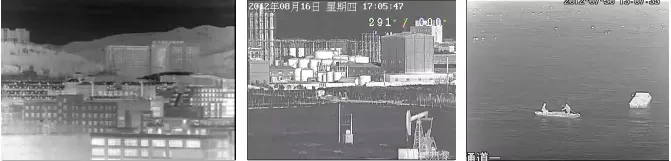

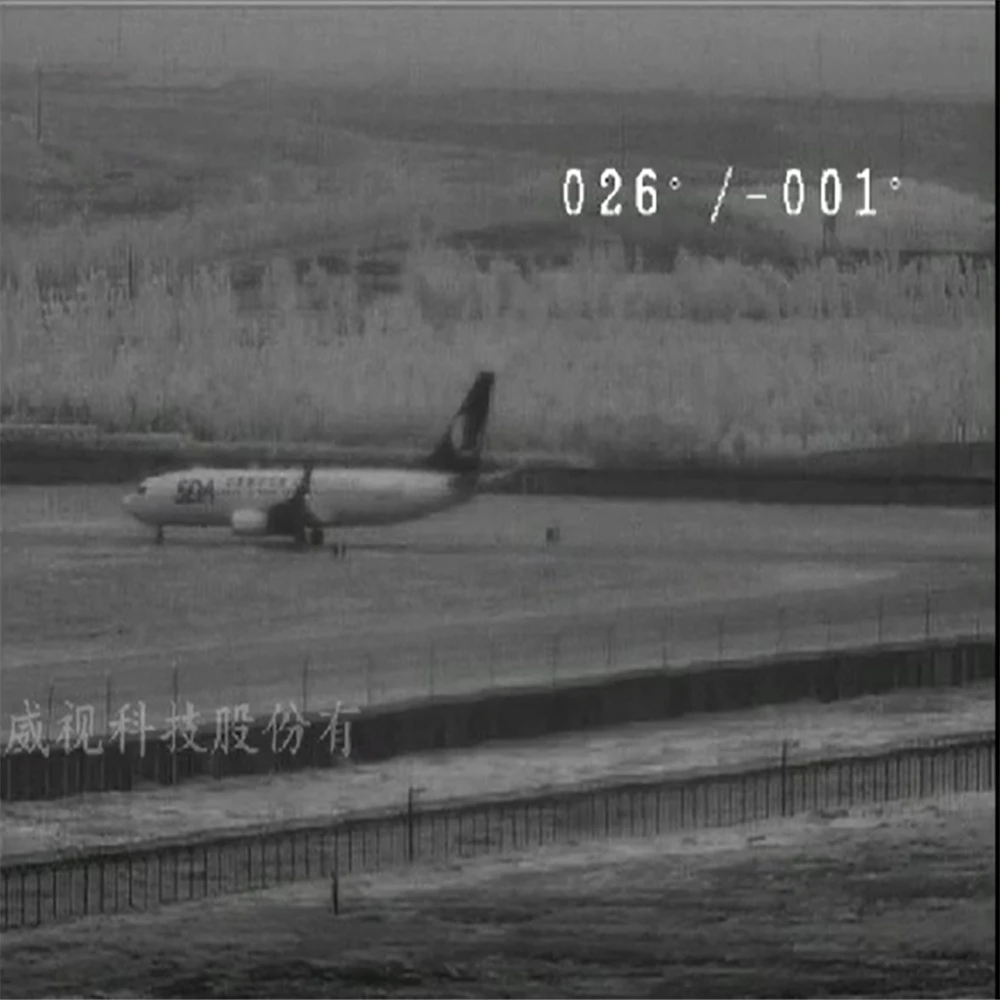

Oilfield monitoring, navigation, fishery, aquaculture, railway&freeway security, seaport&airport security, mariculture security, city security and forest fire prevention.
Technical Specification
Model | RC2050 |
Detection | Day:3 km; |
Night:1.5km | |
Consumption | 12W,808nm , NIR |
Laser angle | 0.7°~20° |
Angle and distance matching | DSS digital stepper illumination angle control, unique laser angle and distance matching technology, min 0.1°follow-up zooming |
GHT-II super homogenizing HD illumination technology | |
0.01°SLM optical axis aiming and locking | |
Camera | 1/1.8'', 0.0002lux high sensitive color to B/W CCD ,2 megapixel |
Automatic ICR switch,H.264 video format | |
Lens | 15-528mm HD lens, infrared correction, motorized zoom |
Penetrate fog | Optional, optical filtering and AFR optoelectronic enhanced image processing technology, color penetrate fog |
Housing | One integral aluminum alloy housing,sealed and waterproof,IP66 |
Load duty | 30kg |
PT | Pan: 360° continuously |
Tilt: +40°~-75° | |
Rotation speed | Pan: 0.01~60°/S |
Tilt: 0.01~30°/S | |
Preset | 80, with patrol and scan function |
Interface | 1*RJ45,1*AC24V |
Power supply | AC24V±10%,50Hz,150W,standard configuration AC220V->AC24V adapter |
Weatherproof | IP66 |
Anti-lighting | Power voltage 4000V,communication signal 2000V |
Protocol | Pelco-P,Pelco-D and so on standard protocol, baud rate 2400,4800,9600,19200 |
Operational temp. | -25℃~+55℃ (-40℃ optional) |
Weight | ≤30kg |
* The detection distance is related to the object and environment etc. Please contact with us for further information.
Factory & Office
Certification
Exhibition
Paking & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer, factory address is Jinan city, Shandong province, hope you can have a visit when you in China.
Q: How long is your delivery time?
A: Generally it is 5~10 days if the goods are in stock, or it is 15~20 days if the goods are not in stock, it is according to the quantity.
Q: Do you provide samples ?
A: Yes, we could offer the sample , but need some deposit before shipping.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment
