40 inch double lathe cutting tools Mini CNC Wood Turning Lathe Machine
Product Description

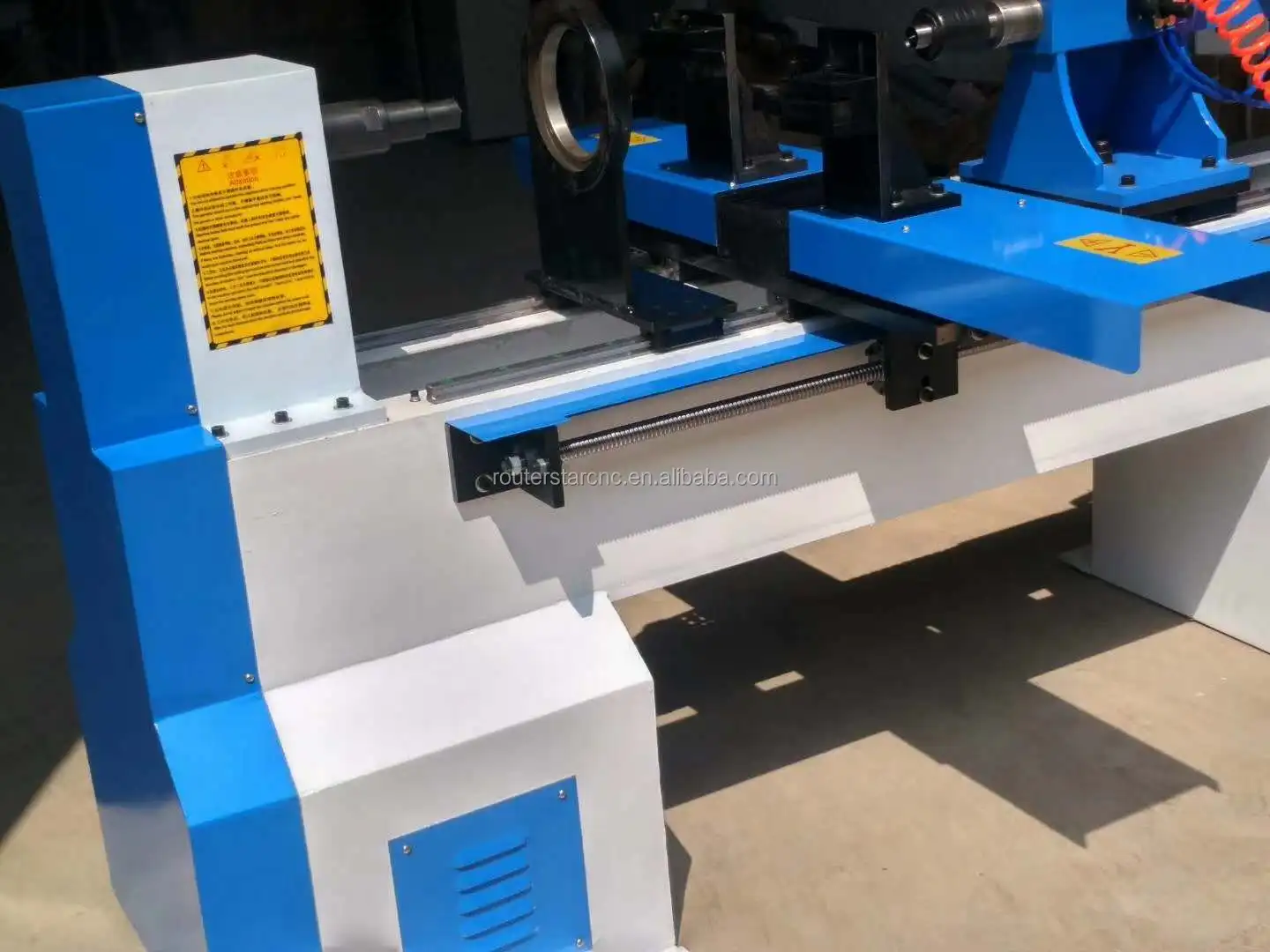

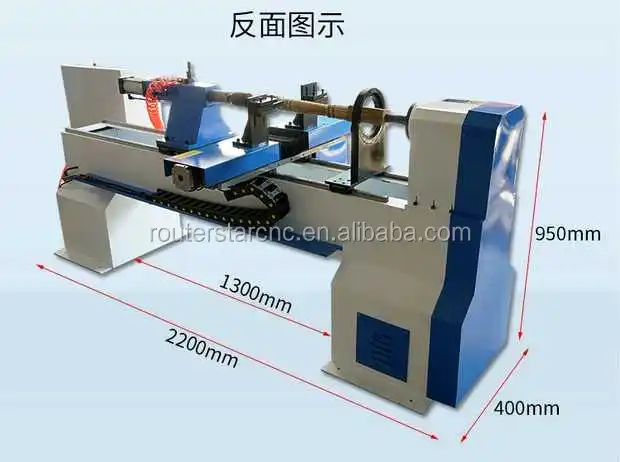

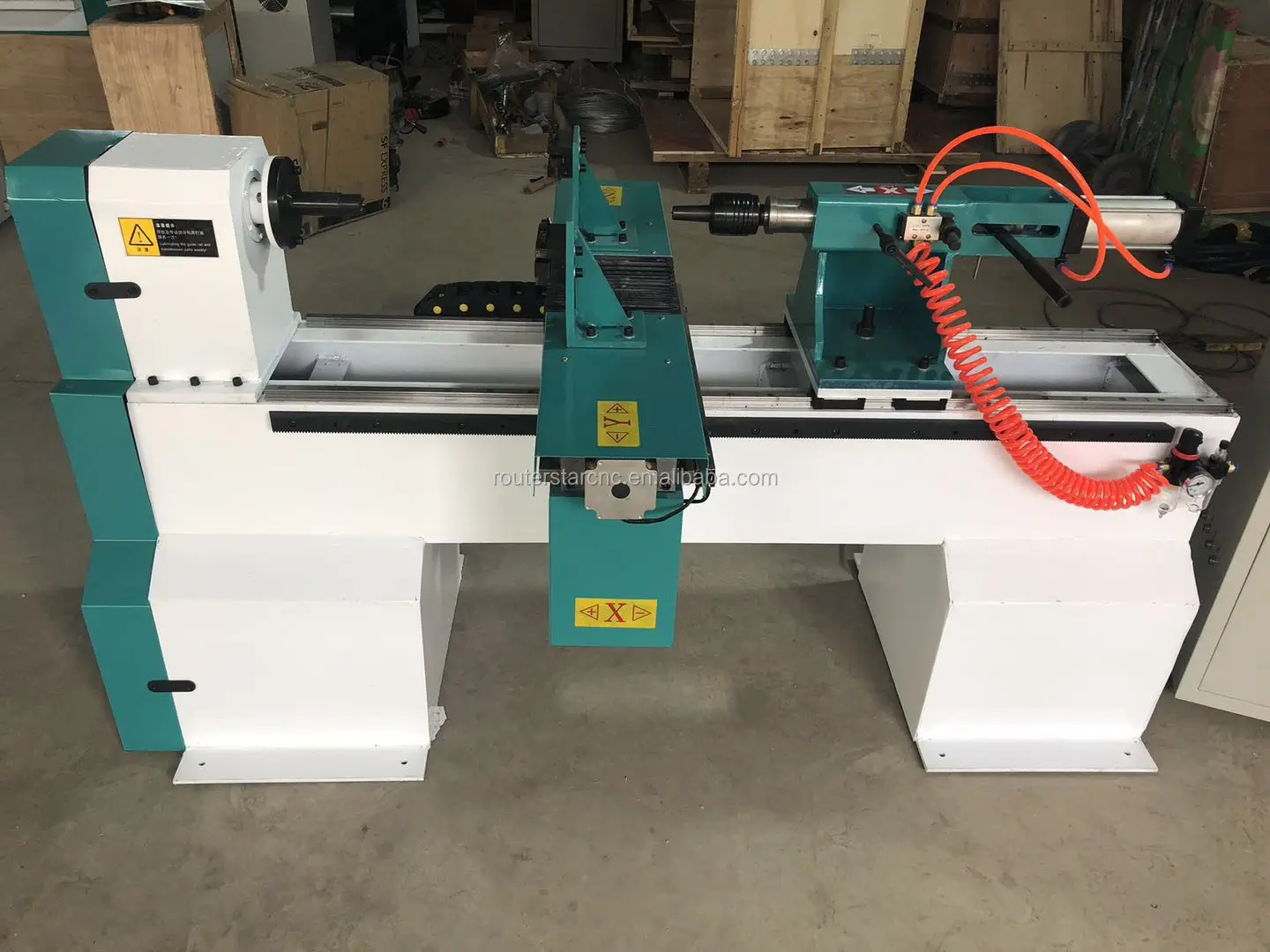

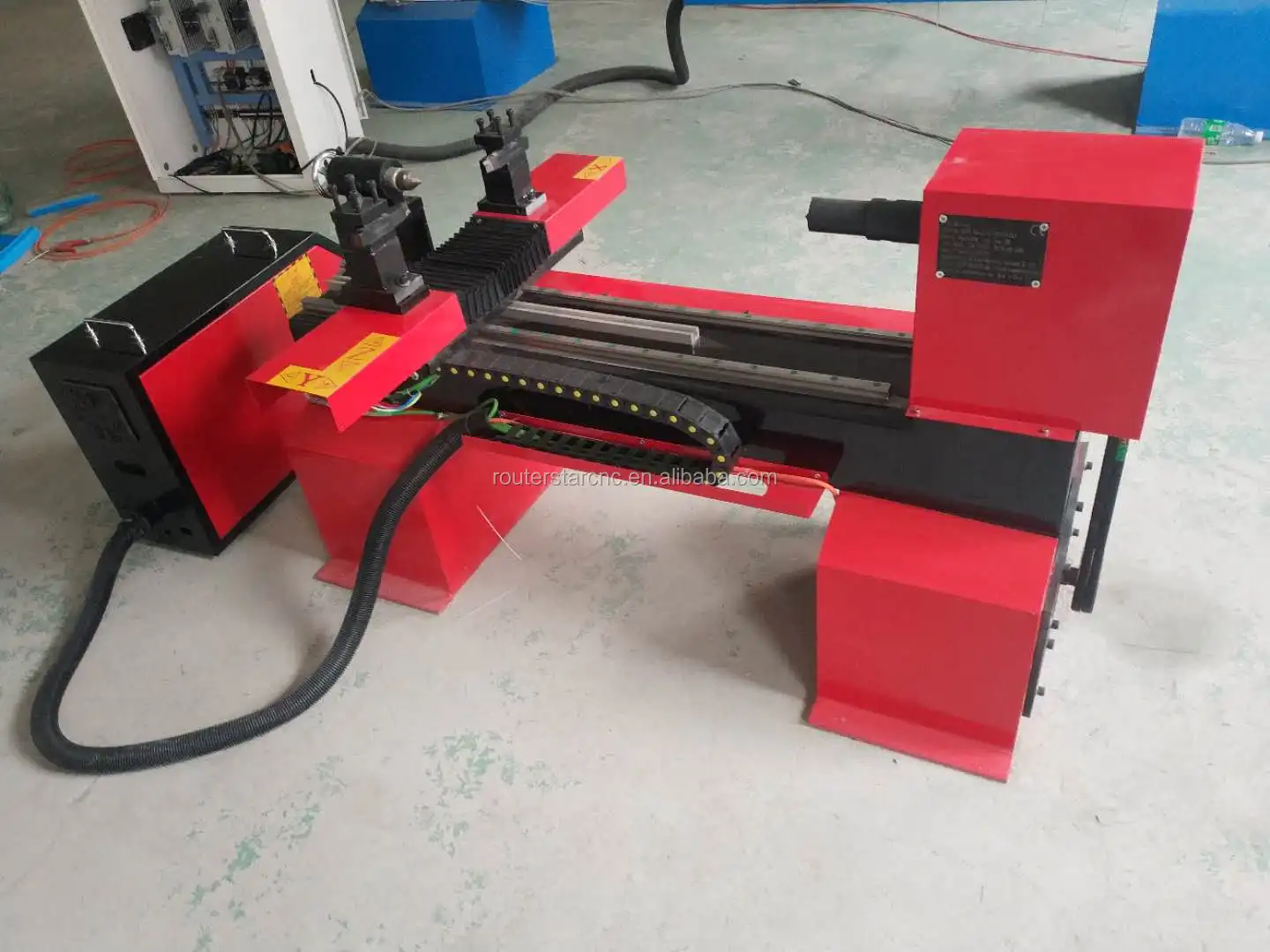

1.pictures for 40 inch double lathe cutting tools Mini CNC Wood Turning Lathe Machine
working video:
https://youtu.be/0P_N4AlWsWY
https://youtu.be/91iiBO0Fef4
Application
2.Applications:
cnc wood turning lathe is a kind of woodworking machinery, with very fast turning cutting speed on ssymetrical wood, widely used in table/sofa/chair/bed legs, wooden staircase handrail, baseball bat, billiard cue, pool. column, Pacilion spire etc.
This model is small wood lathe, cnc controled, suitable for small size wooden columns making.
not heavy cutting
wood starcase handrail table legs
Sofa legs canndle support
chair/table/bed legs, as long as you have dxf file from AutoCAD, with the square wood. you can get any shape of legs or columns. but need regular, it is assymetric from the wood center.
If heavy lathe cutting , suggest model with cast iron:
Parameters:
3.PARAMETERS 600mm length Mini CNC wood turning lathe machine for small wooden columns:
Model Number | RS1530 | RS2030 | RS1025 | RS0625 | |
Size | Max work length | 1500mm | 2000mm | 1000mm | 600mm |
Max work diameter | 300mm 300mm 250mm 250mm | ||||
Machine size | 3.9*1 *1 m | 3.5*1.1*1.4m | 2.2*0.8*1m | 1.7*0.7*1m | |
Package size | 3 *1.1*1.2m | 3.6*1.2*1.6m | 2.3*0.9*1.2m | 1.8*0.8*1.2m | |
N weight | 1500kgs | 1600kgs | 500kgs | 400kgs | |
G weight | 1200kgs | 1700kgs | 600kgs | 450kgs | |
configuration | Machine body | Cast iron Cast iron welding steel welding steel | |||
Driving Motor | Step motor 450B+450C 86series step 86series step | ||||
Driver | Large step driver Yako 2811 | ||||
Rotary motor | 4kw 3 phase induction motor | 5.5kw 3 phase induction motor | 3kw 3 phase induction motor | 3kw 3 phase induction motor | |
Rotary inverter | 4.5kw | 7.5kw | 3kw | 3kw | |
Transmission way | Y axis helical gear, XZ axis adopt Taiwan TBI ballscrew | ||||
Orbit | Original Taiwan square orbit M25 M20 orbit M20 orbit | ||||
Center sheath size | Inner Diameter 68mm | ||||
Thimble size | 25mm diameter | ||||
Control system | Panel control system for cnc wood lathe | ||||
Carving spindle | NONE | ||||
Dust collector | Without (if with need extra price $160) | ||||
Parameter | Max feed rate | 200cm/min | |||
Max moving speed |
| ||||
Rotary rotating speed | 3000RPM/min | ||||
Precision | 0.02mm | ||||
Control box | Wood lathe cutter | hard alloy cutter*1 pc+ triple cutter*1 pc | |||
Switch | Limit switch*1 pc+ Emergency switch*1pc+Button switch*1 pc | ||||
Generally speaking the cnc wood lathe
this model RS0625 is for small size wooden columns, if you want to make long stick, suggest select our big cnc wood lathe which with cast iron machine body:
1. working diameter is from 20-300mm, if you need we can customised into 400mm, need enlarge the chuck, and need extra $ 230.
2. the standard working length is 100-1500mm, if you need max length 2000/2500/3000 mm, we can make, that is the model RS2030, RS2530, RS3030, need accordingly expense, welcome to contact me for details:86-15866646109.
3. this RS1530 is the standard model for turning, if you need the broaching or carving fucntion, that need add the spindle, need about $950.
for details please check model RS1530S:
Machine details part

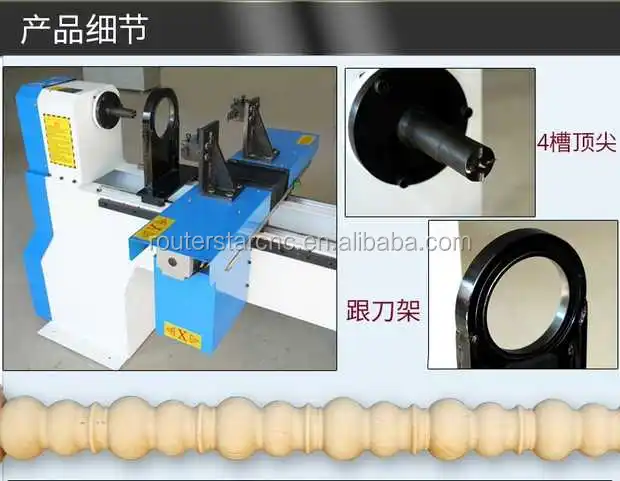

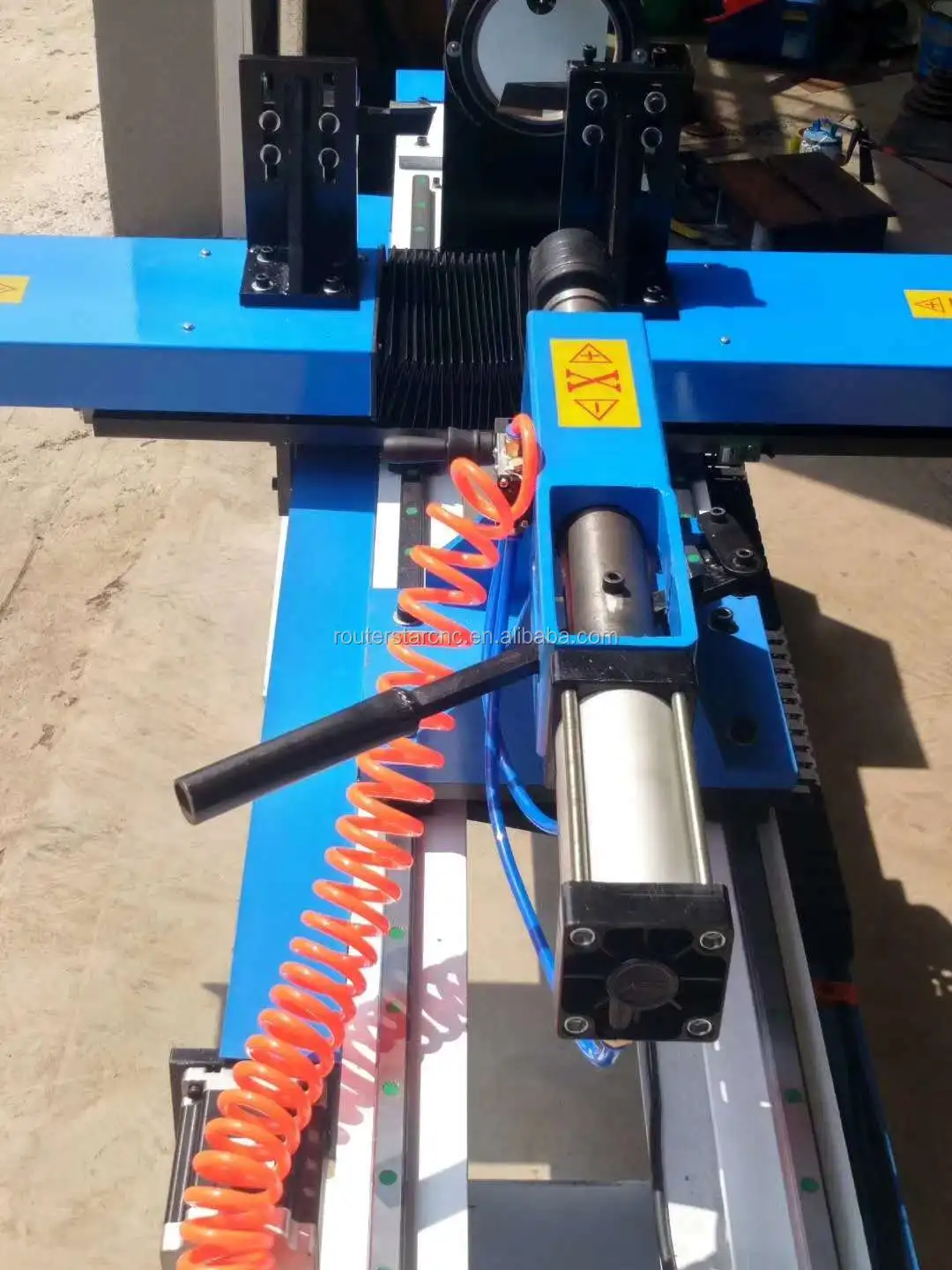

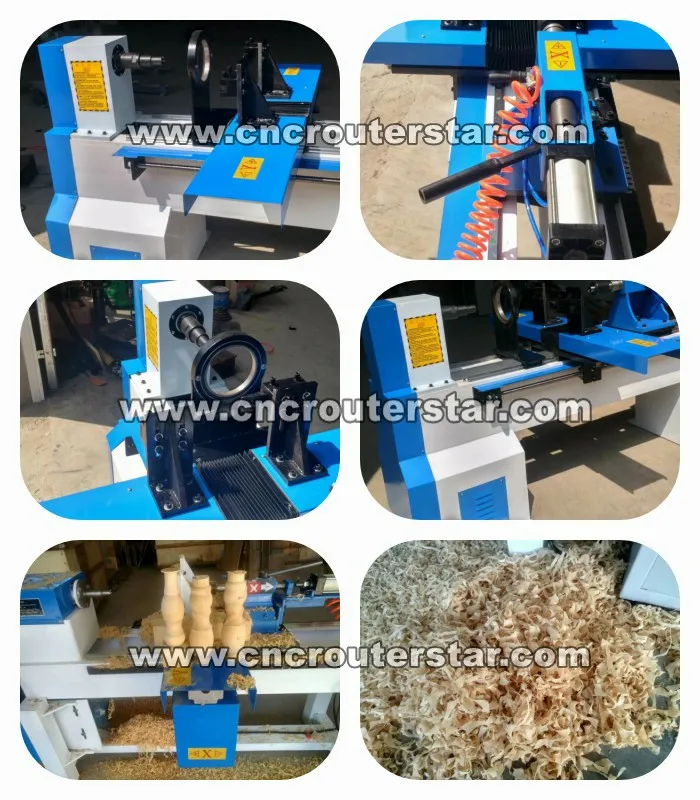

4.details parts shows of Hot sale mini wood turning lathes machine

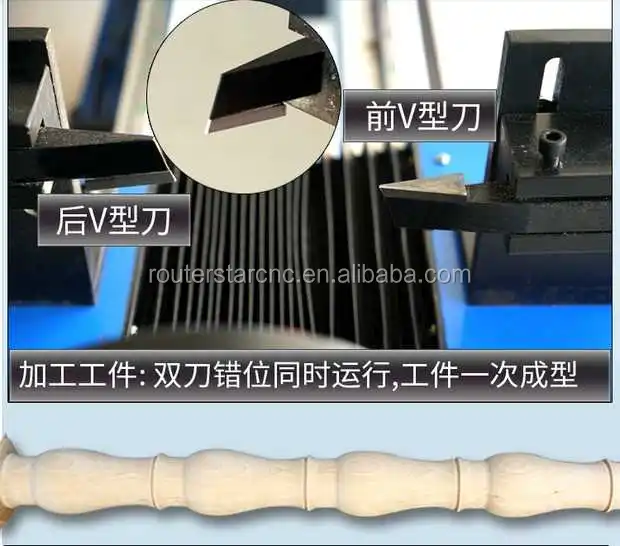

Two lathe cutters have distance 10mm in y axis direction, same work, one processing done work

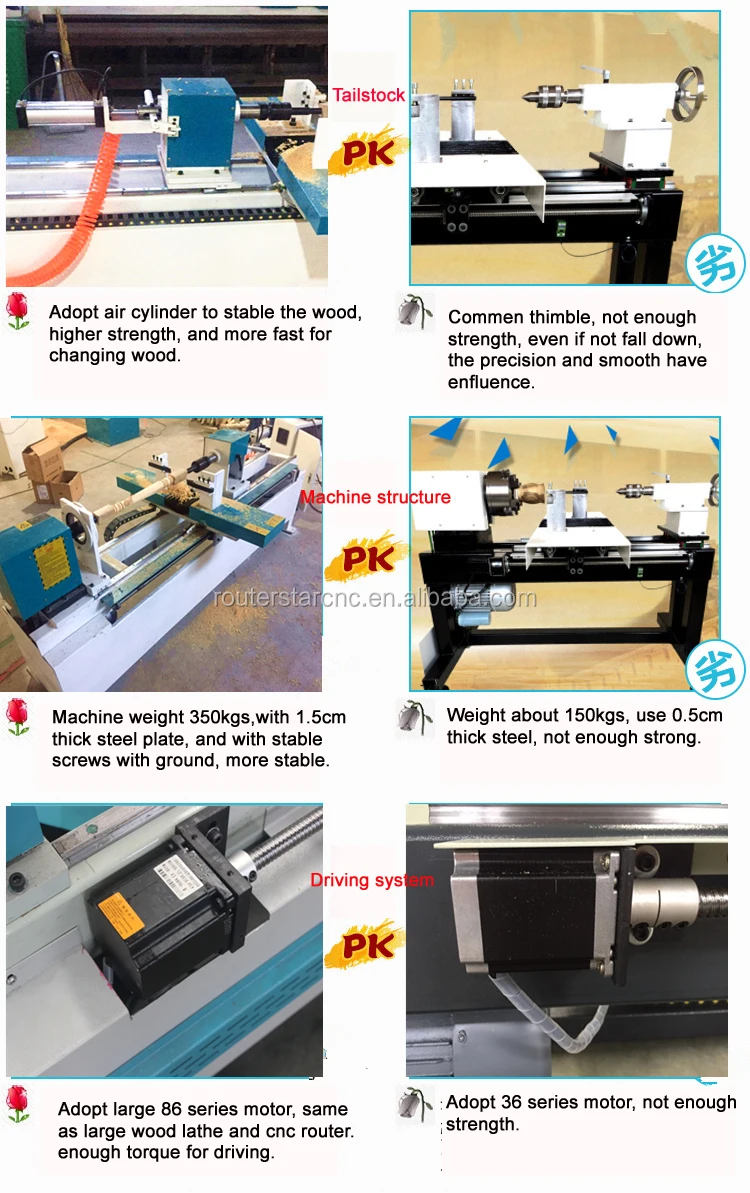

Compared with other small cnc wood lathe

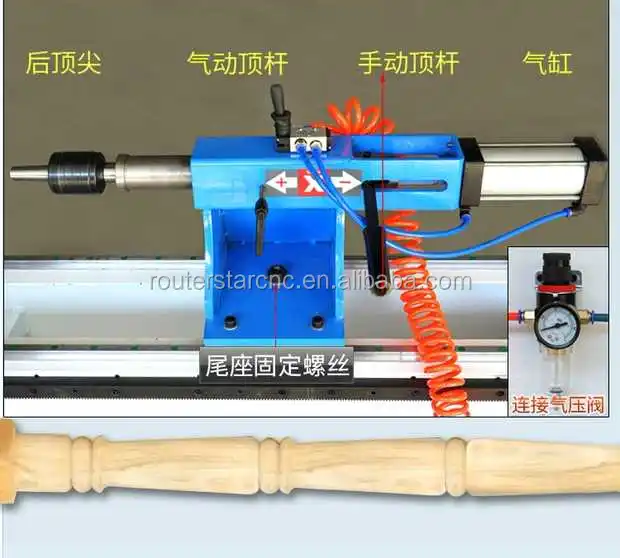

Taiwan Square orbit M20 Ballscrew transmission Thimble and chuck stable wood, with air cylinder at end Panel cnc panel control system, visual operating 3kw motor thress phase, large strength for rotating Supper hard alloy wood lathe cutter The adjustable rotating speed is optional(need extra price $250) |
If Big CNC Wood Turning lathe, its configuration as follows:
Cast iron machine body for cnc wood lathe
power coating, longer color maintain
DSP control system, more easy for the aligning cutter
step motor 450B+450C , step driver Yanko 2811. strong source
Helical gear, higher speed, XZ ballscrew for 2 cutter
China best quality hard alloy cutter
Adjustable inverter for rotating speed
Big center shealth, avoive shake when thin wood, and protect function
air cylinder for stable wood, more reasonable and strong
with water-oil seperater
Consumable parts: wood lathe cutter, limit switch,
5. Video show:
https://www.youtube.com/watch?v=4FGNaefnl5A&t=1s
https://youtu.be/wbEzPxXPz0o
