The equipment is used for thermoplastic forming of various types of plates (ABS, PP, PS, PVC, EPS, HIPS, PE, HDPE, PC, PMMA, EVA, PETG, PET, GAG). Products are widely used in electronics, blister, food, hardware tools, medical equipment, lamps, sanitary ware, luggage, refrigerator liners, automotive interior parts, turnover boxes, pallets, trays and other plastic products ideal processing equipment.
Features

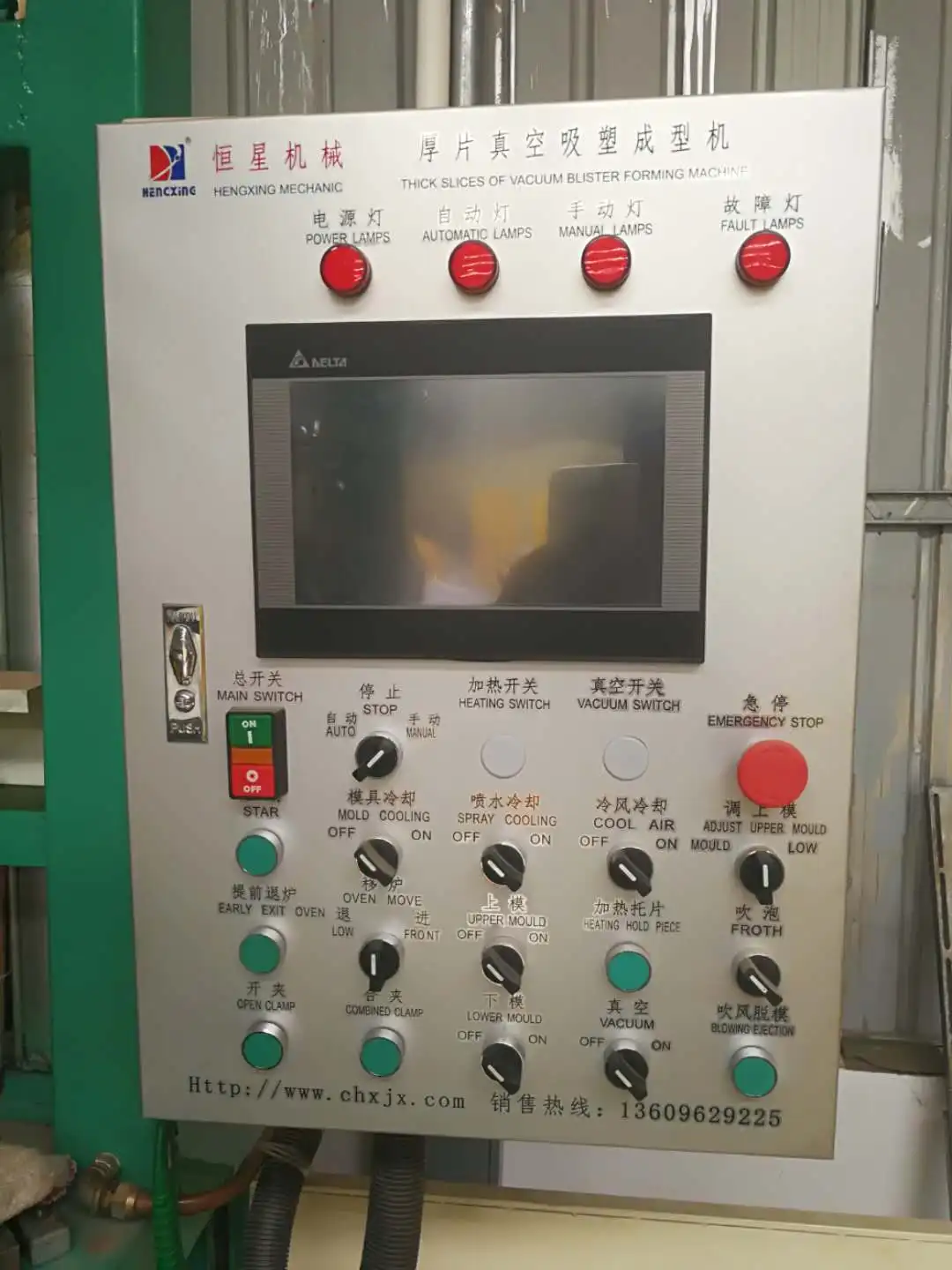

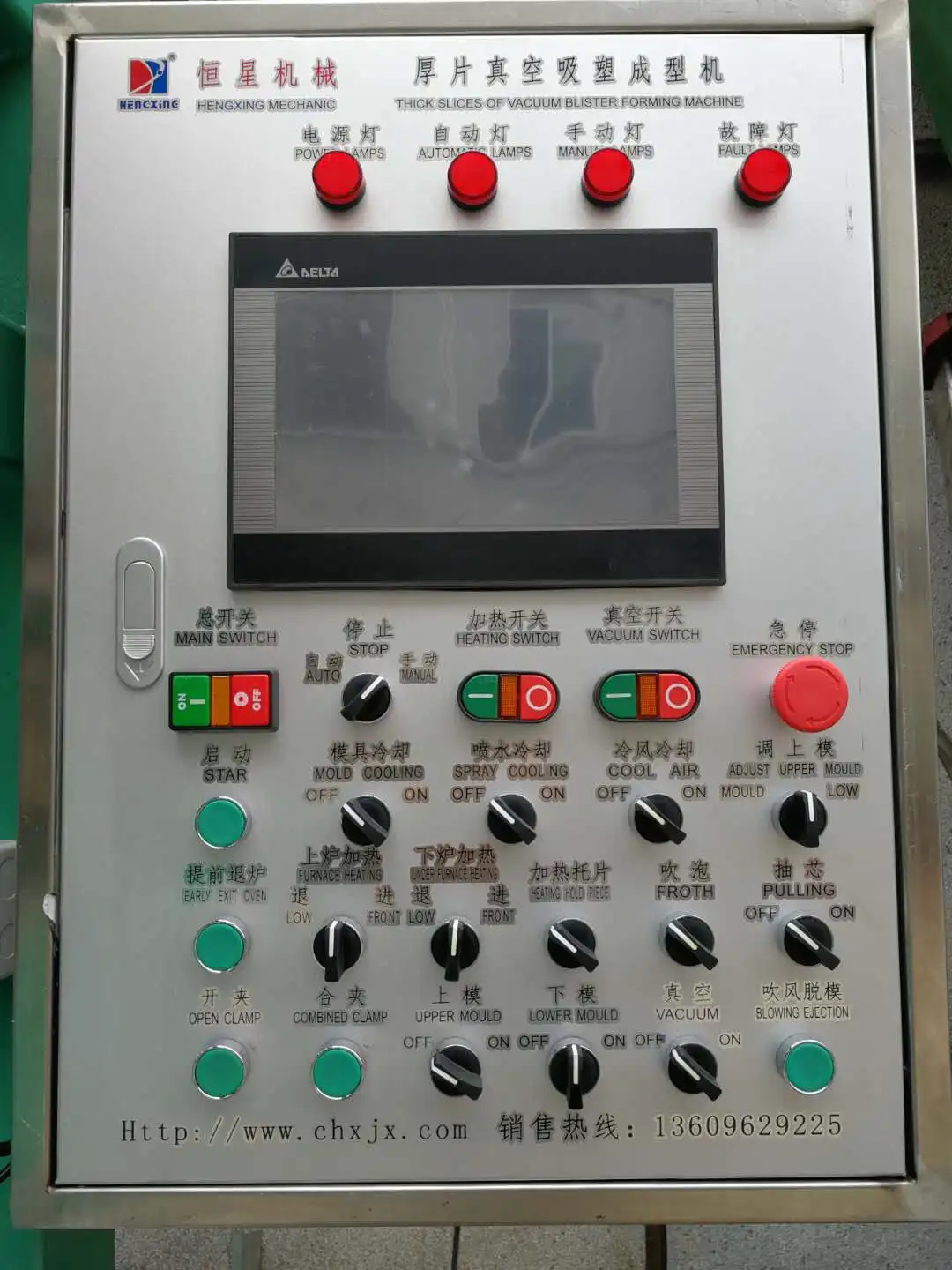

(1) The whole machine adopts HIM man-machine interface control design, which is easy to operate and easy to use; (2) Suitable for punch molding, high molding height and stable product quality; (3) Easy to load, less molding waste, saving materials; (4) The machine is equipped with a cooling fan spray double cooling to make the product set faster and better, and minimize the defective products; (5) The lower mold and the pressing piece adopt a two-way electromagnetic valve to prevent the voltage frame or the lower mold from being injured;
principle
It is heated and softened by the thermoplasticity of plastic film. After being blown, it is vacuum formed in the mold to be the desired product. The working process is: manual feeding----compacting---heating-retracting the furnace and Furnace--pre-blowing---blowing--chassis rise--vacuum forming---core---reset---cooling---release---take out the finished product.
Technical Parameters
Model
HX-6347
Max Forming area
1500*1500mm
Max Forming Height
400mm
Thickness of sheet
2.0-10.0mm
Pressure
0.6-0.8Mpa
Air Consumption
5000(Liters/min)
Water supply
0.28Map Tap-water
Power
AC 380V
Gross power
120KW(Normally Use 50-70KW)
Weight
4000KG
Measurement
4500*2800*3500mm

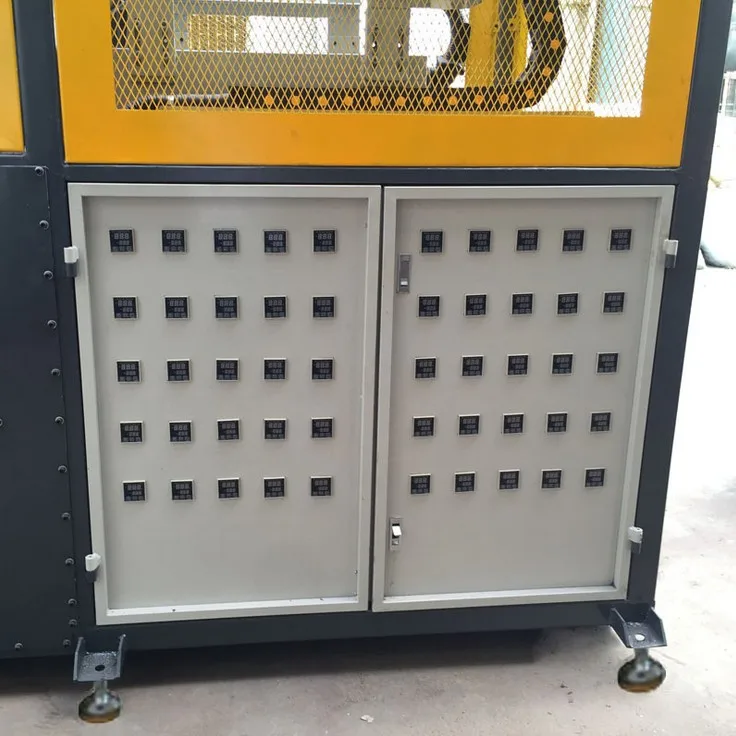

Custom machine picture
1,Single station

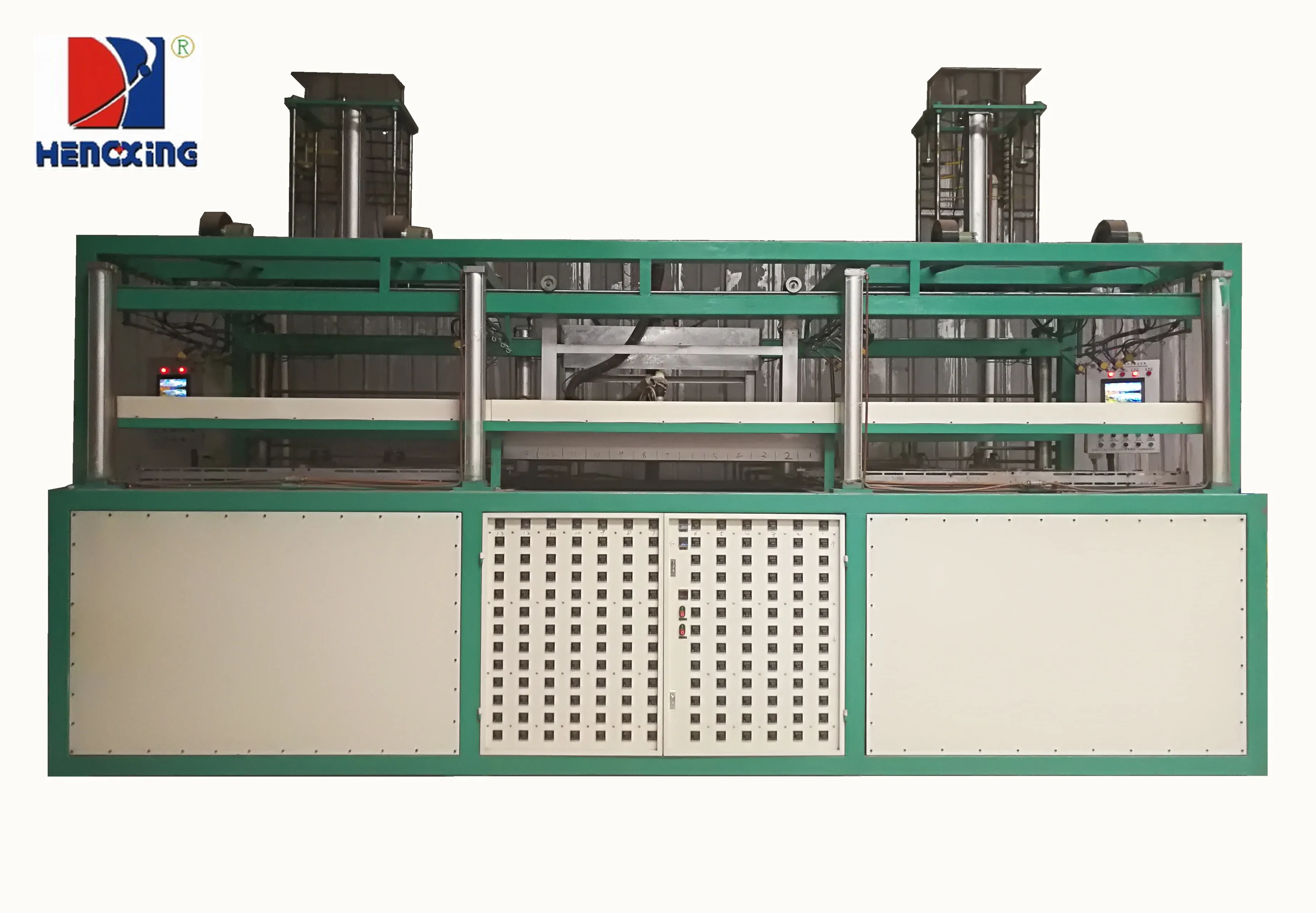

2,Double station

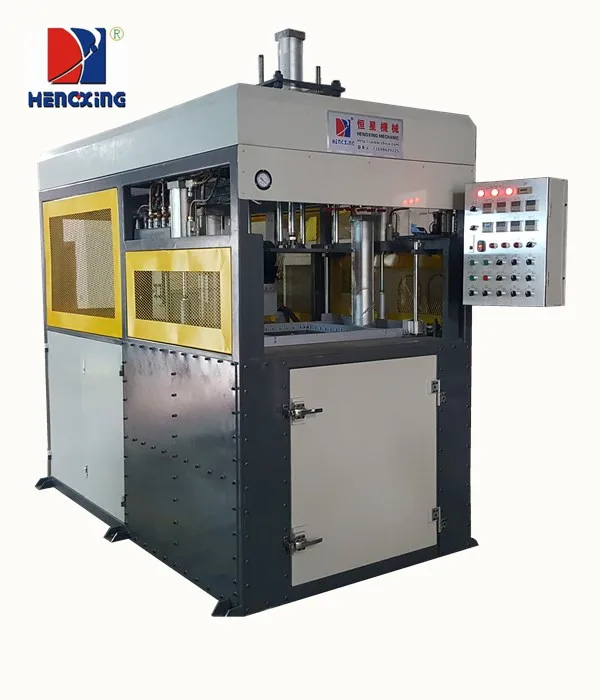

3,Small single station

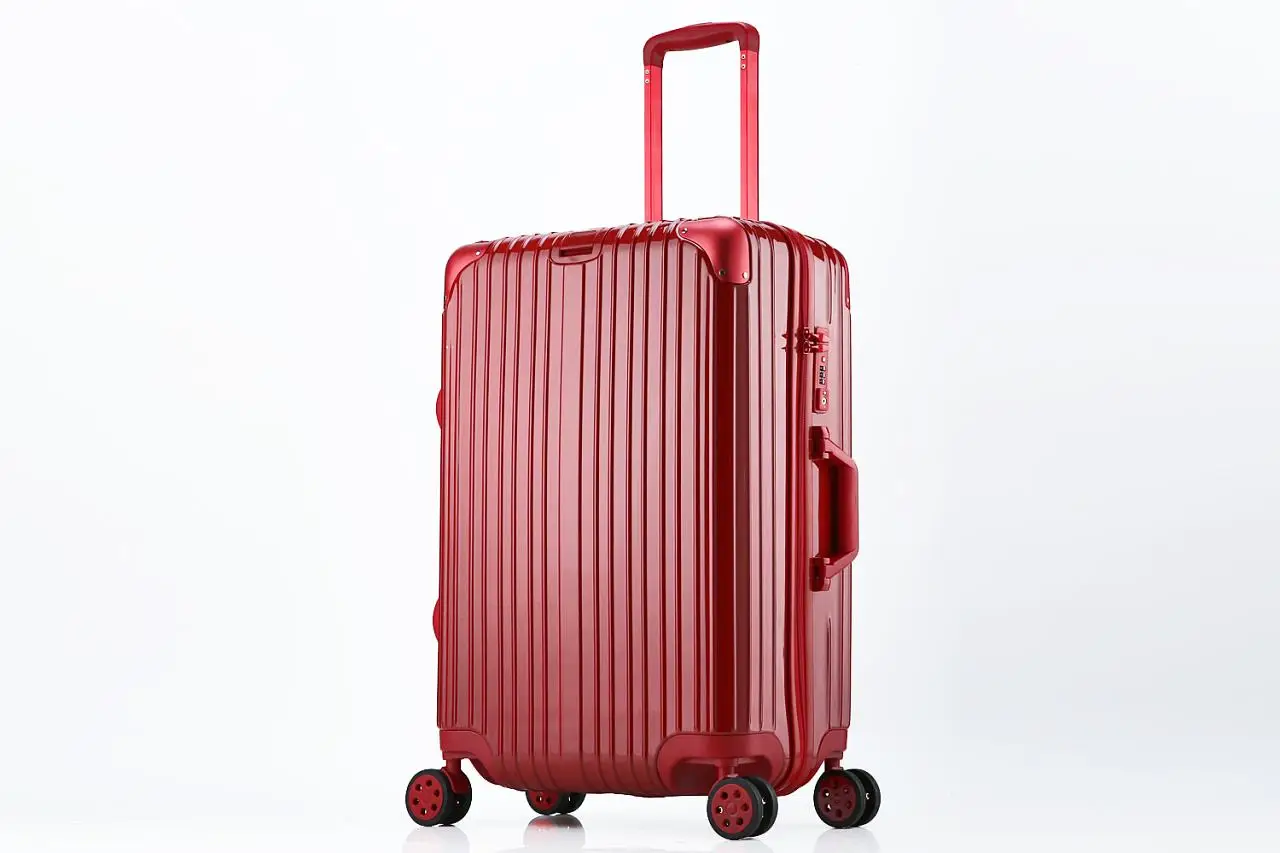

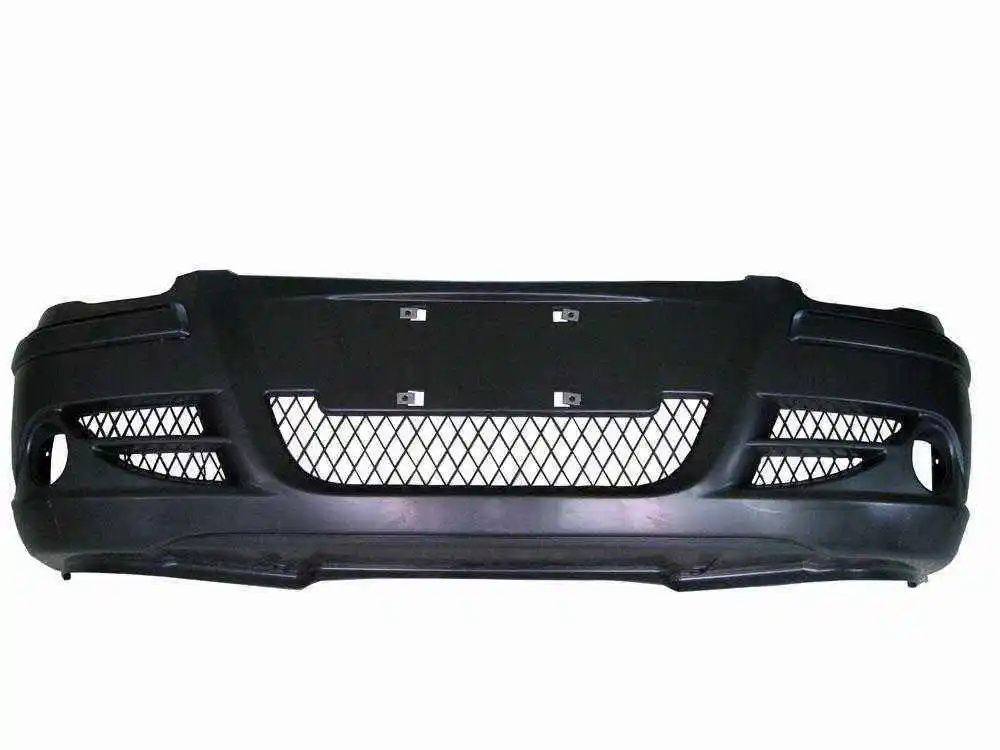

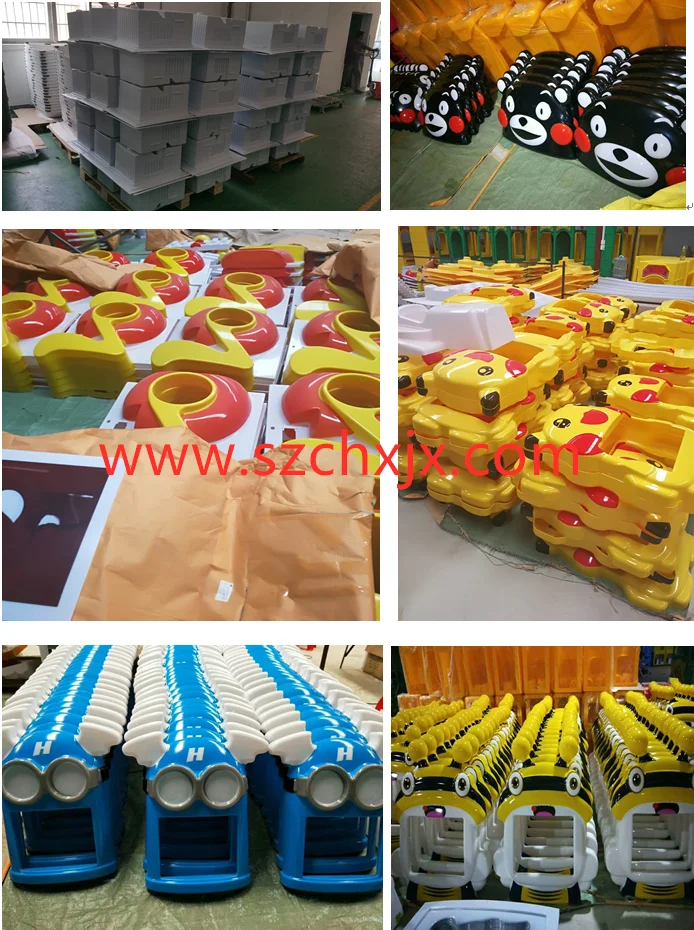

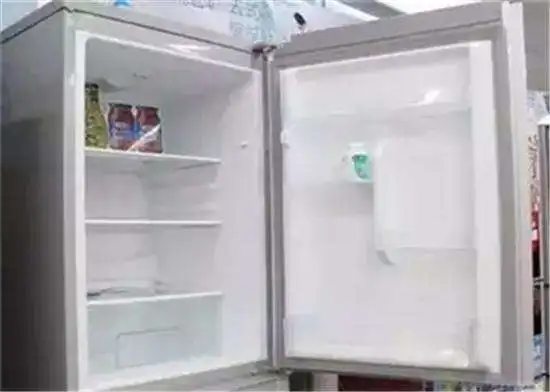

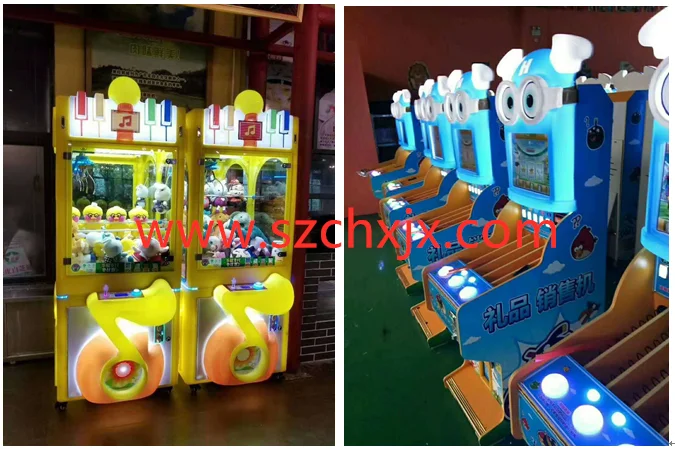

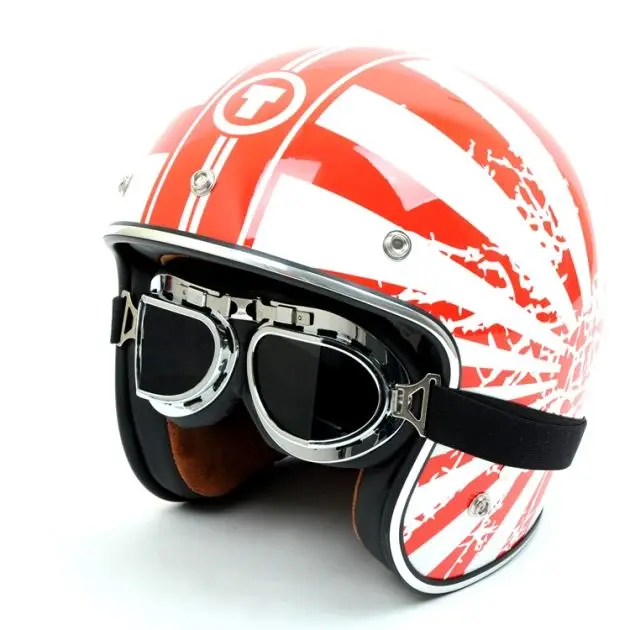

Sample Pictures
Overseas services
Packaging and delivery
FAQ
1.If I order this machine, and how can l learn to operate it? Do you offer any help? Would it be charged? Answer: Shenzhen Hengxing Machinery Factory will provide our after sales service to our customers. Once you get the machine, meanwhile you will get our operation instruction which would detailed explain all about the machine operation. Besides, our operation video is available for your operation reference. If either instruction or video can not help you, and we will arrange the our engineer contact you via international telephone conference or via face to face mutual video conference.
All above service is free. The service cost in customers` country was not included if requires oversea service.
2.About The Warranty: Answer: One year warranty. Within one year, the initial parts or elements of the machine broke down cause by the raw material and our hand work, Shenzhen Hengxing Machinery Factory would replace the parts freely, but the freight charge and the consumable parts like die, cutting mould were not included. The warranty is not valid if the machine damage due to customers` wrong operation or caused by force majeure factors.
3.How to order raw material ? Answer: We can help you to find raw material supplier, and also we can help you to order if need. And if possible, we will arrange the machine and the raw material sending to you together. Answer: Of course . We have different choice for you, and if all our models that`s not what you want, and you can tell us your details and we can custom make for you. Or OEM is available. 5.What is the power supply? Answer : Normally, there are 220v and 380v, and if you need other choice, just tell us, and we can custom make for you. Or OEM is available.
6.Is this machine need a mould ? Then what kind of mould should it be? How can I sure the mould is what I need? Answer: Yes, it needs mould, Cost will be base on the size.
