DM 58SW31ZY electric motor speed reducer reduction gearbox with
- Category: >>>
- Supplier: Shenzhen Dongming Motor Co. Ltd.
Share on (62131630375):
Product Overview
Description
DM-58SW31ZY electric motor speed reducer reduction gearbox with
1.Main voltage : 6VDC,12VDC, 24VDC
2.Typical applications: Smart Instrument, Digital product, Automatic door-lock, Medical equipment, Security monitoring, Smart home applicances, Robots…
3. Round Gearbox size: 58*34*40mm
4. Torque: 2-50kgf.cm
5. Direction: CW, CCW
6. Voltage, speed, and shaft can be customized based
7. Encoder 12PPR available

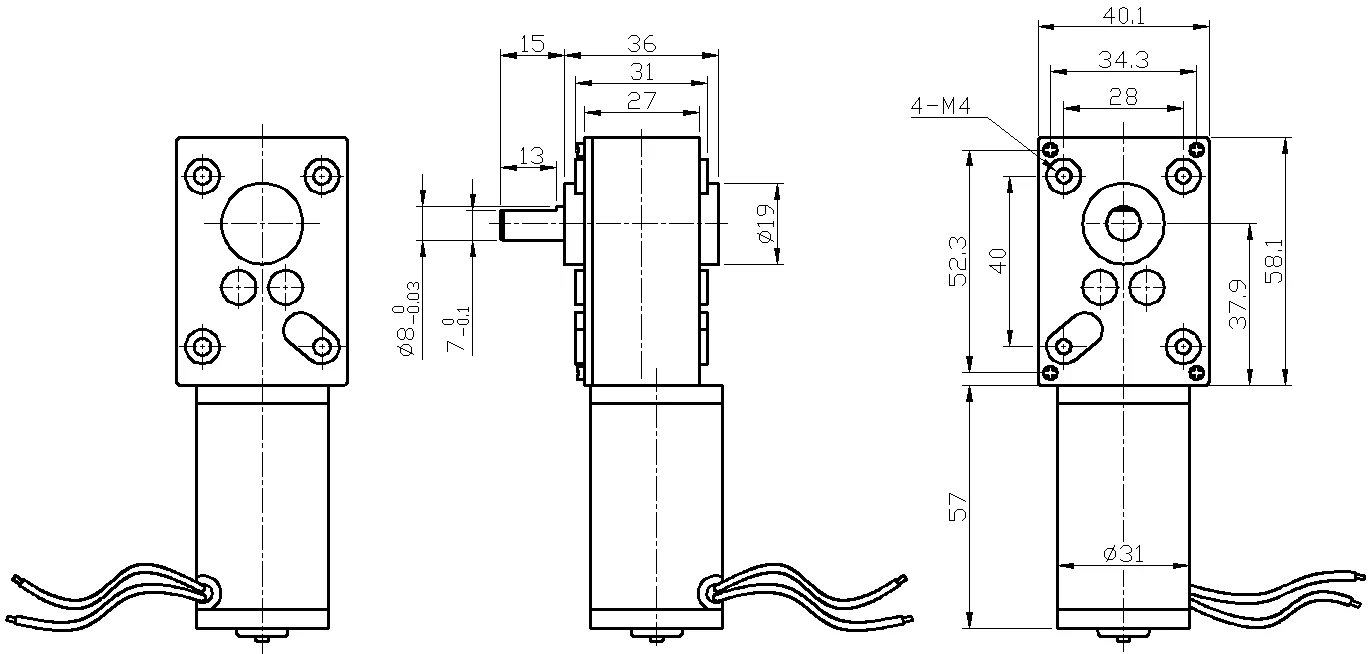

Appearance size:
Gearbox Data :
Number of stages | 3 | 4 |
Reduction ratio | 49,74,101,218,290 | 505,634 |
Gearbox length “L”mm | 34 | 34 |
Breaking torque(kgf.cm) | 15 | 35 |
Gearbox efficiency | 40% | 36% |
Driving Motor Data :
Motor model | Rated Volt. | No load | Load | Stall | |||||
Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
V | mA | r/min | mA | r/min | gf.cm | W | gf.cm | mA | |
DM-31ZY-012-3000 | 12 | ≤100 | 3000 | ≤400 | 2200 | 90 | 2.0 | 360 | 1600 |
DM-31ZY-012-4500 | 12 | ≤150 | 4500 | ≤700 | 3300 | 130 | 4.4 | 520 | 2700 |
DM-31ZY-012-6000 | 12 | ≤220 | 6000 | ≤1200 | 4500 | 180 | 8.3 | 720 | 5000 |
DM-31ZY-024-3000 | 24 | ≤60 | 3000 | ≤200 | 2200 | 90 | 2.0 | 360 | 800 |
DM-31ZY-024-4500 | 24 | ≤90 | 4500 | ≤350 | 3300 | 130 | 4.4 | 520 | 1300 |
DM-31ZY-024-6000 | 24 | ≤130 | 6000 | ≤650 | 4500 | 180 | 8.3 | 720 | 2600 |
Gear Motor Data:
Motor model | Rated Volt. | No load | Load | Stall | |||||
Current | Speed | Current | Speed | Torque | Output power | Torque | Current | ||
V | A | r/min | A | r/min | kgf.cm | W | kgf.cm | A | |
DM-58SW31ZY0126000-49K | 12.0 | 0.14 | 123.6 | 0.84 | 104.4 | 2.7 | 2.87 | 17.0 | 4.67 |
DM-58SW31ZY0126000-218K | 12.0 | 0.12 | 25.8 | 0.94 | 21.8 | 10.6 | 2.37 | 68.0 | 5.41 |
DM-58SW31ZY0129000-49K | 12.0 | 0.36 | 181.5 | 1.93 | 146.5 | 3.7 | 5.64 | 19.0 | 8.52 |
DM-58SW31ZY0248000-74K | 24.0 | 0.15 | 106.9 | 0.83 | 86.4 | 5.7 | 5.09 | 29.9 | 3.66 |
DM-58SW31ZY0248000-290K | 24.0 | 0.13 | 26.3 | 0.73 | 22.5 | 19.4 | 4.47 | 132.0 | 4.20 |
DM-58SW31ZY0249000-49K | 24.0 | 0.13 | 187.3 | 0.84 | 164.7 | 3.6 | 6.14 | 30.0 | 6.04 |
DM-58SW31ZY0249000-634K | 24.0 | 0.14 | 13.7 | 0.73 | 11.2 | 32.3 | 3.71 | 174.0 | 3.32 |
Curve Chart :

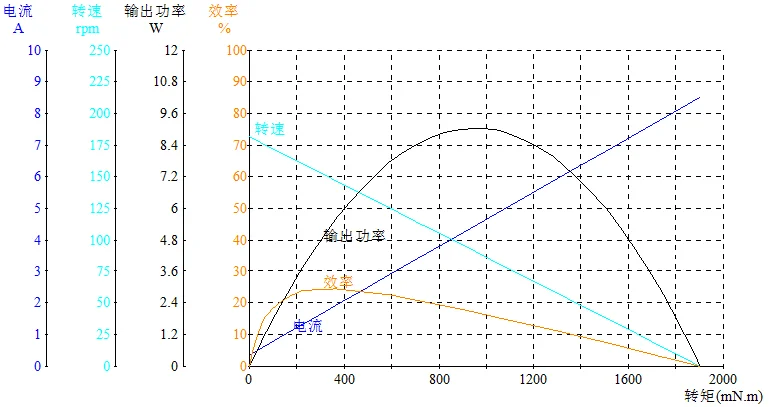

Model: DM-58SW31ZY0129000-49K

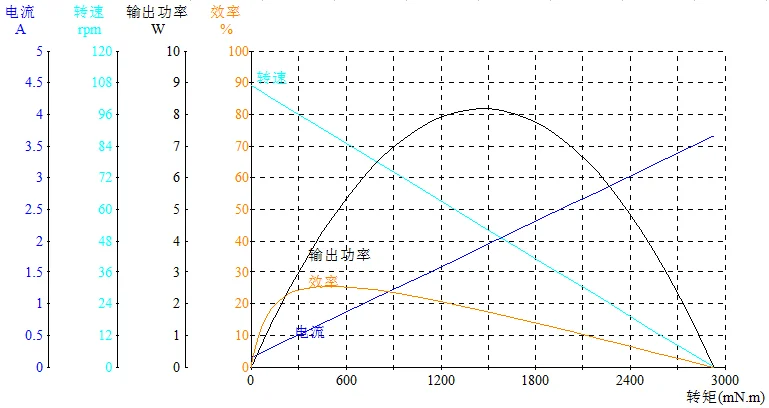

Model: DM-58SW31ZY0248000-74K
Remark:
Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;
Gear Motor Speed=Driving motor speed/Reduction ratio
Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...
Welcome OEM or ODM projects

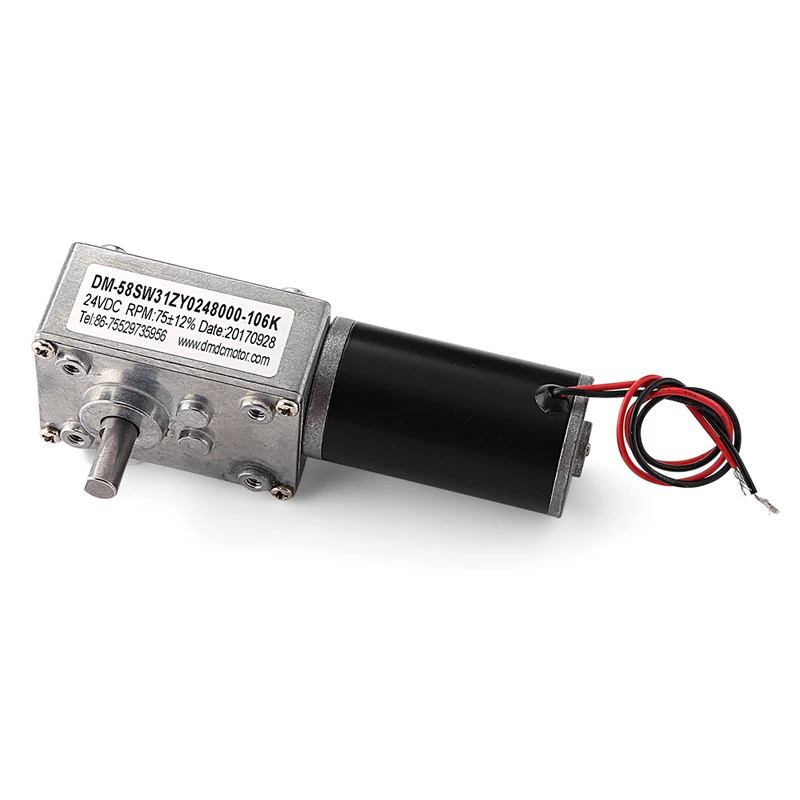

Product picture
Office
Workshop
Machine and Testing Equipment
Delivery
About us
Shenzhen Dongming Motor Co., Ltd. is expecialized in micro dc motors and dc gear motors. With 10-year-experience and a professional R & D team, Dongming Motor stands out in gear motor market in China. We have successfully worked out over 100 series of micro DC motors. Our products are widely used in household appliances, audio/video products, office equipment, health-care and beauty-care facilities, medical appliances, high-class toys, electronic tools, electronic commodity, automotive parts and automatic systems.
FAQ
Q: What kind of motors can you provide?
A: We can provide dc motor, dc gear motor including spur gear motor, planetary gear motor, worm gear motor; voltage, free load speed, rated speed, rated torque and size can be customized;
Q: What is the delivery time for samples and mass production?
A: For samples if we don't have material stock, delivery date 15-20days; if with stock, produce date can be 3-5days;
For mass production, normally arrange under schedule, the ealier your order is, the faster we will produce; in slack season delivery date is 25 dasy; busy season we will need more than 30 days if quantity is large;
Q: What spec. shall I provide before sample making?
A: A good questions! Pls tell us spec. of voltage, free-load speed, load speed, rated torque, size spec. or other special requirement; we will provide our best recommend to you;
Q: Is there testing report or motor specification when I get the sample?
A: Yes, we provide the testing report and specification in PDF file after sample is ready;
Welcome to inquire!
