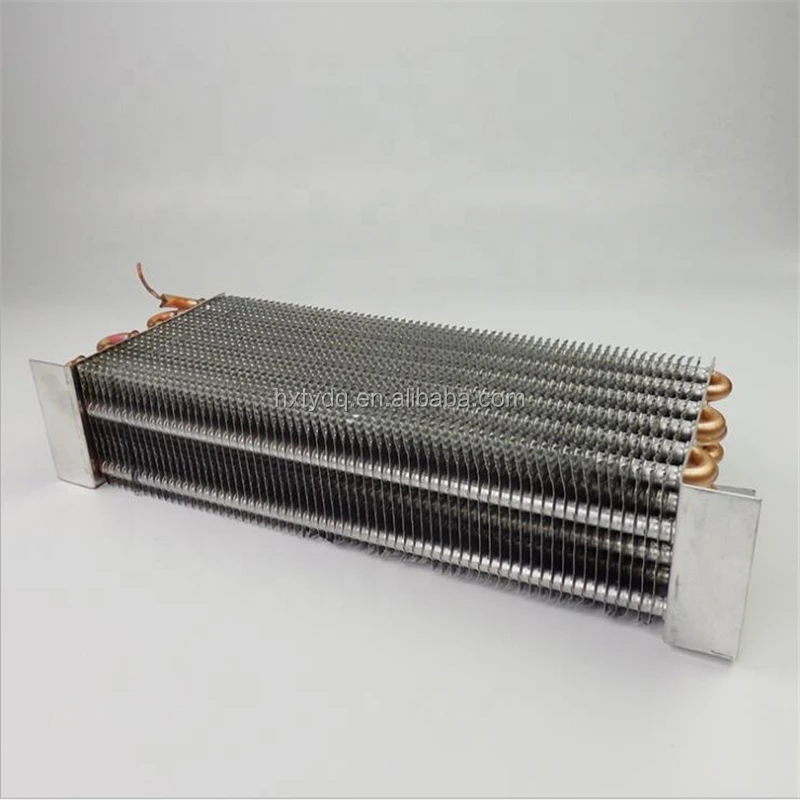

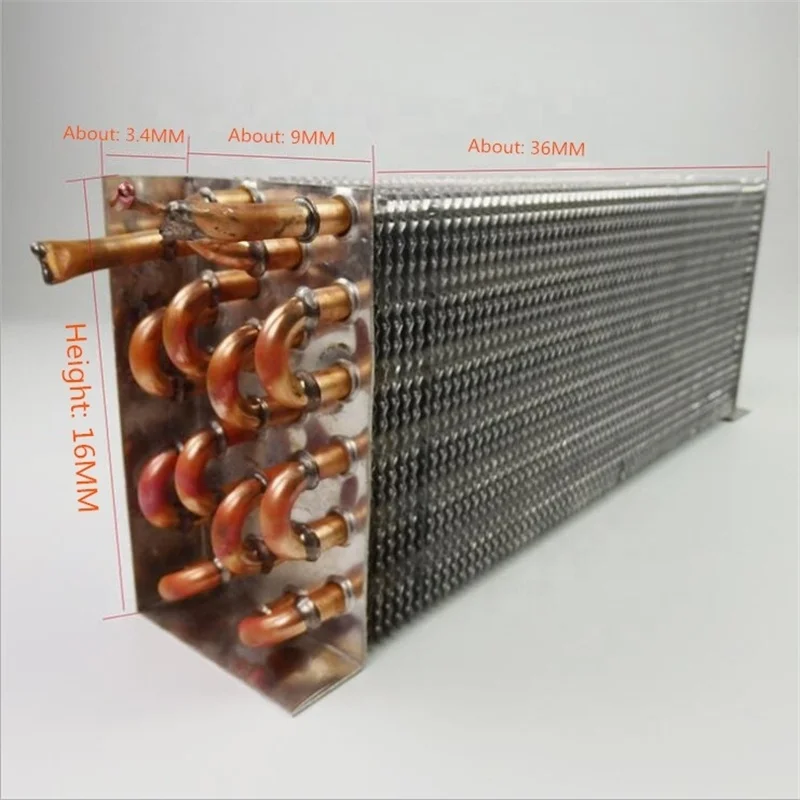

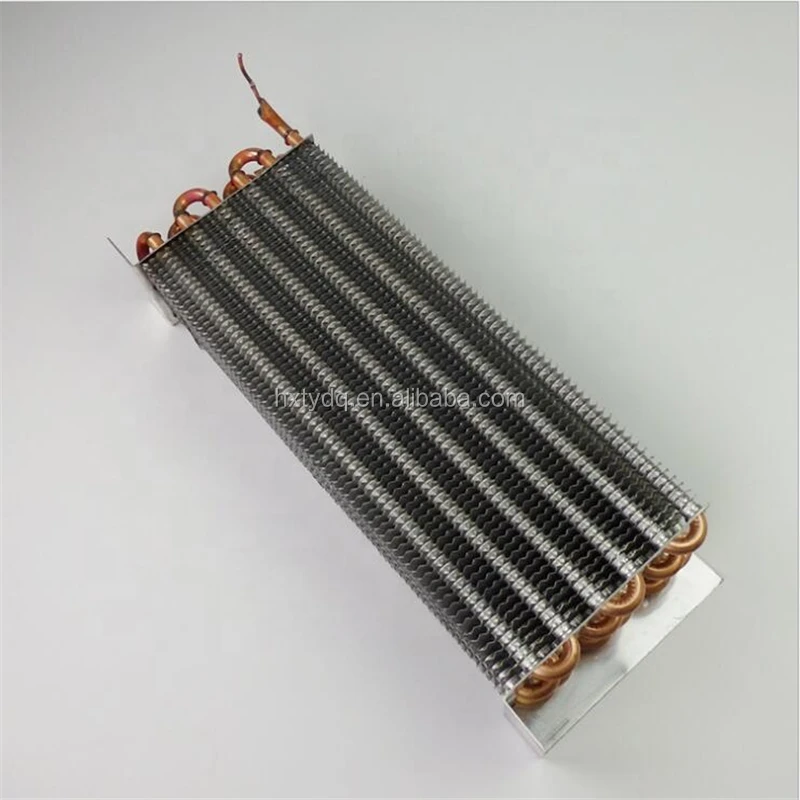

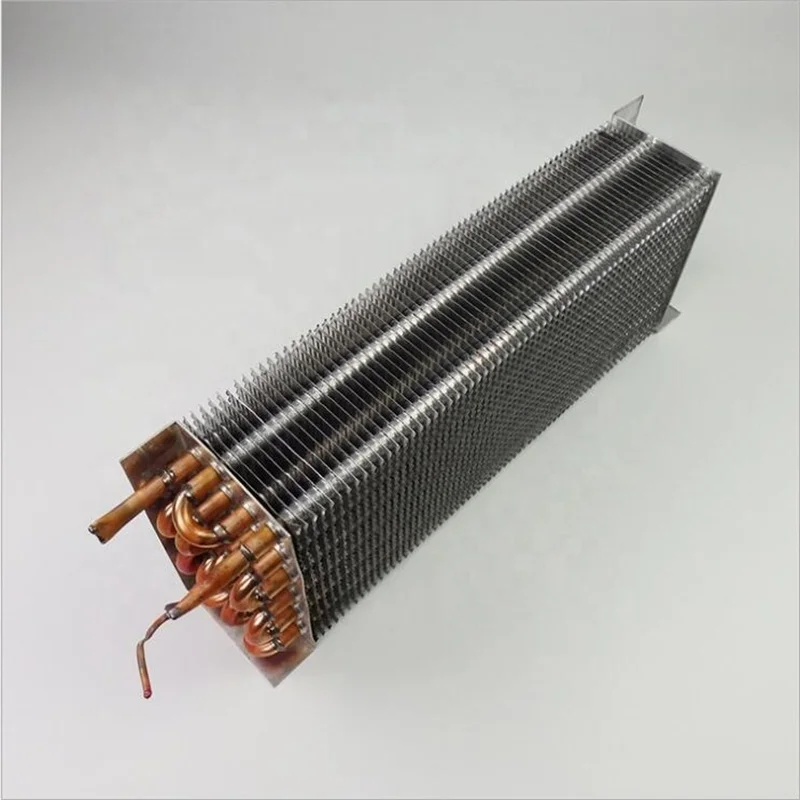

Ac parts refrigeration fin type evaporator
Ac parts refrigeration fin type evaporator
Ac parts refrigeration fin type evaporator
Ac parts refrigeration fin type evaporator
Ac parts refrigeration fin type evaporator

Ac parts refrigeration fin type evaporator

Share on (62131742884):


Price:$15.00

Quantity:


Product Overview

Description



Picture&Models



Small finned copper tube condenser for oxygen generator:

1.Material :copper ,aluminum ,galvanized steel
2.Fin: hydrophilic,bare
3.Fin type: Flat fin, Corrugated fin, Louvered / Lanced fin
4.Tube: diameter 7mm,7.94mm ,8mm,9.52mm 12.7mm,16mm
5.Tube type:grooved or smooth tube
6.Fin space between 1.3-5.3mm,adjustable according to the mold
7.Widely used in refrigeration industry, cold room and other cooling system.
8.We can supply products as per customized samples or drawing.










               Copper pipe


                  Connecting pipe


Aluminum Fin or Hydrophilic foil




Technical Data


Huixian Tianyang Electric Appliance Co., Ltd.
Mold of Copper tube & aluminum fin & copper fin
Copper pipe diameter (mm)
Hole distance (mm)
Row spacing (mm)
Material
(mm)
Reference film distance
 (mm)
ф7
19.1
16 (Rectangular)
Aluminum copper fins,
White foil, hydrophilic foil
1.5-2.5
ф7
21
12.7 (Staggered)
Aluminum copper fins,
White foil, hydrophilic foil
1.5-2.5
Ф7
21.8
22 (Triangle)
Aluminum copper fins,
White foil, hydrophilic foil
3-4.2
ф9.52
25
21.65 (Metric triangle)
Aluminum copper fins,
White foil, hydrophilic foil
2.2-8
ф9.52
25.4
22 (English triangle)
Aluminum copper fins,
White foil, hydrophilic foil
1.8-2.2-3.5
ф9.52
25
25 (Square)
Aluminum copper fins,
White foil, hydrophilic foil
3.5-4.5
12
38
32.91 (Triangle)
Aluminum and copper fins, white foil
5-8.5
ф12.7
35
35 (Square)
Aluminum and copper fins, white foil
5~8
ф12.7
31.75
27.5 (Triangle)
Aluminum and copper fins, white foil
3.5-7
ф15.88
38
32.91(Triangle)
Aluminum and copper fins, white foil
4.5-8
Ф15.88
55
27.5(Triangle)
Aluminum and copper fins, white foil
5-7.5
ф9.52 coil type
.Mold diameter 9.52, outer circle 100mm.
Take 9.52 as an example
The maximum length of the product is 4m, the maximum fin is 40 holes, the maximum width is 1.2m, and the thickness is within 1.5m.
Ф8 copper tube evaporator
The center distance is 60, the longest is 3m, the whole tube.
Material: copper tube copper fin, copper tube aluminum fin, aluminum tube aluminum fin ((thickness 0.15-0.25mm)), the widest fin is 38.
Conventional diameter of external connecting copper pipe: 19mm, 22mm, 28mm. (except for special requirements)
Wind hood hole diameter: 210mm, 260mm 310(300)mm, 185mm are all flanged.
Wind hood hole diameter 115 210mm (not commonly used) 238 (240) 240mm without flanging
End plate conventional (1-1.2mm-1.5mm); aluminum plate or galvanized plate
Copper pipe internal thread: 9.52×0.25+0.17 7x0.25*0.18. Aluminum tube material 1070.
