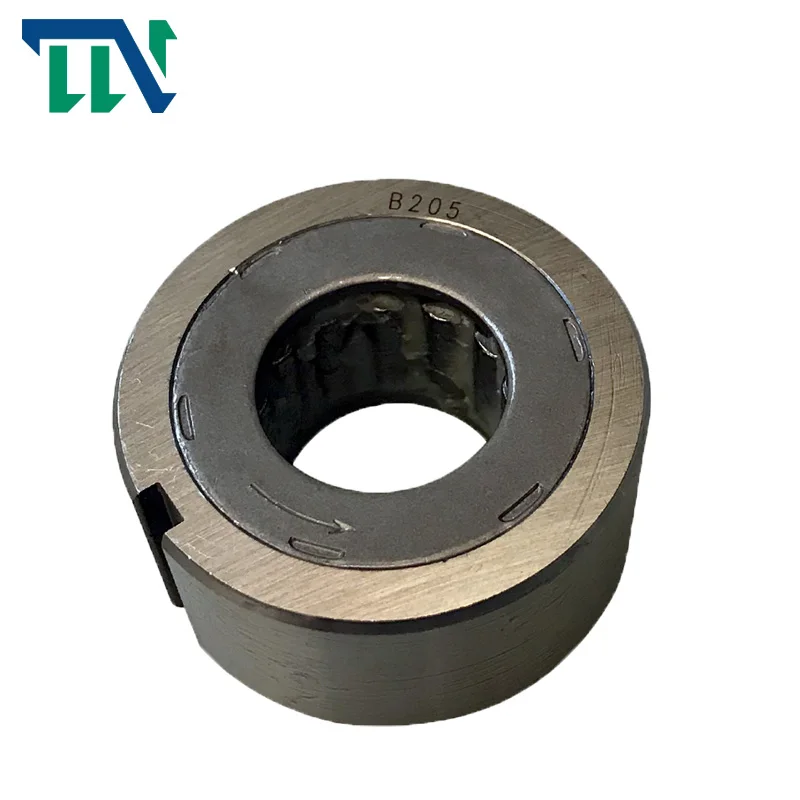

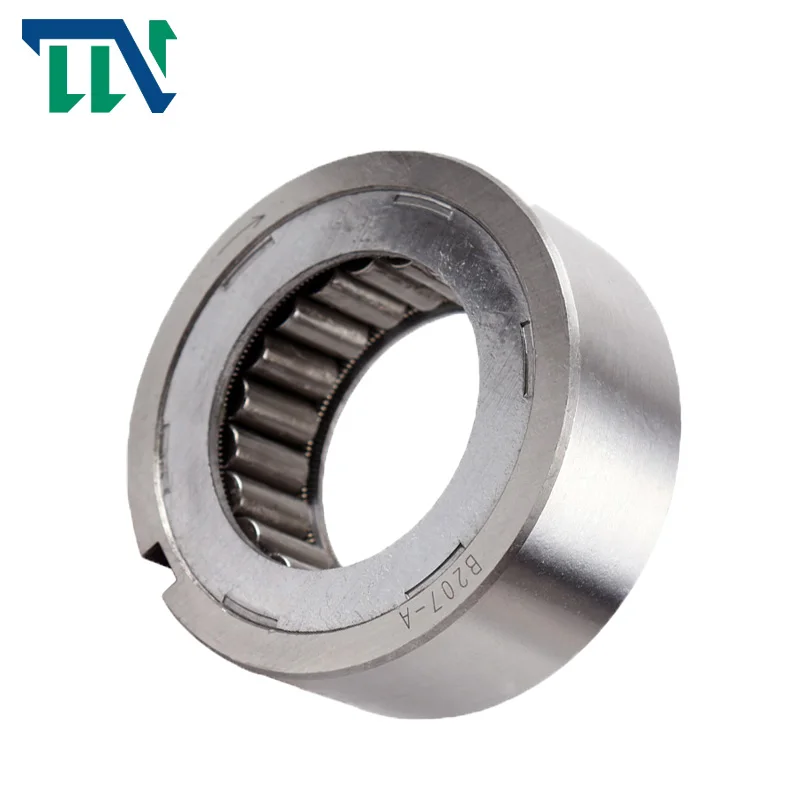

B206 One Way Sprag Type Bearing Backstop Cam Clutch
- Category: Other Ball Bearings >>>
- Supplier: Changzhou Tianniu Transmission Equipment Co. Ltd.
Share on (62131901443):
Product Overview
Description
Product Description
Technical Datas
| Item | B200 Series |
| Material | GCr15 |
| Bore dia. | 16.51-79.356 mm |
| Outer dia. | 40-125 mm |
| Width | 25-42 mm |
| Torque capacity | 39.2-1390 N.m |
| Weight | 0.23-2.4kg |
| Package | Carton box, wooden box or as your requirements |
Dimensions and Capacities
|
Model |
Torque Capacity |
Drag Torque |
Max .Overrunning (r/min) |
Max.Idexing (cycle/min) |
A(+0 to -0.6) |
|
|
With JIS Bearing No. |
Shaft Dia. C(+0 to -0.025) |
Weight |
|
|
Shaft |
Outer Race |
||||||||||
|
B203 |
39.2 |
0.10 |
2400 |
500 |
150 |
25.0 |
40(-0.014-0.039) |
4X2.5 |
6203 |
16.510 |
0.23 |
|
B204 |
58.8 |
0.10 |
2400 |
500 |
150 |
25.0 |
47(-0.014-0.039) |
5X3 |
6204 |
18.796 |
0.34 |
|
B205 |
98 |
0.20 |
1800 |
400 |
150 |
25.0 |
52(0.017-0.042) |
5X3 |
6205 |
23.622 |
0.45 |
|
B206 |
235 |
0.20 |
1800 |
350 |
150 |
28.0 |
62(-0.017-0.042) |
7X4 |
6206 |
32.766 |
0.68 |
|
B207 |
372 |
0.20 |
1800 |
300 |
150 |
28.0 |
72(-0.017-0.042) |
7X4 |
6207 |
42.088 |
0.80 |
|
B208 |
549 |
0.20 |
1800 |
200 |
150 |
32.0 |
80(-0.017-0.042) |
10X4.5 |
6208 |
46.761 |
0.91 |
|
B209 |
549 |
0.20 |
1800 |
200 |
150 |
32.0 |
85(-0.020-0.045) |
10X4.5 |
6209 |
46.761 |
0.95 |
|
B210 |
784 |
0.29 |
1200 |
200 |
150 |
32.0 |
90(-0.020-0.045) |
10X4.5 |
6210 |
56.109 |
1.00 |
|
B211 |
784 |
0.29 |
1200 |
200 |
150 |
32.0 |
100(-0.020-0.050) |
10X4.5 |
6211 |
56.109 |
1.40 |
|
B212 |
1230 |
0.29 |
1200 |
180 |
150 |
42.0 |
110(-0.020-0.050) |
10X4.5 |
6212 |
70.029 |
1.80 |
|
B213 |
1230 |
0.29 |
1200 |
180 |
150 |
42.0 |
120(-0.020-0.050) |
10X4.5 |
6213 |
70.029 |
2.30 |
|
B214 |
1390 |
0.39 |
180 |
180 |
150 |
42.0 |
125(-0.024-0.060) |
12X4.5 |
6214 |
79.356 |
2.4 |
Mounting
Product Display
Production Flow
Packaging & Shipping
Certifications
Clients Visit
Company Information
FAQ
Q: Why do we choose your company?
A: Quality is the soul of an enterprise. We can provide you with good-quality one way clutches also with good price.
Q: What is the delivery time?
A: For small quality or samll size of clutches, we can deliver upon receiving advance.
For large quantity or large size, we have to produce 10-15 working days.
Q: Can you supply with sample clutch?
Of course! We can provide with a sample to your checking quality.
Q: What is the warranty period of the clutches?
One-year Guarantee.
