 Bitumen coated high tensile strength fiberglass geogrid 50kn 100KN for road construction


Introduction:

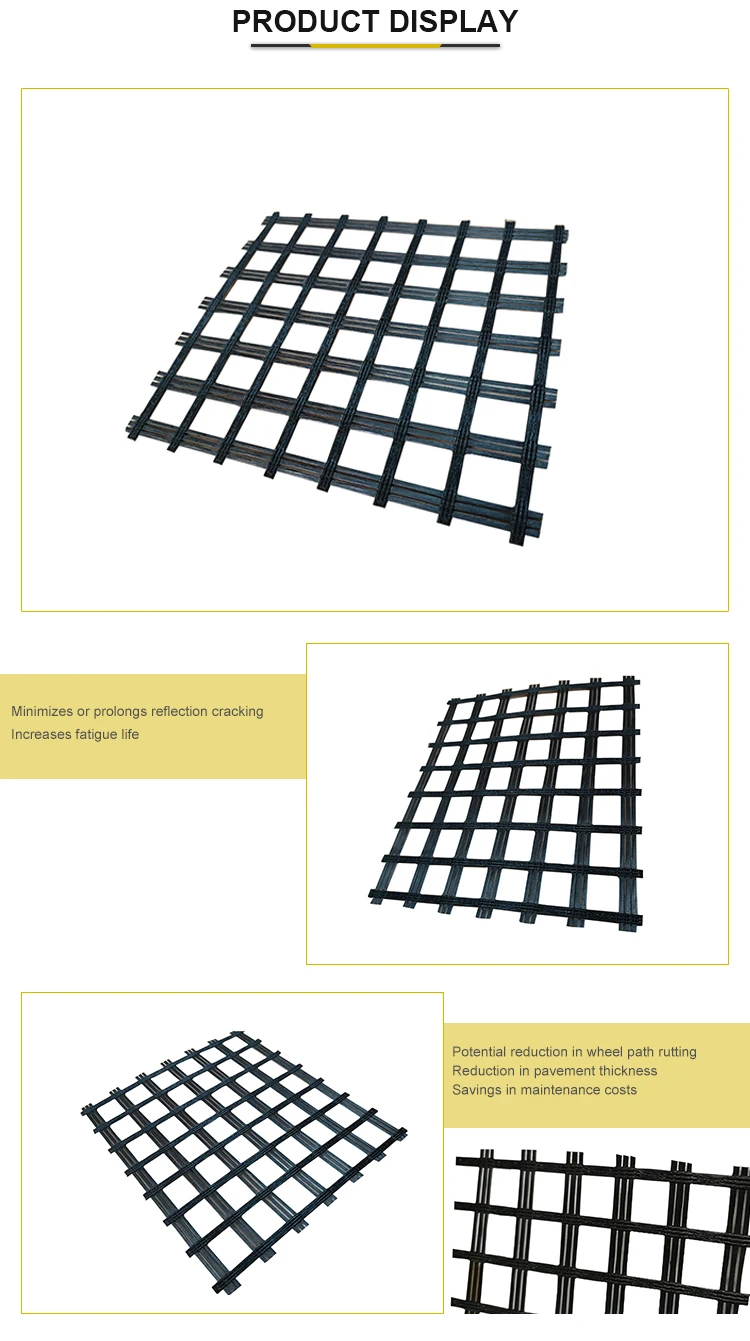

Fiberglass Geogrid are a kind of reticular structural material with high alkali-free glassfiber.
It withstands high and low temperatures and can resist corrosion. Fiber geogrid can not only decrease the cost of constructionbut also prolong the service life of the pavement.


Applications:

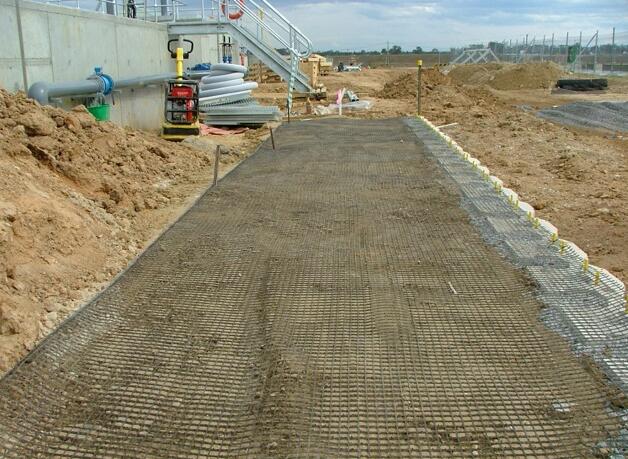

♦Reinforcement of roadbase in soft soil.
♦Reinforcement of flexible pavement and concrete pavement.
♦Using for road widening and asphalt road repairing.
♦Pavement surface reinforcement of road and airport.



Characteristics:
High tensile strength with low elongation.
Excellent temperature resistance and good compatibility with asphalt.
Reducing reflective cracking of the road.
Easy installation and lower maintenance cost.



Product specifications:

Performance  Specifications  Intensity(KN/m)  Break Elongation Ratio (%)  Mesh size (mm x mm)  Breadth (m)
Longitudinal Horizontal Longitudinal Horizontal
Fiberglass geogrid       GG2525 ≥25 ≥25 ≤3 ≤3 12~50 1~6
GG3030 ≥30 ≥30 ≤3 ≤3 12~50 1~6
GG4040 ≥40 ≥40 ≤3 ≤3 12~50 1~6
GG5050 ≥50 ≥50 ≤3 ≤3 12~50 1~6
GG8080 ≥80 ≥80 ≤3 ≤3 12~50 1~6
GG100100 ≥100 ≥100 ≤3 ≤3 12~50 1~6
GG120120 ≥120 ≥120 ≤3 ≤3 12~50 1~6
Self adhered glass fiber geogrid       GGA2525 ≥25 ≥25 ≤3 ≤3 12~50 1~6
GGA3030 ≥30 ≥30 ≤3 ≤3 12~50 1~6
GGA4040 ≥40 ≥40 ≤3 ≤3 12~50 1~6
GGA5050 ≥50 ≥50 ≤3 ≤3 12~50 1~6
GGA8080 ≥80 ≥80 ≤3 ≤3 12~50 1~6
GGA100100 ≥100 ≥100 ≤3 ≤3 12~50 1~6
GGA120120 ≥120 ≥120 ≤3 ≤3 12~50 1~6
