Li Ion Battery Anode Double Layer CMS Graphite Coated on Copper Foil (241mm L x 200mm W x 90um Thick) 5 sheets/bag bc cf 241 ds
Li-Ion Battery Anode -Double Layer CMS Graphite Coated on Copper Foil (241mm L x 200mm W x 90um Thick) 5 sheets/bag bc-cf-241-ds

Li Ion Battery Anode Double Layer CMS Graphite Coated on Copper Foil (241mm L x 200mm W x 90um Thick) 5 sheets/bag bc cf 241 ds

Share on (62132026112):


Price:

Quantity:


Product Overview

Description

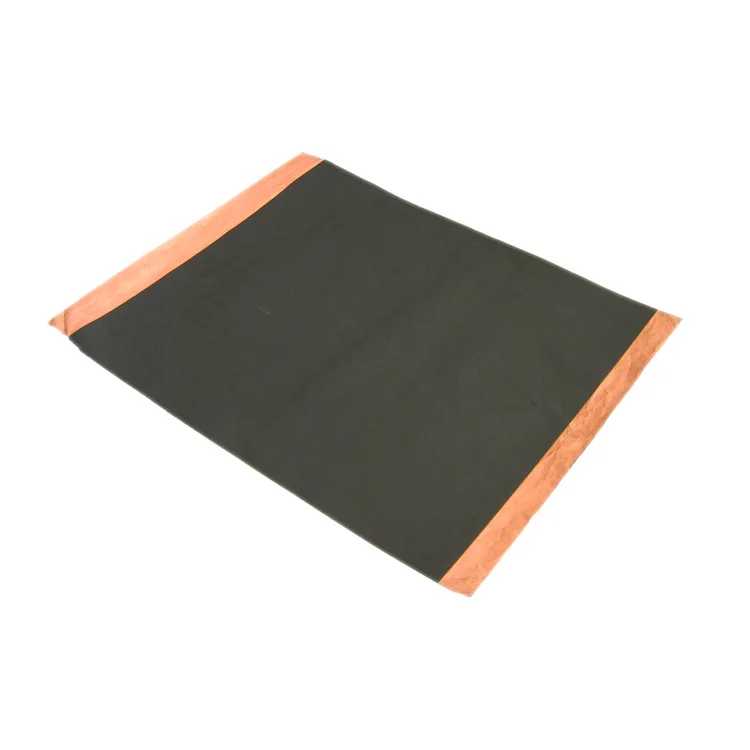

Li-Ion Battery Anode -Double Layer CMS Graphite Coated on Copper Foil (241mm L x 200mm W x 90um Thick) 5 sheets/bag bc-cf-241-ds



This electrode sheet is based on copper foil coated by carbon in double side, and
is used as the anode electrode of Li-Ion battery -- 5 sheets /bag

Specifications

  • Current collector (substrate): Copper foil, 9 micron
  • Anode material: Composite Graphite
  • Active powder SSA (BET): 3~5 m^2/g
  • Binder: SBR+CMC
  • Double sides active material density: 120g/mm
  • Active Material Weight: 5.0176g
  • Active Material Proportion in Powder: 95.70%
  • Length: 241mm
  • Width: 200mm
  • Total Thickness: 90 um +/- 5 um
  • Foil Thickness: 10 um +/- 3 um
  • Coating Thickness:140 um +/- 8 um (double sized coated)
  • Specific Capacity: 330mAh/g
  • Net Weight: 14 g
  • Double side coated
  • Qty: 5 Sheets/bag
  • Note:  if you use the electrode sheet for single layer button cell, you shall
    remove one layer coating by a sand paper to make one side contact to button cell case.
