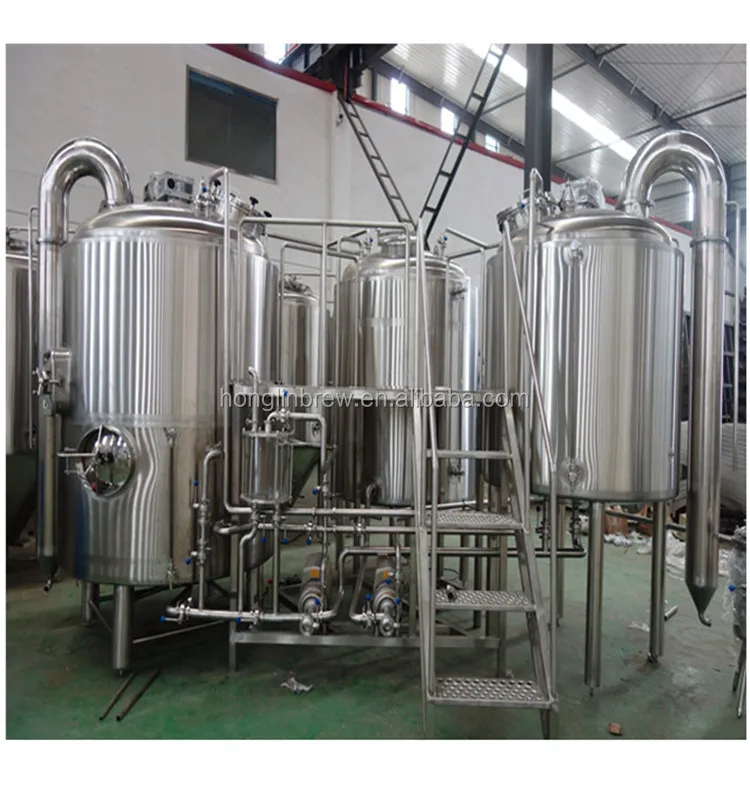

Stainless steel steam brewhouse 10HL brewery equipment

Product Overview

Description

Stainless steel steam brewhouse 10HL brewery equipment

Advantages:



Professional Beer Equipment manufacture with 10 years experiences in China.

Dedicated team of consulting Services & Professional team of technical engineers

Complete quality control and management systems

Complete beer line to meet different capacities and all kinds of beer

Customize machine can be offered(voltage,material,dimension,heating source and so on)



Parameters:



1000L Beer Brewing System(For example)
Brewing system	Components	Capacity	Specification
Grinding system	Miller	300KG/H	Double Roller
Heating System	Boiler	100KG/H	Electric,Gas,Oil,Coal Type/CE certification
Brewhouse system	Mash/Lauter tun	1000L	Mashing Process:Decoction.Infusion.Multi-step infusion  Heating source:Steam,Electric,Gas  Material: SUS304/Red copper Interior thickness :3mm Exteior thickness:2mm
	Brew Kettle/ Whirlpool Tank	1000L
	Hot Water Tank	1500L
	Plate Heat exchanger	10SQM	Stainless steel plate

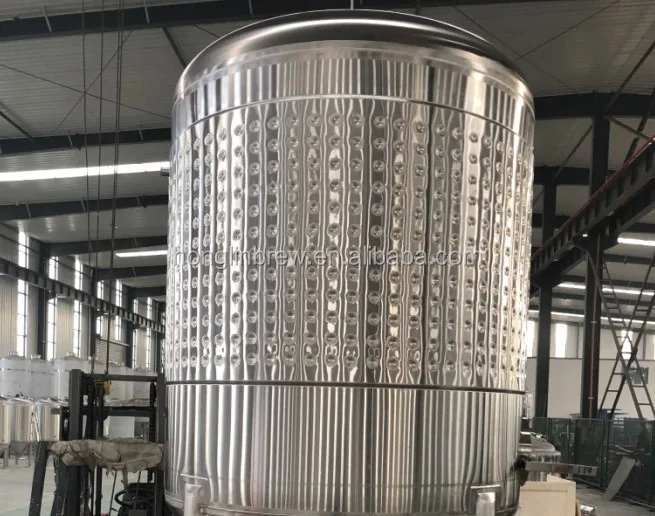

Fermentation system	Fermentation Tank	1000L/2000L	Top manhole/Side manhole Drying hop port Dimple Plate Cooling jacket Carbonation port to fill CO2
	Yeast Adding Tank	10L	SUS304 Stainless Steel
Cooling System	Glycol Water tank	3000L	Providing the ice water for cooling down the wort and beer
	Chiller	10BP	UL/CE certified electric elements,Copeland compressor
	Pump	3T	Ice water circulation
Cleaning system	Disinfection Tank	100L	SUS304 full welded
	Alkali Tank	100L
	Pump	3T
Control system	Control Cabinet	PID/PLC	Manual/Semi-automatic/Automatic
Optional	Auger System
	Grist Cabin
	Grist Hydrator
	Beer Filter Unit
	Bright Tank Unit
	Beer keg filling and washing machine, bottling machine
	Other Facilities: Beer kegs Water treatment for brew water  Pasteurization System
Technical Parameter	Power: Customise -design Voltage:Cusomized Floor space:We can device a layout based on your floor plan

PS: All the configurations and specifications can be customized according to your requests.

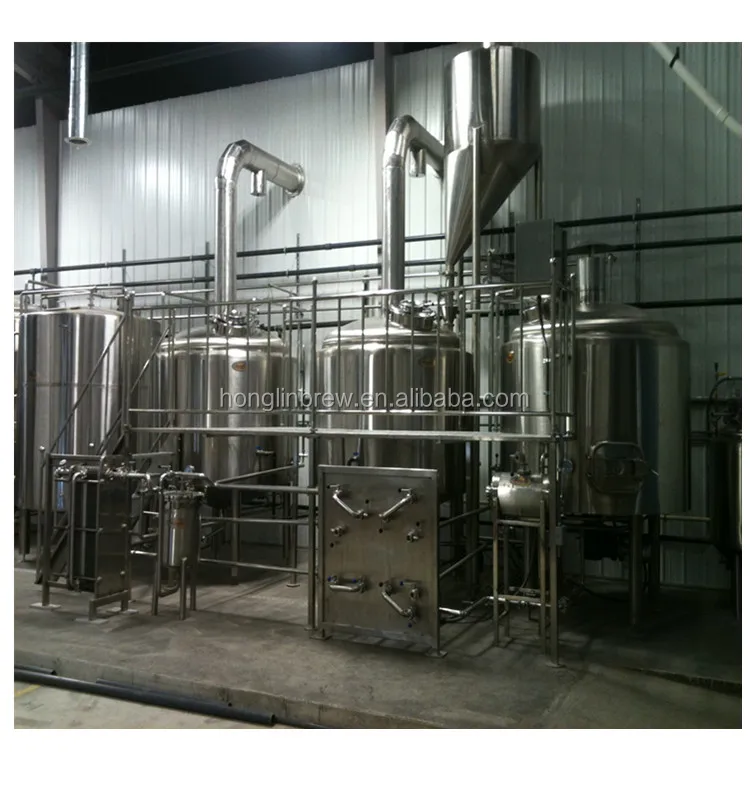

Brewhouse Unit
1. Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination
2. Hot water tank and cold water tank for optional in special combinations
3. Infusion or decoction brewing methods are designed exactly
4. Stainless steel or copper cladding are popular
5. Two stages or single stage heat exchanger for wort cooling
6. Completely stainless steel integrated work platform
7. Sanitary and efficiency wort pump
8. All pipings and fittings



Fermentation Unit
1. Standard stainless steel conical cylindrical fermentation tanks
2. Single size as brewhouse is common used in restaurant
3. Tanks quantity is exactly calculated by fermentation cycle for various beers
4. All manhole, valves, pressure gauges, fittings etc are included



Bright Tank Unit
1.Standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation
2. Single size as fermenter is common used in restaurant or bar
3. Tanks quantity is exactly calculated for various beers and the function
4. All manhole, valves, stone, gauges, fittings etc are included

Cooling Unit
1.Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing
2. Efficiency chillers or refrigerators with fronto supply cooling energy
3. Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
4. All pipes, fitting, insulation materials are included



Controlling Unit
1. Electrical controlling cabinet with temperature, on-off controlling for brewhouse
2. Electrical controlling cabinet with temperature, on-off controlling for cooling parts
3. Temperature controller, thermocouple, solenoid valves etc are included
4. PLC with touch screen panel for special request







Jinan Honglin beer equipment has been widely used around the world, such as home brewing, small breweries, pubs, restaurants, hotels, brewpubs, bars, teaching laboratories and leisure field, brewing barley beer, wheat beer, dark beer and different shades of beer fermentation process at room temperature, to achieve the dream of the brewer.



Packaging Details:

Packing: Wooden/Veneer case for LCL;

Plastic film wrapped and iron frame fixing for FCL

We can package according to your requests.



Delivery Detail: Shipped in 25-30 working days after payment.

Guarantee and After-sale service:

1. 10 years warranty for the main equipment; the electronic component is 2 year.

2.Technical support by phone, email or WhatsApp/Skype around the clock.

3.Installation/Operation/ Service/ Maintenance Manual: Provided In English.

4. Engineer available to service machinery overseas.

Good reviews from customer in the world:



Jinan Honglin Beer Equipment Co.,Ltd



Jinan Honglin Beer Equipment Co.,Ltd is a professional manufacture of brewery equipment,certified by CE,ISO,ROHS and TUV.We are specialized in brewery design,manufacture,installation and commissioning.With fine workmanship,excellent performance and simple operation,Honglin Brewery Equipment is your wise choice for beer brewing.No matter in appearance,quality,technology or service,Honglin product stands for the top level of beer brewing equipment domestically and worldwide.As an Original Design Manufacture,Honglin Brewery Equipment perfectly fits various brewing process.Our engineers had been sent all over the world for brewery designing,installation, training and technical supporting .

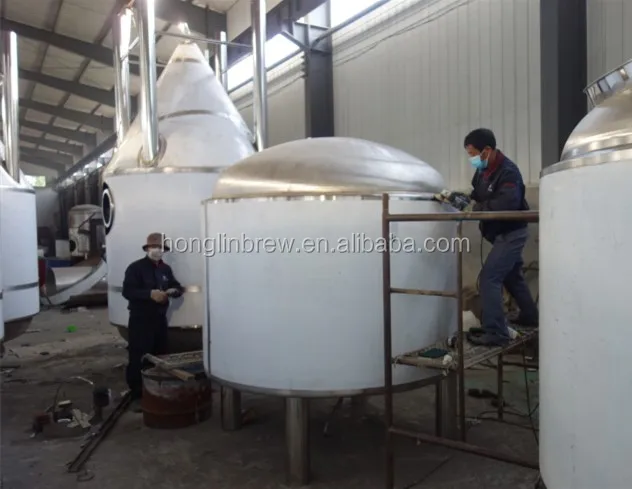

Work shop:
