Серия QGBH, зажимной пневматический цилиндр двойного действия, специально разработан для сварки автомобильного кузова, пневматический цилиндр
- Category: Pneumatic Cylinders >>>
- Supplier: Ningbo Airtop Pneumatic Hydraulic Co. Ltd.
Share on (62132208150):
Product Overview
Description
Product Description
QGBH Series Clamping Air Cylinder Double Action Specially Designed For Automobile Body Welding Pneumatic Cylinder
Product Feature:
1. This type of pneumatic clamping device is specially designed for automobile body welding.
2. The front and rear covers of the cylinder are die-casted.
3. Inlet port is optional on three sides, which is easy for mounting.
4. Adjustable cushion at both ends, to adjust the movement speed.
Specification:
Bore Size (mm) | 40 | 50 | 63 | 80 |
Acting Type | Double Acting | |||
Working Medium | Air | |||
Working Pressure | 0.05 ~ 1.5 MPa | |||
Speed Range | 50 ~ 500 mm/s | |||
Working Temperature | 5 ~ 60℃ | |||
Cushion Type | Adjustable Cushion at Both Ends | |||
Lubrication | Not Required | |||
Mounting Type | Double Earring | |||
Port Size | G1/4 | G3/8 | ||

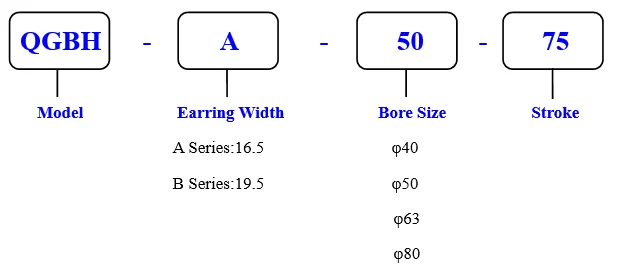

How to order ?

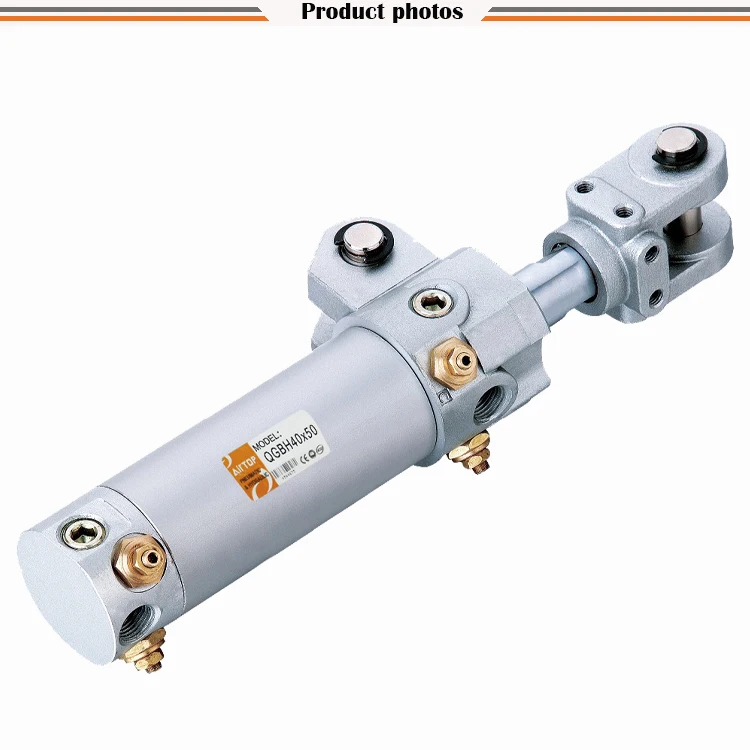

Product Photos
More products
Company Information
Packaging & Shipping
Trade Terms:
- Payment: T/T, L/C,Western Union: 30% deposits, 70% balance before delivery
- Delivery time: Standard samples: 5-7 days, customized samples: 10-15 days,bulk prodution depends on the quantity
Why Choose us?
Best Quality & Best Service with Competitive price.
- Alibaba Assessed 7 years Gold Supplier.
- We have ISO9001:2000 Quality System and CE Certifications ensure every component to be precise, accurate and durable.
- We have imported advanced CNC machines from Germany and Japan and we also have die-casting machines, injection machines, advanced computer testing machines.
- AirTOP has developed a complete sales network and after-sales services and has steady customer groups in the international market. AirTOP pneumatic products are favored especially by customers in Europe, North and South America, the Middle East and Southeast Asia.
