Phlizon 400w 480w 560w 640w boards led grow light bars uv ir Samsung lm561c lm301b
- Category: >>>
- Supplier: Shenzhen Phlizon Technology Co. Ltd.Shenzhen Ltd.
Share on (62132241901):
Product Overview
Description
Product Description

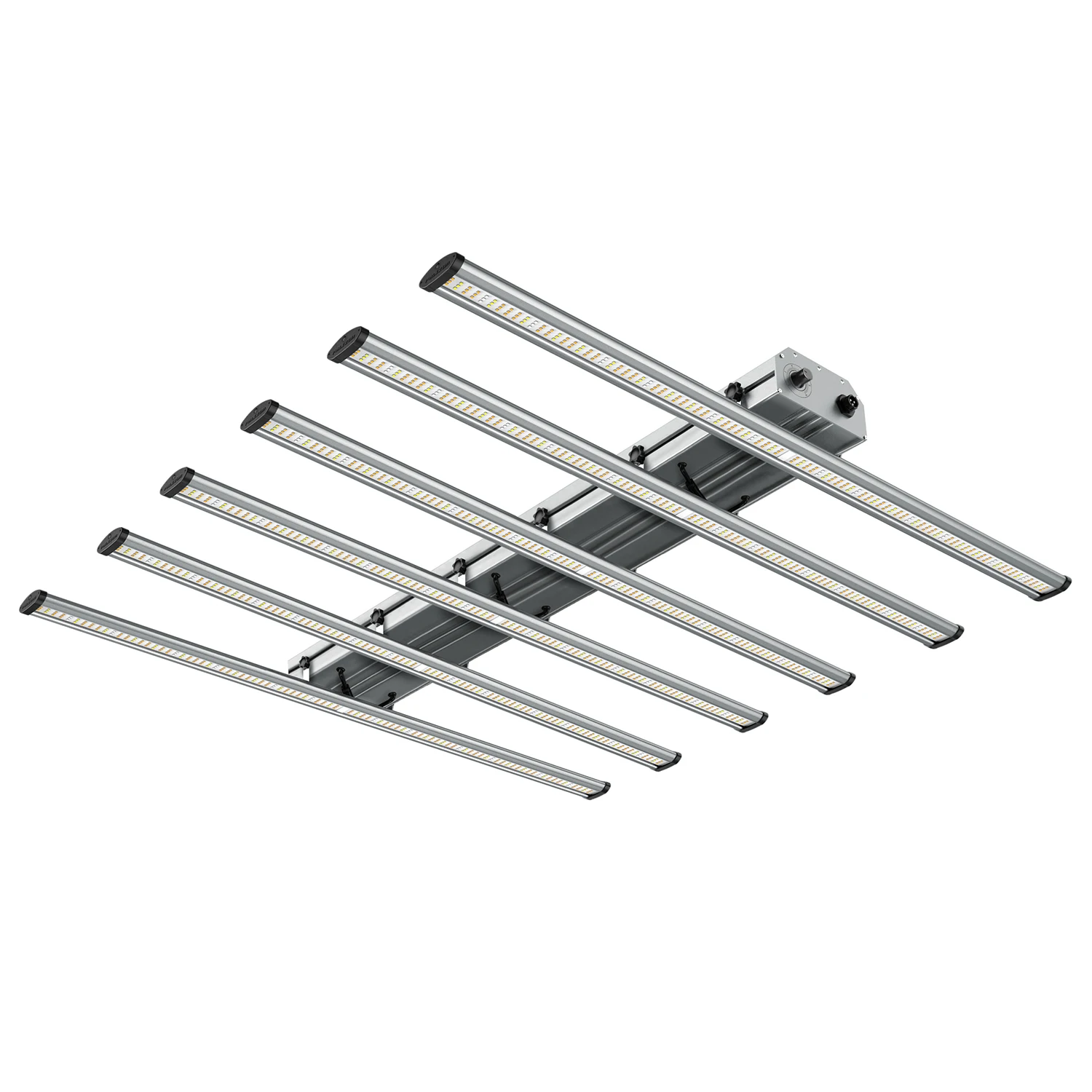

PH-B6 LED Grow Light,power is 480w ,supplemental coverage area is 5×5 ft.
Safety FCC ETL Certified and IP54 Rated.Passive cooling,extrusion pure aluminum can 100% ensure heat dissipation. Plants will grow better under the Full Spectrum LED Grow Lights, as well their yield. will increase hugely.
1.ETL/FCC safety certified.
2. Best full Specturm designed, is a full-cycle top-lighting solution for commercial medical plants cultivation, with the power to scale from vegetative growth to higher light intensities in bloom.
3.This Led grow lights consistently emit wavelengths in the range of 380 to 779m.
4.Samsung 301B /561B+ / 561C for choice, domestic / Osram 3030 LED used, ultra high PPFD.
5.Full spectrum LED added 660nm LED, good for all growth stage, especially for flower stage, high yield: >2grams per watt .
6. 1X1.06 meters large size arrangement,cover area and light is uniform.
7.Best heat dissipation, long lifespan >50000 hours
8. Customizable spectrum ,any spectrum can be OEM/ODM,at any stage of growth accordingly.
9.Top quality material,samsung , osram chips ,and meanwell driver.
10.Easy detaching and maintenance,

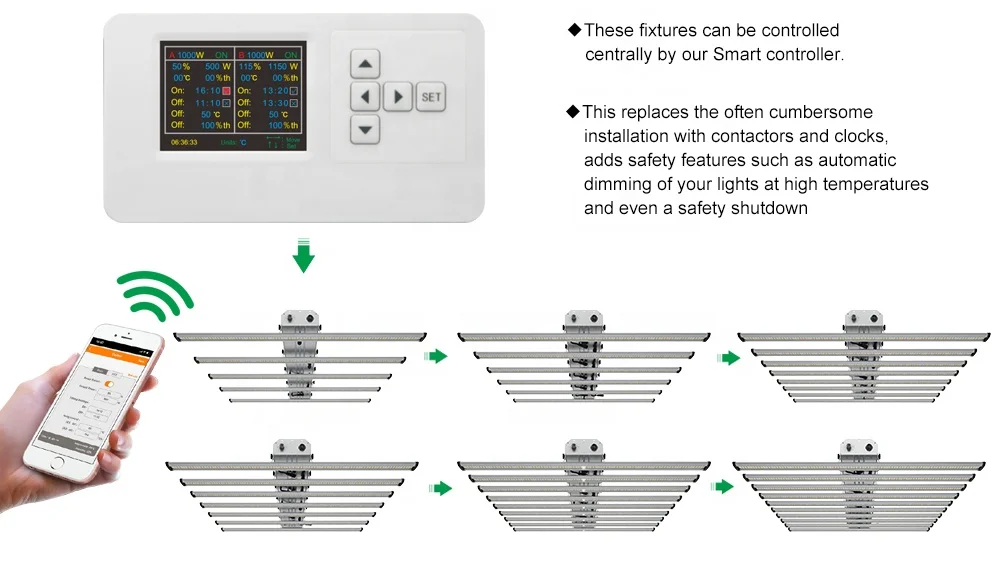

11. wireless smart group control system are optional.
12.Standard without dimming, dimming with different PPFD,
13.No fan
14.Voltage AC100~240,277V ,200-480V for choice.
| PH-B5 | PH-B6 | PH-B8 | PH-B10 | |
| Product Name | 400w led grow light bar | 480w led grow light bar | 640w led grow light bar | 800w led grow light bar |
| Power consumption | 400W ±5% | 480W ±5% | 640W ±5% | 800W ±5% |
| IP Rate | IP54 | IP54 | IP54 | IP54 |
| Power input | 110-240, 277, VAC 50/60Hz | |||
| Weight | 12.8 kg | 14 kg | 15.9 kg | 20.5 kg |
| Dimensions(L*W*H) | 1000*1000*110mm | 1000*1000*110mm | 1000*1000*110mm | 1304*1000*110mm |
| Coverage Area | 5 ft*5 ft | 5 ft*5 ft | 5 ft*5 ft | 6 ft*6 ft |
| Certifications / Approvals | CE , RoHS ,FCC, ETL | |||
| Distance from the plants | ≤ 0,6 m (24") | |||
| Light intensity decay | Max 10% at 36 000 h. Typical usage 50 000 h | |||
| Light efficacy, (380 - 820 nm) | Up to 2,1 μmol/W (spectrum dependent) | |||
| Ambient operating temperature | -10 – +40 | |||
| Warranty | 3- 5 years | |||
Applicatopn Cases
Related products shipment
Packaging & Shipping
| Part No | IP Rate | Real Power | Input Voltage | Product Size(mm) | Packing Size(mm) | Qty/Carton | Carton Size(mm) | N.W / PC(kg) | G.W / PC(kg) |
| PH-B5 | IP54 | 400W ±5% | AC100-277V | 1000*1000*110 | 1150*300*200 | 1 | 1150*300*200 | 11.7 | 12.8 |
| PH-B8 | IP54 | 640W ±5% | AC100-277V | 1000*1000*110 | 1150*390*200 | 1 | 1150*390*200 | 14.7 | 15.9 |
| PH-B10 | IP54 | 800W ±5% | AC100-277V | 1304*1000*110 | 1450*480*200 | 1 | 1450*480*200 | 19 | 20.5 |
1. UPS/DHL/FEDEX/TNT /EMS for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: stock avaiable sample will be delivered immediately ; 3-7 days for trial order; 7- 25 days for batch goods.
Main products
About us
What About the Phlizon's latest led grow light bar ?
1. According to feedback from customers of indoor planting in North American and European market, Phlizon invents the professional full spectrum led grow light for indoor and outdoor planting.
2. Based on Use Samsung lm561b plus/561C / lm301B LEDs for customer choice, ultra high PPFD, replace HPS 600W and 1000W perfectly
3. Full spectrum 3000k + 5000k + 660nm, good for growth stage and flower stage, high yield: >2grams per watt
4. 100% pure aluminum material heat radiation without noisy ,No fan design,longer life span.

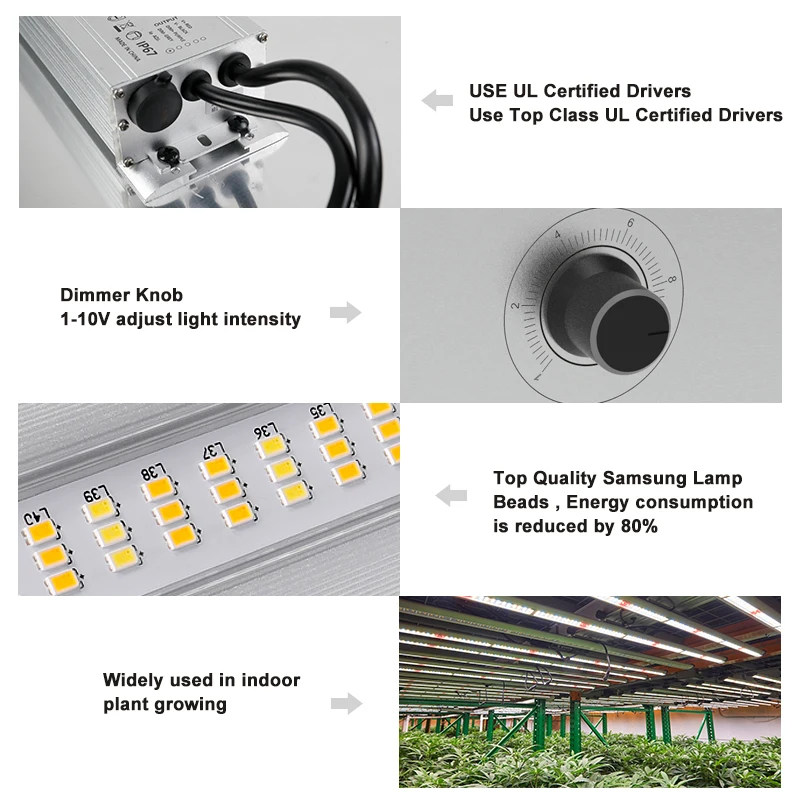

5. Four Standard, multiply function with dimming, 0/1- 10V dimming,PMW wifi control systems are optional
6. 1. High Luminous Efficacy: 210 lm/W, High par value ,1170-1300 PPFD in the 18'' height from your canopy
1. According to feedback from customers of indoor planting in North American and European market, Phlizon invents the professional full spectrum led grow light for indoor and outdoor planting.
2. Based on Use Samsung lm561b plus/561C / lm301B LEDs for customer choice, ultra high PPFD, replace HPS 600W and 1000W perfectly
3. Full spectrum 3000k + 5000k + 660nm, good for growth stage and flower stage, high yield: >2grams per watt
4. 100% pure aluminum material heat radiation without noisy ,No fan design,longer life span.
5. Four Standard, multiply function with dimming, 0/1- 10V dimming,PMW wifi control systems are optional
6. 1. High Luminous Efficacy: 210 lm/W, High par value ,1170-1300 PPFD in the 18'' height from your canopy
Our certificate
Our exhibition
FAQ
Q1.What's the difference between your Phlizon grow light bar and flu spyd light,or other brands ?
1). Phlizon lights has more color and wavelength lights-3000K,5000K,660nm Red and IR 760nm All in One. You don’t need to buy more lights for different color or wavelength. Phlizon multiple bar series light will save you a big budget.
2). 100% pure aluminum material heat radiation,and Phlizon use UV Protection pc cover, prevent the diodes from corrosion and vulcanization in humid environment. This makes Phlizon lights have a far longer lifetime than other brand lights.
3). For user’s safety, Phlizon use electric shock proof covers on every connections.
4)Phlizon use the driver with UL certificats ,the whole light with ETL.
5). Phlizon is more friendly on the price, will save your money.
Q2.What brand of the Leds?
Samsung5630 561b plus ,lm561c,lm301b,301h and smd2835,depend on customers requirements.

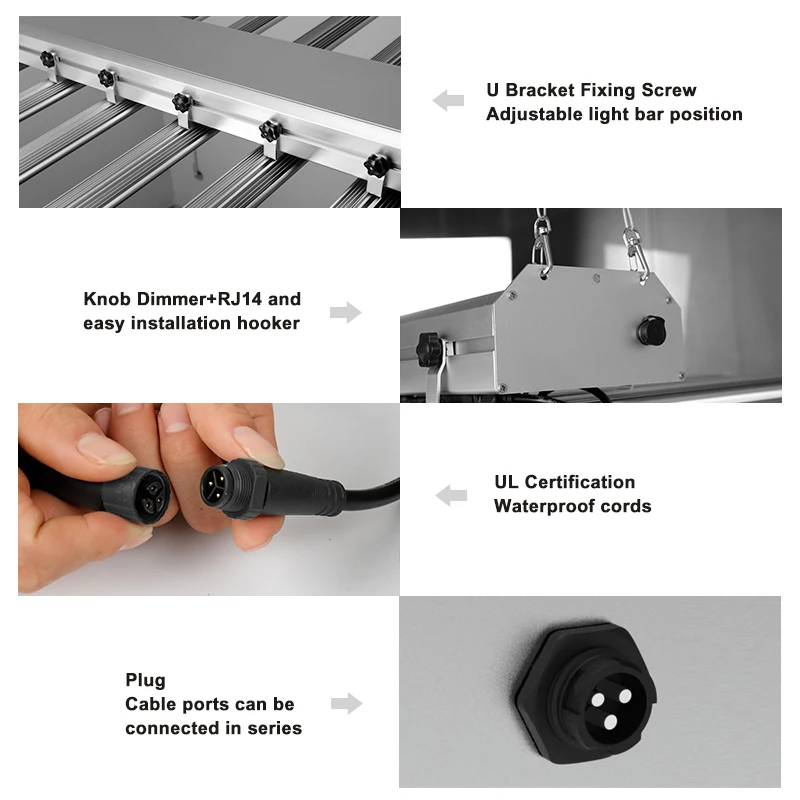

Q3.Can you daisy chain these lights? Yes ,usually used in the projects,need to change cables.
1). Phlizon lights has more color and wavelength lights-3000K,5000K,660nm Red and IR 760nm All in One. You don’t need to buy more lights for different color or wavelength. Phlizon multiple bar series light will save you a big budget.
2). 100% pure aluminum material heat radiation,and Phlizon use UV Protection pc cover, prevent the diodes from corrosion and vulcanization in humid environment. This makes Phlizon lights have a far longer lifetime than other brand lights.
3). For user’s safety, Phlizon use electric shock proof covers on every connections.
4)Phlizon use the driver with UL certificats ,the whole light with ETL.
5). Phlizon is more friendly on the price, will save your money.
Q2.What brand of the Leds?
Samsung5630 561b plus ,lm561c,lm301b,301h and smd2835,depend on customers requirements.
Q3.Can you daisy chain these lights? Yes ,usually used in the projects,need to change cables.
Q4. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Do you offer guarantee for the products?A: Yes, we offer 3-5 years warranty to our products.
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5. Do you offer guarantee for the products?A: Yes, we offer 3-5 years warranty to our products.
Q6. Is it OK to print my logo on led light product?A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?A: Yes, we offer 3-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will send you parts for replacement, as solo is very easy to fix, and all you need is a screw driver.
Q9. Do you have CE, RoHS FCC ETL Certificates?A: Sure we do
Q10. What payment method do you accept?A: We accept PayPal, TT (Bank Telex Transfer), Western Union, LC payment.
