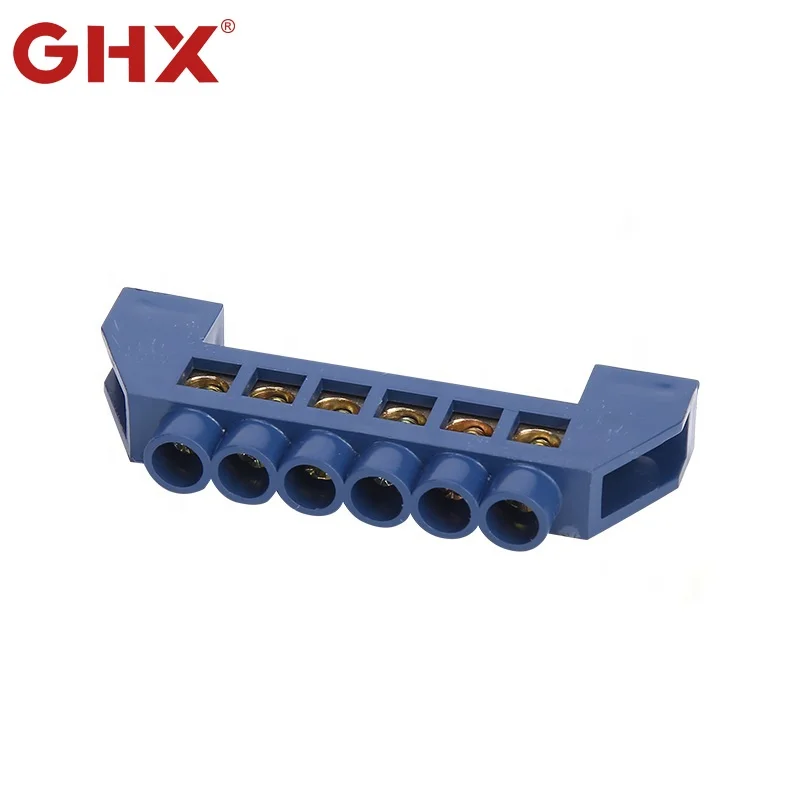

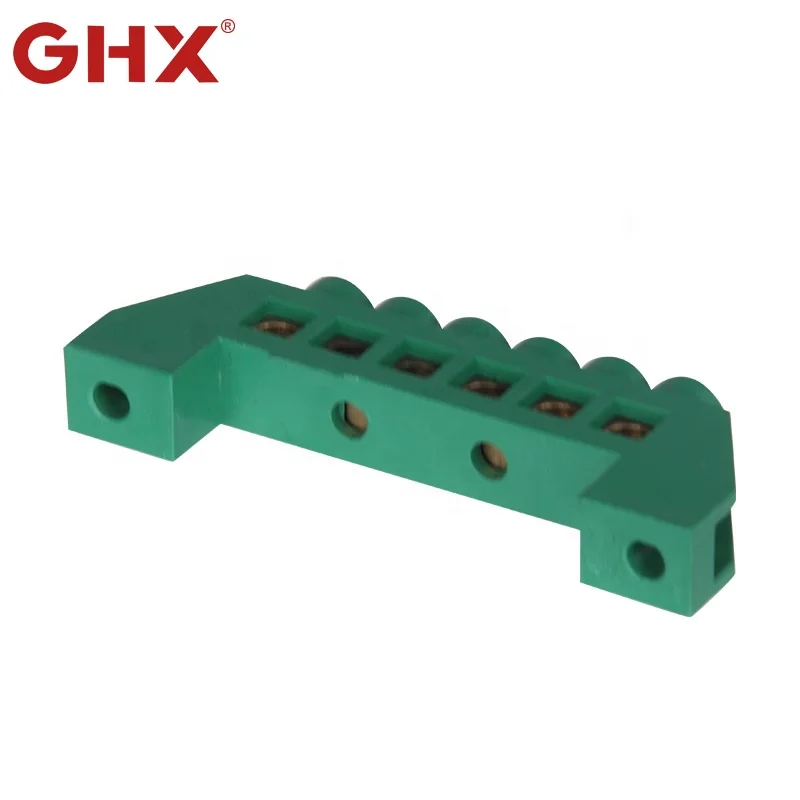

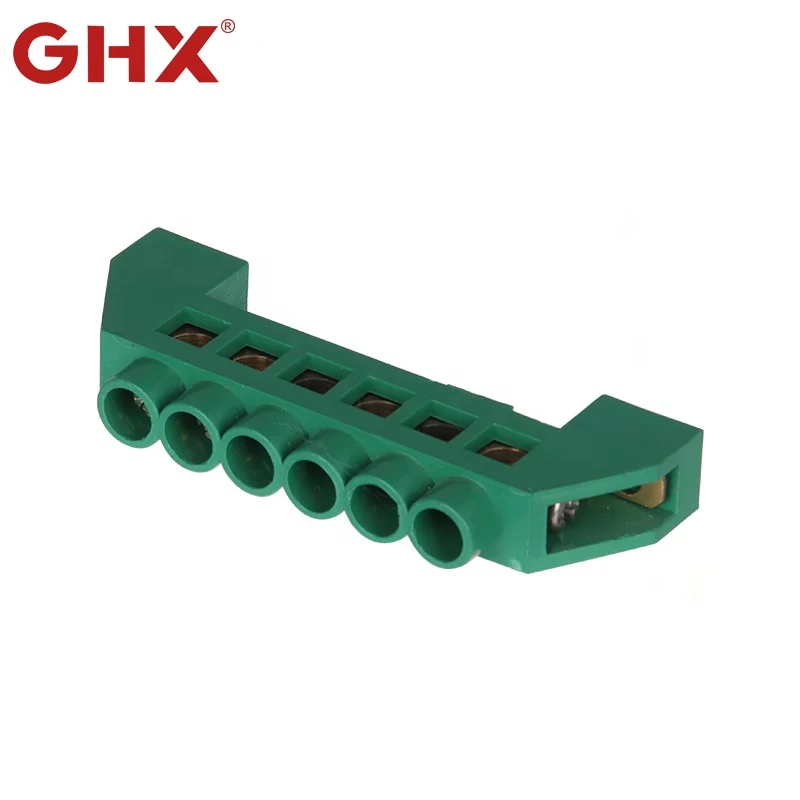

YL 001 whole plastic cover natural Screw Terminal 6Ways
- Category: Terminal Blocks >>>
- Supplier: Zhejiang Yuelong Electric Co. Ltd.
Share on (62132261107):
Product Overview
Description
Product Detail
-Material:ABS,good resist dissolve,good bounce impact fore.Working
Temperature:-20 degree celsius ~85 degree celsius.
-Color:Blue ang green,white,other color need customized.
Drawing---
Dimension---
| Holes | Spec. | L | L1 | L2 | H | W | Φ | Screw Size | Plastic Material |
| W*H | MM | ||||||||
| 4 | 6*9 | 36 | 59.5 | 48.5 | 29 | 11 | 6 | M4*8 | ABS |
| 6 | 6*9 | 53 | 76.5 | 65.5 | 29 | 11 | 6 | M4*8 | ABS |
| 8 | 6*9 | 70 | 93.5 | 82.5 | 29 | 11 | 6 | M4*8 | ABS |
| 10 | 6*9 | 87 | 110.5 | 99.5 | 29 | 11 | 6 | M4*8 | ABS |
| 12 | 6*9 | 105 | 127.5 | 116.5 | 29 | 11 | 6 | M4*8 | ABS |
| 4 | 8*12 | 44 | 59.5 | 48.5 | 32 | 12.5 | 7 | M5*10 | ABS |
| 6 | 8*12 | 54 | 76.5 | 65.5 | 32 | 12.5 | 7 | M5*10 | ABS |
| 8 | 8*12 | 71 | 93.5 | 82.5 | 32 | 12.5 | 7 | M5*10 | ABS |
| 10 | 8*12 | 87 | 110.5 | 99.5 | 32 | 12.5 | 7 | M5*10 | ABS |
| 12 | 8*12 | 105 | 127.5 | 116.5 | 32 | 12.5 | 7 | M5*10 | ABS |
